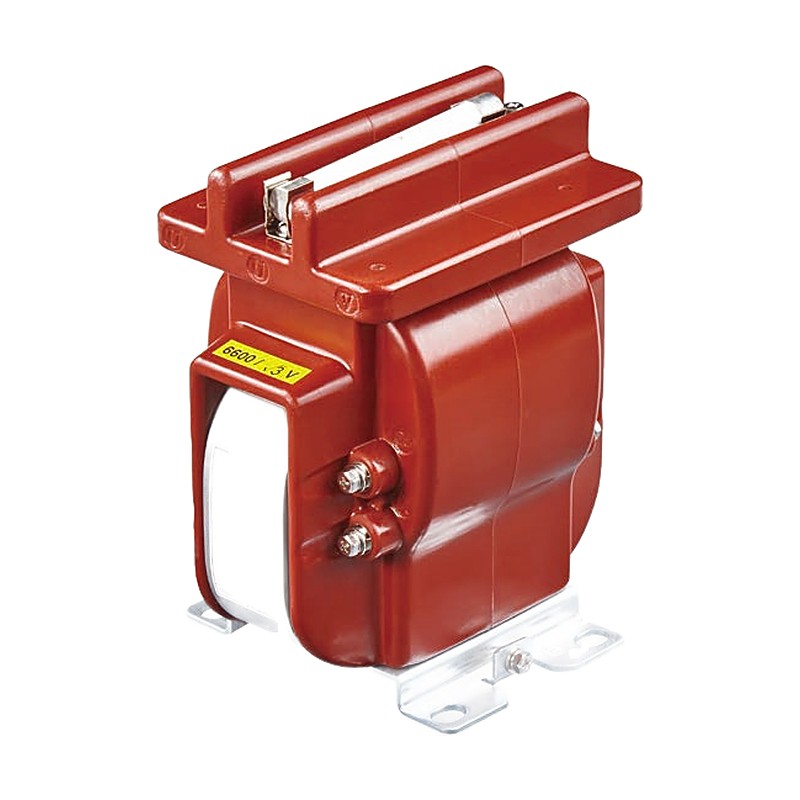

Kyongbo Electric Earthed Voltage Transformer 7.2 kV NH Series

Kyongbo Electric Earthed Voltage Transformer 7.2 kV NH Series

Single-phase line-to-earth epoxy molded voltage transformer for 7.2 kV class metering and protection, with residual winding on T models.

Key features

  • For metering and protection
  • Indoor use
  • Single phase, line-to-earth voltage transformer
  • Epoxy vacuum molded insulation
  • Residual (tertiary) winding on T models

Specifications

Standard KS C 1706 / JEC 1201 / IEC 61869-3
Max. Voltage 7.2 kV (KS/IEC), 6.9 kV (JEC)
Primary Voltage 6600/sqrt3 V
Secondary Voltage 110/sqrt3 or 190/sqrt3 V
Insulation Level 7.2/22/60 kV (6A)
Frequency 60 Hz (others on request)
Tertiary Voltage 110/3 or 190/3 V (T models)
NH23 Class 1.0 (1P) Burden: 50 VA | Weight: approx. 9 kg
NH25 Class 0.5 Burden: 50 VA | Class 1.0 (1P) Burden: 100 VA | Weight: approx. 12 kg
NH26 Class 0.5 Burden: 100 VA | Class 1.0 (1P) Burden: 200 VA | Class 3.0 (3P) Burden: 500 VA | Weight: approx. 17 kg
NH23T Class 1P/3G Burden: 50/100 VA | Weight: approx. 9 kg
NH25T Class 1P/3G Burden: 100/200 VA | Class 1.0/3P Burden: 50/100 VA | Weight: approx. 12 kg
NH26T Class 1P/3G Burden: 200/500 VA | Class 1.0/3P Burden: 100/200 VA | Weight: approx. 17 kg
Voltage TransformersKyongbo Electric
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Earthed Voltage Transformer 7.2 kV NH Series

Brand Kyongbo Electric·Voltage Transformers

Available part numbers (6)

NH23, NH25, NH26, NH23T, NH25T, NH26T

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NH23Class 1.0 (1P) Burden: 50 VA | Weight: approx. 9 kg
NH25Class 0.5 Burden: 50 VA | Class 1.0 (1P) Burden: 100 VA | Weight: approx. 12 kg
NH26Class 0.5 Burden: 100 VA | Class 1.0 (1P) Burden: 200 VA | Class 3.0 (3P) Burden: 500 VA | Weight: approx. 17 kg
NH23TClass 1P/3G Burden: 50/100 VA | Weight: approx. 9 kg
NH25TClass 1P/3G Burden: 100/200 VA | Class 1.0/3P Burden: 50/100 VA | Weight: approx. 12 kg
NH26TClass 1P/3G Burden: 200/500 VA | Class 1.0/3P Burden: 100/200 VA | Weight: approx. 17 kg
