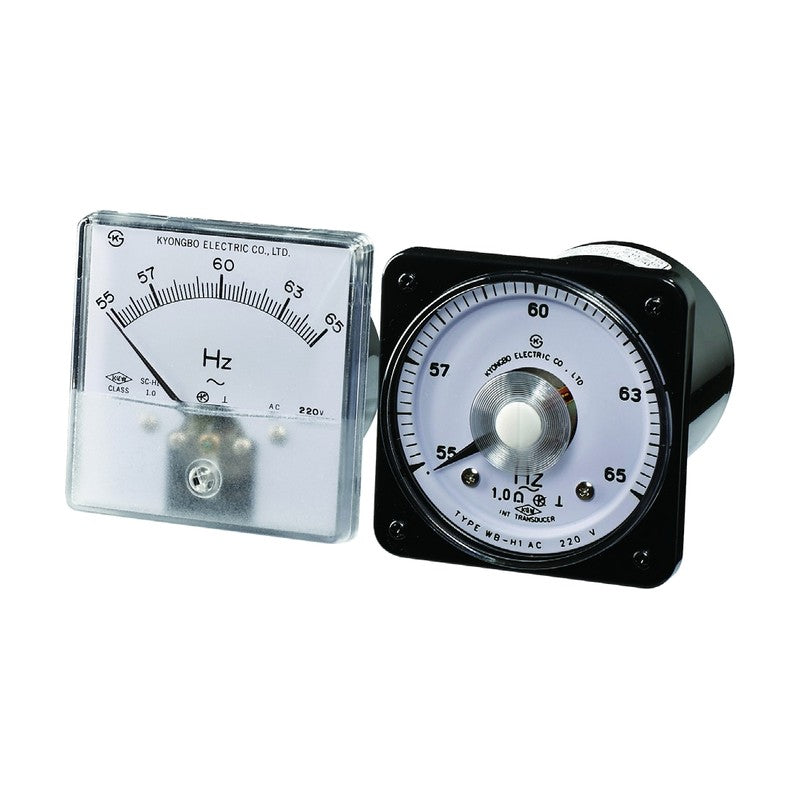

Kyongbo Electric Frequency Meter H1 (Transducer Type)

Kyongbo Electric Frequency Meter H1 (Transducer Type)

Transducer type frequency meter mainly used for generators.

Key features

  • Standard scales 45-55 Hz and 55-65 Hz
  • Needle type pointer
  • Use VT above rated voltage

Specifications

Case Color Black (Munsell N1.5)
Dimensions See catalog pages 324-325
Input AC 110 V to AC 220 V
Accuracy Class 1.0%
Burden 2.0 VA
SC-H1 Size: 80 x 80 mm | Scale Form: Square | Weight: approx. 230 g
SB-H1 Size: 100 x 84 mm | Scale Form: Square | Weight: approx. 255 g
SA-H1 Size: 120 x 100 mm | Scale Form: Square | Weight: approx. 310 g
WB-H1 Size: 80 x 80 mm | Scale Form: Wide angle | Weight: approx. 400 g
WA-H1 Size: 110 x 110 mm | Scale Form: Wide angle | Weight: approx. 530 g
Analog Panel MetersKyongbo Electric
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Frequency Meter H1 (Transducer Type)

Brand Kyongbo Electric·Analog Panel Meters

Available part numbers (5)

SC-H1, SB-H1, SA-H1, WB-H1, WA-H1

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SC-H1Size: 80 x 80 mm | Scale Form: Square | Weight: approx. 230 g
SB-H1Size: 100 x 84 mm | Scale Form: Square | Weight: approx. 255 g
SA-H1Size: 120 x 100 mm | Scale Form: Square | Weight: approx. 310 g
WB-H1Size: 80 x 80 mm | Scale Form: Wide angle | Weight: approx. 400 g
WA-H1Size: 110 x 110 mm | Scale Form: Wide angle | Weight: approx. 530 g
