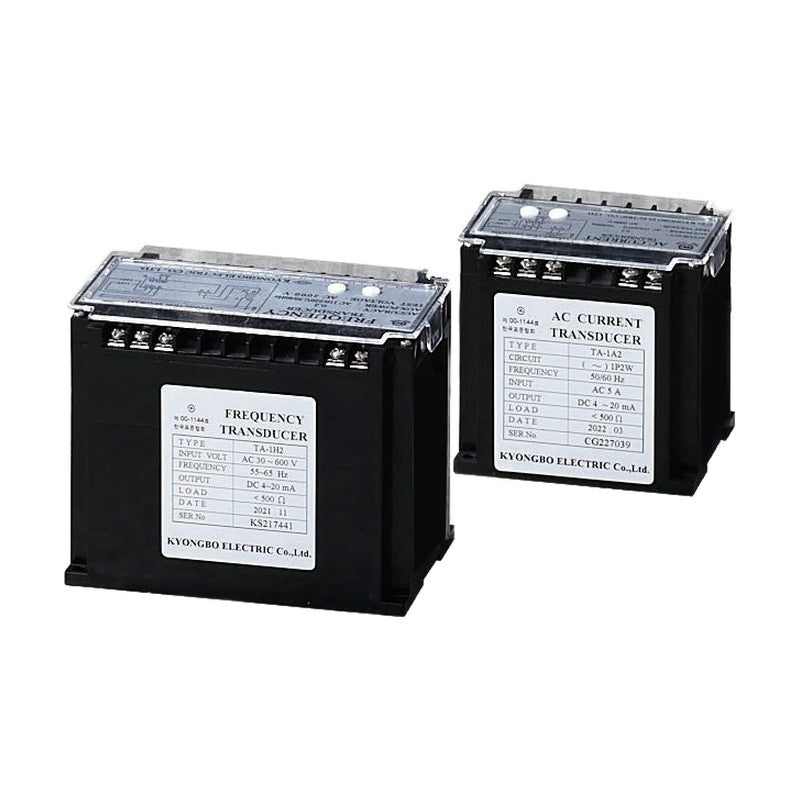

Kyongbo Electric Frequency Transducer TA / TV-H

Kyongbo Electric Frequency Transducer TA / TV-H

Frequency transducer converting AC line frequency into a proportional DC current or voltage signal.

Key features

  • High accuracy
  • Quick response time
  • Low output ripple
  • Input and output fully insulated
  • Readily accessible span and zero adjustment
  • Order-made input, output, aux. power and frequency available

Specifications

Accuracy 0.2% of span
Ripple 0.5% P-P of span
Response Time 1.0 s
Burden 0.5 VA
Auxiliary Power AC 110 / 220 V
Weight approx. 720 g
Case TL
TA-1H1 Output Mode: DC current | Output: 0-1 mA | Load: < 10 kOhm | Rated Voltage: AC 30-600 V | Input Frequency: 45-55 Hz or 55-65 Hz
TA-1H2 Output Mode: DC current | Output: 4-20 mA | Load: < 500 Ohm | Rated Voltage: AC 30-600 V | Input Frequency: 45-55 Hz or 55-65 Hz
TA-1H3 Output Mode: DC current | Output: -1-0-+1 mA | Load: < 5 kOhm | Rated Voltage: AC 30-600 V | Input Frequency: 45-55 Hz or 55-65 Hz
TV-1H1 Output Mode: DC voltage | Output: 0-1 V | Load: > 200 Ohm | Rated Voltage: AC 30-600 V | Input Frequency: 45-55 Hz or 55-65 Hz
TV-1H2 Output Mode: DC voltage | Output: 1-5 V | Load: > 1 kOhm | Rated Voltage: AC 30-600 V | Input Frequency: 45-55 Hz or 55-65 Hz
TV-1H3 Output Mode: DC voltage | Output: -1-0-+1 V | Load: > 200 Ohm | Rated Voltage: AC 30-600 V | Input Frequency: 45-55 Hz or 55-65 Hz
Power TransducersKyongbo Electric
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Frequency Transducer TA / TV-H

Brand Kyongbo Electric·Power Transducers

Available part numbers (6)

TA-1H1, TA-1H2, TA-1H3, TV-1H1, TV-1H2, TV-1H3
