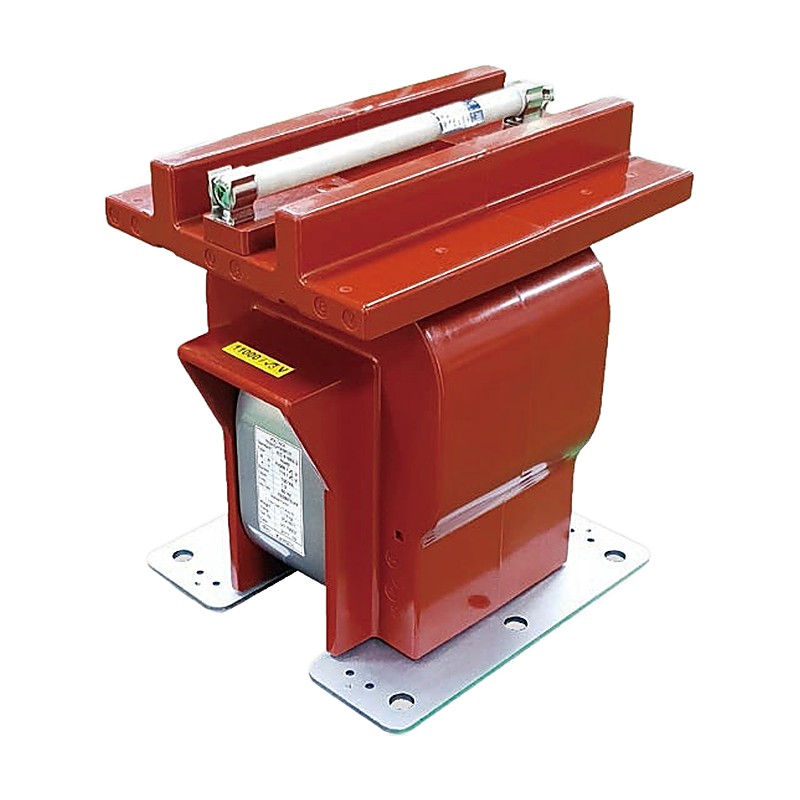

Kyongbo Electric Fused Earthed Voltage Transformer 12 kV NV45

Kyongbo Electric Fused Earthed Voltage Transformer 12 kV NV45

Single-phase line-to-earth epoxy molded voltage transformer for 12 kV class metering and protection, with residual winding on T models.

Key features

  • For metering and protection
  • Indoor use
  • Single phase, line-to-earth voltage transformer
  • Epoxy vacuum molded insulation
  • Residual (tertiary) winding on T models
  • Primary side with fuse

Specifications

Standard KS C 1706 / JEC 1201 / IEC 61869-3
Max. Voltage 11.5 kV (KS/JEC), 12 kV (IEC)
Primary Voltage 11000/sqrt3 or 11400/sqrt3 V
Secondary Voltage 110/sqrt3 or 190/sqrt3 V
Insulation Level 11.5/28/75 kV (10B)
Frequency 60 Hz (others on request)
Tertiary Voltage 110/3 or 190/3 V (T models)
NV45 Class 0.5 Burden: 50 VA | Class 1.0 (1P) Burden: 100 VA | Class 3.0 (3P) Burden: 200 VA | Weight: approx. 23 kg
NV45T Class 1P/3G Burden: 100/100 VA | Class 1.0/3P Burden: 100/100 VA | Weight: approx. 23 kg
Voltage TransformersKyongbo Electric
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Fused Earthed Voltage Transformer 12 kV NV45

Brand Kyongbo Electric·Voltage Transformers

Available part numbers (2)

NV45, NV45T

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NV45Class 0.5 Burden: 50 VA | Class 1.0 (1P) Burden: 100 VA | Class 3.0 (3P) Burden: 200 VA | Weight: approx. 23 kg
NV45TClass 1P/3G Burden: 100/100 VA | Class 1.0/3P Burden: 100/100 VA | Weight: approx. 23 kg
