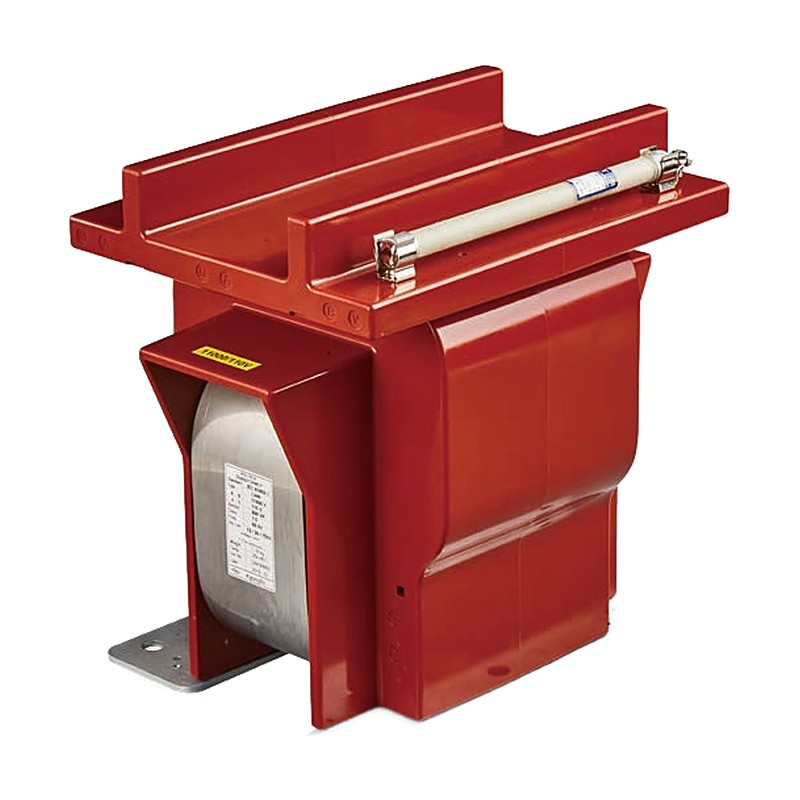

Kyongbo Electric Fused Voltage Transformer 12 kV LV46

Single-phase line-to-line epoxy vacuum molded voltage transformer for 12 kV class metering and protection.

Key features

For metering and protection
Indoor use
Single phase, line-to-line voltage transformer
Epoxy vacuum molded insulation
Primary side with fuse

Specifications

Standard	KS C 1706 / JEC 1201 / IEC 61869-3
Max. Voltage	11.5 kV (KS/JEC), 12 kV (IEC)
Primary Voltage	11000 or 11400 V
Secondary Voltage	110 V
Insulation Level	11.5/28/75 kV (10B)
Frequency	60 Hz (others on request)

LV46

Class 0.5 Burden: 200 VA | Class 1.0 (1P) Burden: 500 VA | Class 3.0 (3P) Burden: 500 VA | Weight: approx. 33 kg | Fuse: Primary side fuse

Voltage TransformersKyongbo Electric

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Fused Voltage Transformer 12 kV LV46

Brand Kyongbo Electric·Voltage Transformers

Available part numbers (1)

LV46

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
