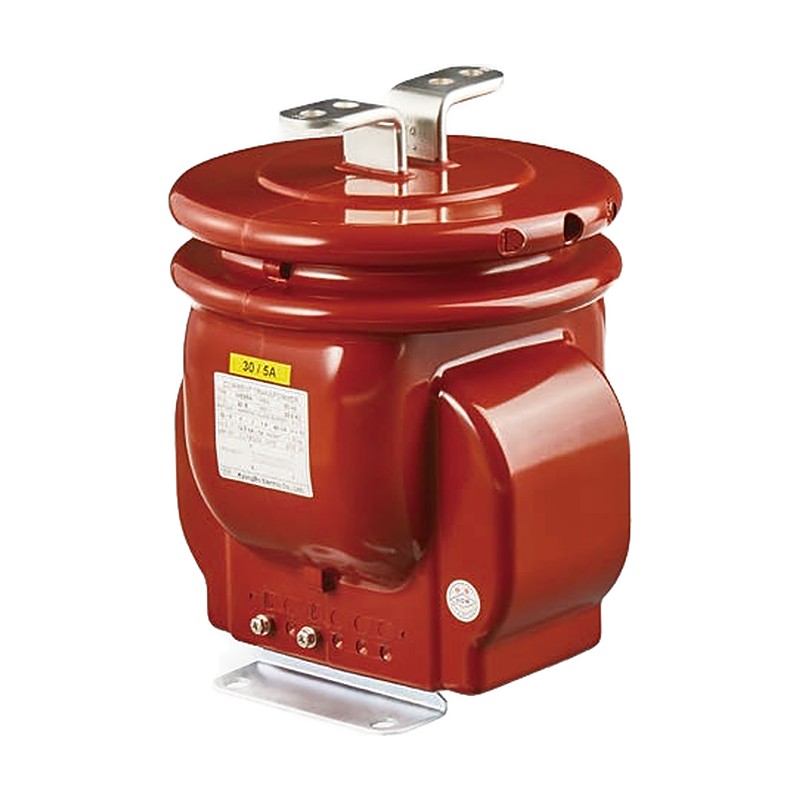

Kyongbo Electric Indoor Winding Type Current Transformer 25.8 kV WE9A Series

Kyongbo Electric Indoor Winding Type Current Transformer 25.8 kV WE9A Series

Indoor epoxy vacuum-molded winding-type current transformer, 25.8 kV class, for metering and protection.

Key features

  • For metering and protection
  • Indoor use
  • Winding type
  • Epoxy vacuum molding insulation
  • 2-core versions available

Specifications

Rated Secondary Current 5 A or 1 A
Rated Frequency 60 Hz (others on request)
Standards KS C 1706, JEC 1201, IEC 61869-2 (IEEE C57.13 on request)
WE9A Service: Metering | Cores: 1 | Ratio: Single | Max. Voltage / Insulation (KS C 1706): 25.8 kV; 25.8/50/125 kV (20B) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Short-Time Current: 40 kA / 1 s | Rated Primary Current: up to 800 A or 800/400 A | Rated Burden: 15~40 VA | Accuracy Class: 1.0 | Continuous Thermal Current: 1.2 In | Weight: approx. 30 kg
WE9DA Service: Metering | Cores: 1 | Ratio: Double | Max. Voltage / Insulation (KS C 1706): 25.8 kV; 25.8/50/125 kV (20B) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Short-Time Current: 40 kA / 1 s | Rated Primary Current: up to 800 A or 800/400 A | Rated Burden: 15~40 VA | Accuracy Class: 1.0 | Continuous Thermal Current: 1.2 In | Weight: approx. 30 kg
WE9RA Service: Protection | Cores: 1 | Ratio: Single | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Short-Time Current: 40 kA / 1 s | Rated Primary Current: up to 800 A or 800/400 A | Rated Burden: 15~40 VA | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Over-Current Factor: n>10 or 20 | Continuous Thermal Current: 1.0 In (JEC) / 1.2 In (IEC) | Weight: approx. 30 kg
WE9DRA Service: Protection | Cores: 1 | Ratio: Double | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Short-Time Current: 40 kA / 1 s | Rated Primary Current: up to 800 A or 800/400 A | Rated Burden: 15~40 VA | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Over-Current Factor: n>10 or 20 | Continuous Thermal Current: 1.0 In (JEC) / 1.2 In (IEC) | Weight: approx. 30 kg
2WE9RA Service: Metering and Protection | Cores: 2 | Ratio: Single | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Short-Time Current: up to 40 kA / 1 s | Accuracy Class: 1.0/1P (JEC) or 1.0/5P, 1.0/10P (IEC) | Rated Burden: 15/15 or 40/40 VA (JEC) / 15/15 or 30/30 VA (IEC)
2WE9DRA Service: Metering and Protection | Cores: 2 | Ratio: Double | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Short-Time Current: up to 40 kA / 1 s | Accuracy Class: 1.0/1P (JEC) or 1.0/5P, 1.0/10P (IEC) | Rated Burden: 15/15 or 40/40 VA (JEC) / 15/15 or 30/30 VA (IEC)
Current TransformersKyongbo Electric
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Indoor Winding Type Current Transformer 25.8 kV WE9A Series

Brand Kyongbo Electric·Current Transformers

Available part numbers (6)

WE9A, WE9DA, WE9RA, WE9DRA, 2WE9RA, 2WE9DRA

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WE9AService: Metering | Cores: 1 | Ratio: Single | Max. Voltage / Insulation (KS C 1706): 25.8 kV; 25.8/50/125 kV (20B) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Short-Time Current: 40 kA / 1 s | Rated Primary Current: up to 800 A or 800/400 A | Rated Burden: 15~40 VA | Accuracy Class: 1.0 | Continuous Thermal Current: 1.2 In | Weight: approx. 30 kg
WE9DAService: Metering | Cores: 1 | Ratio: Double | Max. Voltage / Insulation (KS C 1706): 25.8 kV; 25.8/50/125 kV (20B) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Short-Time Current: 40 kA / 1 s | Rated Primary Current: up to 800 A or 800/400 A | Rated Burden: 15~40 VA | Accuracy Class: 1.0 | Continuous Thermal Current: 1.2 In | Weight: approx. 30 kg
WE9RAService: Protection | Cores: 1 | Ratio: Single | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Short-Time Current: 40 kA / 1 s | Rated Primary Current: up to 800 A or 800/400 A | Rated Burden: 15~40 VA | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Over-Current Factor: n>10 or 20 | Continuous Thermal Current: 1.0 In (JEC) / 1.2 In (IEC) | Weight: approx. 30 kg
WE9DRAService: Protection | Cores: 1 | Ratio: Double | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Short-Time Current: 40 kA / 1 s | Rated Primary Current: up to 800 A or 800/400 A | Rated Burden: 15~40 VA | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Over-Current Factor: n>10 or 20 | Continuous Thermal Current: 1.0 In (JEC) / 1.2 In (IEC) | Weight: approx. 30 kg
2WE9RAService: Metering and Protection | Cores: 2 | Ratio: Single | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Short-Time Current: up to 40 kA / 1 s | Accuracy Class: 1.0/1P (JEC) or 1.0/5P, 1.0/10P (IEC) | Rated Burden: 15/15 or 40/40 VA (JEC) / 15/15 or 30/30 VA (IEC)
2WE9DRAService: Metering and Protection | Cores: 2 | Ratio: Double | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Short-Time Current: up to 40 kA / 1 s | Accuracy Class: 1.0/1P (JEC) or 1.0/5P, 1.0/10P (IEC) | Rated Burden: 15/15 or 40/40 VA (JEC) / 15/15 or 30/30 VA (IEC)
