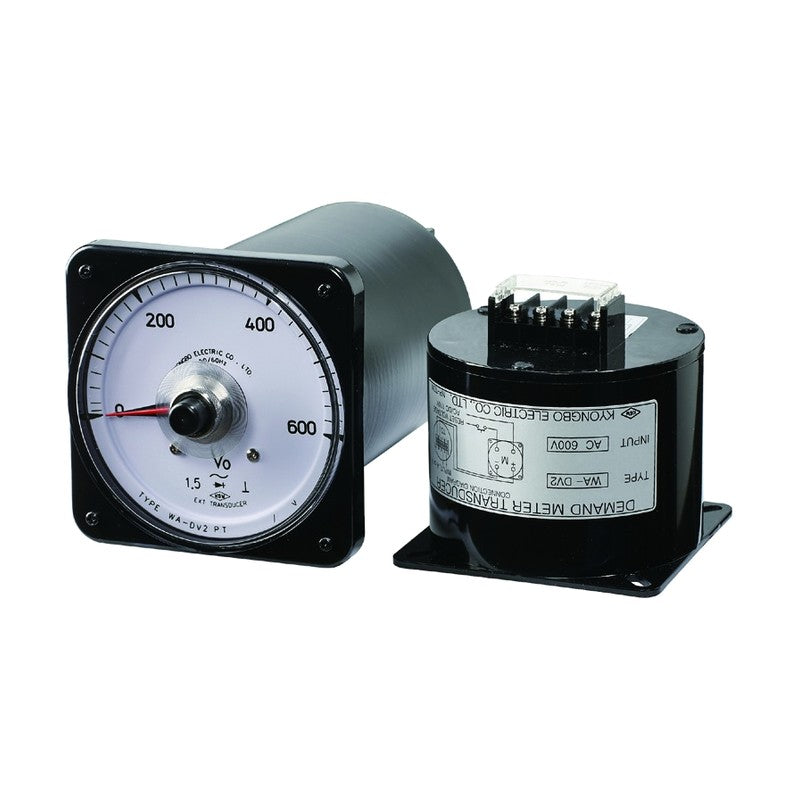

Kyongbo Electric Maximum Demand Meter WA-D

Kyongbo Electric Maximum Demand Meter WA-D

This meter memorizes the maximum instantaneous transient voltage or current during short circuit or ground faults on transmission and distribution lines with a red pointer.

Key features

  • Red memory pointer for maximum value
  • Manual or electrical reset (AC/DC 110 V)

Specifications

Case Color Black (Munsell N1.5)
Dimensions See catalog pages 324-325
Size 110 x 110 mm
Scale Form Wide angle
Accuracy Class 1.5%
WA-DV2 Meter: Ground voltage | Input: AC 150 V to AC 259 V | Burden: 10 VA | Frequency: 50/60 Hz | Weight: approx. 3060 g
WA-DA2 Meter: Ground current | Input: AC 1 A or AC 5 A | Burden: 5 VA | Frequency: 50/60 Hz | Weight: approx. 3040 g
WA-DW3 Meter: Watt | Input: 110 V, 5 A | Frequency: 50/60 Hz | Burden: Current 1 VA/phase, voltage 0.5 VA/phase | Weight: approx. 3530 g
WA-DUW4 Meter: Watt | Input: 190/sqrt3 V, 5 A | Frequency: 50/60 Hz | Burden: Current 1 VA/phase, voltage 0.5 VA/phase | Weight: approx. 3710 g
WA-DR3 Meter: Var | Input: 110 V, 5 A | Frequency: 50/60 Hz | Burden: Current 1 VA/phase, voltage 0.5 VA/phase | Weight: approx. 3530 g
WA-DUR4 Meter: Var | Input: 190/sqrt3 V, 5 A | Frequency: 50 Hz or 60 Hz | Burden: Current 1 VA/phase, voltage 0.5 VA/phase | Weight: approx. 3750 g
Analog Panel MetersKyongbo Electric
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Maximum Demand Meter WA-D

Brand Kyongbo Electric·Analog Panel Meters

Available part numbers (6)

WA-DV2, WA-DA2, WA-DW3, WA-DUW4, WA-DR3, WA-DUR4

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WA-DV2Meter: Ground voltage | Input: AC 150 V to AC 259 V | Burden: 10 VA | Frequency: 50/60 Hz | Weight: approx. 3060 g
WA-DA2Meter: Ground current | Input: AC 1 A or AC 5 A | Burden: 5 VA | Frequency: 50/60 Hz | Weight: approx. 3040 g
WA-DW3Meter: Watt | Input: 110 V, 5 A | Frequency: 50/60 Hz | Burden: Current 1 VA/phase, voltage 0.5 VA/phase | Weight: approx. 3530 g
WA-DUW4Meter: Watt | Input: 190/sqrt3 V, 5 A | Frequency: 50/60 Hz | Burden: Current 1 VA/phase, voltage 0.5 VA/phase | Weight: approx. 3710 g
WA-DR3Meter: Var | Input: 110 V, 5 A | Frequency: 50/60 Hz | Burden: Current 1 VA/phase, voltage 0.5 VA/phase | Weight: approx. 3530 g
WA-DUR4Meter: Var | Input: 190/sqrt3 V, 5 A | Frequency: 50 Hz or 60 Hz | Burden: Current 1 VA/phase, voltage 0.5 VA/phase | Weight: approx. 3750 g
