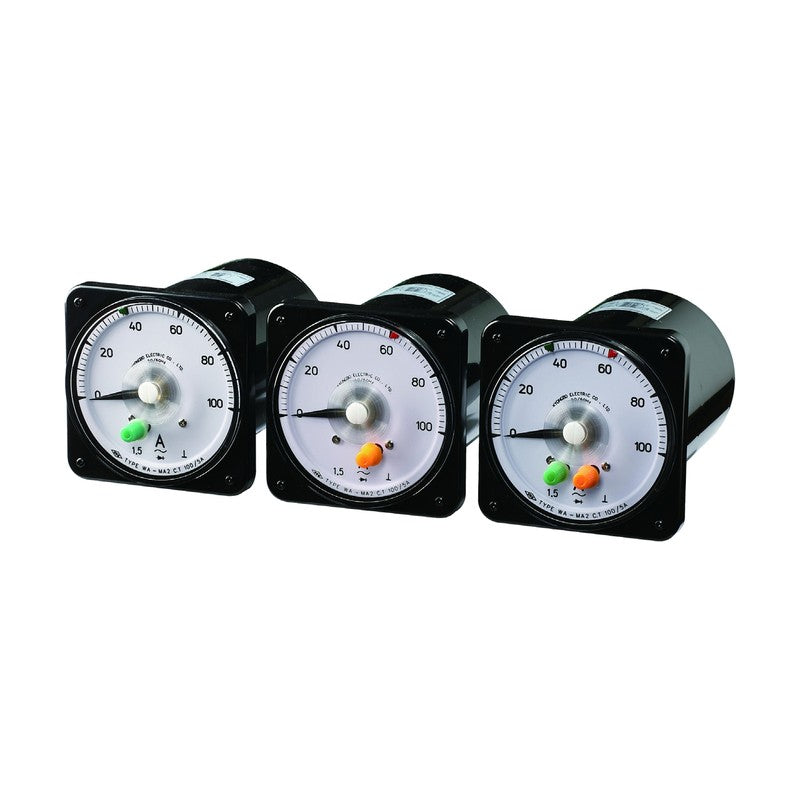

• Kyongbo Electric Meter Relay (Photoelectric Type)
1 1

Kyongbo Electric Meter Relay (Photoelectric Type)

Kyongbo Electric Meter Relay (Photoelectric Type)

Meter relays add non-contact high and/or low limit setpoint pointers to current, voltage, power, var, power factor or frequency meters for alarm or trip signals.

Key features

  • Photoelectric sensing of Hi and Lo setpoints
  • Passing signal retaining type output
  • Low limit, high limit or high/low limit versions
  • External transducer (EXT T/D)

Specifications

Case Color Black (Munsell N1.5)
Dimensions See catalog pages 324-325
WB-MA2 Meter: Ammeter | Size: 80 x 80 mm | Rating: AC 5 A | Frequency: 50/60 Hz | Burden: 1.5 VA | Accuracy Class: 1.5% | Weight: approx. 920 g
WB-MA1 Meter: Ammeter | Size: 80 x 80 mm | Rating: DC 50 mV | Burden: 50 mV drop | Accuracy Class: 1.5% | Weight: approx. 850 g
WA-MA2 Meter: Ammeter | Size: 110 x 110 mm | Rating: AC 5 A | Frequency: 50/60 Hz | Burden: 1.5 VA | Accuracy Class: 1.5% | Weight: approx. 850 g
WA-MA1 Meter: Ammeter | Size: 110 x 110 mm | Rating: DC 50 mV | Burden: 50 mV drop | Accuracy Class: 1.5% | Weight: approx. 770 g
WB-MV2 Meter: Voltmeter | Size: 80 x 80 mm | Rating: AC 150 V | Frequency: 50/60 Hz | Burden: 1.5 VA | Accuracy Class: 1.5% | Weight: approx. 860 g
WB-MV1 Meter: Voltmeter | Size: 80 x 80 mm | Rating: DC 150 V | Burden: 1 kOhm/V | Accuracy Class: 1.5% | Weight: approx. 860 g
WA-MV2 Meter: Voltmeter | Size: 110 x 110 mm | Rating: AC 150 V | Frequency: 50/60 Hz | Burden: 1.5 VA | Accuracy Class: 1.5% | Weight: approx. 750 g
WA-MV1 Meter: Voltmeter | Size: 110 x 110 mm | Rating: DC 150 V | Burden: 1 kOhm/V | Accuracy Class: 1.5% | Weight: approx. 750 g
WB-MW1 Meter: Wattmeter | Size: 80 x 80 mm | Circuit: 1P 2W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1260 g
WB-MW2 Meter: Wattmeter | Size: 80 x 80 mm | Circuit: 1P 3W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1320 g
WB-MW3 Meter: Wattmeter | Size: 80 x 80 mm | Circuit: 3P 3W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1320 g
WB-MW4 Meter: Wattmeter | Size: 80 x 80 mm | Circuit: 3P 4W | Rating: 190/sqrt3 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1320 g
WB-MUW4 Meter: Wattmeter | Size: 80 x 80 mm | Circuit: 3P 4W unbalanced | Rating: 190/sqrt3 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1450 g
WA-MW1 Meter: Wattmeter | Size: 110 x 110 mm | Circuit: 1P 2W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1160 g
WA-MW2 Meter: Wattmeter | Size: 110 x 110 mm | Circuit: 1P 3W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1230 g
WA-MW3 Meter: Wattmeter | Size: 110 x 110 mm | Circuit: 3P 3W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1230 g
WA-MW4 Meter: Wattmeter | Size: 110 x 110 mm | Circuit: 3P 4W | Rating: 190/sqrt3 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1230 g
WA-MUW4 Meter: Wattmeter | Size: 110 x 110 mm | Circuit: 3P 4W unbalanced | Rating: 190/sqrt3 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1350 g
WB-MR1 Meter: Varmeter | Size: 80 x 80 mm | Circuit: 1P 2W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1260 g
WB-MR2 Meter: Varmeter | Size: 80 x 80 mm | Circuit: 1P 3W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1320 g
WB-MR3 Meter: Varmeter | Size: 80 x 80 mm | Circuit: 3P 3W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1320 g
WB-MR4 Meter: Varmeter | Size: 80 x 80 mm | Circuit: 3P 4W | Rating: 190/sqrt3 V, 5 A | Frequency: 50 or 60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1320 g
WB-MUR4 Meter: Varmeter | Size: 80 x 80 mm | Circuit: 3P 4W unbalanced | Rating: 190/sqrt3 V, 5 A | Frequency: 50 or 60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1450 g
WA-MR1 Meter: Varmeter | Size: 110 x 110 mm | Circuit: 1P 2W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1160 g
WA-MR2 Meter: Varmeter | Size: 110 x 110 mm | Circuit: 1P 3W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1230 g
WA-MR3 Meter: Varmeter | Size: 110 x 110 mm | Circuit: 3P 3W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1230 g
WA-MR4 Meter: Varmeter | Size: 110 x 110 mm | Circuit: 3P 4W | Rating: 190/sqrt3 V, 5 A | Frequency: 50 or 60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1230 g
WA-MUR4 Meter: Varmeter | Size: 110 x 110 mm | Circuit: 3P 4W unbalanced | Rating: 190/sqrt3 V, 5 A | Frequency: 50 or 60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1350 g
WB-MP1 Meter: Power factor meter | Size: 80 x 80 mm | Circuit: 1P 2W | Rating: 110 V, 5 A | Frequency: 50 or 60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 5.0% | Weight: approx. 1320 g
WB-MP2 Meter: Power factor meter | Size: 80 x 80 mm | Circuit: 1P 3W | Rating: 110 V, 5 A | Frequency: 50 or 60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 5.0% | Weight: approx. 1390 g
WB-MP3 Meter: Power factor meter | Size: 80 x 80 mm | Circuit: 3P 3W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 5.0% | Weight: approx. 1170 g
WB-MUP3 Meter: Power factor meter | Size: 80 x 80 mm | Circuit: 3P 3W unbalanced | Rating: 110 V, 5 A | Frequency: 50 or 60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 5.0% | Weight: approx. 1190 g
WB-MP4 Meter: Power factor meter | Size: 80 x 80 mm | Circuit: 3P 4W | Rating: 190/sqrt3 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 5.0% | Weight: approx. 1170 g
WB-MUP4 Meter: Power factor meter | Size: 80 x 80 mm | Circuit: 3P 4W unbalanced | Rating: 190/sqrt3 V, 5 A | Frequency: 50 or 60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 5.0% | Weight: approx. 1450 g
WA-MP1 Meter: Power factor meter | Size: 110 x 110 mm | Circuit: 1P 2W | Rating: 110 V, 5 A | Frequency: 50 or 60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 5.0% | Weight: approx. 1230 g
WA-MP2 Meter: Power factor meter | Size: 110 x 110 mm | Circuit: 1P 3W | Rating: 110 V, 5 A | Frequency: 50 or 60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 5.0% | Weight: approx. 1290 g
WA-MP3 Meter: Power factor meter | Size: 110 x 110 mm | Circuit: 3P 3W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 5.0% | Weight: approx. 1070 g
WA-MUP3 Meter: Power factor meter | Size: 110 x 110 mm | Circuit: 3P 3W unbalanced | Rating: 110 V, 5 A | Frequency: 50 or 60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 5.0% | Weight: approx. 1290 g
WA-MP4 Meter: Power factor meter | Size: 110 x 110 mm | Circuit: 3P 4W | Rating: 190/sqrt3 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 5.0% | Weight: approx. 1070 g
WA-MUP4 Meter: Power factor meter | Size: 110 x 110 mm | Circuit: 3P 4W unbalanced | Rating: 190/sqrt3 V, 5 A | Frequency: 50 or 60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 5.0% | Weight: approx. 1350 g
WB-MH1 Meter: Frequency meter | Size: 80 x 80 mm | Rating: AC 110 V | Burden: 2.0 VA | Accuracy Class: 1.0% | Weight: approx. 930 g
WA-MH1 Meter: Frequency meter | Size: 110 x 110 mm | Rating: AC 110 V | Burden: 2.0 VA | Accuracy Class: 1.0% | Weight: approx. 830 g
Analog Panel MetersKyongbo Electric
42 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Meter Relay (Photoelectric Type)

Brand Kyongbo Electric·Analog Panel Meters

Available part numbers (42)

WB-MA2, WB-MA1, WA-MA2, WA-MA1, WB-MV2, WB-MV1, WA-MV2, WA-MV1, WB-MW1, WB-MW2 + 32 more — see full table ↓

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WB-MA2Meter: Ammeter | Size: 80 x 80 mm | Rating: AC 5 A | Frequency: 50/60 Hz | Burden: 1.5 VA | Accuracy Class: 1.5% | Weight: approx. 920 g
WB-MA1Meter: Ammeter | Size: 80 x 80 mm | Rating: DC 50 mV | Burden: 50 mV drop | Accuracy Class: 1.5% | Weight: approx. 850 g
WA-MA2Meter: Ammeter | Size: 110 x 110 mm | Rating: AC 5 A | Frequency: 50/60 Hz | Burden: 1.5 VA | Accuracy Class: 1.5% | Weight: approx. 850 g
WA-MA1Meter: Ammeter | Size: 110 x 110 mm | Rating: DC 50 mV | Burden: 50 mV drop | Accuracy Class: 1.5% | Weight: approx. 770 g
WB-MV2Meter: Voltmeter | Size: 80 x 80 mm | Rating: AC 150 V | Frequency: 50/60 Hz | Burden: 1.5 VA | Accuracy Class: 1.5% | Weight: approx. 860 g
WB-MV1Meter: Voltmeter | Size: 80 x 80 mm | Rating: DC 150 V | Burden: 1 kOhm/V | Accuracy Class: 1.5% | Weight: approx. 860 g
WA-MV2Meter: Voltmeter | Size: 110 x 110 mm | Rating: AC 150 V | Frequency: 50/60 Hz | Burden: 1.5 VA | Accuracy Class: 1.5% | Weight: approx. 750 g
WA-MV1Meter: Voltmeter | Size: 110 x 110 mm | Rating: DC 150 V | Burden: 1 kOhm/V | Accuracy Class: 1.5% | Weight: approx. 750 g
WB-MW1Meter: Wattmeter | Size: 80 x 80 mm | Circuit: 1P 2W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1260 g
WB-MW2Meter: Wattmeter | Size: 80 x 80 mm | Circuit: 1P 3W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1320 g
WB-MW3Meter: Wattmeter | Size: 80 x 80 mm | Circuit: 3P 3W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1320 g
WB-MW4Meter: Wattmeter | Size: 80 x 80 mm | Circuit: 3P 4W | Rating: 190/sqrt3 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1320 g
WB-MUW4Meter: Wattmeter | Size: 80 x 80 mm | Circuit: 3P 4W unbalanced | Rating: 190/sqrt3 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1450 g
WA-MW1Meter: Wattmeter | Size: 110 x 110 mm | Circuit: 1P 2W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1160 g
WA-MW2Meter: Wattmeter | Size: 110 x 110 mm | Circuit: 1P 3W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1230 g
WA-MW3Meter: Wattmeter | Size: 110 x 110 mm | Circuit: 3P 3W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1230 g
WA-MW4Meter: Wattmeter | Size: 110 x 110 mm | Circuit: 3P 4W | Rating: 190/sqrt3 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1230 g
WA-MUW4Meter: Wattmeter | Size: 110 x 110 mm | Circuit: 3P 4W unbalanced | Rating: 190/sqrt3 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1350 g
WB-MR1Meter: Varmeter | Size: 80 x 80 mm | Circuit: 1P 2W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1260 g
WB-MR2Meter: Varmeter | Size: 80 x 80 mm | Circuit: 1P 3W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1320 g
WB-MR3Meter: Varmeter | Size: 80 x 80 mm | Circuit: 3P 3W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1320 g
WB-MR4Meter: Varmeter | Size: 80 x 80 mm | Circuit: 3P 4W | Rating: 190/sqrt3 V, 5 A | Frequency: 50 or 60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1320 g
WB-MUR4Meter: Varmeter | Size: 80 x 80 mm | Circuit: 3P 4W unbalanced | Rating: 190/sqrt3 V, 5 A | Frequency: 50 or 60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1450 g
WA-MR1Meter: Varmeter | Size: 110 x 110 mm | Circuit: 1P 2W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1160 g
WA-MR2Meter: Varmeter | Size: 110 x 110 mm | Circuit: 1P 3W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1230 g
WA-MR3Meter: Varmeter | Size: 110 x 110 mm | Circuit: 3P 3W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1230 g
WA-MR4Meter: Varmeter | Size: 110 x 110 mm | Circuit: 3P 4W | Rating: 190/sqrt3 V, 5 A | Frequency: 50 or 60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1230 g
WA-MUR4Meter: Varmeter | Size: 110 x 110 mm | Circuit: 3P 4W unbalanced | Rating: 190/sqrt3 V, 5 A | Frequency: 50 or 60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 1.5% | Weight: approx. 1350 g
WB-MP1Meter: Power factor meter | Size: 80 x 80 mm | Circuit: 1P 2W | Rating: 110 V, 5 A | Frequency: 50 or 60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 5.0% | Weight: approx. 1320 g
WB-MP2Meter: Power factor meter | Size: 80 x 80 mm | Circuit: 1P 3W | Rating: 110 V, 5 A | Frequency: 50 or 60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 5.0% | Weight: approx. 1390 g
WB-MP3Meter: Power factor meter | Size: 80 x 80 mm | Circuit: 3P 3W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 5.0% | Weight: approx. 1170 g
WB-MUP3Meter: Power factor meter | Size: 80 x 80 mm | Circuit: 3P 3W unbalanced | Rating: 110 V, 5 A | Frequency: 50 or 60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 5.0% | Weight: approx. 1190 g
WB-MP4Meter: Power factor meter | Size: 80 x 80 mm | Circuit: 3P 4W | Rating: 190/sqrt3 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 5.0% | Weight: approx. 1170 g
WB-MUP4Meter: Power factor meter | Size: 80 x 80 mm | Circuit: 3P 4W unbalanced | Rating: 190/sqrt3 V, 5 A | Frequency: 50 or 60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 5.0% | Weight: approx. 1450 g
WA-MP1Meter: Power factor meter | Size: 110 x 110 mm | Circuit: 1P 2W | Rating: 110 V, 5 A | Frequency: 50 or 60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 5.0% | Weight: approx. 1230 g
WA-MP2Meter: Power factor meter | Size: 110 x 110 mm | Circuit: 1P 3W | Rating: 110 V, 5 A | Frequency: 50 or 60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 5.0% | Weight: approx. 1290 g
WA-MP3Meter: Power factor meter | Size: 110 x 110 mm | Circuit: 3P 3W | Rating: 110 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 5.0% | Weight: approx. 1070 g
WA-MUP3Meter: Power factor meter | Size: 110 x 110 mm | Circuit: 3P 3W unbalanced | Rating: 110 V, 5 A | Frequency: 50 or 60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 5.0% | Weight: approx. 1290 g
WA-MP4Meter: Power factor meter | Size: 110 x 110 mm | Circuit: 3P 4W | Rating: 190/sqrt3 V, 5 A | Frequency: 50/60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 5.0% | Weight: approx. 1070 g
WA-MUP4Meter: Power factor meter | Size: 110 x 110 mm | Circuit: 3P 4W unbalanced | Rating: 190/sqrt3 V, 5 A | Frequency: 50 or 60 Hz | Burden: A: 0.5 VA, V: 0.5 VA | Accuracy Class: 5.0% | Weight: approx. 1350 g
WB-MH1Meter: Frequency meter | Size: 80 x 80 mm | Rating: AC 110 V | Burden: 2.0 VA | Accuracy Class: 1.0% | Weight: approx. 930 g
WA-MH1Meter: Frequency meter | Size: 110 x 110 mm | Rating: AC 110 V | Burden: 2.0 VA | Accuracy Class: 1.0% | Weight: approx. 830 g

Need a different model, or a part not listed here? Send us your parts list →
