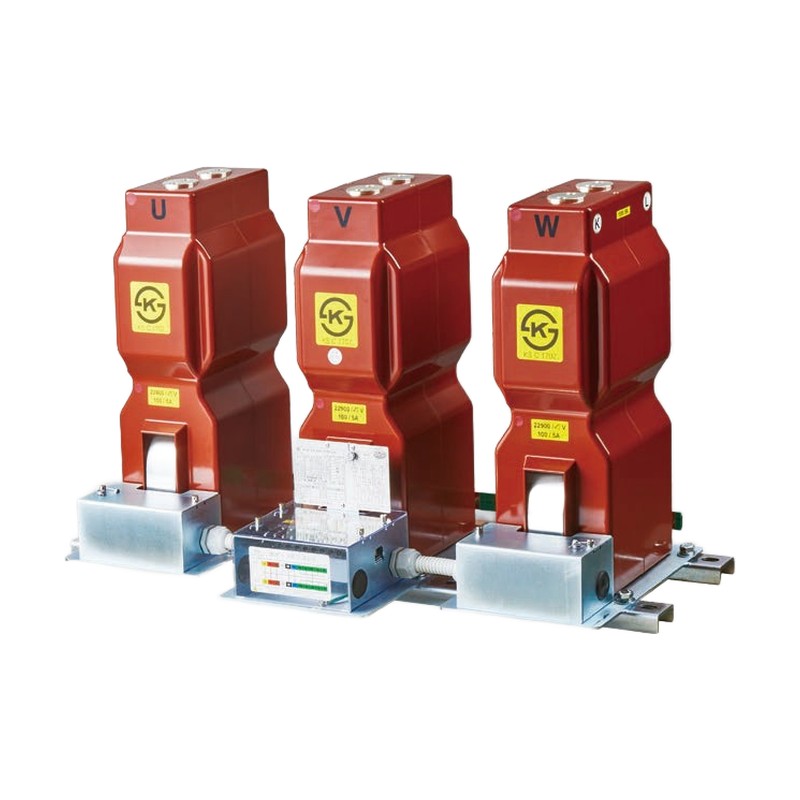

Kyongbo Electric Metering Outfit MOF 25.8 kV VCT20

Indoor 3-phase 4-wire combined voltage-current transformer (MOF) for 25.8 kV power metering, epoxy vacuum molded.

Key features

For power metering service
Indoor use
3-phase 4-wire, earthed neutral system
Epoxy vacuum molded insulation
K-side and L-side terminal arrangements

Specifications

Standard	KS C 1707
Insulation Level	25.8/50/150 kV
Phase	3P4W
Voltage Ratio	22900/sqrt3 / 190/sqrt3 V
Voltage Burden	3 x 25 VA
Current Ratio	5-20/5, 20-50/5, 50-300/5, 300-1200/5 A
Current Burden	3 x 25 VA
Short Time Current	150In (5-20 A), 75In (20-50 A), 40In (50-1200 A)
Class	0.5W (to 300 A), 0.3W (300-1200 A)
Frequency	60 Hz

VCT20		Application: Receiving \| Weight: approx. 155 kg
VCT20-TR		Application: Combined transmission and receiving \| Weight: approx. 165 kg

Metering Outfits (MOF)Kyongbo Electric

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Metering Outfit MOF 25.8 kV VCT20

Brand Kyongbo Electric·Metering Outfits (MOF)

Available part numbers (2)

VCT20, VCT20-TR
