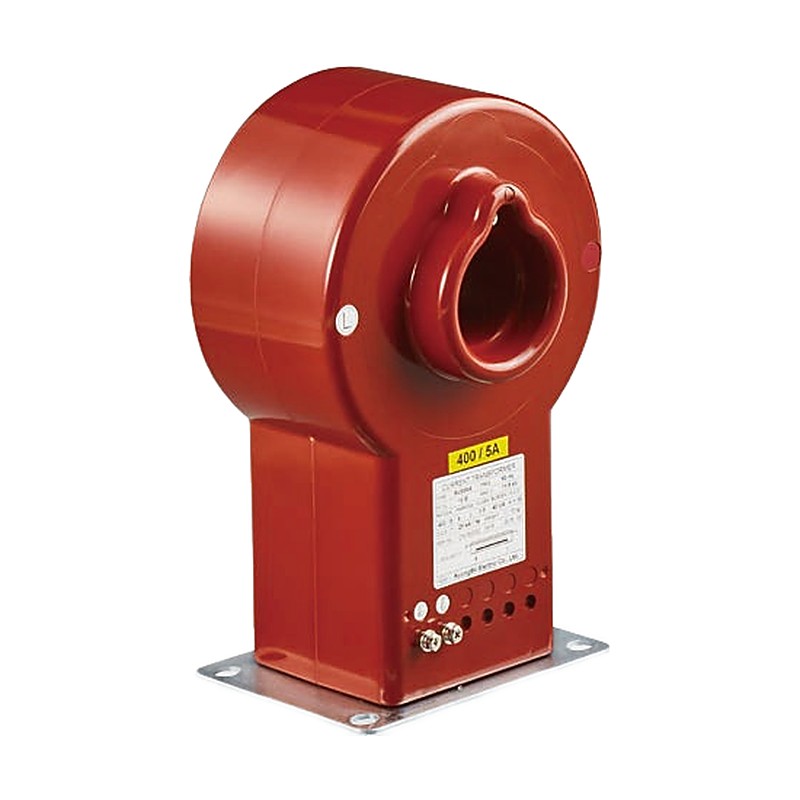

Kyongbo Electric Ring Type Current Transformer 12 kV RV5A Series

Kyongbo Electric Ring Type Current Transformer 12 kV RV5A Series

Indoor epoxy vacuum-molded ring-type current transformer, 12 kV class, through which the primary cable or bus-bar passes, for metering and protection.

Key features

  • For metering and protection
  • Indoor use
  • Primary cable or bus-bar through type
  • Epoxy vacuum molding insulation
  • Versions with tertiary winding for ground-fault detection

Specifications

Rated Secondary Current 5 A or 1 A
Short-Time Current 40 In ~ 40 kA / 1 s
Rated Frequency 60 Hz (others on request)
Standards KS C 1706, JEC 1201, IEC 61869-2 (IEEE C57.13 on request)
RV55A Service: Metering | Cores: 1 | Ratio: Single | Current Ratio (A): 150~2000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 11.5 kV; 11.5/28/75 kV (10B) | Max. Voltage / Insulation (IEC 61869-2): 12 kV; 12/28/75 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 16 kg
RV55DA Service: Metering | Cores: 1 | Ratio: Double | Current Ratio (A): 300/150~2000/1000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 11.5 kV; 11.5/28/75 kV (10B) | Max. Voltage / Insulation (IEC 61869-2): 12 kV; 12/28/75 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 16 kg
RV55RA Service: Protection | Cores: 1 | Ratio: Single | Current Ratio (A): 120~2000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 11.5 kV; 11.5/28/75 kV | Max. Voltage / Insulation (IEC 61869-2): 12 kV; 12/28/75 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 16 kg
RV55DRA Service: Protection | Cores: 1 | Ratio: Double | Current Ratio (A): 200/100~2000/1000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 11.5 kV; 11.5/28/75 kV | Max. Voltage / Insulation (IEC 61869-2): 12 kV; 12/28/75 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 16 kg
RV55RAT Service: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Single | Current Ratio (A): 400~600/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 11.5 kV; 11.5/28/75 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 16 kg
RV55DRAT Service: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Double | Current Ratio (A): 400/200~600/300/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 11.5 kV; 11.5/28/75 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 16 kg
RV58A Service: Metering | Cores: 1 | Ratio: Single | Current Ratio (A): 250~3000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 11.5 kV; 11.5/28/75 kV (10B) | Max. Voltage / Insulation (IEC 61869-2): 12 kV; 12/28/75 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 13 kg
RV58DA Service: Metering | Cores: 1 | Ratio: Double | Current Ratio (A): 500/250~3000/1500/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 11.5 kV; 11.5/28/75 kV (10B) | Max. Voltage / Insulation (IEC 61869-2): 12 kV; 12/28/75 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 13 kg
RV58RA Service: Protection | Cores: 1 | Ratio: Single | Current Ratio (A): 250~3000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 11.5 kV; 11.5/28/75 kV | Max. Voltage / Insulation (IEC 61869-2): 12 kV; 12/28/75 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 13 kg
RV58DRA Service: Protection | Cores: 1 | Ratio: Double | Current Ratio (A): 300/150~3000/1500/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 11.5 kV; 11.5/28/75 kV | Max. Voltage / Insulation (IEC 61869-2): 12 kV; 12/28/75 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 13 kg
RV58RAT Service: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Single | Current Ratio (A): 750~1000/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 11.5 kV; 11.5/28/75 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 13 kg
RV58DRAT Service: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Double | Current Ratio (A): 800/400~1000/500/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 11.5 kV; 11.5/28/75 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 13 kg
RV510A Service: Metering | Cores: 1 | Ratio: Single | Current Ratio (A): 400~3000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 11.5 kV; 11.5/28/75 kV (10B) | Max. Voltage / Insulation (IEC 61869-2): 12 kV; 12/28/75 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 11 kg
RV510DA Service: Metering | Cores: 1 | Ratio: Double | Current Ratio (A): 800/400~3000/1500/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 11.5 kV; 11.5/28/75 kV (10B) | Max. Voltage / Insulation (IEC 61869-2): 12 kV; 12/28/75 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 11 kg
RV510RA Service: Protection | Cores: 1 | Ratio: Single | Current Ratio (A): 400~3000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 11.5 kV; 11.5/28/75 kV | Max. Voltage / Insulation (IEC 61869-2): 12 kV; 12/28/75 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 11 kg
RV510DRA Service: Protection | Cores: 1 | Ratio: Double | Current Ratio (A): 400/200~3000/1500/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 11.5 kV; 11.5/28/75 kV | Max. Voltage / Insulation (IEC 61869-2): 12 kV; 12/28/75 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 11 kg
