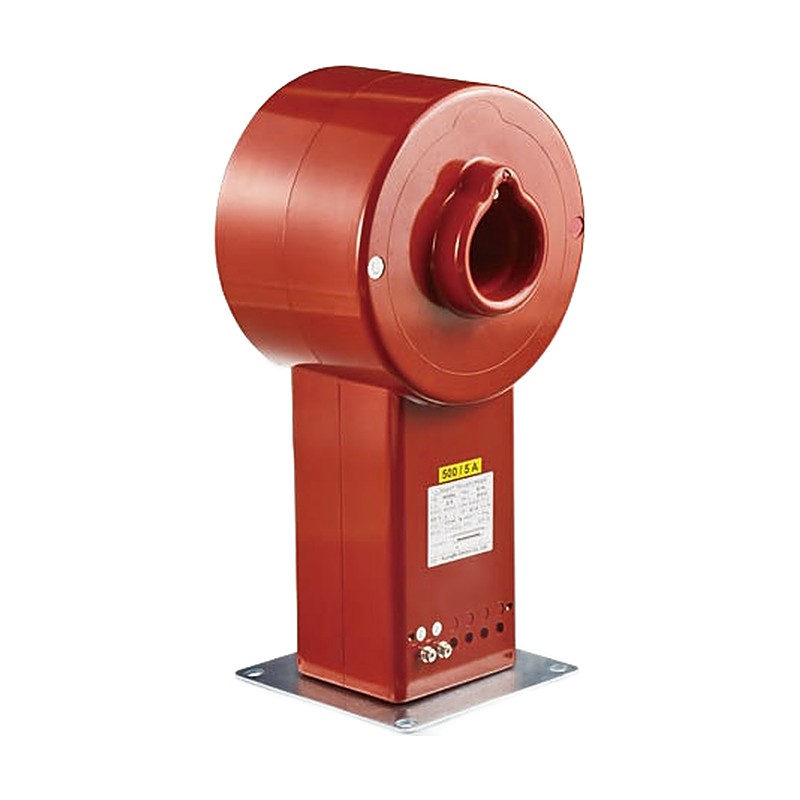

Kyongbo Electric Ring Type Current Transformer 25.8 kV RE6A Series

Kyongbo Electric Ring Type Current Transformer 25.8 kV RE6A Series

Indoor epoxy vacuum-molded ring-type current transformer, 25.8 kV class, through which the primary cable or bus-bar passes, for metering and protection.

Key features

  • For metering and protection
  • Indoor use
  • Primary cable or bus-bar through type
  • Epoxy vacuum molding insulation
  • Versions with tertiary winding for ground-fault detection

Specifications

Rated Secondary Current 5 A or 1 A
Short-Time Current 40 In ~ 40 kA / 1 s
Rated Frequency 60 Hz (others on request)
Standards KS C 1706, JEC 1201, IEC 61869-2 (IEEE C57.13 on request)
RE65A Service: Metering | Cores: 1 | Ratio: Single | Current Ratio (A): 150~1000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 25.8 kV; 25.8/50/125 kV (20B) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 25 kg
RE65DA Service: Metering | Cores: 1 | Ratio: Double | Current Ratio (A): 300/150~2000/1000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 25.8 kV; 25.8/50/125 kV (20B) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 25 kg
RE65RA Service: Protection | Cores: 1 | Ratio: Single | Current Ratio (A): 150~1000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 25 kg
RE65DRA Service: Protection | Cores: 1 | Ratio: Double | Current Ratio (A): 240/120~2000/1000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 25 kg
RE65RAT Service: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Single | Current Ratio (A): 400~600/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 25 kg
RE65DRAT Service: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Double | Current Ratio (A): 400/200~600/300/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 25 kg
RE68A Service: Metering | Cores: 1 | Ratio: Single | Current Ratio (A): 250~4000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 25.8 kV; 25.8/50/125 kV (20B) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 21 kg
RE68DA Service: Metering | Cores: 1 | Ratio: Double | Current Ratio (A): 500/250~4000/2000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 25.8 kV; 25.8/50/125 kV (20B) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 21 kg
RE68RA Service: Protection | Cores: 1 | Ratio: Single | Current Ratio (A): 250~4000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 21 kg
RE68DRA Service: Protection | Cores: 1 | Ratio: Double | Current Ratio (A): 500/250~4000/2000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 21 kg
RE68RAT Service: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Single | Current Ratio (A): 750~1000/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 21 kg
RE68DRAT Service: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Double | Current Ratio (A): 800/400~1000/500/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 21 kg
RE610A Service: Metering | Cores: 1 | Ratio: Single | Current Ratio (A): 400~4000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 25.8 kV; 25.8/50/125 kV (20B) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 18 kg
RE610DA Service: Metering | Cores: 1 | Ratio: Double | Current Ratio (A): 800/400~4000/2000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 25.8 kV; 25.8/50/125 kV (20B) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 18 kg
RE610RA Service: Protection | Cores: 1 | Ratio: Single | Current Ratio (A): 400~4000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 18 kg
RE610DRA Service: Protection | Cores: 1 | Ratio: Double | Current Ratio (A): 800/400~4000/2000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 18 kg
RE610RAT Service: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Single | Current Ratio (A): 1200~2000/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 18 kg
RE610DRAT Service: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Double | Current Ratio (A): 1200/600~2000/1000/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 18 kg
Current TransformersKyongbo Electric
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Ring Type Current Transformer 25.8 kV RE6A Series

Brand Kyongbo Electric·Current Transformers

Available part numbers (18)

RE65A, RE65DA, RE65RA, RE65DRA, RE65RAT, RE65DRAT, RE68A, RE68DA, RE68RA, RE68DRA + 8 more — see full table ↓

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RE65AService: Metering | Cores: 1 | Ratio: Single | Current Ratio (A): 150~1000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 25.8 kV; 25.8/50/125 kV (20B) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 25 kg
RE65DAService: Metering | Cores: 1 | Ratio: Double | Current Ratio (A): 300/150~2000/1000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 25.8 kV; 25.8/50/125 kV (20B) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 25 kg
RE65RAService: Protection | Cores: 1 | Ratio: Single | Current Ratio (A): 150~1000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 25 kg
RE65DRAService: Protection | Cores: 1 | Ratio: Double | Current Ratio (A): 240/120~2000/1000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 25 kg
RE65RATService: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Single | Current Ratio (A): 400~600/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 25 kg
RE65DRATService: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Double | Current Ratio (A): 400/200~600/300/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 25 kg
RE68AService: Metering | Cores: 1 | Ratio: Single | Current Ratio (A): 250~4000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 25.8 kV; 25.8/50/125 kV (20B) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 21 kg
RE68DAService: Metering | Cores: 1 | Ratio: Double | Current Ratio (A): 500/250~4000/2000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 25.8 kV; 25.8/50/125 kV (20B) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 21 kg
RE68RAService: Protection | Cores: 1 | Ratio: Single | Current Ratio (A): 250~4000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 21 kg
RE68DRAService: Protection | Cores: 1 | Ratio: Double | Current Ratio (A): 500/250~4000/2000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 21 kg
RE68RATService: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Single | Current Ratio (A): 750~1000/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 21 kg
RE68DRATService: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Double | Current Ratio (A): 800/400~1000/500/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 21 kg
RE610AService: Metering | Cores: 1 | Ratio: Single | Current Ratio (A): 400~4000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 25.8 kV; 25.8/50/125 kV (20B) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 18 kg
RE610DAService: Metering | Cores: 1 | Ratio: Double | Current Ratio (A): 800/400~4000/2000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 25.8 kV; 25.8/50/125 kV (20B) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 18 kg
RE610RAService: Protection | Cores: 1 | Ratio: Single | Current Ratio (A): 400~4000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 18 kg
RE610DRAService: Protection | Cores: 1 | Ratio: Double | Current Ratio (A): 800/400~4000/2000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 18 kg
RE610RATService: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Single | Current Ratio (A): 1200~2000/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 18 kg
RE610DRATService: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Double | Current Ratio (A): 1200/600~2000/1000/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 18 kg
