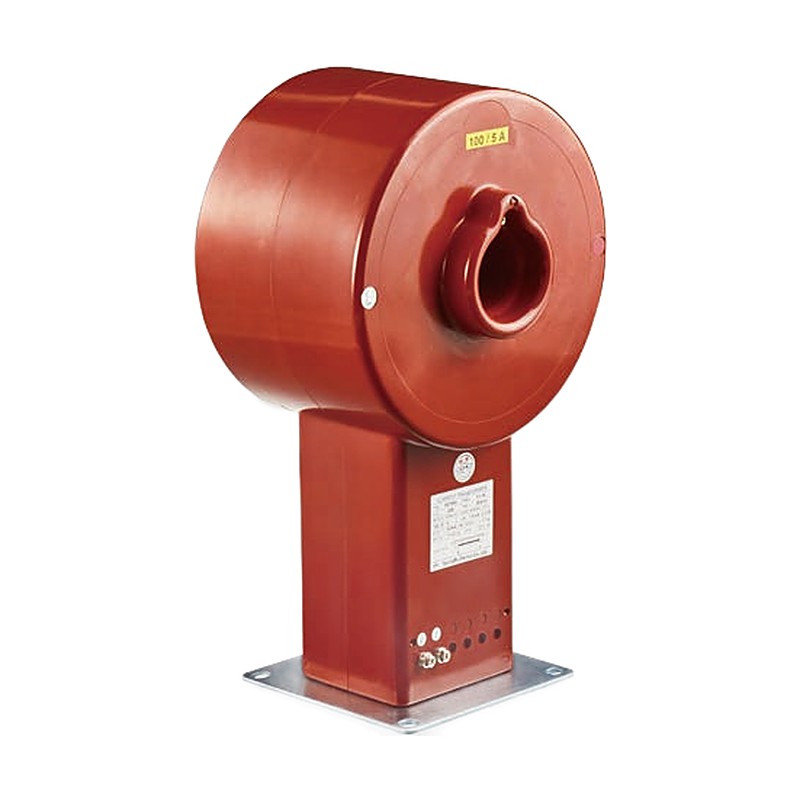

Kyongbo Electric Ring Type Current Transformer 25.8 kV RE7A Series

Kyongbo Electric Ring Type Current Transformer 25.8 kV RE7A Series

Indoor epoxy vacuum-molded ring-type current transformer, 25.8 kV class, through which the primary cable or bus-bar passes, for metering and protection.

Key features

  • For metering and protection
  • Indoor use
  • Primary cable or bus-bar through type
  • Epoxy vacuum molding insulation
  • 1-core and 2-core versions
  • Versions with tertiary winding for ground-fault detection

Specifications

Rated Secondary Current 5 A or 1 A
Short-Time Current 40 In ~ 40 kA / 1 s
Rated Frequency 60 Hz (others on request)
Standards KS C 1706, JEC 1201, IEC 61869-2 (IEEE C57.13 on request)
RE75A Service: Metering | Cores: 1 | Ratio: Single | Current Ratio (A): 120~1000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 25.8 kV; 25.8/50/125 kV (20B) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 40 kg
RE75DA Service: Metering | Cores: 1 | Ratio: Double | Current Ratio (A): 240/120~2000/1000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 25.8 kV; 25.8/50/125 kV (20B) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 40 kg
RE75RA Service: Protection | Cores: 1 | Ratio: Single | Current Ratio (A): 100~1000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 40 kg
RE75DRA Service: Protection | Cores: 1 | Ratio: Double | Current Ratio (A): 200/100~2000/1000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 40 kg
RE75RAT Service: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Single | Current Ratio (A): 400~600/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 40 kg
RE75DRAT Service: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Double | Current Ratio (A): 400/200~600/300/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 40 kg
2RE75RA Service: Metering and Protection | Cores: 2 | Ratio: Single | Current Ratio (A): 400~1000/5/5 | Accuracy Class: 1.0/1P (JEC) / 1.0/5P, 1.0/10P (IEC) | Burden (VA): 15/15 or 40/40 (JEC) / 15/15 or 30/30 (IEC) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 40 kg
2RE75DRA Service: Metering and Protection | Cores: 2 | Ratio: Double | Current Ratio (A): 400/200~1000/500/5/5 | Accuracy Class: 1.0/1P (JEC) / 1.0/5P, 1.0/10P (IEC) | Burden (VA): 15/15 or 40/40 (JEC) / 15/15 or 30/30 (IEC) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 40 kg
2RE75RAT Service: Metering and Protection with tertiary winding | Cores: 2 | Ratio: Single | Current Ratio (A): 400~1000/5/5, 100/5 | Accuracy Class: 1.0/1P / 5G (JEC) | Burden (VA): 40/40 / 15 (JEC) | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 40 kg
2RE75DRAT Service: Metering and Protection with tertiary winding | Cores: 2 | Ratio: Double | Current Ratio (A): 400/200~1000/500/5/5, 100/5 | Accuracy Class: 1.0/1P / 5G (JEC) | Burden (VA): 40/40 / 15 (JEC) | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 40 kg
RE78A Service: Metering | Cores: 1 | Ratio: Single | Current Ratio (A): 120~4000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 25.8 kV; 25.8/50/125 kV (20B) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 36 kg
RE78DA Service: Metering | Cores: 1 | Ratio: Double | Current Ratio (A): 400/200~4000/2000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 25.8 kV; 25.8/50/125 kV (20B) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 36 kg
RE78RA Service: Protection | Cores: 1 | Ratio: Single | Current Ratio (A): 120~2000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 36 kg
RE78DRA Service: Protection | Cores: 1 | Ratio: Double | Current Ratio (A): 240/120~4000/2000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 36 kg
RE78RAT Service: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Single | Current Ratio (A): 400~1000/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 36 kg
RE78DRAT Service: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Double | Current Ratio (A): 400/200~1000/500/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 36 kg
2RE78RA Service: Metering and Protection | Cores: 2 | Ratio: Single | Current Ratio (A): 600~2000/5/5 | Accuracy Class: 1.0/1P (JEC) / 1.0/5P, 1.0/10P (IEC) | Burden (VA): 15/15 or 40/40 (JEC) / 15/15 or 30/30 (IEC) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 36 kg
2RE78DRA Service: Metering and Protection | Cores: 2 | Ratio: Double | Current Ratio (A): 500/250~1000/500/5/5 | Accuracy Class: 1.0/1P (JEC) / 1.0/5P, 1.0/10P (IEC) | Burden (VA): 15/15 or 40/40 (JEC) / 15/15 or 30/30 (IEC) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 36 kg
2RE78RAT Service: Metering and Protection with tertiary winding | Cores: 2 | Ratio: Single | Current Ratio (A): 600~2000/5/5, 100/5 | Accuracy Class: 1.0/1P / 5G (JEC) | Burden (VA): 40/40 / 15 (JEC) | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 36 kg
2RE78DRAT Service: Metering and Protection with tertiary winding | Cores: 2 | Ratio: Double | Current Ratio (A): 500/250~1000/500/5/5, 100/5 | Accuracy Class: 1.0/1P / 5G (JEC) | Burden (VA): 40/40 / 15 (JEC) | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 36 kg
RE710A Service: Metering | Cores: 1 | Ratio: Single | Current Ratio (A): 200~4000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 25.8 kV; 25.8/50/125 kV (20B) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 32 kg
RE710DA Service: Metering | Cores: 1 | Ratio: Double | Current Ratio (A): 400/200~5000/2500/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 25.8 kV; 25.8/50/125 kV (20B) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 32 kg
RE710RA Service: Protection | Cores: 1 | Ratio: Single | Current Ratio (A): 150~4000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 32 kg
RE710DRA Service: Protection | Cores: 1 | Ratio: Double | Current Ratio (A): 300/150~5000/2500/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 32 kg
RE710RAT Service: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Single | Current Ratio (A): 400~2500/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 32 kg
RE710DRAT Service: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Double | Current Ratio (A): 400/200~2400/1200/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 32 kg
2RE710RA Service: Metering and Protection | Cores: 2 | Ratio: Single | Current Ratio (A): 750~4000/5/5 | Accuracy Class: 1.0/1P (JEC) / 1.0/5P, 1.0/10P (IEC) | Burden (VA): 15/15 or 40/40 (JEC) / 15/15 or 30/30 (IEC) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 32 kg
2RE710DRA Service: Metering and Protection | Cores: 2 | Ratio: Double | Current Ratio (A): 600/300~4000/2000/5/5 | Accuracy Class: 1.0/1P (JEC) / 1.0/5P, 1.0/10P (IEC) | Burden (VA): 15/15 or 40/40 (JEC) / 15/15 or 30/30 (IEC) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 32 kg
2RE710RAT Service: Metering and Protection with tertiary winding | Cores: 2 | Ratio: Single | Current Ratio (A): 800~2500/5/5, 100/5 | Accuracy Class: 1.0/1P / 5G (JEC) | Burden (VA): 40/40 / 15 (JEC) | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 32 kg
2RE710DRAT Service: Metering and Protection with tertiary winding | Cores: 2 | Ratio: Double | Current Ratio (A): 600/300~2000/1000/5/5, 100/5 | Accuracy Class: 1.0/1P / 5G (JEC) | Burden (VA): 40/40 / 15 (JEC) | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 32 kg
RE713A Service: Metering | Cores: 1 | Ratio: Single | Current Ratio (A): 250~5000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 25.8 kV; 25.8/50/125 kV (20B) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 134 mm | Weight: approx. 26 kg
RE713DA Service: Metering | Cores: 1 | Ratio: Double | Current Ratio (A): 500/250~5000/2500/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 25.8 kV; 25.8/50/125 kV (20B) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 134 mm | Weight: approx. 26 kg
RE713RA Service: Protection | Cores: 1 | Ratio: Single | Current Ratio (A): 200~5000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 134 mm | Weight: approx. 26 kg
RE713DRA Service: Protection | Cores: 1 | Ratio: Double | Current Ratio (A): 400/200~5000/2500/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 134 mm | Weight: approx. 26 kg
RE713RAT Service: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Single | Current Ratio (A): 600~4000/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Primary Through-Hole: dia. 134 mm | Weight: approx. 26 kg
RE713DRAT Service: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Double | Current Ratio (A): 600/300~4000/2000/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 23 kV; 23/50/125 kV | Primary Through-Hole: dia. 134 mm | Weight: approx. 26 kg
2RE713RA Service: Metering and Protection | Cores: 2 | Ratio: Single | Current Ratio (A): 1000~3000/5/5 | Accuracy Class: 1.0/1P (JEC) / 1.0/5P, 1.0/10P (IEC) | Burden (VA): 15/15 or 40/40 (JEC) / 15/15 or 30/30 (IEC) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 134 mm | Weight: approx. 26 kg
2RE713DRA Service: Metering and Protection | Cores: 2 | Ratio: Double | Current Ratio (A): 1000/500~3000/1500/5/5 | Accuracy Class: 1.0/1P (JEC) / 1.0/5P, 1.0/10P (IEC) | Burden (VA): 15/15 or 40/40 (JEC) / 15/15 or 30/30 (IEC) | Max. Voltage / Insulation (IEC 61869-2): 24 kV; 24/50/125 kV | Primary Through-Hole: dia. 134 mm | Weight: approx. 26 kg
