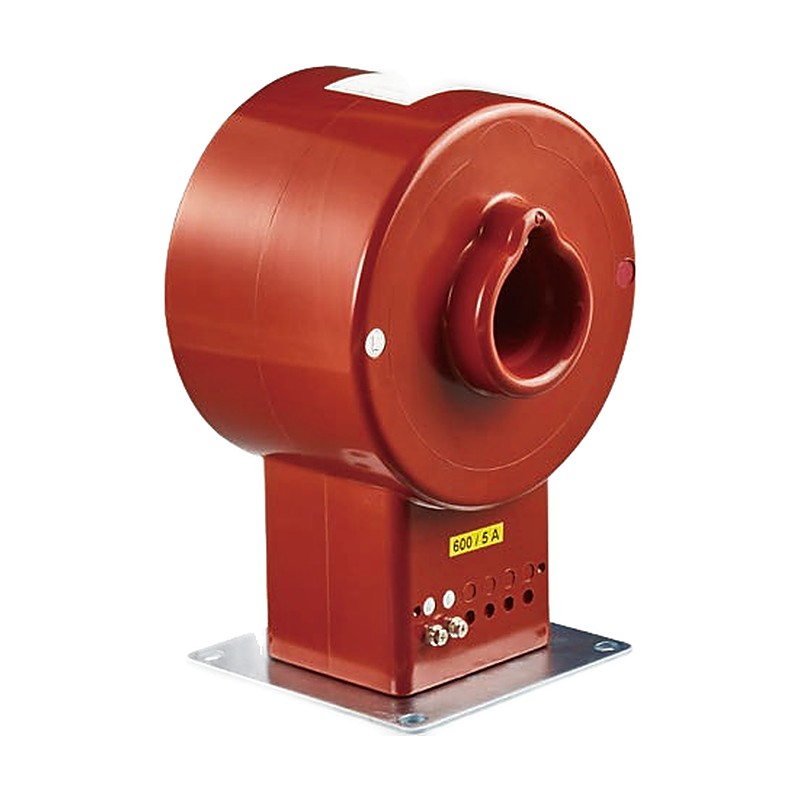

Kyongbo Electric Ring Type Current Transformer 7.2 kV RH6A Series

Kyongbo Electric Ring Type Current Transformer 7.2 kV RH6A Series

Indoor epoxy vacuum-molded ring-type current transformer, 7.2 kV class, through which the primary cable or bus-bar passes, for metering and protection.

Key features

  • For metering and protection
  • Indoor use
  • Primary cable or bus-bar through type
  • Epoxy vacuum molding insulation
  • 1-core and 2-core versions
  • Versions with tertiary winding for ground-fault detection

Specifications

Rated Secondary Current 5 A or 1 A
Short-Time Current 40 In ~ 40 kA / 1 s
Rated Frequency 60 Hz (others on request)
Standards KS C 1706, JEC 1201, IEC 61869-2 (IEEE C57.13 on request)
RH65A Service: Metering | Cores: 1 | Ratio: Single | Current Ratio (A): 150~2000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 7.2 kV; 7.2/22/60 kV (6A) | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 28 kg
RH65DA Service: Metering | Cores: 1 | Ratio: Double | Current Ratio (A): 300/150~2000/1000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 7.2 kV; 7.2/22/60 kV (6A) | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 28 kg
RH65RA Service: Protection | Cores: 1 | Ratio: Single | Current Ratio (A): 100~2000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 6.9 kV; 6.9/22/60 kV | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 28 kg
RH65DRA Service: Protection | Cores: 1 | Ratio: Double | Current Ratio (A): 200/100~2000/1000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 6.9 kV; 6.9/22/60 kV | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 28 kg
RH65RAT Service: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Single | Current Ratio (A): 400~600/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 6.9 kV; 6.9/22/60 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 28 kg
RH65DRAT Service: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Double | Current Ratio (A): 400/200~600/300/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 6.9 kV; 6.9/22/60 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 28 kg
2RH65RA Service: Metering and Protection | Cores: 2 | Ratio: Single | Current Ratio (A): 400~1000/5/5 | Accuracy Class: 1.0/1P (JEC) / 1.0/5P, 1.0/10P (IEC) | Burden (VA): 15/15 or 40/40 (JEC) / 15/15 or 30/30 (IEC) | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 28 kg
2RH65DRA Service: Metering and Protection | Cores: 2 | Ratio: Double | Current Ratio (A): 400/200~600/300/5/5 | Accuracy Class: 1.0/1P (JEC) / 1.0/5P, 1.0/10P (IEC) | Burden (VA): 15/15 or 40/40 (JEC) / 15/15 or 30/30 (IEC) | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 28 kg
2RH65RAT Service: Metering and Protection with tertiary winding | Cores: 2 | Ratio: Single | Current Ratio (A): 400~600/5/5, 100/5 | Accuracy Class: 1.0/1P / 5G (JEC) | Burden (VA): 40/40 / 15 (JEC) | Max. Voltage / Insulation (JEC 1201): 6.9 kV; 6.9/22/60 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 28 kg
2RH65DRAT Service: Metering and Protection with tertiary winding | Cores: 2 | Ratio: Double | Current Ratio (A): 400/200~600/300/5/5, 100/5 | Accuracy Class: 1.0/1P / 5G (JEC) | Burden (VA): 40/40 / 15 (JEC) | Max. Voltage / Insulation (JEC 1201): 6.9 kV; 6.9/22/60 kV | Primary Through-Hole: dia. 54 mm | Weight: approx. 28 kg
RH68A Service: Metering | Cores: 1 | Ratio: Single | Current Ratio (A): 200~4000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 7.2 kV; 7.2/22/60 kV (6A) | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 24 kg
RH68DA Service: Metering | Cores: 1 | Ratio: Double | Current Ratio (A): 400/200~4000/2000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 7.2 kV; 7.2/22/60 kV (6A) | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 24 kg
RH68RA Service: Protection | Cores: 1 | Ratio: Single | Current Ratio (A): 120~4000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 6.9 kV; 6.9/22/60 kV | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 24 kg
RH68DRA Service: Protection | Cores: 1 | Ratio: Double | Current Ratio (A): 240/120~4000/2000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 6.9 kV; 6.9/22/60 kV | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 24 kg
RH68RAT Service: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Single | Current Ratio (A): 400~1000/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 6.9 kV; 6.9/22/60 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 24 kg
RH68DRAT Service: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Double | Current Ratio (A): 400/200~1000/500/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 6.9 kV; 6.9/22/60 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 24 kg
2RH68RA Service: Metering and Protection | Cores: 2 | Ratio: Single | Current Ratio (A): 600~2000/5/5 | Accuracy Class: 1.0/1P (JEC) / 1.0/5P, 1.0/10P (IEC) | Burden (VA): 15/15 or 40/40 (JEC) / 15/15 or 30/30 (IEC) | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 24 kg
2RH68DRA Service: Metering and Protection | Cores: 2 | Ratio: Double | Current Ratio (A): 600/300~1000/500/5/5 | Accuracy Class: 1.0/1P (JEC) / 1.0/5P, 1.0/10P (IEC) | Burden (VA): 15/15 or 40/40 (JEC) / 15/15 or 30/30 (IEC) | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 24 kg
2RH68RAT Service: Metering and Protection with tertiary winding | Cores: 2 | Ratio: Single | Current Ratio (A): 600~1000/5/5, 100/5 | Accuracy Class: 1.0/1P / 5G (JEC) | Burden (VA): 40/40 / 15 (JEC) | Max. Voltage / Insulation (JEC 1201): 6.9 kV; 6.9/22/60 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 24 kg
2RH68DRAT Service: Metering and Protection with tertiary winding | Cores: 2 | Ratio: Double | Current Ratio (A): 600/300~1000/500/5/5, 100/5 | Accuracy Class: 1.0/1P / 5G (JEC) | Burden (VA): 40/40 / 15 (JEC) | Max. Voltage / Insulation (JEC 1201): 6.9 kV; 6.9/22/60 kV | Primary Through-Hole: dia. 84 mm | Weight: approx. 24 kg
RH610A Service: Metering | Cores: 1 | Ratio: Single | Current Ratio (A): 200~5000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 7.2 kV; 7.2/22/60 kV (6A) | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 21 kg
RH610DA Service: Metering | Cores: 1 | Ratio: Double | Current Ratio (A): 400/200~5000/2500/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 7.2 kV; 7.2/22/60 kV (6A) | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 21 kg
RH610RA Service: Protection | Cores: 1 | Ratio: Single | Current Ratio (A): 150~5000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 6.9 kV; 6.9/22/60 kV | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 21 kg
RH610DRA Service: Protection | Cores: 1 | Ratio: Double | Current Ratio (A): 300/150~5000/2500/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 6.9 kV; 6.9/22/60 kV | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 21 kg
RH610RAT Service: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Single | Current Ratio (A): 400~2500/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 6.9 kV; 6.9/22/60 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 21 kg
RH610DRAT Service: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Double | Current Ratio (A): 400/200~2500/1250/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 6.9 kV; 6.9/22/60 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 21 kg
2RH610RA Service: Metering and Protection | Cores: 2 | Ratio: Single | Current Ratio (A): 750~2500/5/5 | Accuracy Class: 1.0/1P (JEC) / 1.0/5P, 1.0/10P (IEC) | Burden (VA): 15/15 or 40/40 (JEC) / 15/15 or 30/30 (IEC) | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 21 kg
2RH610DRA Service: Metering and Protection | Cores: 2 | Ratio: Double | Current Ratio (A): 800/400~2500/1250/5/5 | Accuracy Class: 1.0/1P (JEC) / 1.0/5P, 1.0/10P (IEC) | Burden (VA): 15/15 or 40/40 (JEC) / 15/15 or 30/30 (IEC) | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 21 kg
2RH610RAT Service: Metering and Protection with tertiary winding | Cores: 2 | Ratio: Single | Current Ratio (A): 750~2500/5/5, 100/5 | Accuracy Class: 1.0/1P / 5G (JEC) | Burden (VA): 40/40 / 15 (JEC) | Max. Voltage / Insulation (JEC 1201): 6.9 kV; 6.9/22/60 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 21 kg
2RH610DRAT Service: Metering and Protection with tertiary winding | Cores: 2 | Ratio: Double | Current Ratio (A): 800/400~2500/1250/5/5, 100/5 | Accuracy Class: 1.0/1P / 5G (JEC) | Burden (VA): 40/40 / 15 (JEC) | Max. Voltage / Insulation (JEC 1201): 6.9 kV; 6.9/22/60 kV | Primary Through-Hole: dia. 104 mm | Weight: approx. 21 kg
RH612A Service: Metering | Cores: 1 | Ratio: Single | Current Ratio (A): 250~5000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 7.2 kV; 7.2/22/60 kV (6A) | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Primary Through-Hole: dia. 124 mm | Weight: approx. 18 kg
RH612DA Service: Metering | Cores: 1 | Ratio: Double | Current Ratio (A): 500/250~5000/2500/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 7.2 kV; 7.2/22/60 kV (6A) | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Primary Through-Hole: dia. 124 mm | Weight: approx. 18 kg
RH612RA Service: Protection | Cores: 1 | Ratio: Single | Current Ratio (A): 200~5000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 6.9 kV; 6.9/22/60 kV | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Primary Through-Hole: dia. 124 mm | Weight: approx. 18 kg
RH612DRA Service: Protection | Cores: 1 | Ratio: Double | Current Ratio (A): 300/150~5000/2500/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 6.9 kV; 6.9/22/60 kV | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Primary Through-Hole: dia. 124 mm | Weight: approx. 18 kg
RH612RAT Service: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Single | Current Ratio (A): 600~3000/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 6.9 kV; 6.9/22/60 kV | Primary Through-Hole: dia. 124 mm | Weight: approx. 18 kg
RH612DRAT Service: Protection with tertiary winding (ground fault) | Cores: 1 | Ratio: Double | Current Ratio (A): 600/300~3000/1500/5, 100/5 | Accuracy Class: 1P / 5G (JEC) | Burden (VA): 40 / 15 (JEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 6.9 kV; 6.9/22/60 kV | Primary Through-Hole: dia. 124 mm | Weight: approx. 18 kg
2RH612RA Service: Metering and Protection | Cores: 2 | Ratio: Single | Current Ratio (A): 1200~3000/5/5 | Accuracy Class: 1.0/1P (JEC) / 1.0/5P, 1.0/10P (IEC) | Burden (VA): 15/15 or 40/40 (JEC) / 15/15 or 30/30 (IEC) | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Primary Through-Hole: dia. 124 mm | Weight: approx. 18 kg
2RH612DRA Service: Metering and Protection | Cores: 2 | Ratio: Double | Current Ratio (A): 1200/600~3000/1500/5/5 | Accuracy Class: 1.0/1P (JEC) / 1.0/5P, 1.0/10P (IEC) | Burden (VA): 15/15 or 40/40 (JEC) / 15/15 or 30/30 (IEC) | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Primary Through-Hole: dia. 124 mm | Weight: approx. 18 kg
2RH612RAT Service: Metering and Protection with tertiary winding | Cores: 2 | Ratio: Single | Current Ratio (A): 1200~3000/5/5, 100/5 | Accuracy Class: 1.0/1P / 5G (JEC) | Burden (VA): 40/40 / 15 (JEC) | Max. Voltage / Insulation (JEC 1201): 6.9 kV; 6.9/22/60 kV | Primary Through-Hole: dia. 124 mm | Weight: approx. 18 kg
2RH612DRAT Service: Metering and Protection with tertiary winding | Cores: 2 | Ratio: Double | Current Ratio (A): 1200/600~3000/1500/5/5, 100/5 | Accuracy Class: 1.0/1P / 5G (JEC) | Burden (VA): 40/40 / 15 (JEC) | Max. Voltage / Insulation (JEC 1201): 6.9 kV; 6.9/22/60 kV | Primary Through-Hole: dia. 124 mm | Weight: approx. 18 kg
