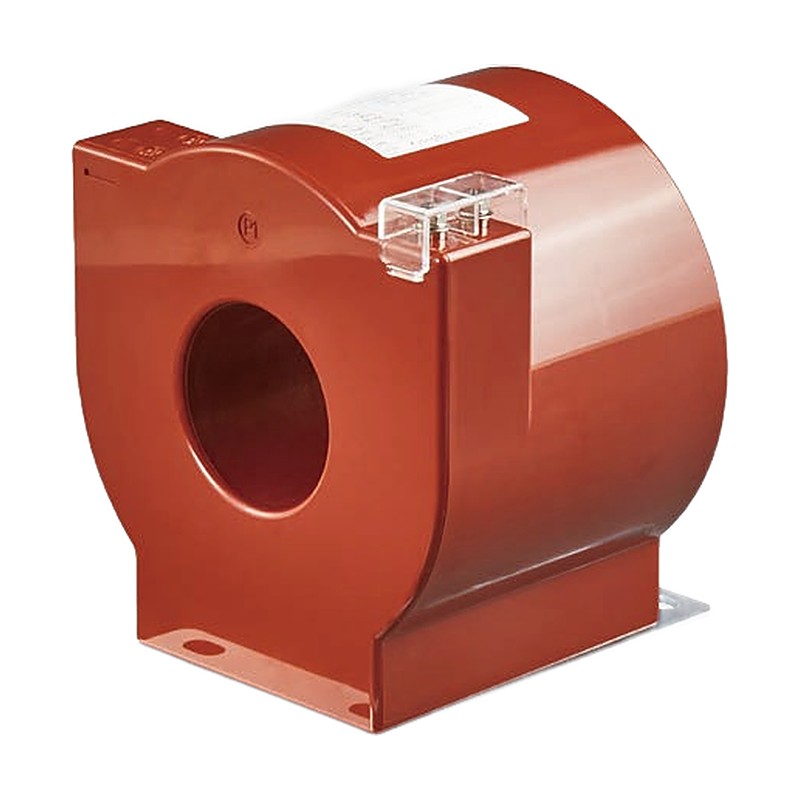

Kyongbo Electric Round Type Current Transformer 1.15 kV RL616 / RL616R

Kyongbo Electric Round Type Current Transformer 1.15 kV RL616 / RL616R

Round cable or bus-bar through-type epoxy molded current transformer for 1.15 kV metering (RL616) and protection (RL616R).

Key features

  • For metering and protection
  • Indoor use
  • Cable or bus-bar through type
  • Secondary terminal cover
  • Epoxy molded insulation
  • Flame retardant PC case

Specifications

Application Standard KS C 1706, IEC 61869-2, JEC 1201, IEEE C57.13
Insulation Level 1.15/4/- kV
Rated Frequency 60 Hz (others on request)
Short Time Current 40In / 1 s
Hole Size 65 mm
Weight approx. 13 kg
RL616 Service: Metering | Current Ratio: 100-2000/5 A or 100-2000/1 A | Accuracy Class: 1.0 | Burden: 5-40 VA
RL616R Service: Protection | Current Ratio: 100-2000/5 A or 100-2000/1 A | Accuracy Class: 5P | Burden: 5-40 VA | Accuracy Limit Factor: n>10 or n>20
Current TransformersKyongbo Electric
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Round Type Current Transformer 1.15 kV RL616 / RL616R

Brand Kyongbo Electric·Current Transformers

Available part numbers (2)

RL616, RL616R

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RL616Service: Metering | Current Ratio: 100-2000/5 A or 100-2000/1 A | Accuracy Class: 1.0 | Burden: 5-40 VA
RL616RService: Protection | Current Ratio: 100-2000/5 A or 100-2000/1 A | Accuracy Class: 5P | Burden: 5-40 VA | Accuracy Limit Factor: n>10 or n>20
