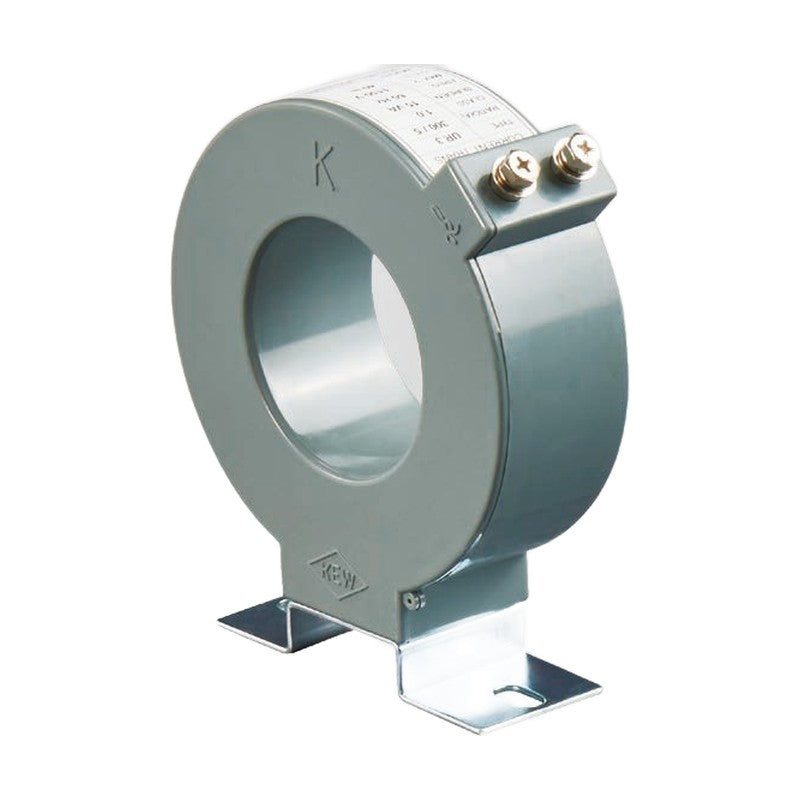

Kyongbo Electric Round Type Current Transformer 1.15 kV UR Series

Kyongbo Electric Round Type Current Transformer 1.15 kV UR Series

Compact round through-type current transformer for 1.15 kV circuits in an ABS case; several ratios obtainable from the number of primary turns.

Key features

  • For metering
  • Indoor use
  • Cable through type
  • 90 degree rotatable mounting attachment
  • Multiple ratios by number of primary turns
  • ABS case

Specifications

Application Standard KS C 1706, IEC 61869-2, JEC 1201, IEEE C57.13
Secondary Current 1 or 5 A
Accuracy Class 1.0 or 3.0
Insulation Level 1.15/4/- kV
Short Time Current 40In / 1 s
Rated Frequency 60 Hz (others on request)
UR1 Primary Current: 5-300 A | Burden: 2.5-15 VA | Window: 25 mm dia. | Weight: approx. 0.6 kg
UR2 Primary Current: 5-800 A | Burden: 5-40 VA | Window: 39 mm dia. | Weight: approx. 0.7 kg
UR3 Primary Current: 300-1500 A | Burden: 5-40 VA | Window: 60 mm dia. | Weight: approx. 1 kg
Current TransformersKyongbo Electric
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Round Type Current Transformer 1.15 kV UR Series

Brand Kyongbo Electric·Current Transformers

Available part numbers (3)

UR1, UR2, UR3

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UR1Primary Current: 5-300 A | Burden: 2.5-15 VA | Window: 25 mm dia. | Weight: approx. 0.6 kg
UR2Primary Current: 5-800 A | Burden: 5-40 VA | Window: 39 mm dia. | Weight: approx. 0.7 kg
UR3Primary Current: 300-1500 A | Burden: 5-40 VA | Window: 60 mm dia. | Weight: approx. 1 kg
