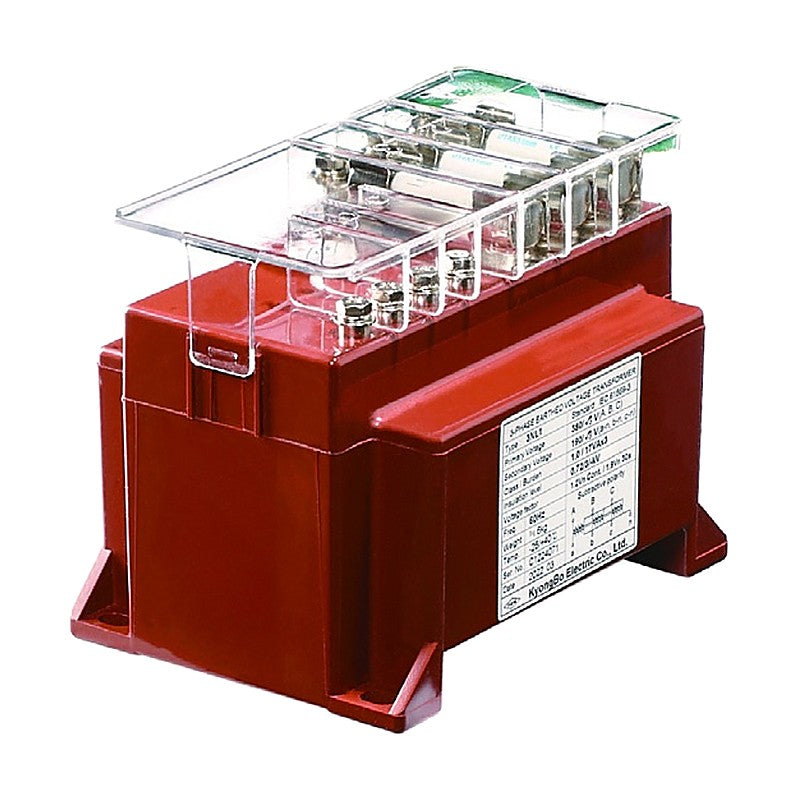

Kyongbo Electric Three-Phase Earthed Voltage Transformer 1.15 kV 3NL1

Kyongbo Electric Three-Phase Earthed Voltage Transformer 1.15 kV 3NL1

Three-phase line-to-earth epoxy molded voltage transformer for 1.15 kV class metering and protection.

Key features

  • For metering and protection
  • Indoor use
  • Three phase, line-to-earth (3P4W)
  • Epoxy molded insulation
  • Flame retardant ABS case
3NL1 Standard: KS C 1706 / JEC 1201 / IEC 61869-3 | Max. Voltage: 0.23-1.15 kV (KS/JEC), 0.72 kV (IEC) | Primary Voltage: 110/sqrt3-480/sqrt3 V | Secondary Voltage: 190/sqrt3 V | Accuracy Class: 1.0 (1P) | Rated Burden: 3 x 17 VA | Frequency: 60 Hz | Weight: approx. 6 kg
Voltage TransformersKyongbo Electric
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Three-Phase Earthed Voltage Transformer 1.15 kV 3NL1

Brand Kyongbo Electric·Voltage Transformers

Available part numbers (1)

3NL1

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3NL1Standard: KS C 1706 / JEC 1201 / IEC 61869-3 | Max. Voltage: 0.23-1.15 kV (KS/JEC), 0.72 kV (IEC) | Primary Voltage: 110/sqrt3-480/sqrt3 V | Secondary Voltage: 190/sqrt3 V | Accuracy Class: 1.0 (1P) | Rated Burden: 3 x 17 VA | Frequency: 60 Hz | Weight: approx. 6 kg
