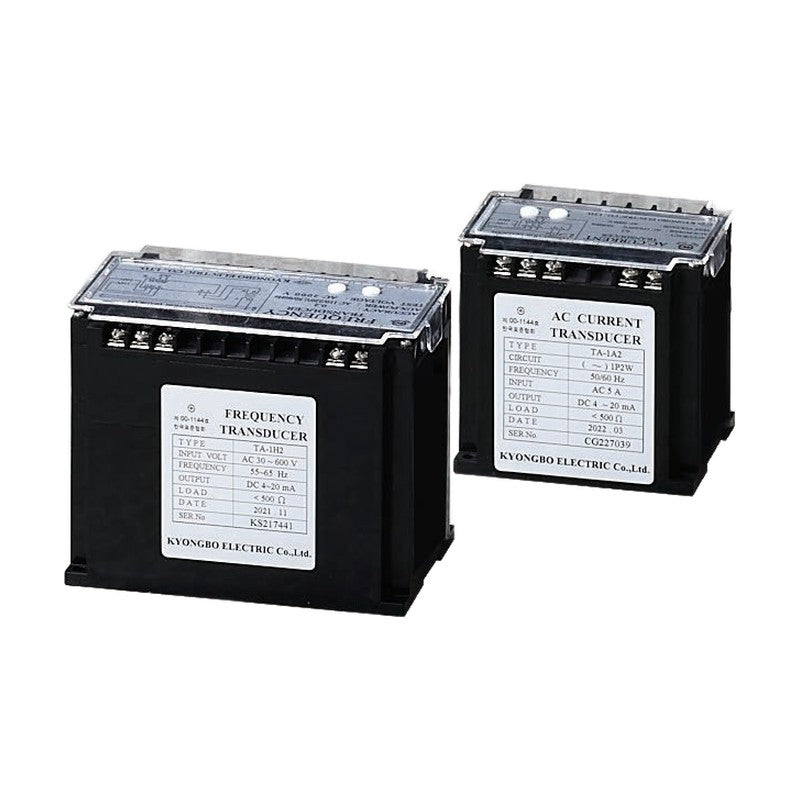

Kyongbo Electric var-hour Transducer TP-R

Kyongbo Electric var-hour Transducer TP-R

var-hour transducer giving a pulse output proportional to reactive energy of 1-phase or 3-phase AC circuits.

Key features

  • Pulse output proportional to energy
  • Relay contact or open collector output
  • Order-made input, output, aux. power and frequency available
  • VT ratio, CT ratio and pulse ratio specified at order (max. 3600 pulses)

Specifications

Accuracy 0.2% at rated voltage and current; 0.4% at 1/20 rated current
Pulse Time approx. 100 ms
Frequency 50 or 60 Hz
Pulse Rate 1P/1kvarh, 10P/1kvarh, 100P/1kvarh, 1P/10kvarh, 1P/100kvarh
Burden Current 0.5 VA/phase, voltage 0.5 VA/phase
Auxiliary Power AC 110 / 220 V
TP-1RC Circuit: 1P2W | Rated Voltage: 110 V | Rated Current: 5 A or 1 A | Pulse Output: Relay contact, AC 110 V 1 A PF 1.0 | Weight: approx. 700 g | Case: TL
TP-2RC Circuit: 1P3W | Rated Voltage: 110 V | Rated Current: 5 A or 1 A | Pulse Output: Relay contact, AC 110 V 1 A PF 1.0 | Weight: approx. 860 g | Case: TL
TP-3RC Circuit: 3P3W | Rated Voltage: 110 V | Rated Current: 5 A or 1 A | Pulse Output: Relay contact, AC 110 V 1 A PF 1.0 | Weight: approx. 860 g | Case: TL
TP-4RC Circuit: 3P4W | Rated Voltage: 190/sqrt3 V | Rated Current: 5 A or 1 A | Pulse Output: Relay contact, AC 110 V 1 A PF 1.0 | Weight: approx. 1040 g | Case: TL
TP-1RP Circuit: 1P2W | Rated Voltage: 110 V | Rated Current: 5 A or 1 A | Pulse Output: Open collector, Vceo 30 V, Ic 20 mA | Weight: approx. 700 g | Case: TL
TP-2RP Circuit: 1P3W | Rated Voltage: 110 V | Rated Current: 5 A or 1 A | Pulse Output: Open collector, Vceo 30 V, Ic 20 mA | Weight: approx. 860 g | Case: TL
TP-3RP Circuit: 3P3W | Rated Voltage: 110 V | Rated Current: 5 A or 1 A | Pulse Output: Open collector, Vceo 30 V, Ic 20 mA | Weight: approx. 860 g | Case: TL
TP-4RP Circuit: 3P4W | Rated Voltage: 190/sqrt3 V | Rated Current: 5 A or 1 A | Pulse Output: Open collector, Vceo 30 V, Ic 20 mA | Weight: approx. 1040 g | Case: TL
Power TransducersKyongbo Electric
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric var-hour Transducer TP-R

Brand Kyongbo Electric·Power Transducers

Available part numbers (8)

TP-1RC, TP-2RC, TP-3RC, TP-4RC, TP-1RP, TP-2RP, TP-3RP, TP-4RP
