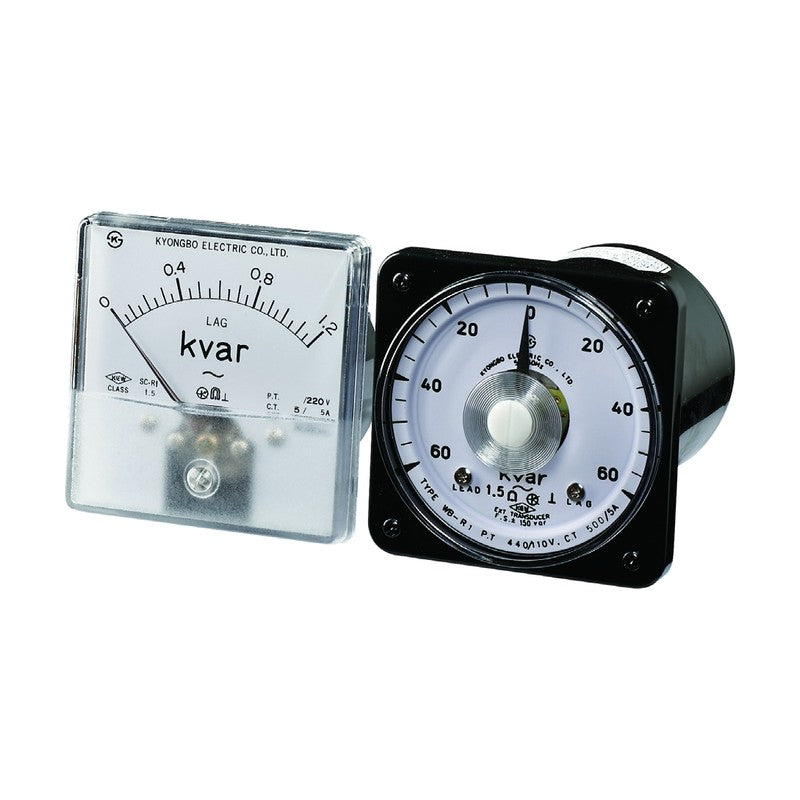

Kyongbo Electric Varmeter R1-R4 (Transducer Type)

Kyongbo Electric Varmeter R1-R4 (Transducer Type)

Transducer type panel varmeter measuring reactive power, with internal (WA-TR) or external transducer box.

Key features

  • 1P 2W, 1P 3W, 3P 3W and 3P 4W versions
  • Operating voltage range +/-15% of rated voltage
  • Use AC 110 V VT and AC 5 A CT above rating

Specifications

Case Color Black (Munsell N1.5)
Dimensions See catalog pages 324-325
Current Input 5 A or 1 A
Frequency 50/60 Hz
Accuracy Class 1.5%
Burden Voltage 0.5 VA, current 0.5 VA
SC-R1 Size: 80 x 80 mm | Scale Form: Square | System: 1P 2W | Voltage: 110 or 220 V | Transducer: External
SB-R1 Size: 100 x 84 mm | Scale Form: Square | System: 1P 2W | Voltage: 110 or 220 V | Transducer: External
SA-R1 Size: 120 x 100 mm | Scale Form: Square | System: 1P 2W | Voltage: 110 or 220 V | Transducer: External
WB-R1 Size: 80 x 80 mm | Scale Form: Wide angle | System: 1P 2W | Voltage: 110 or 220 V | Transducer: External
WA-R1 Size: 110 x 110 mm | Scale Form: Wide angle | System: 1P 2W | Voltage: 110 or 220 V | Transducer: External
WA-TR1 Size: 110 x 110 mm | Scale Form: Wide angle | System: 1P 2W | Voltage: 110 or 220 V | Transducer: Internal
SC-R2 Size: 80 x 80 mm | Scale Form: Square | System: 1P 3W | Voltage: 110 V | Transducer: External
SB-R2 Size: 100 x 84 mm | Scale Form: Square | System: 1P 3W | Voltage: 110 V | Transducer: External
SA-R2 Size: 120 x 100 mm | Scale Form: Square | System: 1P 3W | Voltage: 110 V | Transducer: External
WB-R2 Size: 80 x 80 mm | Scale Form: Wide angle | System: 1P 3W | Voltage: 110 V | Transducer: External
WA-R2 Size: 110 x 110 mm | Scale Form: Wide angle | System: 1P 3W | Voltage: 110 V | Transducer: External
WA-TR2 Size: 110 x 110 mm | Scale Form: Wide angle | System: 1P 3W | Voltage: 110 V | Transducer: Internal
SC-R3 Size: 80 x 80 mm | Scale Form: Square | System: 3P 3W | Voltage: 110 or 220 V | Transducer: External
SB-R3 Size: 100 x 84 mm | Scale Form: Square | System: 3P 3W | Voltage: 110 or 220 V | Transducer: External
SA-R3 Size: 120 x 100 mm | Scale Form: Square | System: 3P 3W | Voltage: 110 or 220 V | Transducer: External
WB-R3 Size: 80 x 80 mm | Scale Form: Wide angle | System: 3P 3W | Voltage: 110 or 220 V | Transducer: External
WA-R3 Size: 110 x 110 mm | Scale Form: Wide angle | System: 3P 3W | Voltage: 110 or 220 V | Transducer: External
WA-TR3 Size: 110 x 110 mm | Scale Form: Wide angle | System: 3P 3W | Voltage: 110 or 220 V | Transducer: Internal
SC-R4 Size: 80 x 80 mm | Scale Form: Square | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Balanced | Transducer: External
SC-UR4 Size: 80 x 80 mm | Scale Form: Square | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Unbalanced | Transducer: External
SB-R4 Size: 100 x 84 mm | Scale Form: Square | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Balanced | Transducer: External
SB-UR4 Size: 100 x 84 mm | Scale Form: Square | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Unbalanced | Transducer: External
SA-R4 Size: 120 x 100 mm | Scale Form: Square | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Balanced | Transducer: External
SA-UR4 Size: 120 x 100 mm | Scale Form: Square | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Unbalanced | Transducer: External
WB-R4 Size: 80 x 80 mm | Scale Form: Wide angle | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Balanced | Transducer: External
WB-UR4 Size: 80 x 80 mm | Scale Form: Wide angle | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Unbalanced | Transducer: External
WA-R4 Size: 110 x 110 mm | Scale Form: Wide angle | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Balanced | Transducer: External
WA-UR4 Size: 110 x 110 mm | Scale Form: Wide angle | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Unbalanced | Transducer: External
WA-TR4 Size: 110 x 110 mm | Scale Form: Wide angle | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Balanced | Transducer: Internal
WA-UTR4 Size: 110 x 110 mm | Scale Form: Wide angle | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Unbalanced | Transducer: Internal
