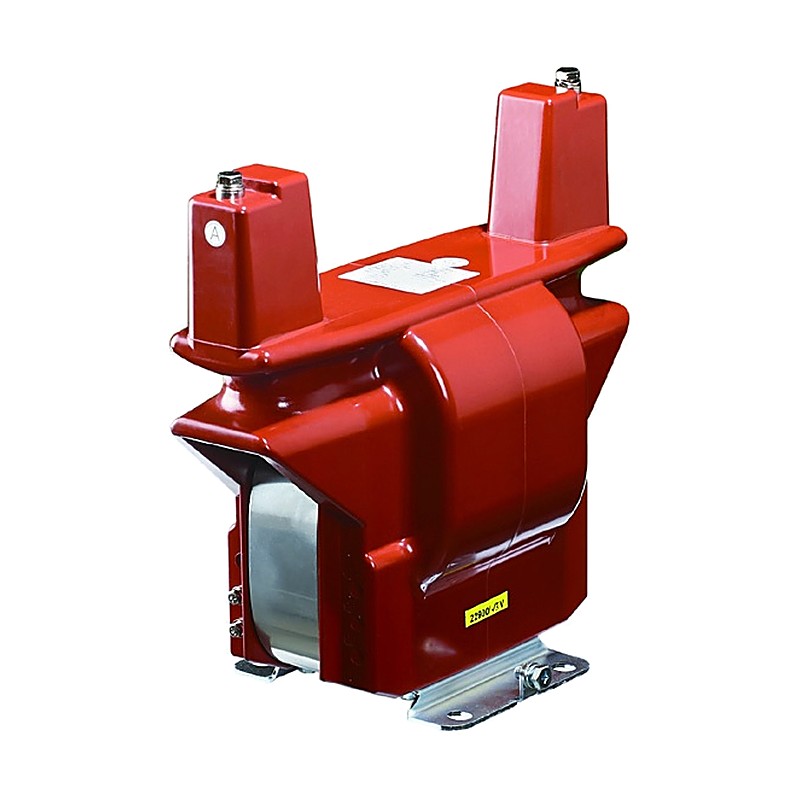

Kyongbo Electric Voltage Transformer 17.5 kV LE1 / LE1D

Kyongbo Electric Voltage Transformer 17.5 kV LE1 / LE1D

Single-phase line-to-line epoxy vacuum molded voltage transformer for 17.5 kV class metering and protection.

Key features

  • For metering and protection
  • Indoor use
  • Single phase, line-to-line voltage transformer
  • Epoxy vacuum molded insulation

Specifications

Standard KS C 1706 / JEC 1201 / IEC 61869-3
Max. Voltage 17.25 kV (KS/JEC), 17.5 kV (IEC)
Primary Voltage 13800 V
Secondary Voltage 110 V
Insulation Level 17.25/39/100 kV (15B)
Frequency 60 Hz (others on request)
LE1 Class 0.2 Burden: 15 VA | Class 0.5 Burden: 50 VA | Class 1.0 (1P) Burden: 100 or 200 VA | Class 3.0 (3P) Burden: 300 VA | Weight: approx. 26 kg
LE1D Class 0.2 Burden: 15 VA | Class 0.5 Burden: 50 VA | Class 1.0 (1P) Burden: 100 or 200 VA | Class 3.0 (3P) Burden: 300 VA | Weight: approx. 26 kg | Secondary: Double secondary (u1/u2)
Voltage TransformersKyongbo Electric
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Voltage Transformer 17.5 kV LE1 / LE1D

Brand Kyongbo Electric·Voltage Transformers

Available part numbers (2)

LE1, LE1D

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LE1Class 0.2 Burden: 15 VA | Class 0.5 Burden: 50 VA | Class 1.0 (1P) Burden: 100 or 200 VA | Class 3.0 (3P) Burden: 300 VA | Weight: approx. 26 kg
LE1DClass 0.2 Burden: 15 VA | Class 0.5 Burden: 50 VA | Class 1.0 (1P) Burden: 100 or 200 VA | Class 3.0 (3P) Burden: 300 VA | Weight: approx. 26 kg | Secondary: Double secondary (u1/u2)
