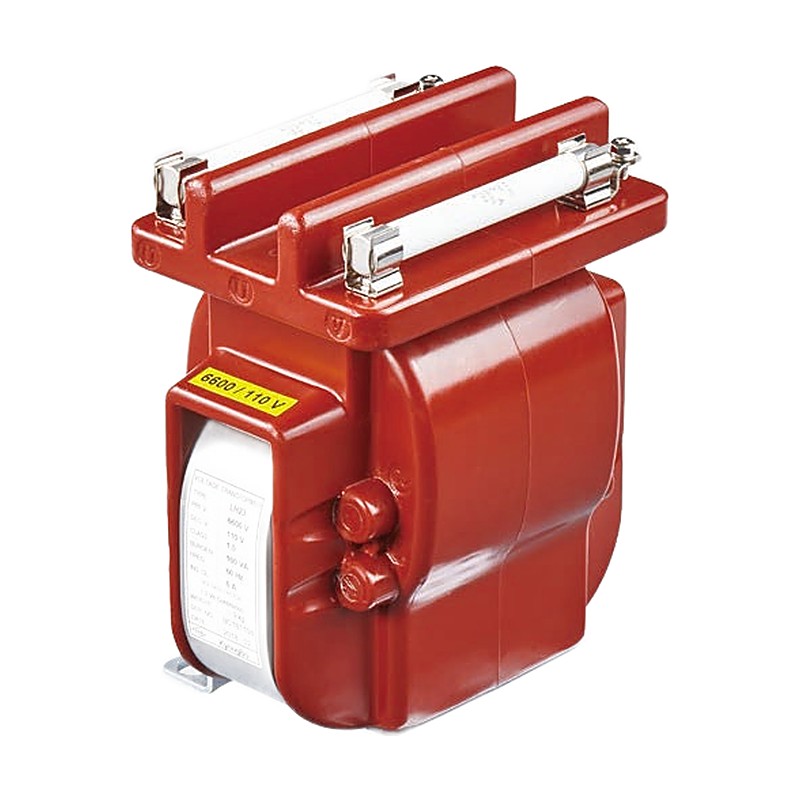

Kyongbo Electric Voltage Transformer 7.2 kV LH Series

Kyongbo Electric Voltage Transformer 7.2 kV LH Series

Single-phase line-to-line epoxy vacuum molded voltage transformer for 7.2 kV class metering and protection.

Key features

  • For metering and protection
  • Indoor use
  • Single phase, line-to-line voltage transformer
  • Epoxy vacuum molded insulation

Specifications

Standard KS C 1706 / JEC 1201 / IEC 61869-3
Max. Voltage 7.2 kV (KS/IEC), 6.9 kV (JEC)
Primary Voltage 6600 V
Secondary Voltage 110 V
Insulation Level 7.2/22/60 kV (6A)
Frequency 60 Hz (others on request)
LH22 Class 1.0 (1P) Burden: 50 VA | Weight: approx. 7 kg
LH23 Class 0.5 Burden: 50 VA | Class 1.0 (1P) Burden: 100 VA | Weight: approx. 9 kg
LH25 Class 0.5 Burden: 100 VA | Class 1.0 (1P) Burden: 200 VA | Weight: approx. 12 kg
LH26 Class 0.5 Burden: 200 VA | Class 1.0 (1P) Burden: 300 or 500 VA | Weight: approx. 17 kg
Voltage TransformersKyongbo Electric
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Voltage Transformer 7.2 kV LH Series

Brand Kyongbo Electric·Voltage Transformers

Available part numbers (4)

LH22, LH23, LH25, LH26

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LH22Class 1.0 (1P) Burden: 50 VA | Weight: approx. 7 kg
LH23Class 0.5 Burden: 50 VA | Class 1.0 (1P) Burden: 100 VA | Weight: approx. 9 kg
LH25Class 0.5 Burden: 100 VA | Class 1.0 (1P) Burden: 200 VA | Weight: approx. 12 kg
LH26Class 0.5 Burden: 200 VA | Class 1.0 (1P) Burden: 300 or 500 VA | Weight: approx. 17 kg
