Kyongbo Electric Wattmeter W1-W4 (Transducer Type)

Kyongbo Electric Wattmeter W1-W4 (Transducer Type)

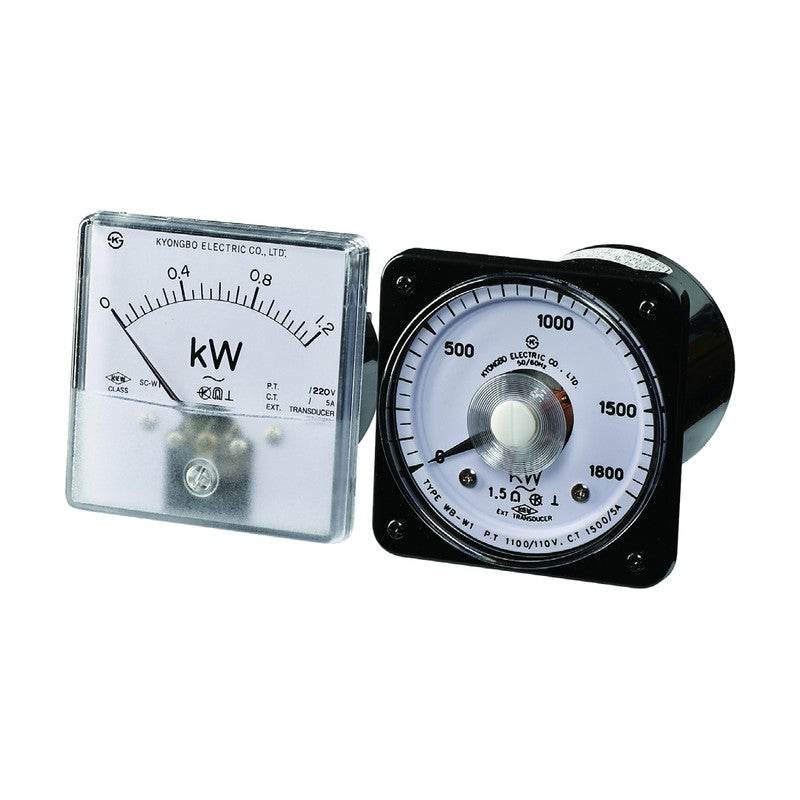

Transducer type panel wattmeter measuring active power, with internal (WA-TW) or external transducer box.

Key features

  • 1P 2W, 1P 3W, 3P 3W and 3P 4W versions
  • Operating voltage range +/-15% of rated voltage
  • Use AC 110 V VT and AC 5 A CT above rating

Specifications

Case Color Black (Munsell N1.5)
Dimensions See catalog pages 324-325
Current Input 5 A or 1 A
Frequency 50/60 Hz
Accuracy Class 1.5%
Burden Voltage 0.5 VA, current 0.5 VA
SC-W1 Size: 80 x 80 mm | Scale Form: Square | System: 1P 2W | Voltage: 110 or 220 V | Transducer: External
SB-W1 Size: 100 x 84 mm | Scale Form: Square | System: 1P 2W | Voltage: 110 or 220 V | Transducer: External
SA-W1 Size: 120 x 100 mm | Scale Form: Square | System: 1P 2W | Voltage: 110 or 220 V | Transducer: External
WB-W1 Size: 80 x 80 mm | Scale Form: Wide angle | System: 1P 2W | Voltage: 110 or 220 V | Transducer: External
WA-W1 Size: 110 x 110 mm | Scale Form: Wide angle | System: 1P 2W | Voltage: 110 or 220 V | Transducer: External
WA-TW1 Size: 110 x 110 mm | Scale Form: Wide angle | System: 1P 2W | Voltage: 110 or 220 V | Transducer: Internal
SC-W2 Size: 80 x 80 mm | Scale Form: Square | System: 1P 3W | Voltage: 110 V | Transducer: External
SB-W2 Size: 100 x 84 mm | Scale Form: Square | System: 1P 3W | Voltage: 110 V | Transducer: External
SA-W2 Size: 120 x 100 mm | Scale Form: Square | System: 1P 3W | Voltage: 110 V | Transducer: External
WB-W2 Size: 80 x 80 mm | Scale Form: Wide angle | System: 1P 3W | Voltage: 110 V | Transducer: External
WA-W2 Size: 110 x 110 mm | Scale Form: Wide angle | System: 1P 3W | Voltage: 110 V | Transducer: External
WA-TW2 Size: 110 x 110 mm | Scale Form: Wide angle | System: 1P 3W | Voltage: 110 V | Transducer: Internal
SC-W3 Size: 80 x 80 mm | Scale Form: Square | System: 3P 3W | Voltage: 110 or 220 V | Transducer: External
SB-W3 Size: 100 x 84 mm | Scale Form: Square | System: 3P 3W | Voltage: 110 or 220 V | Transducer: External
SA-W3 Size: 120 x 100 mm | Scale Form: Square | System: 3P 3W | Voltage: 110 or 220 V | Transducer: External
WB-W3 Size: 80 x 80 mm | Scale Form: Wide angle | System: 3P 3W | Voltage: 110 or 220 V | Transducer: External
WA-W3 Size: 110 x 110 mm | Scale Form: Wide angle | System: 3P 3W | Voltage: 110 or 220 V | Transducer: External
WA-TW3 Size: 110 x 110 mm | Scale Form: Wide angle | System: 3P 3W | Voltage: 110 or 220 V | Transducer: Internal
SC-W4 Size: 80 x 80 mm | Scale Form: Square | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Balanced | Transducer: External
SC-UW4 Size: 80 x 80 mm | Scale Form: Square | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Unbalanced | Transducer: External
SB-W4 Size: 100 x 84 mm | Scale Form: Square | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Balanced | Transducer: External
SB-UW4 Size: 100 x 84 mm | Scale Form: Square | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Unbalanced | Transducer: External
SA-W4 Size: 120 x 100 mm | Scale Form: Square | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Balanced | Transducer: External
SA-UW4 Size: 120 x 100 mm | Scale Form: Square | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Unbalanced | Transducer: External
WB-W4 Size: 80 x 80 mm | Scale Form: Wide angle | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Balanced | Transducer: External
WB-UW4 Size: 80 x 80 mm | Scale Form: Wide angle | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Unbalanced | Transducer: External
WA-W4 Size: 110 x 110 mm | Scale Form: Wide angle | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Balanced | Transducer: External
WA-UW4 Size: 110 x 110 mm | Scale Form: Wide angle | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Unbalanced | Transducer: External
WA-TW4 Size: 110 x 110 mm | Scale Form: Wide angle | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Balanced | Transducer: Internal
WA-UTW4 Size: 110 x 110 mm | Scale Form: Wide angle | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Unbalanced | Transducer: Internal
Analog Panel MetersKyongbo Electric
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Wattmeter W1-W4 (Transducer Type)

Brand Kyongbo Electric·Analog Panel Meters

Available part numbers (30)

SC-W1, SB-W1, SA-W1, WB-W1, WA-W1, WA-TW1, SC-W2, SB-W2, SA-W2, WB-W2 + 20 more — see full table ↓

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SC-W1Size: 80 x 80 mm | Scale Form: Square | System: 1P 2W | Voltage: 110 or 220 V | Transducer: External
SB-W1Size: 100 x 84 mm | Scale Form: Square | System: 1P 2W | Voltage: 110 or 220 V | Transducer: External
SA-W1Size: 120 x 100 mm | Scale Form: Square | System: 1P 2W | Voltage: 110 or 220 V | Transducer: External
WB-W1Size: 80 x 80 mm | Scale Form: Wide angle | System: 1P 2W | Voltage: 110 or 220 V | Transducer: External
WA-W1Size: 110 x 110 mm | Scale Form: Wide angle | System: 1P 2W | Voltage: 110 or 220 V | Transducer: External
WA-TW1Size: 110 x 110 mm | Scale Form: Wide angle | System: 1P 2W | Voltage: 110 or 220 V | Transducer: Internal
SC-W2Size: 80 x 80 mm | Scale Form: Square | System: 1P 3W | Voltage: 110 V | Transducer: External
SB-W2Size: 100 x 84 mm | Scale Form: Square | System: 1P 3W | Voltage: 110 V | Transducer: External
SA-W2Size: 120 x 100 mm | Scale Form: Square | System: 1P 3W | Voltage: 110 V | Transducer: External
WB-W2Size: 80 x 80 mm | Scale Form: Wide angle | System: 1P 3W | Voltage: 110 V | Transducer: External
WA-W2Size: 110 x 110 mm | Scale Form: Wide angle | System: 1P 3W | Voltage: 110 V | Transducer: External
WA-TW2Size: 110 x 110 mm | Scale Form: Wide angle | System: 1P 3W | Voltage: 110 V | Transducer: Internal
SC-W3Size: 80 x 80 mm | Scale Form: Square | System: 3P 3W | Voltage: 110 or 220 V | Transducer: External
SB-W3Size: 100 x 84 mm | Scale Form: Square | System: 3P 3W | Voltage: 110 or 220 V | Transducer: External
SA-W3Size: 120 x 100 mm | Scale Form: Square | System: 3P 3W | Voltage: 110 or 220 V | Transducer: External
WB-W3Size: 80 x 80 mm | Scale Form: Wide angle | System: 3P 3W | Voltage: 110 or 220 V | Transducer: External
WA-W3Size: 110 x 110 mm | Scale Form: Wide angle | System: 3P 3W | Voltage: 110 or 220 V | Transducer: External
WA-TW3Size: 110 x 110 mm | Scale Form: Wide angle | System: 3P 3W | Voltage: 110 or 220 V | Transducer: Internal
SC-W4Size: 80 x 80 mm | Scale Form: Square | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Balanced | Transducer: External
SC-UW4Size: 80 x 80 mm | Scale Form: Square | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Unbalanced | Transducer: External
SB-W4Size: 100 x 84 mm | Scale Form: Square | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Balanced | Transducer: External
SB-UW4Size: 100 x 84 mm | Scale Form: Square | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Unbalanced | Transducer: External
SA-W4Size: 120 x 100 mm | Scale Form: Square | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Balanced | Transducer: External
SA-UW4Size: 120 x 100 mm | Scale Form: Square | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Unbalanced | Transducer: External
WB-W4Size: 80 x 80 mm | Scale Form: Wide angle | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Balanced | Transducer: External
WB-UW4Size: 80 x 80 mm | Scale Form: Wide angle | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Unbalanced | Transducer: External
WA-W4Size: 110 x 110 mm | Scale Form: Wide angle | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Balanced | Transducer: External
WA-UW4Size: 110 x 110 mm | Scale Form: Wide angle | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Unbalanced | Transducer: External
WA-TW4Size: 110 x 110 mm | Scale Form: Wide angle | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Balanced | Transducer: Internal
WA-UTW4Size: 110 x 110 mm | Scale Form: Wide angle | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Unbalanced | Transducer: Internal

Need a different model, or a part not listed here? Send us your parts list →
