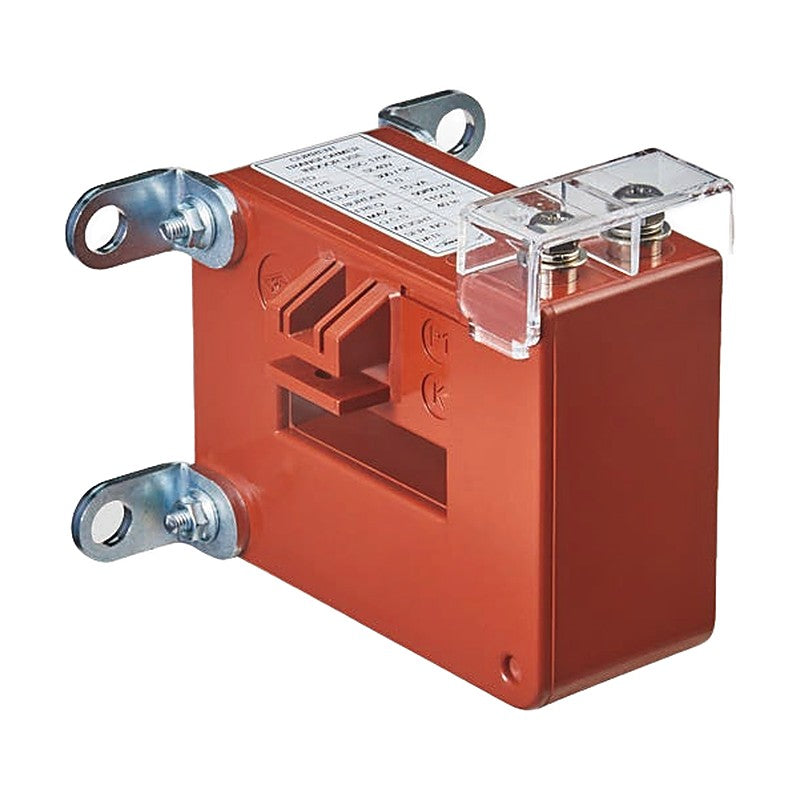

Kyongbo Electric Window Type Current Transformer 1.15 kV SL-V Series (Vertical Base Mounting)

Kyongbo Electric Window Type Current Transformer 1.15 kV SL-V Series (Vertical Base Mounting)

Indoor bus-bar through window-type current transformer with vertical base mounting for metering and protection, rated 1.15 kV.

Key features

  • For metering and protection
  • Indoor use
  • Bus-bar through type
  • Secondary terminal cover
  • Vertical base mounting for easy fixing
  • Usable on ACB vertical type

Specifications

Insulation Level 1.15 kV / 4 kV
Rated Frequency 60 Hz (others on request)
Short-Time Current 40 In / 1 s
Secondary Current 5 A or 1 A
Standards KS C 1706, IEC 61869-2, JEC 1201, IEEE C57.13
Mounting Bus-bar through (window type)
Insulation Epoxy molding
Case Flame-retardant ABS
SL40V Service: Metering | Current Ratio (A): 100~800/5 | Accuracy Class: 3.0 / 1.0 | Burden (VA): 5 / 15 | Window (mm): 12 x 45 | Weight (kg): approx. 0.6-0.9 | Ratio: Single
SL41V Service: Metering | Current Ratio (A): 100~600/5 | Accuracy Class: 1.0 | Burden (VA): 5 / 15 / 40 | Window (mm): 15 x 45 | Weight (kg): approx. 1.5-1.8 | Ratio: Single
SL51V Service: Metering | Current Ratio (A): 150~800/5 | Accuracy Class: 1.0 | Burden (VA): 5 / 15 / 40 | Window (mm): 15 x 55 | Weight (kg): approx. 2-2.5 | Ratio: Single
SL63V Service: Metering | Current Ratio (A): 250~1500/5 | Accuracy Class: 1.0 | Burden (VA): 5 / 15 / 40 | Window (mm): 35 x 65 | Weight (kg): approx. 2.1-2.9 | Ratio: Single
SL84V Service: Metering | Current Ratio (A): 300~2000/5 | Accuracy Class: 1.0 | Burden (VA): 5 / 15 / 40 | Window (mm): 45 x 85 | Weight (kg): approx. 2.2-3.4 | Ratio: Single
SL114V Service: Metering | Current Ratio (A): 400~2500/5 | Accuracy Class: 1.0 | Burden (VA): 5 / 15 / 40 | Window (mm): 45 x 110 | Weight (kg): approx. 2.3-3.8 | Ratio: Single
SL116V Service: Metering | Current Ratio (A): 500~3000/5 | Accuracy Class: 1.0 | Burden (VA): 5 / 15 / 40 | Window (mm): 65 x 110 | Weight (kg): approx. 2.5-4.2 | Ratio: Single
SL145V Service: Metering | Current Ratio (A): 600~4000/5 | Accuracy Class: 1.0 | Burden (VA): 5 / 15 / 40 | Window (mm): 55 x 145 | Weight (kg): approx. 2.6-4.7 | Ratio: Single
SL168V Service: Metering | Current Ratio (A): 750~6000/5 | Accuracy Class: 1.0 | Burden (VA): 5 / 15 / 40 | Window (mm): 85 x 160 | Weight (kg): approx. 2.7-5.2 | Ratio: Single
SL219V Service: Metering | Current Ratio (A): 800~7500/5 | Accuracy Class: 1.0 | Burden (VA): 5 / 15 / 40 | Window (mm): 95 x 210 | Weight (kg): approx. 3.6-6 | Ratio: Single
SL41VR Service: Protection | Current Ratio (A): 200~600/5 | Accuracy Class: 1P (JEC) or 5P (IEC) | Burden (VA): 5 / 15 | Over-Current Factor n>: 10 / 20 | Window (mm): 15 x 45 | Weight (kg): approx. 1.7-2.3 | Ratio: Single
SL51VR Service: Protection | Current Ratio (A): 200~800/5 | Accuracy Class: 1P (JEC) or 5P (IEC) | Burden (VA): 5 / 15 | Over-Current Factor n>: 10 / 20 | Window (mm): 15 x 55 | Weight (kg): approx. 2-2.6 | Ratio: Single
SL63VR Service: Protection | Current Ratio (A): 250~1500/5 | Accuracy Class: 1P (JEC) or 5P (IEC) | Burden (VA): 5 / 15 | Over-Current Factor n>: 10 / 20 | Window (mm): 35 x 65 | Weight (kg): approx. 2.1-3 | Ratio: Single
SL84VR Service: Protection | Current Ratio (A): 300~2000/5 | Accuracy Class: 1P (JEC) or 5P (IEC) | Burden (VA): 5 / 15 / 30 | Over-Current Factor n>: 10 / 20 | Window (mm): 45 x 85 | Weight (kg): approx. 2.1-3.6 | Ratio: Single
SL114VR Service: Protection | Current Ratio (A): 400~2500/5 | Accuracy Class: 1P (JEC) or 5P (IEC) | Burden (VA): 5 / 15 / 30 | Over-Current Factor n>: 10 / 20 | Window (mm): 45 x 110 | Weight (kg): approx. 1.8-3.8 | Ratio: Single
SL116VR Service: Protection | Current Ratio (A): 500~3000/5 | Accuracy Class: 1P (JEC) or 5P (IEC) | Burden (VA): 5 / 15 / 30 | Over-Current Factor n>: 10 / 20 | Window (mm): 65 x 110 | Weight (kg): approx. 2-4 | Ratio: Single
SL145VR Service: Protection | Current Ratio (A): 600~4000/5 | Accuracy Class: 1P (JEC) or 5P (IEC) | Burden (VA): 5 / 15 / 40 | Over-Current Factor n>: 10 / 20 | Window (mm): 55 x 145 | Weight (kg): approx. 2.7-5.8 | Ratio: Single
SL168VR Service: Protection | Current Ratio (A): 750~6000/5 | Accuracy Class: 1P (JEC) or 5P (IEC) | Burden (VA): 5 / 15 / 40 | Over-Current Factor n>: 10 / 20 | Window (mm): 85 x 160 | Weight (kg): approx. 4.1-11 | Ratio: Single
SL219VR Service: Protection | Current Ratio (A): 800~7500/5 | Accuracy Class: 1P (JEC) or 5P (IEC) | Burden (VA): 5 / 15 / 40 | Over-Current Factor n>: 10 / 20 | Window (mm): 95 x 210 | Weight (kg): approx. 5-12 | Ratio: Single
Current TransformersKyongbo Electric
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Window Type Current Transformer 1.15 kV SL-V Series (Vertical Base Mounting)

Brand Kyongbo Electric·Current Transformers

Available part numbers (19)

SL40V, SL41V, SL51V, SL63V, SL84V, SL114V, SL116V, SL145V, SL168V, SL219V + 9 more — see full table ↓

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SL40VService: Metering | Current Ratio (A): 100~800/5 | Accuracy Class: 3.0 / 1.0 | Burden (VA): 5 / 15 | Window (mm): 12 x 45 | Weight (kg): approx. 0.6-0.9 | Ratio: Single
SL41VService: Metering | Current Ratio (A): 100~600/5 | Accuracy Class: 1.0 | Burden (VA): 5 / 15 / 40 | Window (mm): 15 x 45 | Weight (kg): approx. 1.5-1.8 | Ratio: Single
SL51VService: Metering | Current Ratio (A): 150~800/5 | Accuracy Class: 1.0 | Burden (VA): 5 / 15 / 40 | Window (mm): 15 x 55 | Weight (kg): approx. 2-2.5 | Ratio: Single
SL63VService: Metering | Current Ratio (A): 250~1500/5 | Accuracy Class: 1.0 | Burden (VA): 5 / 15 / 40 | Window (mm): 35 x 65 | Weight (kg): approx. 2.1-2.9 | Ratio: Single
SL84VService: Metering | Current Ratio (A): 300~2000/5 | Accuracy Class: 1.0 | Burden (VA): 5 / 15 / 40 | Window (mm): 45 x 85 | Weight (kg): approx. 2.2-3.4 | Ratio: Single
SL114VService: Metering | Current Ratio (A): 400~2500/5 | Accuracy Class: 1.0 | Burden (VA): 5 / 15 / 40 | Window (mm): 45 x 110 | Weight (kg): approx. 2.3-3.8 | Ratio: Single
SL116VService: Metering | Current Ratio (A): 500~3000/5 | Accuracy Class: 1.0 | Burden (VA): 5 / 15 / 40 | Window (mm): 65 x 110 | Weight (kg): approx. 2.5-4.2 | Ratio: Single
SL145VService: Metering | Current Ratio (A): 600~4000/5 | Accuracy Class: 1.0 | Burden (VA): 5 / 15 / 40 | Window (mm): 55 x 145 | Weight (kg): approx. 2.6-4.7 | Ratio: Single
SL168VService: Metering | Current Ratio (A): 750~6000/5 | Accuracy Class: 1.0 | Burden (VA): 5 / 15 / 40 | Window (mm): 85 x 160 | Weight (kg): approx. 2.7-5.2 | Ratio: Single
SL219VService: Metering | Current Ratio (A): 800~7500/5 | Accuracy Class: 1.0 | Burden (VA): 5 / 15 / 40 | Window (mm): 95 x 210 | Weight (kg): approx. 3.6-6 | Ratio: Single
SL41VRService: Protection | Current Ratio (A): 200~600/5 | Accuracy Class: 1P (JEC) or 5P (IEC) | Burden (VA): 5 / 15 | Over-Current Factor n>: 10 / 20 | Window (mm): 15 x 45 | Weight (kg): approx. 1.7-2.3 | Ratio: Single
SL51VRService: Protection | Current Ratio (A): 200~800/5 | Accuracy Class: 1P (JEC) or 5P (IEC) | Burden (VA): 5 / 15 | Over-Current Factor n>: 10 / 20 | Window (mm): 15 x 55 | Weight (kg): approx. 2-2.6 | Ratio: Single
SL63VRService: Protection | Current Ratio (A): 250~1500/5 | Accuracy Class: 1P (JEC) or 5P (IEC) | Burden (VA): 5 / 15 | Over-Current Factor n>: 10 / 20 | Window (mm): 35 x 65 | Weight (kg): approx. 2.1-3 | Ratio: Single
SL84VRService: Protection | Current Ratio (A): 300~2000/5 | Accuracy Class: 1P (JEC) or 5P (IEC) | Burden (VA): 5 / 15 / 30 | Over-Current Factor n>: 10 / 20 | Window (mm): 45 x 85 | Weight (kg): approx. 2.1-3.6 | Ratio: Single
SL114VRService: Protection | Current Ratio (A): 400~2500/5 | Accuracy Class: 1P (JEC) or 5P (IEC) | Burden (VA): 5 / 15 / 30 | Over-Current Factor n>: 10 / 20 | Window (mm): 45 x 110 | Weight (kg): approx. 1.8-3.8 | Ratio: Single
SL116VRService: Protection | Current Ratio (A): 500~3000/5 | Accuracy Class: 1P (JEC) or 5P (IEC) | Burden (VA): 5 / 15 / 30 | Over-Current Factor n>: 10 / 20 | Window (mm): 65 x 110 | Weight (kg): approx. 2-4 | Ratio: Single
SL145VRService: Protection | Current Ratio (A): 600~4000/5 | Accuracy Class: 1P (JEC) or 5P (IEC) | Burden (VA): 5 / 15 / 40 | Over-Current Factor n>: 10 / 20 | Window (mm): 55 x 145 | Weight (kg): approx. 2.7-5.8 | Ratio: Single
SL168VRService: Protection | Current Ratio (A): 750~6000/5 | Accuracy Class: 1P (JEC) or 5P (IEC) | Burden (VA): 5 / 15 / 40 | Over-Current Factor n>: 10 / 20 | Window (mm): 85 x 160 | Weight (kg): approx. 4.1-11 | Ratio: Single
SL219VRService: Protection | Current Ratio (A): 800~7500/5 | Accuracy Class: 1P (JEC) or 5P (IEC) | Burden (VA): 5 / 15 / 40 | Over-Current Factor n>: 10 / 20 | Window (mm): 95 x 210 | Weight (kg): approx. 5-12 | Ratio: Single
