Kyongbo Electric Window Type Current Transformer 7.2 kV SH18 Series

Kyongbo Electric Window Type Current Transformer 7.2 kV SH18 Series

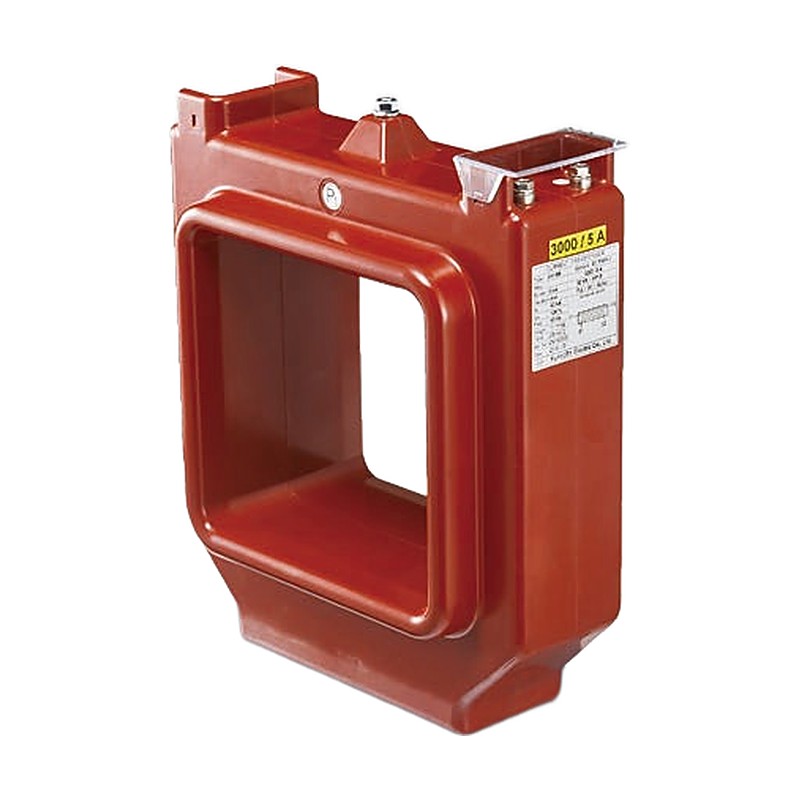

Indoor epoxy vacuum-molded large-window current transformer, 7.2 kV class, through which the primary cable or bus-bar passes, for metering and protection.

Key features

  • For metering and protection
  • Indoor use
  • Primary cable or bus-bar through type
  • Epoxy vacuum molding insulation
  • Low-voltage 0.23~1.2 kV version available on request
  • Keep at least 10 mm between a bare primary conductor and the inner wall of the window

Specifications

Rated Secondary Current 5 A or 1 A
Short-Time Current 40 In ~ 40 kA / 1 s
Rated Frequency 60 Hz (others on request)
Standards KS C 1706, JEC 1201, IEC 61869-2 (IEEE C57.13 on request)
SH18 Service: Metering | Cores: 1 | Ratio: Single | Current Ratio (A): 1000~6000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 7.2 kV; 7.2/22/60 kV (6A) | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Weight: approx. 14 kg | Window (mm): 180 x 170
SH18D Service: Metering | Cores: 1 | Ratio: Double | Current Ratio (A): 1000/500~6000/3000/5 | Accuracy Class: 0.5 / 1.0 | Burden (VA): 15 / 40 (KS) / 15 / 30 (IEC) | Max. Voltage / Insulation (KS C 1706): 7.2 kV; 7.2/22/60 kV (6A) | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Weight: approx. 14 kg | Window (mm): 180 x 170
SH18R Service: Protection | Cores: 1 | Ratio: Single | Current Ratio (A): 1500~6000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 6.9 kV; 6.9/22/60 kV | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Weight: approx. 14 kg | Window (mm): 180 x 170
SH18DR Service: Protection | Cores: 1 | Ratio: Double | Current Ratio (A): 1500/750~6000/3000/5 | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Burden (VA): 15 / 40 (JEC) / 15 / 30 (IEC) | Over-Current Factor: n>10 or 20 | Max. Voltage / Insulation (JEC 1201): 6.9 kV; 6.9/22/60 kV | Max. Voltage / Insulation (IEC 61869-2): 7.2 kV; 7.2/20/60 kV | Weight: approx. 14 kg | Window (mm): 180 x 170
