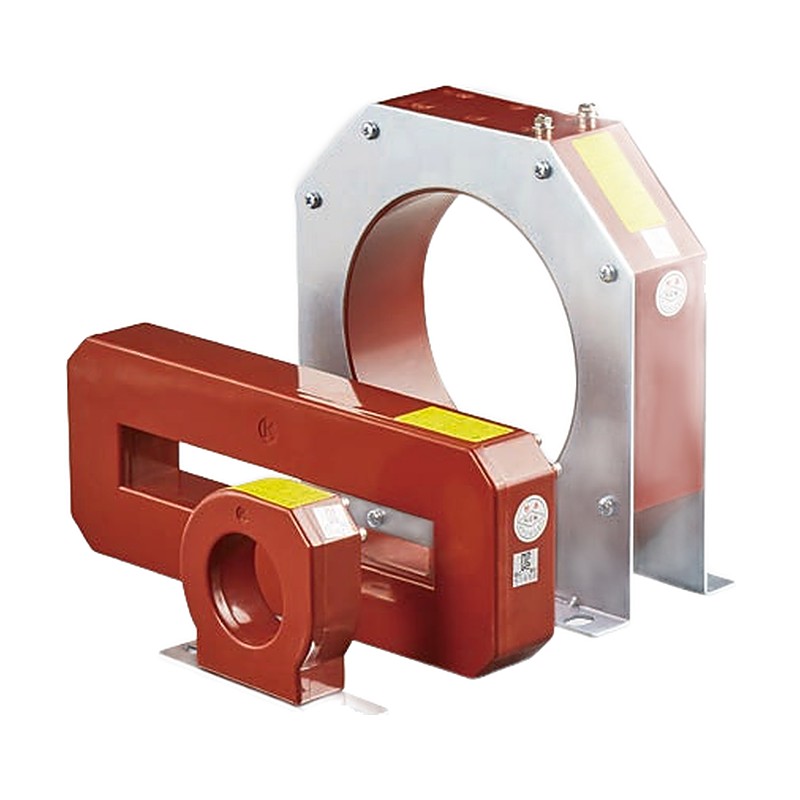

Kyongbo Electric Zero Phase Current Transformer for Earth Leakage Detector ZL

Kyongbo Electric Zero Phase Current Transformer for Earth Leakage Detector ZL

Indoor cable or bus-bar through zero phase current transformer for earth leakage detectors, type-approved by the Korea Fire Industry Technology Institute.

Key features

  • Cable through and bus-bar through types
  • Not applicable to induction type selective ground relays (SGR)
  • No test terminal

Specifications

Line Voltage / Frequency AC 600 V max / 60 Hz (50 Hz option)
Rated Output 100 mV at 200 mA zero phase primary (1.2 kOhm load)
Insulation Resistance DC 500 V, 5 MOhm min
Withstand Voltage AC 2.2 kV, 60 Hz, 1 min
ZL02 Primary Current: 80 A max | Window: dia. 25 mm | Type: Cable through | Material: Flame-retardant ABS | Weight: approx. 0.3 kg
ZL03 Primary Current: 100 A max | Window: dia. 30 mm | Type: Cable through | Material: Flame-retardant ABS | Weight: approx. 0.3 kg
ZL05 Primary Current: 250 A max | Window: dia. 50 mm | Type: Cable through | Material: Flame-retardant ABS | Weight: approx. 0.4 kg
ZL06 Primary Current: 400 A max | Window: dia. 65 mm | Type: Cable through | Material: Flame-retardant ABS | Weight: approx. 0.5 kg
ZL08 Primary Current: 600 A max | Window: dia. 80 mm | Type: Cable through | Material: Flame-retardant ABS | Weight: approx. 0.6 kg
ZL10 Primary Current: 800 A max | Window: dia. 100 mm | Type: Cable through | Material: Flame-retardant ABS | Weight: approx. 0.7 kg
ZL12 Primary Current: 1000 A max | Window: dia. 120 mm | Type: Cable through | Material: Flame-retardant ABS | Weight: approx. 1.0 kg
ZL15 Primary Current: 1500 A max | Window: dia. 150 mm | Type: Cable through | Material: Epoxy resin | Weight: approx. 3.6 kg
ZL20 Primary Current: 2000 A max | Window: dia. 200 mm | Type: Cable through | Material: Epoxy resin | Weight: approx. 5.3 kg
ZL16 Primary Current: 400 A max | Window: 160 x 30 mm | Type: Bus-bar through | Material: Flame-retardant ABS | Weight: approx. 1.3 kg
ZL16A Primary Current: 600 A max | Window: 160 x 30 mm | Type: Bus-bar through | Material: Flame-retardant ABS | Weight: approx. 1.5 kg
ZL21 Primary Current: 500 A max | Window: 210 x 30 mm | Type: Bus-bar through | Material: Flame-retardant ABS | Weight: approx. 1.6 kg
ZL21A Primary Current: 1200 A max | Window: 210 x 30 mm | Type: Bus-bar through | Material: Flame-retardant ABS | Weight: approx. 2.1 kg
ZL26 Primary Current: 600 A max | Window: 260 x 30 mm | Type: Bus-bar through | Material: Flame-retardant ABS | Weight: approx. 1.9 kg
ZL26A Primary Current: 1200 A max | Window: 260 x 30 mm | Type: Bus-bar through | Material: Flame-retardant ABS | Weight: approx. 2.4 kg
