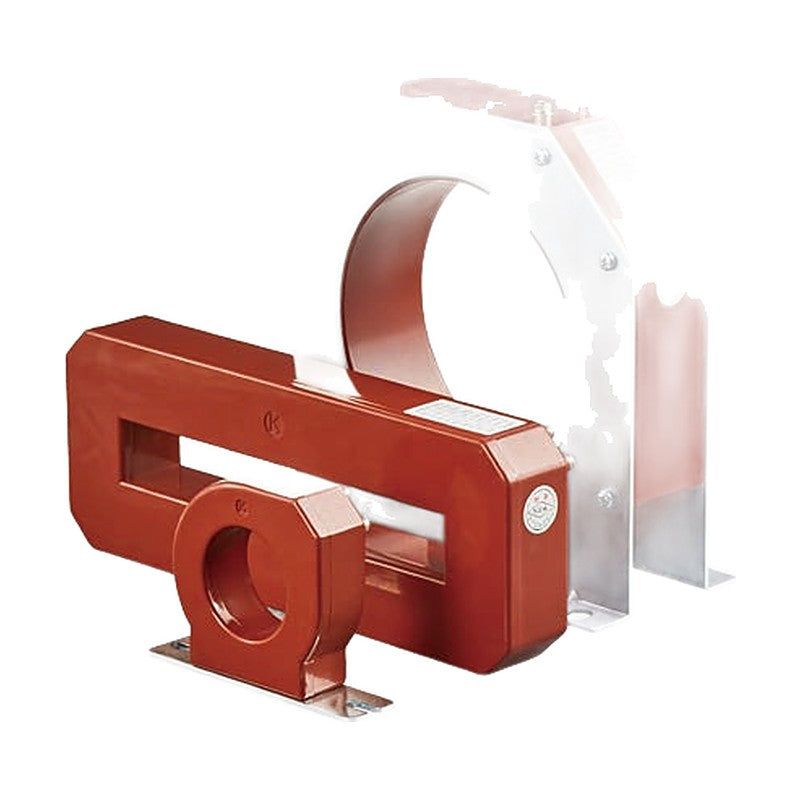

Kyongbo Electric Zero Phase Current Transformer for Ground Fault Relay ZGD

Kyongbo Electric Zero Phase Current Transformer for Ground Fault Relay ZGD

Indoor cable or bus-bar through zero phase current transformer for ground fault relays.

Key features

  • Cable through and bus-bar through types
  • No test terminal

Specifications

Rated Output 100 mV at 200 mA zero phase primary
Insulation Resistance DC 500 V, 5 MOhm min
Withstand Voltage AC 2,200 V, 60 Hz, 1 min
ZGD02 Primary Current: 80 A max | Window: dia. 25 mm | Type: Cable through | Material: Flame-retardant ABS | Weight: approx. 0.3 kg
ZGD03 Primary Current: 100 A max | Window: dia. 30 mm | Type: Cable through | Material: Flame-retardant ABS | Weight: approx. 0.3 kg
ZGD05 Primary Current: 250 A max | Window: dia. 50 mm | Type: Cable through | Material: Flame-retardant ABS | Weight: approx. 0.4 kg
ZGD06 Primary Current: 400 A max | Window: dia. 65 mm | Type: Cable through | Material: Flame-retardant ABS | Weight: approx. 0.5 kg
ZGD08 Primary Current: 600 A max | Window: dia. 80 mm | Type: Cable through | Material: Flame-retardant ABS | Weight: approx. 0.6 kg
ZGD10 Primary Current: 800 A max | Window: dia. 100 mm | Type: Cable through | Material: Flame-retardant ABS | Weight: approx. 0.7 kg
ZGD12 Primary Current: 1000 A max | Window: dia. 120 mm | Type: Cable through | Material: Flame-retardant ABS | Weight: approx. 1.0 kg
ZGD15 Primary Current: 1500 A max | Window: dia. 150 mm | Type: Cable through | Material: Epoxy resin | Weight: approx. 3.6 kg
ZGD20 Primary Current: 2000 A max | Window: dia. 200 mm | Type: Cable through | Material: Epoxy resin | Weight: approx. 5.3 kg
ZGD16 Primary Current: 400 A max | Window: 160 x 30 mm | Type: Bus-bar through | Material: Flame-retardant ABS | Weight: approx. 1.3 kg
ZGD16A Primary Current: 600 A max | Window: 160 x 30 mm | Type: Bus-bar through | Material: Flame-retardant ABS | Weight: approx. 1.5 kg
ZGD21 Primary Current: 500 A max | Window: 210 x 30 mm | Type: Bus-bar through | Material: Flame-retardant ABS | Weight: approx. 1.6 kg
ZGD21A Primary Current: 1200 A max | Window: 210 x 30 mm | Type: Bus-bar through | Material: Flame-retardant ABS | Weight: approx. 2.1 kg
ZGD26 Primary Current: 600 A max | Window: 260 x 30 mm | Type: Bus-bar through | Material: Flame-retardant ABS | Weight: approx. 1.9 kg
ZGD26A Primary Current: 1200 A max | Window: 260 x 30 mm | Type: Bus-bar through | Material: Flame-retardant ABS | Weight: approx. 2.4 kg
Zero-Phase Current TransformersKyongbo Electric
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Zero Phase Current Transformer for Ground Fault Relay ZGD

Brand Kyongbo Electric·Zero-Phase Current Transformers

Available part numbers (15)

ZGD02, ZGD03, ZGD05, ZGD06, ZGD08, ZGD10, ZGD12, ZGD15, ZGD20, ZGD16 + 5 more — see full table ↓

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZGD02Primary Current: 80 A max | Window: dia. 25 mm | Type: Cable through | Material: Flame-retardant ABS | Weight: approx. 0.3 kg
ZGD03Primary Current: 100 A max | Window: dia. 30 mm | Type: Cable through | Material: Flame-retardant ABS | Weight: approx. 0.3 kg
ZGD05Primary Current: 250 A max | Window: dia. 50 mm | Type: Cable through | Material: Flame-retardant ABS | Weight: approx. 0.4 kg
ZGD06Primary Current: 400 A max | Window: dia. 65 mm | Type: Cable through | Material: Flame-retardant ABS | Weight: approx. 0.5 kg
ZGD08Primary Current: 600 A max | Window: dia. 80 mm | Type: Cable through | Material: Flame-retardant ABS | Weight: approx. 0.6 kg
ZGD10Primary Current: 800 A max | Window: dia. 100 mm | Type: Cable through | Material: Flame-retardant ABS | Weight: approx. 0.7 kg
ZGD12Primary Current: 1000 A max | Window: dia. 120 mm | Type: Cable through | Material: Flame-retardant ABS | Weight: approx. 1.0 kg
ZGD15Primary Current: 1500 A max | Window: dia. 150 mm | Type: Cable through | Material: Epoxy resin | Weight: approx. 3.6 kg
ZGD20Primary Current: 2000 A max | Window: dia. 200 mm | Type: Cable through | Material: Epoxy resin | Weight: approx. 5.3 kg
ZGD16Primary Current: 400 A max | Window: 160 x 30 mm | Type: Bus-bar through | Material: Flame-retardant ABS | Weight: approx. 1.3 kg
ZGD16APrimary Current: 600 A max | Window: 160 x 30 mm | Type: Bus-bar through | Material: Flame-retardant ABS | Weight: approx. 1.5 kg
ZGD21Primary Current: 500 A max | Window: 210 x 30 mm | Type: Bus-bar through | Material: Flame-retardant ABS | Weight: approx. 1.6 kg
ZGD21APrimary Current: 1200 A max | Window: 210 x 30 mm | Type: Bus-bar through | Material: Flame-retardant ABS | Weight: approx. 2.1 kg
ZGD26Primary Current: 600 A max | Window: 260 x 30 mm | Type: Bus-bar through | Material: Flame-retardant ABS | Weight: approx. 1.9 kg
ZGD26APrimary Current: 1200 A max | Window: 260 x 30 mm | Type: Bus-bar through | Material: Flame-retardant ABS | Weight: approx. 2.4 kg
