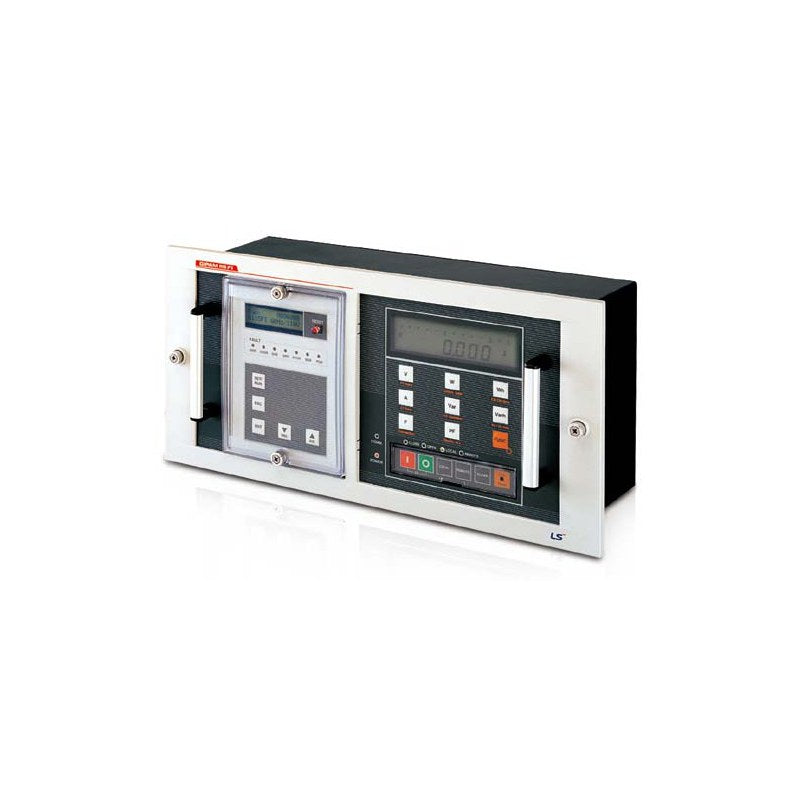

LS Electric Beyond X GIPAM115FI Digital Protection Relay (Feeder)

LS Electric Beyond X GIPAM115FI composite digital protection and monitoring device with 7 protection elements for feeder and incoming panels.

Key features

Seven protection elements: OCR, OCGR, OVR, UVR, OVGR, SGR and POR
OCR high/low stages with definite and inverse-time curves (D2, D4, D8, SI, VI, EI, LI)
Measures voltage, current, power, power factor, frequency and energy; event and fault recording
RS-485 Modbus communication; 19-inch-wide panel unit (444 x 216 mm front)
Order code: GIPAM115 FI RS M 110V 5A + frequency

Specifications

Protection type	FI (feeder, incoming)
PT rating	110 V or 100 V selectable (GPT 190 V)
CT rating	5 A (ZCT 1.5 mA)
Wiring	1P2W, 1P3W, 3P3W, 3P4W
Communication	RS-485, Modbus
Control power	AC 110 V, DC 110/125 V
Digital input voltage	AC/DC 110 V
Operating temperature	-10 to 55 C
Size / weight	444 x 216 x 207 mm; 10.5 kg
Standards	IEC 60255, KEMC 1120, IEC 61000
Source	LS Electric GIPAM115FI catalog C160E1-01 (2023-04), p. 5-6, 16

GIPAM115FIRSM110V5A60Hz		Frequency: 60 Hz
GIPAM115FIRSM110V5A50Hz		Frequency: 50 Hz

Protection RelaysLS Electric

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Beyond X GIPAM115FI Digital Protection Relay (Feeder)

Brand LS Electric·Protection Relays

Available part numbers (2)

GIPAM115FIRSM110V5A60Hz, GIPAM115FIRSM110V5A50Hz
