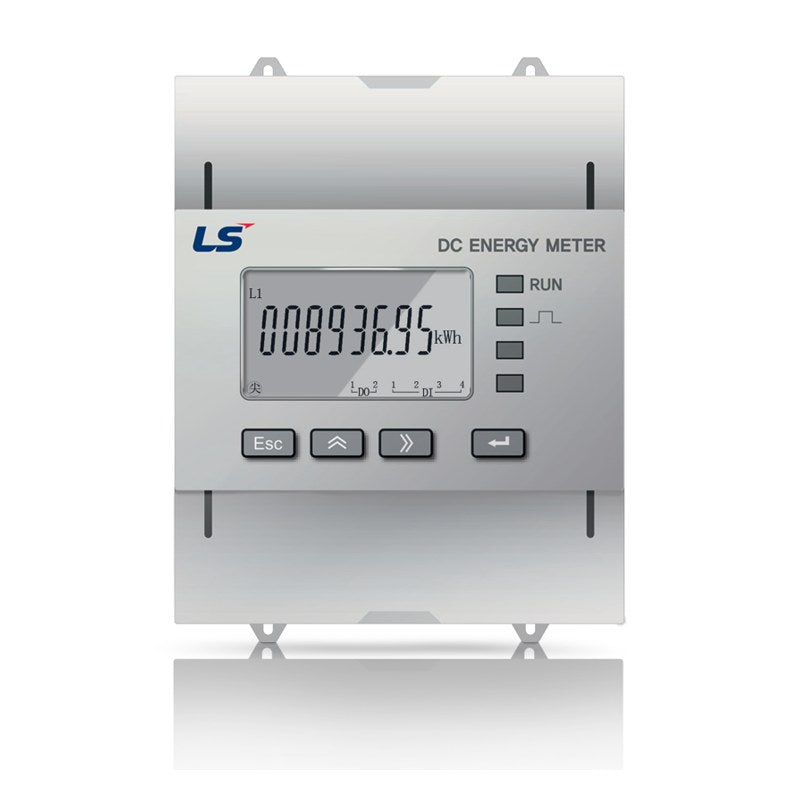

LS Electric Beyond X LSDM1352 DC Energy Meter (DC 10-1000 V)

LS Electric Beyond X LSDM1352 DC Energy Meter (DC 10-1000 V)

LS Electric Beyond X LSDM1352 DIN-rail DC energy meters measuring DC 10-1000 V and up to 750 A via external 75 mV shunt, with RS-485 Modbus-RTU and class 1.0 or 0.5 accuracy.

Key features

  • Measures DC voltage, current, power, energy and monthly energy on 1 or 2 input channels
  • Input DC 10-1000 V; current DC 0-750 A via external 75 mV shunt (sold separately)
  • Accuracy class 1.0 (RN) or 0.5 (RN/S) versions; F versions are CE certified
  • RS-485 Modbus-RTU communication and 100 pulse/kWh output
  • HTN LCD with date, time and temperature display; DIN-rail mounting

Specifications

Input voltage DC 10-1000 V
Input current DC 0-750 A via 75 mV shunt
Input channels 1CH or 2CH
Control power DC 24 V +/-10% or AC 85-265 V
Power consumption 3 W or less
Meter constant 100 pulse/kWh
Communication RS-485, Modbus-RTU
Operating temperature -25 to +55 C
Dimensions 72 x 93.8 x 71 mm
Mounting DIN rail
Source LS Electric DC Energy Meter leaflet C12051-05 (2026-09), p. 1-2
LSDM1352-RN Accuracy class: 1.0 | Version: Standard | CE certified: No
LSDM1352-RNF Accuracy class: 1.0 | Version: Standard | CE certified: Yes
LSDM1352-RN/D Accuracy class: 1.0 | Version: D | CE certified: No
LSDM1352-RN/DF Accuracy class: 1.0 | Version: D | CE certified: Yes
LSDM1352-RN/S Accuracy class: 0.5 | Version: Standard | CE certified: No
LSDM1352-RN/SF Accuracy class: 0.5 | Version: Standard | CE certified: Yes
LSDM1352-RN/SD Accuracy class: 0.5 | Version: D | CE certified: No
LSDM1352-RN/SDF Accuracy class: 0.5 | Version: D | CE certified: Yes
Energy MetersLS Electric
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Beyond X LSDM1352 DC Energy Meter (DC 10-1000 V)

Brand LS Electric·Energy Meters

Available part numbers (8)

LSDM1352-RN, LSDM1352-RNF, LSDM1352-RN/D, LSDM1352-RN/DF, LSDM1352-RN/S, LSDM1352-RN/SF, LSDM1352-RN/SD, LSDM1352-RN/SDF

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LSDM1352-RNAccuracy class: 1.0 | Version: Standard | CE certified: No
LSDM1352-RNFAccuracy class: 1.0 | Version: Standard | CE certified: Yes
LSDM1352-RN/DAccuracy class: 1.0 | Version: D | CE certified: No
LSDM1352-RN/DFAccuracy class: 1.0 | Version: D | CE certified: Yes
LSDM1352-RN/SAccuracy class: 0.5 | Version: Standard | CE certified: No
LSDM1352-RN/SFAccuracy class: 0.5 | Version: Standard | CE certified: Yes
LSDM1352-RN/SDAccuracy class: 0.5 | Version: D | CE certified: No
LSDM1352-RN/SDFAccuracy class: 0.5 | Version: D | CE certified: Yes
