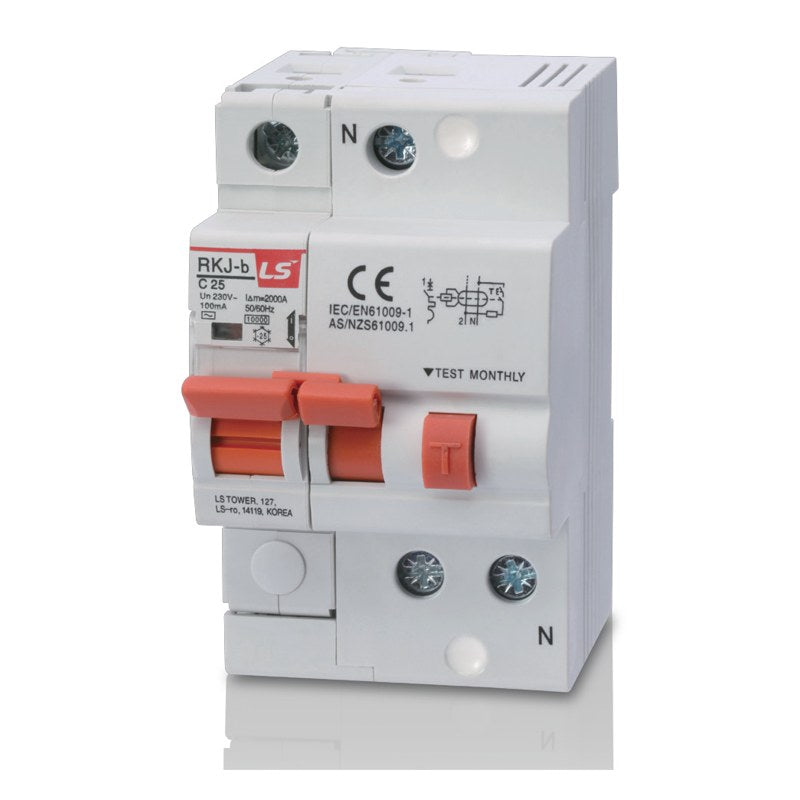

LS Electric Beyond X RKJ-b RCBO (1-63A, 1P+N/2P, 10kA)

LS Electric Beyond X RKJ-b RCBO (1-63A, 1P+N/2P, 10kA)

LS Electric Beyond X RKJ-b residual current breaker with overcurrent protection (RCBO), 1-63 A, 1P+N or 2P, 10 kA.

Key features

  • 10 kA breaking capacity, B/C/D trip curves
  • Type A or AC residual current detection, 30/100/300 mA
  • Tripping time <= 0.03 s (30 mA), <= 0.1 s (100/300 mA)
  • Lug terminals for cables up to 25 mm2; AX and AL accessories available
  • IEC 61009-1 (SEMKO CB) and KC certified (1P+N, 2P)

Specifications

Rated voltage 230V (1P+N), 400V (2P)
Breaking capacity 10 kA
Non-operating current 0.5 x In
Durability Electrical 4,000 / mechanical 10,000 ops
Width 53.6 mm (1P+N), 71.2 mm (2P)
Mounting 35 mm DIN rail
Standard IEC 61009-1, CB, KC
Source LS Electric Beyond X RCBO RKJ-b leaflet (KO) C015W1-02, p. 1-2
RKJ-b1P+NB130mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 1 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB130mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 1 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB1100mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 1 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB1100mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 1 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB1300mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 1 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB1300mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 1 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NB230mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 2 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB230mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 2 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB2100mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 2 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB2100mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 2 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB2300mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 2 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB2300mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 2 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NB330mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 3 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB330mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 3 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB3100mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 3 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB3100mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 3 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB3300mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 3 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB3300mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 3 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NB430mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 4 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB430mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 4 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB4100mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 4 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB4100mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 4 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB4300mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 4 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB4300mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 4 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NB530mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 5 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB530mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 5 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB5100mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 5 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB5100mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 5 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB5300mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 5 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB5300mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 5 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NB630mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 6 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB630mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 6 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB6100mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 6 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB6100mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 6 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB6300mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 6 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB6300mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 6 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NB1030mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 10 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB1030mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 10 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB10100mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 10 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB10100mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 10 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB10300mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 10 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB10300mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 10 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NB1630mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 16 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB1630mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 16 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB16100mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 16 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB16100mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 16 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB16300mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 16 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB16300mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 16 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NB2030mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 20 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB2030mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 20 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB20100mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 20 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB20100mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 20 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB20300mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 20 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB20300mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 20 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NB2530mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 25 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB2530mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 25 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB25100mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 25 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB25100mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 25 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB25300mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 25 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB25300mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 25 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NB3230mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 32 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB3230mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 32 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB32100mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 32 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB32100mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 32 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB32300mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 32 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB32300mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 32 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NB4030mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 40 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB4030mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 40 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB40100mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 40 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB40100mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 40 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB40300mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 40 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB40300mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 40 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NB5030mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 50 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB5030mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 50 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB50100mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 50 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB50100mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 50 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB50300mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 50 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB50300mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 50 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NB6330mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 63 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB6330mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 63 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB63100mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 63 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB63100mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 63 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB63300mAA-Type Poles: 1P+N | Trip curve: B | Rated current: 63 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB63300mAAC-Type Poles: 1P+N | Trip curve: B | Rated current: 63 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC130mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 1 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC130mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 1 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC1100mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 1 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC1100mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 1 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC1300mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 1 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC1300mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 1 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC230mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 2 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC230mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 2 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC2100mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 2 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC2100mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 2 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC2300mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 2 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC2300mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 2 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC330mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 3 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC330mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 3 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC3100mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 3 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC3100mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 3 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC3300mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 3 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC3300mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 3 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC430mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 4 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC430mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 4 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC4100mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 4 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC4100mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 4 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC4300mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 4 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC4300mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 4 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC530mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 5 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC530mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 5 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC5100mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 5 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC5100mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 5 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC5300mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 5 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC5300mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 5 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC630mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 6 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC630mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 6 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC6100mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 6 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC6100mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 6 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC6300mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 6 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC6300mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 6 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC1030mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 10 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC1030mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 10 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC10100mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 10 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC10100mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 10 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC10300mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 10 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC10300mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 10 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC1630mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 16 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC1630mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 16 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC16100mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 16 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC16100mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 16 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC16300mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 16 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC16300mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 16 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC2030mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 20 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC2030mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 20 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC20100mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 20 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC20100mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 20 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC20300mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 20 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC20300mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 20 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC2530mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 25 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC2530mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 25 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC25100mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 25 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC25100mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 25 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC25300mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 25 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC25300mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 25 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC3230mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 32 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC3230mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 32 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC32100mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 32 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC32100mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 32 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC32300mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 32 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC32300mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 32 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC4030mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 40 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC4030mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 40 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC40100mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 40 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC40100mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 40 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC40300mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 40 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC40300mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 40 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC5030mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 50 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC5030mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 50 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC50100mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 50 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC50100mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 50 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC50300mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 50 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC50300mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 50 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC6330mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 63 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC6330mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 63 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC63100mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 63 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC63100mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 63 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC63300mAA-Type Poles: 1P+N | Trip curve: C | Rated current: 63 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC63300mAAC-Type Poles: 1P+N | Trip curve: C | Rated current: 63 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND130mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 1 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND130mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 1 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND1100mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 1 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND1100mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 1 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND1300mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 1 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND1300mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 1 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND230mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 2 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND230mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 2 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND2100mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 2 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND2100mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 2 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND2300mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 2 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND2300mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 2 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND330mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 3 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND330mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 3 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND3100mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 3 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND3100mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 3 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND3300mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 3 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND3300mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 3 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND430mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 4 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND430mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 4 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND4100mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 4 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND4100mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 4 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND4300mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 4 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND4300mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 4 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND530mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 5 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND530mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 5 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND5100mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 5 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND5100mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 5 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND5300mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 5 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND5300mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 5 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND630mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 6 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND630mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 6 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND6100mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 6 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND6100mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 6 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND6300mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 6 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND6300mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 6 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND1030mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 10 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND1030mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 10 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND10100mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 10 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND10100mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 10 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND10300mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 10 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND10300mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 10 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND1630mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 16 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND1630mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 16 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND16100mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 16 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND16100mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 16 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND16300mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 16 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND16300mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 16 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND2030mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 20 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND2030mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 20 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND20100mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 20 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND20100mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 20 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND20300mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 20 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND20300mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 20 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND2530mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 25 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND2530mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 25 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND25100mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 25 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND25100mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 25 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND25300mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 25 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND25300mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 25 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND3230mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 32 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND3230mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 32 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND32100mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 32 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND32100mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 32 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND32300mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 32 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND32300mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 32 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND4030mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 40 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND4030mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 40 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND40100mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 40 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND40100mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 40 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND40300mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 40 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND40300mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 40 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND5030mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 50 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND5030mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 50 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND50100mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 50 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND50100mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 50 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND50300mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 50 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND50300mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 50 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND6330mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 63 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND6330mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 63 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND63100mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 63 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND63100mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 63 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND63300mAA-Type Poles: 1P+N | Trip curve: D | Rated current: 63 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND63300mAAC-Type Poles: 1P+N | Trip curve: D | Rated current: 63 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB130mAA-Type Poles: 2P | Trip curve: B | Rated current: 1 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB130mAAC-Type Poles: 2P | Trip curve: B | Rated current: 1 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB1100mAA-Type Poles: 2P | Trip curve: B | Rated current: 1 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB1100mAAC-Type Poles: 2P | Trip curve: B | Rated current: 1 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB1300mAA-Type Poles: 2P | Trip curve: B | Rated current: 1 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB1300mAAC-Type Poles: 2P | Trip curve: B | Rated current: 1 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB230mAA-Type Poles: 2P | Trip curve: B | Rated current: 2 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB230mAAC-Type Poles: 2P | Trip curve: B | Rated current: 2 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB2100mAA-Type Poles: 2P | Trip curve: B | Rated current: 2 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB2100mAAC-Type Poles: 2P | Trip curve: B | Rated current: 2 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB2300mAA-Type Poles: 2P | Trip curve: B | Rated current: 2 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB2300mAAC-Type Poles: 2P | Trip curve: B | Rated current: 2 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB330mAA-Type Poles: 2P | Trip curve: B | Rated current: 3 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB330mAAC-Type Poles: 2P | Trip curve: B | Rated current: 3 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB3100mAA-Type Poles: 2P | Trip curve: B | Rated current: 3 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB3100mAAC-Type Poles: 2P | Trip curve: B | Rated current: 3 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB3300mAA-Type Poles: 2P | Trip curve: B | Rated current: 3 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB3300mAAC-Type Poles: 2P | Trip curve: B | Rated current: 3 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB430mAA-Type Poles: 2P | Trip curve: B | Rated current: 4 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB430mAAC-Type Poles: 2P | Trip curve: B | Rated current: 4 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB4100mAA-Type Poles: 2P | Trip curve: B | Rated current: 4 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB4100mAAC-Type Poles: 2P | Trip curve: B | Rated current: 4 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB4300mAA-Type Poles: 2P | Trip curve: B | Rated current: 4 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB4300mAAC-Type Poles: 2P | Trip curve: B | Rated current: 4 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB530mAA-Type Poles: 2P | Trip curve: B | Rated current: 5 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB530mAAC-Type Poles: 2P | Trip curve: B | Rated current: 5 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB5100mAA-Type Poles: 2P | Trip curve: B | Rated current: 5 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB5100mAAC-Type Poles: 2P | Trip curve: B | Rated current: 5 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB5300mAA-Type Poles: 2P | Trip curve: B | Rated current: 5 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB5300mAAC-Type Poles: 2P | Trip curve: B | Rated current: 5 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB630mAA-Type Poles: 2P | Trip curve: B | Rated current: 6 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB630mAAC-Type Poles: 2P | Trip curve: B | Rated current: 6 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB6100mAA-Type Poles: 2P | Trip curve: B | Rated current: 6 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB6100mAAC-Type Poles: 2P | Trip curve: B | Rated current: 6 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB6300mAA-Type Poles: 2P | Trip curve: B | Rated current: 6 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB6300mAAC-Type Poles: 2P | Trip curve: B | Rated current: 6 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB1030mAA-Type Poles: 2P | Trip curve: B | Rated current: 10 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB1030mAAC-Type Poles: 2P | Trip curve: B | Rated current: 10 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB10100mAA-Type Poles: 2P | Trip curve: B | Rated current: 10 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB10100mAAC-Type Poles: 2P | Trip curve: B | Rated current: 10 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB10300mAA-Type Poles: 2P | Trip curve: B | Rated current: 10 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB10300mAAC-Type Poles: 2P | Trip curve: B | Rated current: 10 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB1630mAA-Type Poles: 2P | Trip curve: B | Rated current: 16 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB1630mAAC-Type Poles: 2P | Trip curve: B | Rated current: 16 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB16100mAA-Type Poles: 2P | Trip curve: B | Rated current: 16 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB16100mAAC-Type Poles: 2P | Trip curve: B | Rated current: 16 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB16300mAA-Type Poles: 2P | Trip curve: B | Rated current: 16 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB16300mAAC-Type Poles: 2P | Trip curve: B | Rated current: 16 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB2030mAA-Type Poles: 2P | Trip curve: B | Rated current: 20 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB2030mAAC-Type Poles: 2P | Trip curve: B | Rated current: 20 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB20100mAA-Type Poles: 2P | Trip curve: B | Rated current: 20 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB20100mAAC-Type Poles: 2P | Trip curve: B | Rated current: 20 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB20300mAA-Type Poles: 2P | Trip curve: B | Rated current: 20 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB20300mAAC-Type Poles: 2P | Trip curve: B | Rated current: 20 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB2530mAA-Type Poles: 2P | Trip curve: B | Rated current: 25 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB2530mAAC-Type Poles: 2P | Trip curve: B | Rated current: 25 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB25100mAA-Type Poles: 2P | Trip curve: B | Rated current: 25 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB25100mAAC-Type Poles: 2P | Trip curve: B | Rated current: 25 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB25300mAA-Type Poles: 2P | Trip curve: B | Rated current: 25 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB25300mAAC-Type Poles: 2P | Trip curve: B | Rated current: 25 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB3230mAA-Type Poles: 2P | Trip curve: B | Rated current: 32 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB3230mAAC-Type Poles: 2P | Trip curve: B | Rated current: 32 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB32100mAA-Type Poles: 2P | Trip curve: B | Rated current: 32 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB32100mAAC-Type Poles: 2P | Trip curve: B | Rated current: 32 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB32300mAA-Type Poles: 2P | Trip curve: B | Rated current: 32 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB32300mAAC-Type Poles: 2P | Trip curve: B | Rated current: 32 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB4030mAA-Type Poles: 2P | Trip curve: B | Rated current: 40 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB4030mAAC-Type Poles: 2P | Trip curve: B | Rated current: 40 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB40100mAA-Type Poles: 2P | Trip curve: B | Rated current: 40 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB40100mAAC-Type Poles: 2P | Trip curve: B | Rated current: 40 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB40300mAA-Type Poles: 2P | Trip curve: B | Rated current: 40 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB40300mAAC-Type Poles: 2P | Trip curve: B | Rated current: 40 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB5030mAA-Type Poles: 2P | Trip curve: B | Rated current: 50 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB5030mAAC-Type Poles: 2P | Trip curve: B | Rated current: 50 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB50100mAA-Type Poles: 2P | Trip curve: B | Rated current: 50 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB50100mAAC-Type Poles: 2P | Trip curve: B | Rated current: 50 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB50300mAA-Type Poles: 2P | Trip curve: B | Rated current: 50 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB50300mAAC-Type Poles: 2P | Trip curve: B | Rated current: 50 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB6330mAA-Type Poles: 2P | Trip curve: B | Rated current: 63 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB6330mAAC-Type Poles: 2P | Trip curve: B | Rated current: 63 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB63100mAA-Type Poles: 2P | Trip curve: B | Rated current: 63 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB63100mAAC-Type Poles: 2P | Trip curve: B | Rated current: 63 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB63300mAA-Type Poles: 2P | Trip curve: B | Rated current: 63 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB63300mAAC-Type Poles: 2P | Trip curve: B | Rated current: 63 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC130mAA-Type Poles: 2P | Trip curve: C | Rated current: 1 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC130mAAC-Type Poles: 2P | Trip curve: C | Rated current: 1 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC1100mAA-Type Poles: 2P | Trip curve: C | Rated current: 1 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC1100mAAC-Type Poles: 2P | Trip curve: C | Rated current: 1 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC1300mAA-Type Poles: 2P | Trip curve: C | Rated current: 1 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC1300mAAC-Type Poles: 2P | Trip curve: C | Rated current: 1 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC230mAA-Type Poles: 2P | Trip curve: C | Rated current: 2 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC230mAAC-Type Poles: 2P | Trip curve: C | Rated current: 2 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC2100mAA-Type Poles: 2P | Trip curve: C | Rated current: 2 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC2100mAAC-Type Poles: 2P | Trip curve: C | Rated current: 2 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC2300mAA-Type Poles: 2P | Trip curve: C | Rated current: 2 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC2300mAAC-Type Poles: 2P | Trip curve: C | Rated current: 2 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC330mAA-Type Poles: 2P | Trip curve: C | Rated current: 3 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC330mAAC-Type Poles: 2P | Trip curve: C | Rated current: 3 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC3100mAA-Type Poles: 2P | Trip curve: C | Rated current: 3 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC3100mAAC-Type Poles: 2P | Trip curve: C | Rated current: 3 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC3300mAA-Type Poles: 2P | Trip curve: C | Rated current: 3 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC3300mAAC-Type Poles: 2P | Trip curve: C | Rated current: 3 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC430mAA-Type Poles: 2P | Trip curve: C | Rated current: 4 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC430mAAC-Type Poles: 2P | Trip curve: C | Rated current: 4 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC4100mAA-Type Poles: 2P | Trip curve: C | Rated current: 4 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC4100mAAC-Type Poles: 2P | Trip curve: C | Rated current: 4 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC4300mAA-Type Poles: 2P | Trip curve: C | Rated current: 4 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC4300mAAC-Type Poles: 2P | Trip curve: C | Rated current: 4 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC530mAA-Type Poles: 2P | Trip curve: C | Rated current: 5 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC530mAAC-Type Poles: 2P | Trip curve: C | Rated current: 5 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC5100mAA-Type Poles: 2P | Trip curve: C | Rated current: 5 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC5100mAAC-Type Poles: 2P | Trip curve: C | Rated current: 5 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC5300mAA-Type Poles: 2P | Trip curve: C | Rated current: 5 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC5300mAAC-Type Poles: 2P | Trip curve: C | Rated current: 5 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC630mAA-Type Poles: 2P | Trip curve: C | Rated current: 6 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC630mAAC-Type Poles: 2P | Trip curve: C | Rated current: 6 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC6100mAA-Type Poles: 2P | Trip curve: C | Rated current: 6 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC6100mAAC-Type Poles: 2P | Trip curve: C | Rated current: 6 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC6300mAA-Type Poles: 2P | Trip curve: C | Rated current: 6 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC6300mAAC-Type Poles: 2P | Trip curve: C | Rated current: 6 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC1030mAA-Type Poles: 2P | Trip curve: C | Rated current: 10 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC1030mAAC-Type Poles: 2P | Trip curve: C | Rated current: 10 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC10100mAA-Type Poles: 2P | Trip curve: C | Rated current: 10 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC10100mAAC-Type Poles: 2P | Trip curve: C | Rated current: 10 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC10300mAA-Type Poles: 2P | Trip curve: C | Rated current: 10 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC10300mAAC-Type Poles: 2P | Trip curve: C | Rated current: 10 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC1630mAA-Type Poles: 2P | Trip curve: C | Rated current: 16 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC1630mAAC-Type Poles: 2P | Trip curve: C | Rated current: 16 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC16100mAA-Type Poles: 2P | Trip curve: C | Rated current: 16 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC16100mAAC-Type Poles: 2P | Trip curve: C | Rated current: 16 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC16300mAA-Type Poles: 2P | Trip curve: C | Rated current: 16 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC16300mAAC-Type Poles: 2P | Trip curve: C | Rated current: 16 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC2030mAA-Type Poles: 2P | Trip curve: C | Rated current: 20 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC2030mAAC-Type Poles: 2P | Trip curve: C | Rated current: 20 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC20100mAA-Type Poles: 2P | Trip curve: C | Rated current: 20 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC20100mAAC-Type Poles: 2P | Trip curve: C | Rated current: 20 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC20300mAA-Type Poles: 2P | Trip curve: C | Rated current: 20 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC20300mAAC-Type Poles: 2P | Trip curve: C | Rated current: 20 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC2530mAA-Type Poles: 2P | Trip curve: C | Rated current: 25 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC2530mAAC-Type Poles: 2P | Trip curve: C | Rated current: 25 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC25100mAA-Type Poles: 2P | Trip curve: C | Rated current: 25 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC25100mAAC-Type Poles: 2P | Trip curve: C | Rated current: 25 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC25300mAA-Type Poles: 2P | Trip curve: C | Rated current: 25 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC25300mAAC-Type Poles: 2P | Trip curve: C | Rated current: 25 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC3230mAA-Type Poles: 2P | Trip curve: C | Rated current: 32 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC3230mAAC-Type Poles: 2P | Trip curve: C | Rated current: 32 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC32100mAA-Type Poles: 2P | Trip curve: C | Rated current: 32 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC32100mAAC-Type Poles: 2P | Trip curve: C | Rated current: 32 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC32300mAA-Type Poles: 2P | Trip curve: C | Rated current: 32 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC32300mAAC-Type Poles: 2P | Trip curve: C | Rated current: 32 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC4030mAA-Type Poles: 2P | Trip curve: C | Rated current: 40 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC4030mAAC-Type Poles: 2P | Trip curve: C | Rated current: 40 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC40100mAA-Type Poles: 2P | Trip curve: C | Rated current: 40 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC40100mAAC-Type Poles: 2P | Trip curve: C | Rated current: 40 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC40300mAA-Type Poles: 2P | Trip curve: C | Rated current: 40 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC40300mAAC-Type Poles: 2P | Trip curve: C | Rated current: 40 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC5030mAA-Type Poles: 2P | Trip curve: C | Rated current: 50 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC5030mAAC-Type Poles: 2P | Trip curve: C | Rated current: 50 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC50100mAA-Type Poles: 2P | Trip curve: C | Rated current: 50 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC50100mAAC-Type Poles: 2P | Trip curve: C | Rated current: 50 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC50300mAA-Type Poles: 2P | Trip curve: C | Rated current: 50 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC50300mAAC-Type Poles: 2P | Trip curve: C | Rated current: 50 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC6330mAA-Type Poles: 2P | Trip curve: C | Rated current: 63 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC6330mAAC-Type Poles: 2P | Trip curve: C | Rated current: 63 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC63100mAA-Type Poles: 2P | Trip curve: C | Rated current: 63 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC63100mAAC-Type Poles: 2P | Trip curve: C | Rated current: 63 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC63300mAA-Type Poles: 2P | Trip curve: C | Rated current: 63 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC63300mAAC-Type Poles: 2P | Trip curve: C | Rated current: 63 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD130mAA-Type Poles: 2P | Trip curve: D | Rated current: 1 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD130mAAC-Type Poles: 2P | Trip curve: D | Rated current: 1 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD1100mAA-Type Poles: 2P | Trip curve: D | Rated current: 1 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD1100mAAC-Type Poles: 2P | Trip curve: D | Rated current: 1 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD1300mAA-Type Poles: 2P | Trip curve: D | Rated current: 1 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD1300mAAC-Type Poles: 2P | Trip curve: D | Rated current: 1 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD230mAA-Type Poles: 2P | Trip curve: D | Rated current: 2 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD230mAAC-Type Poles: 2P | Trip curve: D | Rated current: 2 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD2100mAA-Type Poles: 2P | Trip curve: D | Rated current: 2 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD2100mAAC-Type Poles: 2P | Trip curve: D | Rated current: 2 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD2300mAA-Type Poles: 2P | Trip curve: D | Rated current: 2 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD2300mAAC-Type Poles: 2P | Trip curve: D | Rated current: 2 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD330mAA-Type Poles: 2P | Trip curve: D | Rated current: 3 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD330mAAC-Type Poles: 2P | Trip curve: D | Rated current: 3 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD3100mAA-Type Poles: 2P | Trip curve: D | Rated current: 3 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD3100mAAC-Type Poles: 2P | Trip curve: D | Rated current: 3 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD3300mAA-Type Poles: 2P | Trip curve: D | Rated current: 3 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD3300mAAC-Type Poles: 2P | Trip curve: D | Rated current: 3 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD430mAA-Type Poles: 2P | Trip curve: D | Rated current: 4 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD430mAAC-Type Poles: 2P | Trip curve: D | Rated current: 4 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD4100mAA-Type Poles: 2P | Trip curve: D | Rated current: 4 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD4100mAAC-Type Poles: 2P | Trip curve: D | Rated current: 4 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD4300mAA-Type Poles: 2P | Trip curve: D | Rated current: 4 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD4300mAAC-Type Poles: 2P | Trip curve: D | Rated current: 4 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD530mAA-Type Poles: 2P | Trip curve: D | Rated current: 5 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD530mAAC-Type Poles: 2P | Trip curve: D | Rated current: 5 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD5100mAA-Type Poles: 2P | Trip curve: D | Rated current: 5 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD5100mAAC-Type Poles: 2P | Trip curve: D | Rated current: 5 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD5300mAA-Type Poles: 2P | Trip curve: D | Rated current: 5 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD5300mAAC-Type Poles: 2P | Trip curve: D | Rated current: 5 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD630mAA-Type Poles: 2P | Trip curve: D | Rated current: 6 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD630mAAC-Type Poles: 2P | Trip curve: D | Rated current: 6 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD6100mAA-Type Poles: 2P | Trip curve: D | Rated current: 6 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD6100mAAC-Type Poles: 2P | Trip curve: D | Rated current: 6 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD6300mAA-Type Poles: 2P | Trip curve: D | Rated current: 6 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD6300mAAC-Type Poles: 2P | Trip curve: D | Rated current: 6 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD1030mAA-Type Poles: 2P | Trip curve: D | Rated current: 10 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD1030mAAC-Type Poles: 2P | Trip curve: D | Rated current: 10 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD10100mAA-Type Poles: 2P | Trip curve: D | Rated current: 10 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD10100mAAC-Type Poles: 2P | Trip curve: D | Rated current: 10 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD10300mAA-Type Poles: 2P | Trip curve: D | Rated current: 10 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD10300mAAC-Type Poles: 2P | Trip curve: D | Rated current: 10 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD1630mAA-Type Poles: 2P | Trip curve: D | Rated current: 16 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD1630mAAC-Type Poles: 2P | Trip curve: D | Rated current: 16 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD16100mAA-Type Poles: 2P | Trip curve: D | Rated current: 16 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD16100mAAC-Type Poles: 2P | Trip curve: D | Rated current: 16 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD16300mAA-Type Poles: 2P | Trip curve: D | Rated current: 16 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD16300mAAC-Type Poles: 2P | Trip curve: D | Rated current: 16 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD2030mAA-Type Poles: 2P | Trip curve: D | Rated current: 20 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD2030mAAC-Type Poles: 2P | Trip curve: D | Rated current: 20 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD20100mAA-Type Poles: 2P | Trip curve: D | Rated current: 20 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD20100mAAC-Type Poles: 2P | Trip curve: D | Rated current: 20 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD20300mAA-Type Poles: 2P | Trip curve: D | Rated current: 20 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD20300mAAC-Type Poles: 2P | Trip curve: D | Rated current: 20 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD2530mAA-Type Poles: 2P | Trip curve: D | Rated current: 25 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD2530mAAC-Type Poles: 2P | Trip curve: D | Rated current: 25 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD25100mAA-Type Poles: 2P | Trip curve: D | Rated current: 25 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD25100mAAC-Type Poles: 2P | Trip curve: D | Rated current: 25 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD25300mAA-Type Poles: 2P | Trip curve: D | Rated current: 25 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD25300mAAC-Type Poles: 2P | Trip curve: D | Rated current: 25 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD3230mAA-Type Poles: 2P | Trip curve: D | Rated current: 32 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD3230mAAC-Type Poles: 2P | Trip curve: D | Rated current: 32 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD32100mAA-Type Poles: 2P | Trip curve: D | Rated current: 32 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD32100mAAC-Type Poles: 2P | Trip curve: D | Rated current: 32 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD32300mAA-Type Poles: 2P | Trip curve: D | Rated current: 32 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD32300mAAC-Type Poles: 2P | Trip curve: D | Rated current: 32 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD4030mAA-Type Poles: 2P | Trip curve: D | Rated current: 40 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD4030mAAC-Type Poles: 2P | Trip curve: D | Rated current: 40 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD40100mAA-Type Poles: 2P | Trip curve: D | Rated current: 40 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD40100mAAC-Type Poles: 2P | Trip curve: D | Rated current: 40 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD40300mAA-Type Poles: 2P | Trip curve: D | Rated current: 40 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD40300mAAC-Type Poles: 2P | Trip curve: D | Rated current: 40 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD5030mAA-Type Poles: 2P | Trip curve: D | Rated current: 50 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD5030mAAC-Type Poles: 2P | Trip curve: D | Rated current: 50 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD50100mAA-Type Poles: 2P | Trip curve: D | Rated current: 50 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD50100mAAC-Type Poles: 2P | Trip curve: D | Rated current: 50 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD50300mAA-Type Poles: 2P | Trip curve: D | Rated current: 50 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD50300mAAC-Type Poles: 2P | Trip curve: D | Rated current: 50 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD6330mAA-Type Poles: 2P | Trip curve: D | Rated current: 63 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD6330mAAC-Type Poles: 2P | Trip curve: D | Rated current: 63 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD63100mAA-Type Poles: 2P | Trip curve: D | Rated current: 63 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD63100mAAC-Type Poles: 2P | Trip curve: D | Rated current: 63 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD63300mAA-Type Poles: 2P | Trip curve: D | Rated current: 63 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD63300mAAC-Type Poles: 2P | Trip curve: D | Rated current: 63 A | Sensitivity: 300 mA | Residual type: AC
Earth Leakage Circuit BreakersLS Electric
504 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Beyond X RKJ-b RCBO (1-63A, 1P+N/2P, 10kA)

Brand LS Electric·Earth Leakage Circuit Breakers

Available part numbers (504)

RKJ-b1P+NB130mAA-Type, RKJ-b1P+NB130mAAC-Type, RKJ-b1P+NB1100mAA-Type, RKJ-b1P+NB1100mAAC-Type, RKJ-b1P+NB1300mAA-Type, RKJ-b1P+NB1300mAAC-Type, RKJ-b1P+NB230mAA-Type, RKJ-b1P+NB230mAAC-Type, RKJ-b1P+NB2100mAA-Type, RKJ-b1P+NB2100mAAC-Type + 494 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RKJ-b1P+NB130mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 1 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB130mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 1 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB1100mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 1 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB1100mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 1 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB1300mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 1 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB1300mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 1 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NB230mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 2 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB230mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 2 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB2100mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 2 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB2100mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 2 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB2300mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 2 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB2300mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 2 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NB330mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 3 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB330mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 3 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB3100mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 3 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB3100mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 3 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB3300mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 3 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB3300mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 3 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NB430mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 4 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB430mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 4 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB4100mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 4 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB4100mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 4 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB4300mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 4 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB4300mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 4 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NB530mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 5 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB530mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 5 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB5100mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 5 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB5100mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 5 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB5300mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 5 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB5300mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 5 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NB630mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 6 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB630mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 6 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB6100mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 6 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB6100mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 6 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB6300mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 6 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB6300mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 6 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NB1030mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 10 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB1030mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 10 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB10100mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 10 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB10100mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 10 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB10300mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 10 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB10300mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 10 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NB1630mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 16 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB1630mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 16 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB16100mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 16 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB16100mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 16 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB16300mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 16 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB16300mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 16 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NB2030mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 20 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB2030mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 20 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB20100mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 20 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB20100mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 20 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB20300mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 20 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB20300mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 20 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NB2530mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 25 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB2530mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 25 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB25100mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 25 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB25100mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 25 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB25300mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 25 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB25300mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 25 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NB3230mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 32 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB3230mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 32 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB32100mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 32 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB32100mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 32 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB32300mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 32 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB32300mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 32 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NB4030mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 40 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB4030mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 40 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB40100mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 40 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB40100mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 40 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB40300mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 40 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB40300mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 40 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NB5030mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 50 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB5030mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 50 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB50100mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 50 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB50100mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 50 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB50300mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 50 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB50300mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 50 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NB6330mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 63 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NB6330mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 63 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NB63100mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 63 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NB63100mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 63 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NB63300mAA-TypePoles: 1P+N | Trip curve: B | Rated current: 63 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NB63300mAAC-TypePoles: 1P+N | Trip curve: B | Rated current: 63 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC130mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 1 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC130mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 1 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC1100mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 1 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC1100mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 1 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC1300mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 1 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC1300mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 1 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC230mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 2 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC230mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 2 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC2100mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 2 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC2100mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 2 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC2300mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 2 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC2300mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 2 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC330mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 3 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC330mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 3 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC3100mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 3 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC3100mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 3 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC3300mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 3 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC3300mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 3 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC430mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 4 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC430mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 4 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC4100mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 4 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC4100mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 4 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC4300mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 4 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC4300mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 4 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC530mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 5 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC530mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 5 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC5100mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 5 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC5100mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 5 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC5300mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 5 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC5300mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 5 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC630mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 6 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC630mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 6 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC6100mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 6 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC6100mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 6 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC6300mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 6 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC6300mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 6 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC1030mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 10 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC1030mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 10 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC10100mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 10 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC10100mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 10 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC10300mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 10 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC10300mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 10 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC1630mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 16 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC1630mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 16 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC16100mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 16 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC16100mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 16 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC16300mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 16 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC16300mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 16 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC2030mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 20 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC2030mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 20 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC20100mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 20 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC20100mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 20 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC20300mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 20 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC20300mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 20 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC2530mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 25 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC2530mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 25 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC25100mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 25 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC25100mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 25 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC25300mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 25 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC25300mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 25 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC3230mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 32 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC3230mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 32 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC32100mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 32 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC32100mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 32 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC32300mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 32 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC32300mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 32 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC4030mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 40 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC4030mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 40 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC40100mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 40 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC40100mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 40 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC40300mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 40 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC40300mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 40 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC5030mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 50 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC5030mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 50 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC50100mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 50 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC50100mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 50 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC50300mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 50 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC50300mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 50 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+NC6330mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 63 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+NC6330mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 63 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+NC63100mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 63 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+NC63100mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 63 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+NC63300mAA-TypePoles: 1P+N | Trip curve: C | Rated current: 63 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+NC63300mAAC-TypePoles: 1P+N | Trip curve: C | Rated current: 63 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND130mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 1 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND130mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 1 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND1100mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 1 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND1100mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 1 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND1300mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 1 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND1300mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 1 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND230mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 2 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND230mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 2 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND2100mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 2 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND2100mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 2 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND2300mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 2 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND2300mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 2 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND330mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 3 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND330mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 3 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND3100mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 3 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND3100mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 3 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND3300mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 3 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND3300mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 3 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND430mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 4 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND430mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 4 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND4100mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 4 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND4100mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 4 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND4300mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 4 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND4300mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 4 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND530mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 5 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND530mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 5 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND5100mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 5 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND5100mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 5 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND5300mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 5 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND5300mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 5 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND630mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 6 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND630mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 6 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND6100mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 6 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND6100mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 6 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND6300mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 6 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND6300mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 6 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND1030mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 10 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND1030mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 10 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND10100mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 10 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND10100mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 10 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND10300mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 10 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND10300mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 10 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND1630mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 16 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND1630mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 16 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND16100mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 16 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND16100mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 16 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND16300mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 16 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND16300mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 16 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND2030mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 20 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND2030mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 20 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND20100mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 20 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND20100mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 20 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND20300mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 20 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND20300mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 20 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND2530mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 25 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND2530mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 25 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND25100mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 25 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND25100mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 25 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND25300mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 25 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND25300mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 25 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND3230mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 32 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND3230mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 32 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND32100mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 32 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND32100mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 32 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND32300mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 32 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND32300mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 32 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND4030mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 40 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND4030mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 40 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND40100mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 40 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND40100mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 40 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND40300mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 40 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND40300mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 40 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND5030mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 50 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND5030mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 50 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND50100mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 50 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND50100mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 50 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND50300mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 50 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND50300mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 50 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b1P+ND6330mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 63 A | Sensitivity: 30 mA | Residual type: A
RKJ-b1P+ND6330mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 63 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b1P+ND63100mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 63 A | Sensitivity: 100 mA | Residual type: A
RKJ-b1P+ND63100mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 63 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b1P+ND63300mAA-TypePoles: 1P+N | Trip curve: D | Rated current: 63 A | Sensitivity: 300 mA | Residual type: A
RKJ-b1P+ND63300mAAC-TypePoles: 1P+N | Trip curve: D | Rated current: 63 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB130mAA-TypePoles: 2P | Trip curve: B | Rated current: 1 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB130mAAC-TypePoles: 2P | Trip curve: B | Rated current: 1 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB1100mAA-TypePoles: 2P | Trip curve: B | Rated current: 1 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB1100mAAC-TypePoles: 2P | Trip curve: B | Rated current: 1 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB1300mAA-TypePoles: 2P | Trip curve: B | Rated current: 1 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB1300mAAC-TypePoles: 2P | Trip curve: B | Rated current: 1 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB230mAA-TypePoles: 2P | Trip curve: B | Rated current: 2 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB230mAAC-TypePoles: 2P | Trip curve: B | Rated current: 2 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB2100mAA-TypePoles: 2P | Trip curve: B | Rated current: 2 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB2100mAAC-TypePoles: 2P | Trip curve: B | Rated current: 2 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB2300mAA-TypePoles: 2P | Trip curve: B | Rated current: 2 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB2300mAAC-TypePoles: 2P | Trip curve: B | Rated current: 2 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB330mAA-TypePoles: 2P | Trip curve: B | Rated current: 3 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB330mAAC-TypePoles: 2P | Trip curve: B | Rated current: 3 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB3100mAA-TypePoles: 2P | Trip curve: B | Rated current: 3 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB3100mAAC-TypePoles: 2P | Trip curve: B | Rated current: 3 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB3300mAA-TypePoles: 2P | Trip curve: B | Rated current: 3 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB3300mAAC-TypePoles: 2P | Trip curve: B | Rated current: 3 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB430mAA-TypePoles: 2P | Trip curve: B | Rated current: 4 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB430mAAC-TypePoles: 2P | Trip curve: B | Rated current: 4 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB4100mAA-TypePoles: 2P | Trip curve: B | Rated current: 4 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB4100mAAC-TypePoles: 2P | Trip curve: B | Rated current: 4 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB4300mAA-TypePoles: 2P | Trip curve: B | Rated current: 4 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB4300mAAC-TypePoles: 2P | Trip curve: B | Rated current: 4 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB530mAA-TypePoles: 2P | Trip curve: B | Rated current: 5 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB530mAAC-TypePoles: 2P | Trip curve: B | Rated current: 5 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB5100mAA-TypePoles: 2P | Trip curve: B | Rated current: 5 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB5100mAAC-TypePoles: 2P | Trip curve: B | Rated current: 5 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB5300mAA-TypePoles: 2P | Trip curve: B | Rated current: 5 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB5300mAAC-TypePoles: 2P | Trip curve: B | Rated current: 5 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB630mAA-TypePoles: 2P | Trip curve: B | Rated current: 6 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB630mAAC-TypePoles: 2P | Trip curve: B | Rated current: 6 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB6100mAA-TypePoles: 2P | Trip curve: B | Rated current: 6 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB6100mAAC-TypePoles: 2P | Trip curve: B | Rated current: 6 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB6300mAA-TypePoles: 2P | Trip curve: B | Rated current: 6 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB6300mAAC-TypePoles: 2P | Trip curve: B | Rated current: 6 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB1030mAA-TypePoles: 2P | Trip curve: B | Rated current: 10 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB1030mAAC-TypePoles: 2P | Trip curve: B | Rated current: 10 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB10100mAA-TypePoles: 2P | Trip curve: B | Rated current: 10 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB10100mAAC-TypePoles: 2P | Trip curve: B | Rated current: 10 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB10300mAA-TypePoles: 2P | Trip curve: B | Rated current: 10 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB10300mAAC-TypePoles: 2P | Trip curve: B | Rated current: 10 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB1630mAA-TypePoles: 2P | Trip curve: B | Rated current: 16 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB1630mAAC-TypePoles: 2P | Trip curve: B | Rated current: 16 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB16100mAA-TypePoles: 2P | Trip curve: B | Rated current: 16 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB16100mAAC-TypePoles: 2P | Trip curve: B | Rated current: 16 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB16300mAA-TypePoles: 2P | Trip curve: B | Rated current: 16 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB16300mAAC-TypePoles: 2P | Trip curve: B | Rated current: 16 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB2030mAA-TypePoles: 2P | Trip curve: B | Rated current: 20 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB2030mAAC-TypePoles: 2P | Trip curve: B | Rated current: 20 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB20100mAA-TypePoles: 2P | Trip curve: B | Rated current: 20 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB20100mAAC-TypePoles: 2P | Trip curve: B | Rated current: 20 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB20300mAA-TypePoles: 2P | Trip curve: B | Rated current: 20 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB20300mAAC-TypePoles: 2P | Trip curve: B | Rated current: 20 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB2530mAA-TypePoles: 2P | Trip curve: B | Rated current: 25 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB2530mAAC-TypePoles: 2P | Trip curve: B | Rated current: 25 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB25100mAA-TypePoles: 2P | Trip curve: B | Rated current: 25 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB25100mAAC-TypePoles: 2P | Trip curve: B | Rated current: 25 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB25300mAA-TypePoles: 2P | Trip curve: B | Rated current: 25 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB25300mAAC-TypePoles: 2P | Trip curve: B | Rated current: 25 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB3230mAA-TypePoles: 2P | Trip curve: B | Rated current: 32 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB3230mAAC-TypePoles: 2P | Trip curve: B | Rated current: 32 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB32100mAA-TypePoles: 2P | Trip curve: B | Rated current: 32 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB32100mAAC-TypePoles: 2P | Trip curve: B | Rated current: 32 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB32300mAA-TypePoles: 2P | Trip curve: B | Rated current: 32 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB32300mAAC-TypePoles: 2P | Trip curve: B | Rated current: 32 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB4030mAA-TypePoles: 2P | Trip curve: B | Rated current: 40 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB4030mAAC-TypePoles: 2P | Trip curve: B | Rated current: 40 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB40100mAA-TypePoles: 2P | Trip curve: B | Rated current: 40 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB40100mAAC-TypePoles: 2P | Trip curve: B | Rated current: 40 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB40300mAA-TypePoles: 2P | Trip curve: B | Rated current: 40 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB40300mAAC-TypePoles: 2P | Trip curve: B | Rated current: 40 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB5030mAA-TypePoles: 2P | Trip curve: B | Rated current: 50 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB5030mAAC-TypePoles: 2P | Trip curve: B | Rated current: 50 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB50100mAA-TypePoles: 2P | Trip curve: B | Rated current: 50 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB50100mAAC-TypePoles: 2P | Trip curve: B | Rated current: 50 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB50300mAA-TypePoles: 2P | Trip curve: B | Rated current: 50 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB50300mAAC-TypePoles: 2P | Trip curve: B | Rated current: 50 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PB6330mAA-TypePoles: 2P | Trip curve: B | Rated current: 63 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PB6330mAAC-TypePoles: 2P | Trip curve: B | Rated current: 63 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PB63100mAA-TypePoles: 2P | Trip curve: B | Rated current: 63 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PB63100mAAC-TypePoles: 2P | Trip curve: B | Rated current: 63 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PB63300mAA-TypePoles: 2P | Trip curve: B | Rated current: 63 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PB63300mAAC-TypePoles: 2P | Trip curve: B | Rated current: 63 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC130mAA-TypePoles: 2P | Trip curve: C | Rated current: 1 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC130mAAC-TypePoles: 2P | Trip curve: C | Rated current: 1 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC1100mAA-TypePoles: 2P | Trip curve: C | Rated current: 1 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC1100mAAC-TypePoles: 2P | Trip curve: C | Rated current: 1 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC1300mAA-TypePoles: 2P | Trip curve: C | Rated current: 1 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC1300mAAC-TypePoles: 2P | Trip curve: C | Rated current: 1 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC230mAA-TypePoles: 2P | Trip curve: C | Rated current: 2 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC230mAAC-TypePoles: 2P | Trip curve: C | Rated current: 2 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC2100mAA-TypePoles: 2P | Trip curve: C | Rated current: 2 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC2100mAAC-TypePoles: 2P | Trip curve: C | Rated current: 2 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC2300mAA-TypePoles: 2P | Trip curve: C | Rated current: 2 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC2300mAAC-TypePoles: 2P | Trip curve: C | Rated current: 2 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC330mAA-TypePoles: 2P | Trip curve: C | Rated current: 3 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC330mAAC-TypePoles: 2P | Trip curve: C | Rated current: 3 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC3100mAA-TypePoles: 2P | Trip curve: C | Rated current: 3 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC3100mAAC-TypePoles: 2P | Trip curve: C | Rated current: 3 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC3300mAA-TypePoles: 2P | Trip curve: C | Rated current: 3 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC3300mAAC-TypePoles: 2P | Trip curve: C | Rated current: 3 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC430mAA-TypePoles: 2P | Trip curve: C | Rated current: 4 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC430mAAC-TypePoles: 2P | Trip curve: C | Rated current: 4 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC4100mAA-TypePoles: 2P | Trip curve: C | Rated current: 4 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC4100mAAC-TypePoles: 2P | Trip curve: C | Rated current: 4 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC4300mAA-TypePoles: 2P | Trip curve: C | Rated current: 4 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC4300mAAC-TypePoles: 2P | Trip curve: C | Rated current: 4 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC530mAA-TypePoles: 2P | Trip curve: C | Rated current: 5 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC530mAAC-TypePoles: 2P | Trip curve: C | Rated current: 5 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC5100mAA-TypePoles: 2P | Trip curve: C | Rated current: 5 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC5100mAAC-TypePoles: 2P | Trip curve: C | Rated current: 5 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC5300mAA-TypePoles: 2P | Trip curve: C | Rated current: 5 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC5300mAAC-TypePoles: 2P | Trip curve: C | Rated current: 5 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC630mAA-TypePoles: 2P | Trip curve: C | Rated current: 6 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC630mAAC-TypePoles: 2P | Trip curve: C | Rated current: 6 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC6100mAA-TypePoles: 2P | Trip curve: C | Rated current: 6 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC6100mAAC-TypePoles: 2P | Trip curve: C | Rated current: 6 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC6300mAA-TypePoles: 2P | Trip curve: C | Rated current: 6 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC6300mAAC-TypePoles: 2P | Trip curve: C | Rated current: 6 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC1030mAA-TypePoles: 2P | Trip curve: C | Rated current: 10 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC1030mAAC-TypePoles: 2P | Trip curve: C | Rated current: 10 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC10100mAA-TypePoles: 2P | Trip curve: C | Rated current: 10 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC10100mAAC-TypePoles: 2P | Trip curve: C | Rated current: 10 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC10300mAA-TypePoles: 2P | Trip curve: C | Rated current: 10 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC10300mAAC-TypePoles: 2P | Trip curve: C | Rated current: 10 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC1630mAA-TypePoles: 2P | Trip curve: C | Rated current: 16 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC1630mAAC-TypePoles: 2P | Trip curve: C | Rated current: 16 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC16100mAA-TypePoles: 2P | Trip curve: C | Rated current: 16 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC16100mAAC-TypePoles: 2P | Trip curve: C | Rated current: 16 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC16300mAA-TypePoles: 2P | Trip curve: C | Rated current: 16 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC16300mAAC-TypePoles: 2P | Trip curve: C | Rated current: 16 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC2030mAA-TypePoles: 2P | Trip curve: C | Rated current: 20 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC2030mAAC-TypePoles: 2P | Trip curve: C | Rated current: 20 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC20100mAA-TypePoles: 2P | Trip curve: C | Rated current: 20 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC20100mAAC-TypePoles: 2P | Trip curve: C | Rated current: 20 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC20300mAA-TypePoles: 2P | Trip curve: C | Rated current: 20 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC20300mAAC-TypePoles: 2P | Trip curve: C | Rated current: 20 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC2530mAA-TypePoles: 2P | Trip curve: C | Rated current: 25 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC2530mAAC-TypePoles: 2P | Trip curve: C | Rated current: 25 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC25100mAA-TypePoles: 2P | Trip curve: C | Rated current: 25 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC25100mAAC-TypePoles: 2P | Trip curve: C | Rated current: 25 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC25300mAA-TypePoles: 2P | Trip curve: C | Rated current: 25 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC25300mAAC-TypePoles: 2P | Trip curve: C | Rated current: 25 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC3230mAA-TypePoles: 2P | Trip curve: C | Rated current: 32 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC3230mAAC-TypePoles: 2P | Trip curve: C | Rated current: 32 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC32100mAA-TypePoles: 2P | Trip curve: C | Rated current: 32 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC32100mAAC-TypePoles: 2P | Trip curve: C | Rated current: 32 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC32300mAA-TypePoles: 2P | Trip curve: C | Rated current: 32 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC32300mAAC-TypePoles: 2P | Trip curve: C | Rated current: 32 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC4030mAA-TypePoles: 2P | Trip curve: C | Rated current: 40 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC4030mAAC-TypePoles: 2P | Trip curve: C | Rated current: 40 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC40100mAA-TypePoles: 2P | Trip curve: C | Rated current: 40 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC40100mAAC-TypePoles: 2P | Trip curve: C | Rated current: 40 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC40300mAA-TypePoles: 2P | Trip curve: C | Rated current: 40 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC40300mAAC-TypePoles: 2P | Trip curve: C | Rated current: 40 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC5030mAA-TypePoles: 2P | Trip curve: C | Rated current: 50 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC5030mAAC-TypePoles: 2P | Trip curve: C | Rated current: 50 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC50100mAA-TypePoles: 2P | Trip curve: C | Rated current: 50 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC50100mAAC-TypePoles: 2P | Trip curve: C | Rated current: 50 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC50300mAA-TypePoles: 2P | Trip curve: C | Rated current: 50 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC50300mAAC-TypePoles: 2P | Trip curve: C | Rated current: 50 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PC6330mAA-TypePoles: 2P | Trip curve: C | Rated current: 63 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PC6330mAAC-TypePoles: 2P | Trip curve: C | Rated current: 63 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PC63100mAA-TypePoles: 2P | Trip curve: C | Rated current: 63 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PC63100mAAC-TypePoles: 2P | Trip curve: C | Rated current: 63 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PC63300mAA-TypePoles: 2P | Trip curve: C | Rated current: 63 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PC63300mAAC-TypePoles: 2P | Trip curve: C | Rated current: 63 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD130mAA-TypePoles: 2P | Trip curve: D | Rated current: 1 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD130mAAC-TypePoles: 2P | Trip curve: D | Rated current: 1 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD1100mAA-TypePoles: 2P | Trip curve: D | Rated current: 1 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD1100mAAC-TypePoles: 2P | Trip curve: D | Rated current: 1 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD1300mAA-TypePoles: 2P | Trip curve: D | Rated current: 1 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD1300mAAC-TypePoles: 2P | Trip curve: D | Rated current: 1 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD230mAA-TypePoles: 2P | Trip curve: D | Rated current: 2 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD230mAAC-TypePoles: 2P | Trip curve: D | Rated current: 2 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD2100mAA-TypePoles: 2P | Trip curve: D | Rated current: 2 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD2100mAAC-TypePoles: 2P | Trip curve: D | Rated current: 2 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD2300mAA-TypePoles: 2P | Trip curve: D | Rated current: 2 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD2300mAAC-TypePoles: 2P | Trip curve: D | Rated current: 2 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD330mAA-TypePoles: 2P | Trip curve: D | Rated current: 3 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD330mAAC-TypePoles: 2P | Trip curve: D | Rated current: 3 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD3100mAA-TypePoles: 2P | Trip curve: D | Rated current: 3 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD3100mAAC-TypePoles: 2P | Trip curve: D | Rated current: 3 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD3300mAA-TypePoles: 2P | Trip curve: D | Rated current: 3 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD3300mAAC-TypePoles: 2P | Trip curve: D | Rated current: 3 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD430mAA-TypePoles: 2P | Trip curve: D | Rated current: 4 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD430mAAC-TypePoles: 2P | Trip curve: D | Rated current: 4 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD4100mAA-TypePoles: 2P | Trip curve: D | Rated current: 4 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD4100mAAC-TypePoles: 2P | Trip curve: D | Rated current: 4 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD4300mAA-TypePoles: 2P | Trip curve: D | Rated current: 4 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD4300mAAC-TypePoles: 2P | Trip curve: D | Rated current: 4 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD530mAA-TypePoles: 2P | Trip curve: D | Rated current: 5 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD530mAAC-TypePoles: 2P | Trip curve: D | Rated current: 5 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD5100mAA-TypePoles: 2P | Trip curve: D | Rated current: 5 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD5100mAAC-TypePoles: 2P | Trip curve: D | Rated current: 5 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD5300mAA-TypePoles: 2P | Trip curve: D | Rated current: 5 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD5300mAAC-TypePoles: 2P | Trip curve: D | Rated current: 5 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD630mAA-TypePoles: 2P | Trip curve: D | Rated current: 6 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD630mAAC-TypePoles: 2P | Trip curve: D | Rated current: 6 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD6100mAA-TypePoles: 2P | Trip curve: D | Rated current: 6 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD6100mAAC-TypePoles: 2P | Trip curve: D | Rated current: 6 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD6300mAA-TypePoles: 2P | Trip curve: D | Rated current: 6 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD6300mAAC-TypePoles: 2P | Trip curve: D | Rated current: 6 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD1030mAA-TypePoles: 2P | Trip curve: D | Rated current: 10 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD1030mAAC-TypePoles: 2P | Trip curve: D | Rated current: 10 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD10100mAA-TypePoles: 2P | Trip curve: D | Rated current: 10 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD10100mAAC-TypePoles: 2P | Trip curve: D | Rated current: 10 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD10300mAA-TypePoles: 2P | Trip curve: D | Rated current: 10 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD10300mAAC-TypePoles: 2P | Trip curve: D | Rated current: 10 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD1630mAA-TypePoles: 2P | Trip curve: D | Rated current: 16 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD1630mAAC-TypePoles: 2P | Trip curve: D | Rated current: 16 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD16100mAA-TypePoles: 2P | Trip curve: D | Rated current: 16 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD16100mAAC-TypePoles: 2P | Trip curve: D | Rated current: 16 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD16300mAA-TypePoles: 2P | Trip curve: D | Rated current: 16 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD16300mAAC-TypePoles: 2P | Trip curve: D | Rated current: 16 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD2030mAA-TypePoles: 2P | Trip curve: D | Rated current: 20 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD2030mAAC-TypePoles: 2P | Trip curve: D | Rated current: 20 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD20100mAA-TypePoles: 2P | Trip curve: D | Rated current: 20 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD20100mAAC-TypePoles: 2P | Trip curve: D | Rated current: 20 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD20300mAA-TypePoles: 2P | Trip curve: D | Rated current: 20 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD20300mAAC-TypePoles: 2P | Trip curve: D | Rated current: 20 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD2530mAA-TypePoles: 2P | Trip curve: D | Rated current: 25 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD2530mAAC-TypePoles: 2P | Trip curve: D | Rated current: 25 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD25100mAA-TypePoles: 2P | Trip curve: D | Rated current: 25 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD25100mAAC-TypePoles: 2P | Trip curve: D | Rated current: 25 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD25300mAA-TypePoles: 2P | Trip curve: D | Rated current: 25 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD25300mAAC-TypePoles: 2P | Trip curve: D | Rated current: 25 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD3230mAA-TypePoles: 2P | Trip curve: D | Rated current: 32 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD3230mAAC-TypePoles: 2P | Trip curve: D | Rated current: 32 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD32100mAA-TypePoles: 2P | Trip curve: D | Rated current: 32 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD32100mAAC-TypePoles: 2P | Trip curve: D | Rated current: 32 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD32300mAA-TypePoles: 2P | Trip curve: D | Rated current: 32 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD32300mAAC-TypePoles: 2P | Trip curve: D | Rated current: 32 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD4030mAA-TypePoles: 2P | Trip curve: D | Rated current: 40 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD4030mAAC-TypePoles: 2P | Trip curve: D | Rated current: 40 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD40100mAA-TypePoles: 2P | Trip curve: D | Rated current: 40 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD40100mAAC-TypePoles: 2P | Trip curve: D | Rated current: 40 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD40300mAA-TypePoles: 2P | Trip curve: D | Rated current: 40 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD40300mAAC-TypePoles: 2P | Trip curve: D | Rated current: 40 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD5030mAA-TypePoles: 2P | Trip curve: D | Rated current: 50 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD5030mAAC-TypePoles: 2P | Trip curve: D | Rated current: 50 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD50100mAA-TypePoles: 2P | Trip curve: D | Rated current: 50 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD50100mAAC-TypePoles: 2P | Trip curve: D | Rated current: 50 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD50300mAA-TypePoles: 2P | Trip curve: D | Rated current: 50 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD50300mAAC-TypePoles: 2P | Trip curve: D | Rated current: 50 A | Sensitivity: 300 mA | Residual type: AC
RKJ-b2PD6330mAA-TypePoles: 2P | Trip curve: D | Rated current: 63 A | Sensitivity: 30 mA | Residual type: A
RKJ-b2PD6330mAAC-TypePoles: 2P | Trip curve: D | Rated current: 63 A | Sensitivity: 30 mA | Residual type: AC
RKJ-b2PD63100mAA-TypePoles: 2P | Trip curve: D | Rated current: 63 A | Sensitivity: 100 mA | Residual type: A
RKJ-b2PD63100mAAC-TypePoles: 2P | Trip curve: D | Rated current: 63 A | Sensitivity: 100 mA | Residual type: AC
RKJ-b2PD63300mAA-TypePoles: 2P | Trip curve: D | Rated current: 63 A | Sensitivity: 300 mA | Residual type: A
RKJ-b2PD63300mAAC-TypePoles: 2P | Trip curve: D | Rated current: 63 A | Sensitivity: 300 mA | Residual type: AC

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Circuit Breakers & Contactors →
