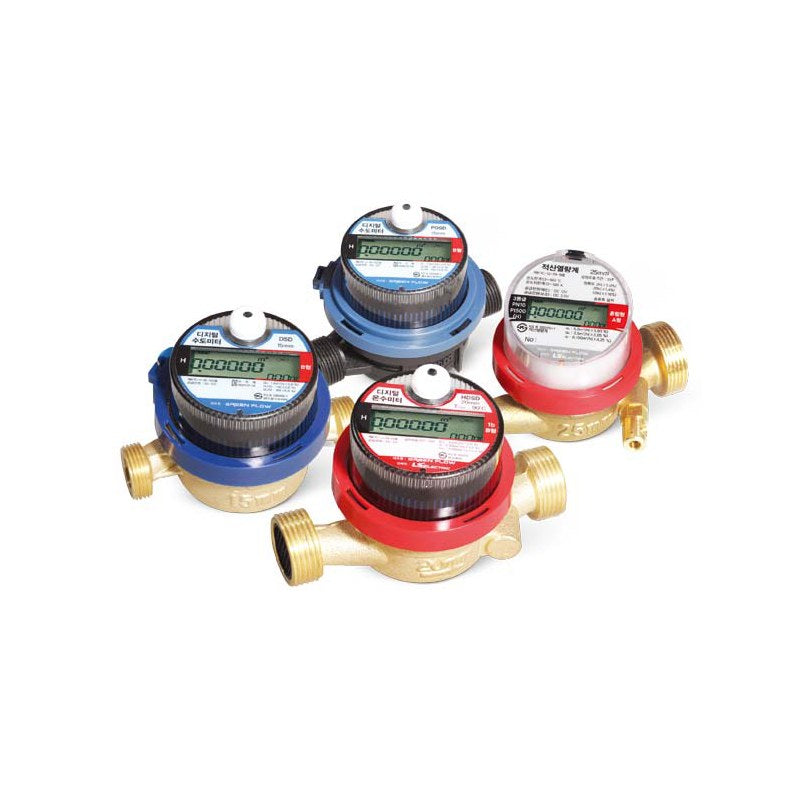

LS Electric Beyond X Utility Meter (Water, Hot Water, Heat 15-25 mm)

LS Electric Beyond X Utility Meter (Water, Hot Water, Heat 15-25 mm)

LS Electric Beyond X remote-reading utility meters - cold water, hot water and integrating heat meters in 15, 20 and 25 mm sizes - for apartments, mixed-use buildings, officetels and shops.

Key features

  • Tangential-flow impeller, single-jet dry-dial meters with DC-PLC remote output
  • Double magnetic shielding against external magnetic interference
  • Integral cable with special molding for fully waterproof construction
  • Outputs leak, forward/reverse flow and communication status; backflow metering prevention
  • Brass partition resists pressure fluctuation and winter freezing
  • Heat meter with non-magnetic I/R sensing and PT500 temperature sensors

Specifications

Flow element Tangential-flow impeller, single-jet dry type
Installation Horizontal (H)
Max. operating pressure 1 MPa
Working pressure 0.2-0.35 MPa
Power supply Main DC 12 V, auxiliary DC 3.6 V
Communication DC-PLC, 2 wires (white +, black -)
Water meter accuracy Class 2
Register Water 10 digits (m3), heat 9 digits (MWh)
Certification KS certified
Source LS Electric Beyond X Utility Meter catalog C12011-02, p. 5, 7-10
LS-WPG-15 Meter: Cold water, polyketone body | Size: 15 mm | Thread: G 3/4 | Rated flow: Q3 1.6 m3/h | Dimensions (LxWxH): 110 x 91 x 85 mm
LS-WMG-15 Meter: Cold water, brass body | Size: 15 mm | Thread: G 3/4 | Rated flow: Q3 1.6 m3/h | Dimensions (LxWxH): 110 x 85.5 x 84 mm
LS-WMG-20 Meter: Cold water, brass body | Size: 20 mm | Thread: G 1 | Rated flow: Q3 2.5 m3/h | Dimensions (LxWxH): 130 x 85.5 x 84 mm
LS-WMG-25 Meter: Cold water, brass body | Size: 25 mm | Thread: G 1 1/4 | Rated flow: Q3 4.0 m3/h | Dimensions (LxWxH): 130 x 85.5 x 84 mm
LS-HMG-15 Meter: Hot water 30-90 C, brass body | Size: 15 mm | Thread: G 3/4 | Rated flow: Qmax 2.0 m3/h | Dimensions (LxWxH): 110 x 85.5 x 84 mm
LS-HMG-20 Meter: Hot water 30-90 C, brass body | Size: 20 mm | Thread: G 1 | Rated flow: Qmax 4.0 m3/h | Dimensions (LxWxH): 130 x 85.5 x 84 mm
LS-HMG-25 Meter: Hot water 30-90 C, brass body | Size: 25 mm | Thread: G 1 1/4 | Rated flow: Qmax 5.0 m3/h | Dimensions (LxWxH): 130 x 85.5 x 84 mm
LS-HTG-15 Meter: Heat meter, brass, PT500 | Size: 15 mm | Thread: G 3/4 | Rated flow: qp 1.5 m3/h | Dimensions (LxWxH): 110 x 85.5 x 85 mm
LS-HTG-20 Meter: Heat meter, brass, PT500 | Size: 20 mm | Thread: G 1 | Rated flow: qp 2.0 m3/h | Dimensions (LxWxH): 130 x 85.5 x 85 mm
LS-HTG-25 Meter: Heat meter, brass, PT500 | Size: 25 mm | Thread: G 1 1/4 | Rated flow: qp 2.5 m3/h | Dimensions (LxWxH): 130 x 85.5 x 85 mm
Energy MetersLS Electric
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Beyond X Utility Meter (Water, Hot Water, Heat 15-25 mm)

Brand LS Electric·Energy Meters

Available part numbers (10)

LS-WPG-15, LS-WMG-15, LS-WMG-20, LS-WMG-25, LS-HMG-15, LS-HMG-20, LS-HMG-25, LS-HTG-15, LS-HTG-20, LS-HTG-25
