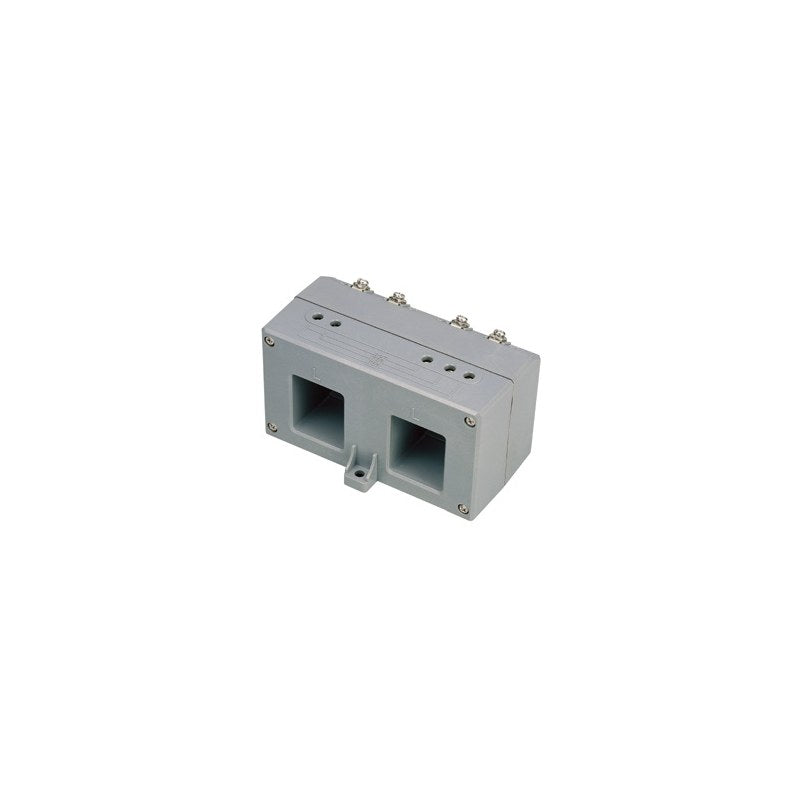

LS Electric EMPR Current Transformers, ZCT and MCT

LS Electric EMPR Current Transformers, ZCT and MCT

LS Electric current transformers (3CT, 2CT, 1CT), zero-phase current transformers (ZCT) and IMC-III MCT units for use with GMP, DMPi, IMP, MMP and IMC-III motor protection relays.

Key features

  • 3CT, 2CT (DCT) and 1CT (SCT) transformers extend EMPRs to 50-600 A motors with 5 A secondary
  • LZR voltage-output ZCTs (200 mA/100 mV) for EMPR ground-fault protection, 30-120 mm windows
  • LZT (I) current-output ZCTs (200 mA/0.1 mA) dedicated to IMC-III
  • MCT 1CT units with 2 m or 4 m cable for IMC-III (3 per controller)
  • EMPR can be mounted on top of LS CTs

Specifications

CT secondary current 5 A
CT insulation voltage 690 V
CT withstand voltage 4 kV / 1 min
CT overcurrent strength 40 x In
CT burden / accuracy 1.0 VA cl. 3.0 (3CT-23 50/80A); 1.5 VA cl. 1.0
Frequency 50/60 Hz
Source LS Electric EMPR Series catalog C15031-15 (2025-11), p. 132, 136-137
76512124001 Type: ZCT, voltage output | Model: LZR-030(V) | Rating: 200mA/100mV | Window: 30 mm dia. | Applicable: GMP60-3TZ, DMPi, IMP, MMP
76512124002 Type: ZCT, voltage output | Model: LZR-050(V) | Rating: 200mA/100mV | Window: 50 mm dia. | Applicable: GMP60-3TZ, DMPi, IMP, MMP
76512124003 Type: ZCT, voltage output | Model: LZR-065(V) | Rating: 200mA/100mV | Window: 65 mm dia. | Applicable: GMP60-3TZ, DMPi, IMP, MMP
76512124004 Type: ZCT, voltage output | Model: LZR-080(V) | Rating: 200mA/100mV | Window: 80 mm dia. | Applicable: GMP60-3TZ, DMPi, IMP, MMP
76512124105 Type: ZCT, voltage output | Model: LZR-120(V) | Rating: 200mA/100mV | Window: 120 mm dia. | Applicable: GMP60-3TZ, DMPi, IMP, MMP
76512532025 Type: ZCT, current output | Model: LZT-025 (I) | Rating: 200mA/0.1mA | Window: 25 mm dia. | Applicable: IMC-III only
76512532040 Type: ZCT, current output | Model: LZT-040 (I) | Rating: 200mA/0.1mA | Window: 40 mm dia. | Applicable: IMC-III only
76512532080 Type: ZCT, current output | Model: LZT-080 (I) | Rating: 200mA/0.1mA | Window: 80 mm dia. | Applicable: IMC-III only
76012116026 Type: 3CT current transformer | Model: 3CT-23 | Rating: 50/5 A | Window: 21x21 mm | Applicable: GMP22/40/60T
76012116011 Type: 3CT current transformer | Model: 3CT-23 | Rating: 80/5 A | Window: 21x21 mm | Applicable: GMP22/40/60T
76012116012 Type: 3CT current transformer | Model: 3CT-23 | Rating: 100/5 A | Window: 21x21 mm | Applicable: GMP22/40/60T
76012116013 Type: 3CT current transformer | Model: 3CT-23 | Rating: 150/5 A | Window: 21x21 mm | Applicable: GMP22/40/60T
76012116014 Type: 3CT current transformer | Model: 3CT-23 | Rating: 180/5 A | Window: 21x21 mm | Applicable: GMP22/40/60T
76012116015 Type: 3CT current transformer | Model: 3CT-23 | Rating: 200/5 A | Window: 21x21 mm | Applicable: GMP22/40/60T
76012116016 Type: 3CT current transformer | Model: 3CT-43 | Rating: 100/5 A | Window: 27x27 mm | Applicable: IMP, DMPi, GMP60-3T, GMP22/40/60T
76012116017 Type: 3CT current transformer | Model: 3CT-43 | Rating: 150/5 A | Window: 27x27 mm | Applicable: IMP, DMPi, GMP60-3T, GMP22/40/60T
76012116018 Type: 3CT current transformer | Model: 3CT-43 | Rating: 200/5 A | Window: 27x27 mm | Applicable: IMP, DMPi, GMP60-3T, GMP22/40/60T
76012116019 Type: 3CT current transformer | Model: 3CT-43 | Rating: 250/5 A | Window: 27x27 mm | Applicable: IMP, DMPi, GMP60-3T, GMP22/40/60T
76012116020 Type: 3CT current transformer | Model: 3CT-43 | Rating: 300/5 A | Window: 27x27 mm | Applicable: IMP, DMPi, GMP60-3T, GMP22/40/60T
76012116021 Type: 3CT current transformer | Model: 3CT-43 | Rating: 350/5 A | Window: 27x27 mm | Applicable: IMP, DMPi, GMP60-3T, GMP22/40/60T
76012116022 Type: 3CT current transformer | Model: 3CT-43 | Rating: 400/5 A | Window: 27x27 mm | Applicable: IMP, DMPi, GMP60-3T, GMP22/40/60T
76012116023 Type: 3CT current transformer | Model: 3CT-63 | Rating: 400/5 A | Window: 45x30 mm | Applicable: IMP, DMPi, GMP60-3T, GMP22/40/60T
76012116024 Type: 3CT current transformer | Model: 3CT-63 | Rating: 500/5 A | Window: 45x30 mm | Applicable: IMP, DMPi, GMP60-3T, GMP22/40/60T
76012116025 Type: 3CT current transformer | Model: 3CT-63 | Rating: 600/5 A | Window: 45x30 mm | Applicable: IMP, DMPi, GMP60-3T, GMP22/40/60T
76012116001 Type: 2CT current transformer | Model: DCT-100 | Rating: 100/5 A | Window: 28.5x33.5 mm | Applicable: GMP22/40/60T
76012116002 Type: 2CT current transformer | Model: DCT-150 | Rating: 150/5 A | Window: 28.5x33.5 mm | Applicable: GMP22/40/60T
76012116003 Type: 2CT current transformer | Model: DCT-200 | Rating: 200/5 A | Window: 28.5x33.5 mm | Applicable: GMP22/40/60T
76012116004 Type: 2CT current transformer | Model: DCT-300 | Rating: 300/5 A | Window: 28.5x33.5 mm | Applicable: GMP22/40/60T
76012116005 Type: 2CT current transformer | Model: DCT-400 | Rating: 400/5 A | Window: 28.5x33.5 mm | Applicable: GMP22/40/60T
76012116006 Type: 1CT current transformer | Model: SCT-100 | Rating: 100/5 A | Window: 27.5x32.5 mm | Applicable: IMP, DMPi, GMP60-3T, GMP22/40/60T
76012116007 Type: 1CT current transformer | Model: SCT-150 | Rating: 150/5 A | Window: 27.5x32.5 mm | Applicable: IMP, DMPi, GMP60-3T, GMP22/40/60T
76012116008 Type: 1CT current transformer | Model: SCT-200 | Rating: 200/5 A | Window: 27.5x32.5 mm | Applicable: IMP, DMPi, GMP60-3T, GMP22/40/60T
76012116009 Type: 1CT current transformer | Model: SCT-300 | Rating: 300/5 A | Window: 27.5x32.5 mm | Applicable: IMP, DMPi, GMP60-3T, GMP22/40/60T
76012116010 Type: 1CT current transformer | Model: SCT-400 | Rating: 400/5 A | Window: 27.5x32.5 mm | Applicable: IMP, DMPi, GMP60-3T, GMP22/40/60T
76012533005 Type: MCT for IMC-III (Domestic) | Model: MCT 2M | Rating: 1CT, cable 2 m | Window: Per MCT drawing | Applicable: IMC-III (3 pcs per unit)
76012533006 Type: MCT for IMC-III (Domestic) | Model: MCT 4M | Rating: 1CT, cable 4 m | Window: Per MCT drawing | Applicable: IMC-III (3 pcs per unit)
76012533007 Type: MCT for IMC-III (Export) | Model: MCT 2M | Rating: 1CT, cable 2 m | Window: Per MCT drawing | Applicable: IMC-III (3 pcs per unit)
76012533008 Type: MCT for IMC-III (Export) | Model: MCT 4M | Rating: 1CT, cable 4 m | Window: Per MCT drawing | Applicable: IMC-III (3 pcs per unit)
76012533107 Type: MCT for IMC-III (China export) | Model: MCT 2M | Rating: 1CT, cable 2 m | Window: Per MCT drawing | Applicable: IMC-III (3 pcs per unit)
76012533108 Type: MCT for IMC-III (China export) | Model: MCT 4M | Rating: 1CT, cable 4 m | Window: Per MCT drawing | Applicable: IMC-III (3 pcs per unit)
