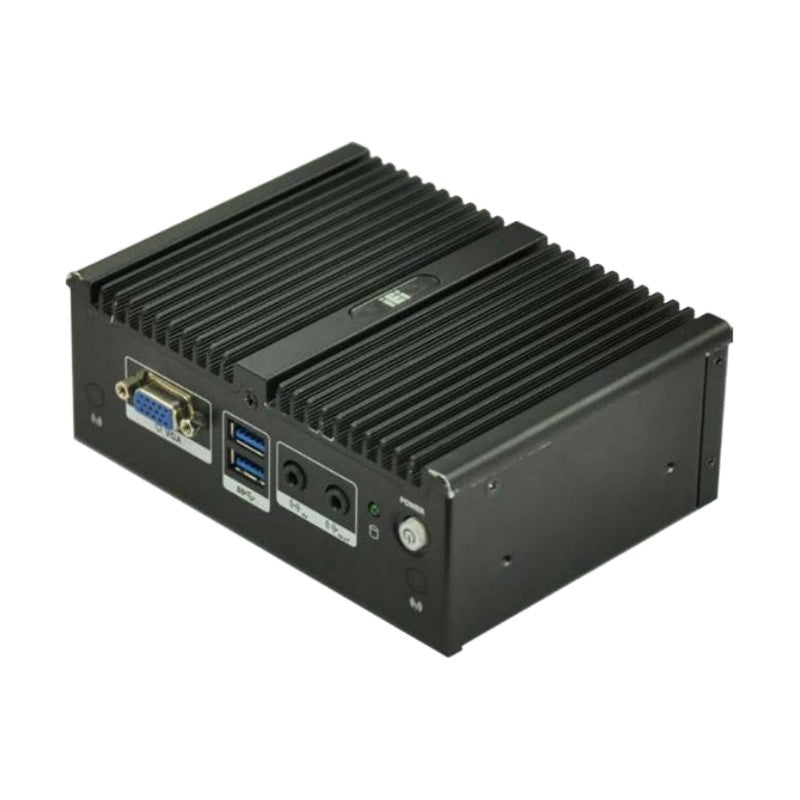

LS Electric EtherFOS-DS0 Industrial Smart Data Server

EtherFOS-DS0 industrial smart data server (made by AC&T System) that collects, processes and logs field data from up to 32 EtherFOS RTUs and PLCs and serves it to MES, SCADA, databases and cloud via OPC UA, Modbus TCP, BACnet, HSMS and SQL.

Key features

Data-processing middleware: custom calculation, logging files and storage
Built-in PostgreSQL DB server/client; client for Oracle, Tibero, MySQL, MSSQL
GLOFA, XGT, Modbus, Mitsubishi master, EtherNet/IP, BACnet/IP, DNP3.0 slave drivers
128 processes, 4096 lines per process, 32 device drivers
EtherFOS-TIM programming tool with communication monitor and data log screens

Specifications

CPU	Intel Celeron N3160, quad-core, up to 2.24 GHz
Memory	2 GB (max 8 GB)
Storage	mSATA 128 GB
Ethernet	2 x RJ45 10/100/1000Base-T(X)
USB	4 x USB 3.0
Display	1 x HDMI, 1 x VGA
Power	12 VDC / 2 A
Operating temperature	-20 to +60 C (with airflow)
Dimensions	136.6 x 102.4 x 52 mm, wall mount
Source	LS Electric EtherFOS-DS0 catalog, p. 3-7

EtherFOS-DS0

Type: Integrated data server | Max field devices: 32 | OPC: OPC UA

Remote Terminal UnitsLS Electric

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric EtherFOS-DS0 Industrial Smart Data Server

Brand LS Electric·Remote Terminal Units

Available part numbers (1)

EtherFOS-DS0

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
