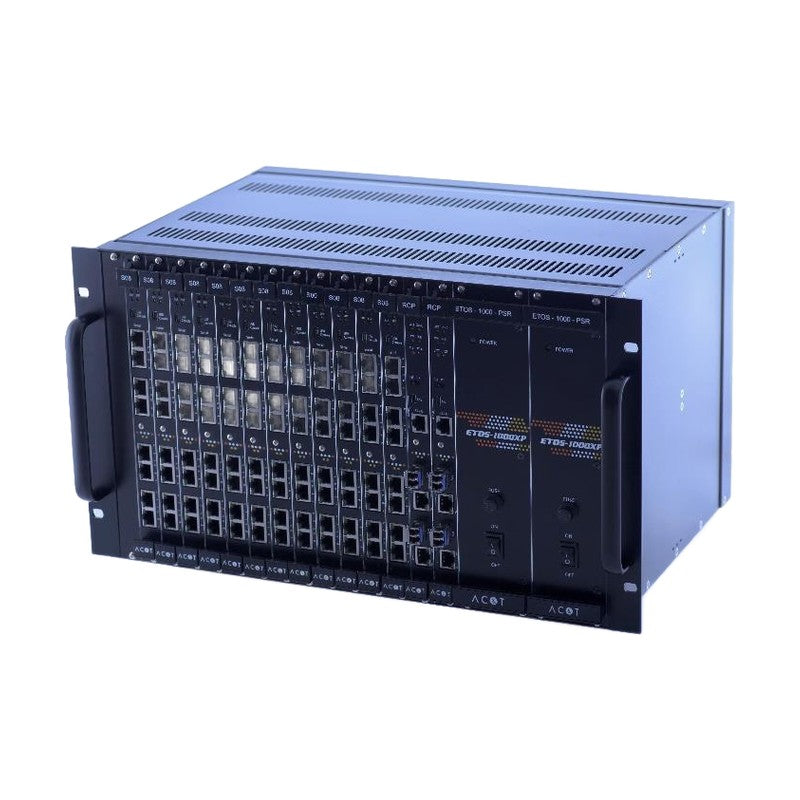

LS Electric ETOS-1000XP Redundant Device Server (CPU, I/O, Base)

LS Electric ETOS-1000XP Redundant Device Server (CPU, I/O, Base)

ETOS-1000XP high-performance modular industrial network device server (made by AC&T System) with CPU, power and Ethernet redundancy, up to 96 serial ports and 256/512 Ethernet connections for large integrated SCADA systems.

Key features

  • CPU, power and Ethernet redundancy (CPU memory sync, up to 4 Ethernet networks, teaming)
  • CPU with 2 x 10/100/1000Base-TX and 2 x 1000Base-FX ports
  • Up to 96 serial ports via 12-slot sealed base
  • Modbus, XGT/GLOFA, MELSEC, EtherNet/IP, BACnet/IP, DNP3.0, IEC 60870, IEC 61850 drivers
  • Multi-tasking ETOS-RD user programming, frame and variable monitors, password security
  • Power status monitoring for real-time fault detection

Specifications

CPU Ethernet 2 x 10/100/1000Base-TX + 2 x 1000Base-FX
Base 12 SIO slots, sealed
Max serial ports 96
Cooling Natural convection
Operating temperature -10 to +60 C
Storage temperature -25 to +70 C
Humidity 5-95% RH, non-condensing
EMC EN61000-4-2/-3/-4
Source LS Electric ETOS-1000XP catalog, p. 1-2
ETOS-1000XP-RCP Module: CPU | Description: Redundant CPU, 512 Ethernet channels
ETOS-1000XP-SCPA Module: CPU | Description: CPU, A type, 256 Ethernet channels
ETOS-1000XP-SCPB Module: CPU | Description: CPU, B type, 512 Ethernet channels
ETOS-1000XP-BAS Module: Base | Description: Sealed base, 12 SIO slots
ETOS-1000XP-PWR Module: Power | Description: Power module
ETOS-1000XP-NUL Module: Cover | Description: Dust cover
ETOS-1000XP-S80 Module: Serial I/O | Description: RS-232 x 8
ETOS-1000XP-S44 Module: Serial I/O | Description: RS-232 x 4, RS-422/485 x 4
ETOS-1000XP-S08 Module: Serial I/O | Description: RS-422/485 x 8
Serial Device ServersLS Electric
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric ETOS-1000XP Redundant Device Server (CPU, I/O, Base)

Brand LS Electric·Serial Device Servers

Available part numbers (9)

ETOS-1000XP-RCP, ETOS-1000XP-SCPA, ETOS-1000XP-SCPB, ETOS-1000XP-BAS, ETOS-1000XP-PWR, ETOS-1000XP-NUL, ETOS-1000XP-S80, ETOS-1000XP-S44, ETOS-1000XP-S08

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ETOS-1000XP-RCPModule: CPU | Description: Redundant CPU, 512 Ethernet channels
ETOS-1000XP-SCPAModule: CPU | Description: CPU, A type, 256 Ethernet channels
ETOS-1000XP-SCPBModule: CPU | Description: CPU, B type, 512 Ethernet channels
ETOS-1000XP-BASModule: Base | Description: Sealed base, 12 SIO slots
ETOS-1000XP-PWRModule: Power | Description: Power module
ETOS-1000XP-NULModule: Cover | Description: Dust cover
ETOS-1000XP-S80Module: Serial I/O | Description: RS-232 x 8
ETOS-1000XP-S44Module: Serial I/O | Description: RS-232 x 4, RS-422/485 x 4
ETOS-1000XP-S08Module: Serial I/O | Description: RS-422/485 x 8
