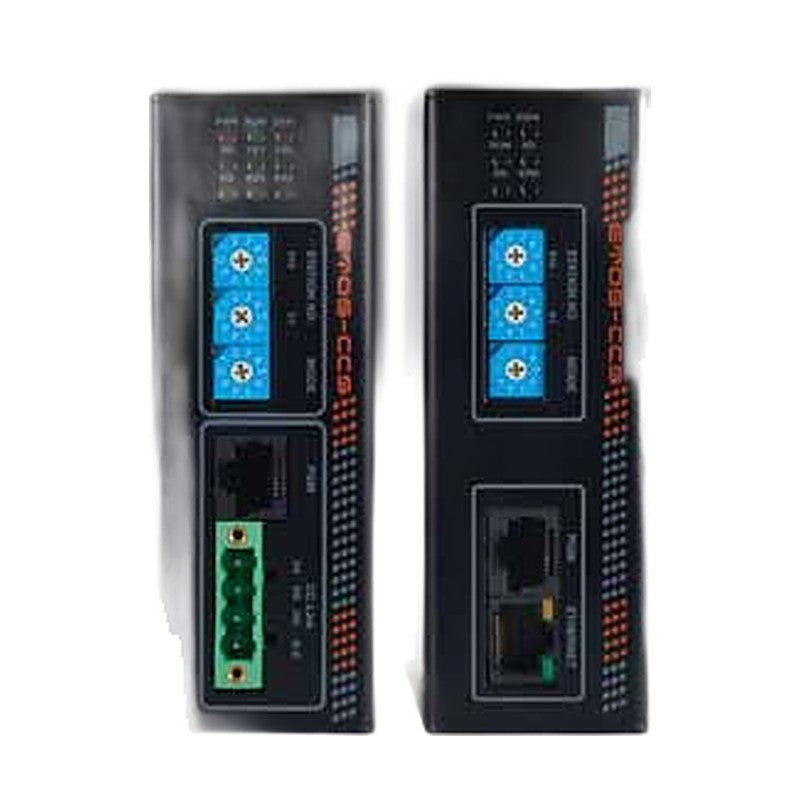

LS Electric ETOS-X Fieldbus Device Servers (DPS-X / CCS-X)

LS Electric ETOS-X Fieldbus Device Servers (DPS-X / CCS-X)

ETOS-DPS-X and ETOS-CCS-X fieldbus device servers (made by AC&T System) that connect serial or Ethernet field devices to Profibus-DP or CC-Link V2.0 networks as a slave station.

Key features

  • 32-bit RISC CPU fieldbus device server with industrial-grade hardware
  • Profibus-DP slave (DPS-X) or CC-Link slave V1.0/V2.0 (CCS-X)
  • Serial drivers for GLOFA/XGT Cnet, Modbus, MELSEC master; Modbus TCP on Ethernet model
  • User-defined protocol frame editing; copy/store/convert data commands
  • Real-time frame monitoring and system log diagnostics via ETOS X-PD
  • DIN rail or wall mounting

Specifications

Serial interface RS-232/422/485, RJ-45
Serial speed 200 bps to 115.2 kbps
Configuration ETOS X-PD for Windows
Memory 64 KB user / 1 MB program
Power 24 VDC, 450 mA, 10 W
Dimensions (WxHxD) 116.6 x 41 x 97.5 mm
Operating temperature -10 to +60 C
Storage temperature -25 to +70 C
EMC / Safety EN55022, EN61000-4, EN60950
Source LS Electric ETOS-X Series catalog, p. 2-6
ETOS-DPS-X Fieldbus: Profibus-DP slave | Ethernet: None | Serial ports: 2 x RS-232/422/485
ETOS-CCS-00X Fieldbus: CC-Link slave V2.0 | Ethernet: 1 x 10/100 Mbps | Serial ports: None
ETOS-CCS-20X Fieldbus: CC-Link slave V2.0 | Ethernet: None | Serial ports: 2 x RS-232
ETOS-CCS-02X Fieldbus: CC-Link slave V2.0 | Ethernet: None | Serial ports: 2 x RS-422/485
