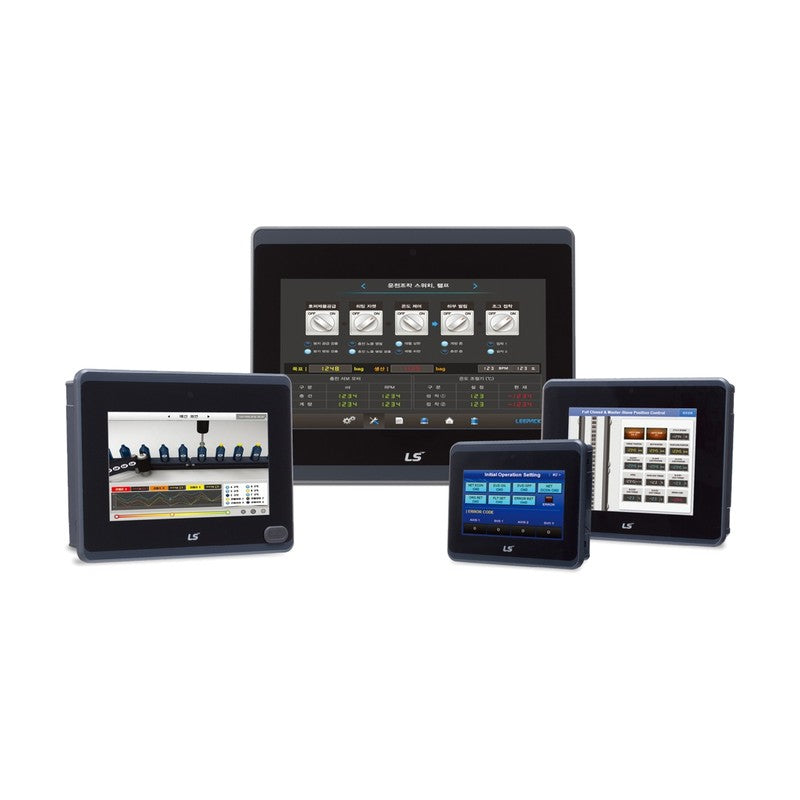

LS Electric eXP2 XGT Panel Touch HMIs (4.3-10.1 in, DC 24 V)

LS Electric eXP2 XGT Panel Touch HMIs (4.3-10.1 in, DC 24 V)

LS Electric eXP2 efficient XGT Panel touch HMIs with 4.3 to 10.1-inch TFT color LCDs, WinCE 7.0 Core or Pro, and standard, advanced or economy communication versions powered by DC 24 V.

Key features

  • Portrait display mode, PDF viewer, FTP client and VNC client (viewer) objects
  • 4-wire analog resistive touch panel with LED backlight and automatic on/off
  • Standard type: RS-232C, RS-422/485 and 10/100Base-TX Ethernet; advanced 7/10 in adds Micro SD (SDHC)
  • USB 2.0 host for mouse, keyboard, printer and USB memory; logging, recipe, alarm and script functions
  • -EX versions rated IP66 and UL Type 4X; standard versions IP65 front
  • Programmed with XP-Builder; 12 languages displayed simultaneously

Specifications

Display TFT color LCD, LED backlight
Touch panel 4-wire analog resistive
Processor 800 MHz
Memory 64 MB project, 512 MB RAM, 128 KB backup
Power supply DC 24 V
Power consumption 4-6 W
Certifications CE, UL (cUL), KC
Software XP-Builder
Source LS Electric eXP2 Series Catalog (2021.05), p. 5-7
eXP2-0400D Screen: 4.3 in, 480x272 | OS: WinCE 7.0 Core | Interface: Standard: serial + Ethernet | Protection: IP65 front
eXP2-0400D-EX Screen: 4.3 in, 480x272 | OS: WinCE 7.0 Core | Interface: Standard: serial + Ethernet | Protection: IP66, UL Type 4X (-EX)
eXP2-0410D Screen: 4.3 in, 480x272 | OS: WinCE 7.0 Pro | Interface: Standard: serial + Ethernet | Protection: IP65 front
eXP2-0410D-EX Screen: 4.3 in, 480x272 | OS: WinCE 7.0 Pro | Interface: Standard: serial + Ethernet | Protection: IP66, UL Type 4X (-EX)
eXP2-0500D Screen: 5.6 in, 640x480 | OS: WinCE 7.0 Core | Interface: Standard: serial + Ethernet | Protection: IP65 front
eXP2-0500D-EX Screen: 5.6 in, 640x480 | OS: WinCE 7.0 Core | Interface: Standard: serial + Ethernet | Protection: IP66, UL Type 4X (-EX)
eXP2-0510D Screen: 5.6 in, 640x480 | OS: WinCE 7.0 Pro | Interface: Standard: serial + Ethernet | Protection: IP65 front
eXP2-0510D-EX Screen: 5.6 in, 640x480 | OS: WinCE 7.0 Pro | Interface: Standard: serial + Ethernet | Protection: IP66, UL Type 4X (-EX)
eXP2-0502D Screen: 5.6 in, 640x480 | OS: WinCE 7.0 Core | Interface: Economy: serial only | Protection: IP65 front
eXP2-0512D Screen: 5.6 in, 640x480 | OS: WinCE 7.0 Pro | Interface: Economy: serial only | Protection: IP65 front
eXP2-0700D Screen: 7 in, 800x480 | OS: WinCE 7.0 Core | Interface: Standard: serial + Ethernet | Protection: IP65 front
eXP2-0700D-EX Screen: 7 in, 800x480 | OS: WinCE 7.0 Core | Interface: Standard: serial + Ethernet | Protection: IP66, UL Type 4X (-EX)
eXP2-0710D Screen: 7 in, 800x480 | OS: WinCE 7.0 Pro | Interface: Standard: serial + Ethernet | Protection: IP65 front
eXP2-0710D-EX Screen: 7 in, 800x480 | OS: WinCE 7.0 Pro | Interface: Standard: serial + Ethernet | Protection: IP66, UL Type 4X (-EX)
eXP2-0701D Screen: 7 in, 800x480 | OS: WinCE 7.0 Core | Interface: Advanced: serial + Ethernet + SD | Protection: IP65 front
eXP2-0701D-EX Screen: 7 in, 800x480 | OS: WinCE 7.0 Core | Interface: Advanced: serial + Ethernet + SD | Protection: IP66, UL Type 4X (-EX)
eXP2-0711D Screen: 7 in, 800x480 | OS: WinCE 7.0 Pro | Interface: Advanced: serial + Ethernet + SD | Protection: IP65 front
eXP2-0711D-EX Screen: 7 in, 800x480 | OS: WinCE 7.0 Pro | Interface: Advanced: serial + Ethernet + SD | Protection: IP66, UL Type 4X (-EX)
eXP2-0702D Screen: 7 in, 800x480 | OS: WinCE 7.0 Core | Interface: Economy: serial only | Protection: IP65 front
eXP2-0712D Screen: 7 in, 800x480 | OS: WinCE 7.0 Pro | Interface: Economy: serial only | Protection: IP65 front
eXP2-1000D Screen: 10.1 in, 1024x600 | OS: WinCE 7.0 Core | Interface: Standard: serial + Ethernet | Protection: IP65 front
eXP2-1000D-EX Screen: 10.1 in, 1024x600 | OS: WinCE 7.0 Core | Interface: Standard: serial + Ethernet | Protection: IP66, UL Type 4X (-EX)
eXP2-1010D Screen: 10.1 in, 1024x600 | OS: WinCE 7.0 Pro | Interface: Standard: serial + Ethernet | Protection: IP65 front
eXP2-1010D-EX Screen: 10.1 in, 1024x600 | OS: WinCE 7.0 Pro | Interface: Standard: serial + Ethernet | Protection: IP66, UL Type 4X (-EX)
eXP2-1001D Screen: 10.1 in, 1024x600 | OS: WinCE 7.0 Core | Interface: Advanced: serial + Ethernet + SD | Protection: IP65 front
eXP2-1001D-EX Screen: 10.1 in, 1024x600 | OS: WinCE 7.0 Core | Interface: Advanced: serial + Ethernet + SD | Protection: IP66, UL Type 4X (-EX)
eXP2-1011D Screen: 10.1 in, 1024x600 | OS: WinCE 7.0 Pro | Interface: Advanced: serial + Ethernet + SD | Protection: IP65 front
eXP2-1011D-EX Screen: 10.1 in, 1024x600 | OS: WinCE 7.0 Pro | Interface: Advanced: serial + Ethernet + SD | Protection: IP66, UL Type 4X (-EX)
HMIsLS Electric
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric eXP2 XGT Panel Touch HMIs (4.3-10.1 in, DC 24 V)

Brand LS Electric·HMIs

Available part numbers (28)

eXP2-0400D, eXP2-0400D-EX, eXP2-0410D, eXP2-0410D-EX, eXP2-0500D, eXP2-0500D-EX, eXP2-0510D, eXP2-0510D-EX, eXP2-0502D, eXP2-0512D + 18 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
eXP2-0400DScreen: 4.3 in, 480x272 | OS: WinCE 7.0 Core | Interface: Standard: serial + Ethernet | Protection: IP65 front
eXP2-0400D-EXScreen: 4.3 in, 480x272 | OS: WinCE 7.0 Core | Interface: Standard: serial + Ethernet | Protection: IP66, UL Type 4X (-EX)
eXP2-0410DScreen: 4.3 in, 480x272 | OS: WinCE 7.0 Pro | Interface: Standard: serial + Ethernet | Protection: IP65 front
eXP2-0410D-EXScreen: 4.3 in, 480x272 | OS: WinCE 7.0 Pro | Interface: Standard: serial + Ethernet | Protection: IP66, UL Type 4X (-EX)
eXP2-0500DScreen: 5.6 in, 640x480 | OS: WinCE 7.0 Core | Interface: Standard: serial + Ethernet | Protection: IP65 front
eXP2-0500D-EXScreen: 5.6 in, 640x480 | OS: WinCE 7.0 Core | Interface: Standard: serial + Ethernet | Protection: IP66, UL Type 4X (-EX)
eXP2-0510DScreen: 5.6 in, 640x480 | OS: WinCE 7.0 Pro | Interface: Standard: serial + Ethernet | Protection: IP65 front
eXP2-0510D-EXScreen: 5.6 in, 640x480 | OS: WinCE 7.0 Pro | Interface: Standard: serial + Ethernet | Protection: IP66, UL Type 4X (-EX)
eXP2-0502DScreen: 5.6 in, 640x480 | OS: WinCE 7.0 Core | Interface: Economy: serial only | Protection: IP65 front
eXP2-0512DScreen: 5.6 in, 640x480 | OS: WinCE 7.0 Pro | Interface: Economy: serial only | Protection: IP65 front
eXP2-0700DScreen: 7 in, 800x480 | OS: WinCE 7.0 Core | Interface: Standard: serial + Ethernet | Protection: IP65 front
eXP2-0700D-EXScreen: 7 in, 800x480 | OS: WinCE 7.0 Core | Interface: Standard: serial + Ethernet | Protection: IP66, UL Type 4X (-EX)
eXP2-0710DScreen: 7 in, 800x480 | OS: WinCE 7.0 Pro | Interface: Standard: serial + Ethernet | Protection: IP65 front
eXP2-0710D-EXScreen: 7 in, 800x480 | OS: WinCE 7.0 Pro | Interface: Standard: serial + Ethernet | Protection: IP66, UL Type 4X (-EX)
eXP2-0701DScreen: 7 in, 800x480 | OS: WinCE 7.0 Core | Interface: Advanced: serial + Ethernet + SD | Protection: IP65 front
eXP2-0701D-EXScreen: 7 in, 800x480 | OS: WinCE 7.0 Core | Interface: Advanced: serial + Ethernet + SD | Protection: IP66, UL Type 4X (-EX)
eXP2-0711DScreen: 7 in, 800x480 | OS: WinCE 7.0 Pro | Interface: Advanced: serial + Ethernet + SD | Protection: IP65 front
eXP2-0711D-EXScreen: 7 in, 800x480 | OS: WinCE 7.0 Pro | Interface: Advanced: serial + Ethernet + SD | Protection: IP66, UL Type 4X (-EX)
eXP2-0702DScreen: 7 in, 800x480 | OS: WinCE 7.0 Core | Interface: Economy: serial only | Protection: IP65 front
eXP2-0712DScreen: 7 in, 800x480 | OS: WinCE 7.0 Pro | Interface: Economy: serial only | Protection: IP65 front
eXP2-1000DScreen: 10.1 in, 1024x600 | OS: WinCE 7.0 Core | Interface: Standard: serial + Ethernet | Protection: IP65 front
eXP2-1000D-EXScreen: 10.1 in, 1024x600 | OS: WinCE 7.0 Core | Interface: Standard: serial + Ethernet | Protection: IP66, UL Type 4X (-EX)
eXP2-1010DScreen: 10.1 in, 1024x600 | OS: WinCE 7.0 Pro | Interface: Standard: serial + Ethernet | Protection: IP65 front
eXP2-1010D-EXScreen: 10.1 in, 1024x600 | OS: WinCE 7.0 Pro | Interface: Standard: serial + Ethernet | Protection: IP66, UL Type 4X (-EX)
eXP2-1001DScreen: 10.1 in, 1024x600 | OS: WinCE 7.0 Core | Interface: Advanced: serial + Ethernet + SD | Protection: IP65 front
eXP2-1001D-EXScreen: 10.1 in, 1024x600 | OS: WinCE 7.0 Core | Interface: Advanced: serial + Ethernet + SD | Protection: IP66, UL Type 4X (-EX)
eXP2-1011DScreen: 10.1 in, 1024x600 | OS: WinCE 7.0 Pro | Interface: Advanced: serial + Ethernet + SD | Protection: IP65 front
eXP2-1011D-EXScreen: 10.1 in, 1024x600 | OS: WinCE 7.0 Pro | Interface: Advanced: serial + Ethernet + SD | Protection: IP66, UL Type 4X (-EX)
