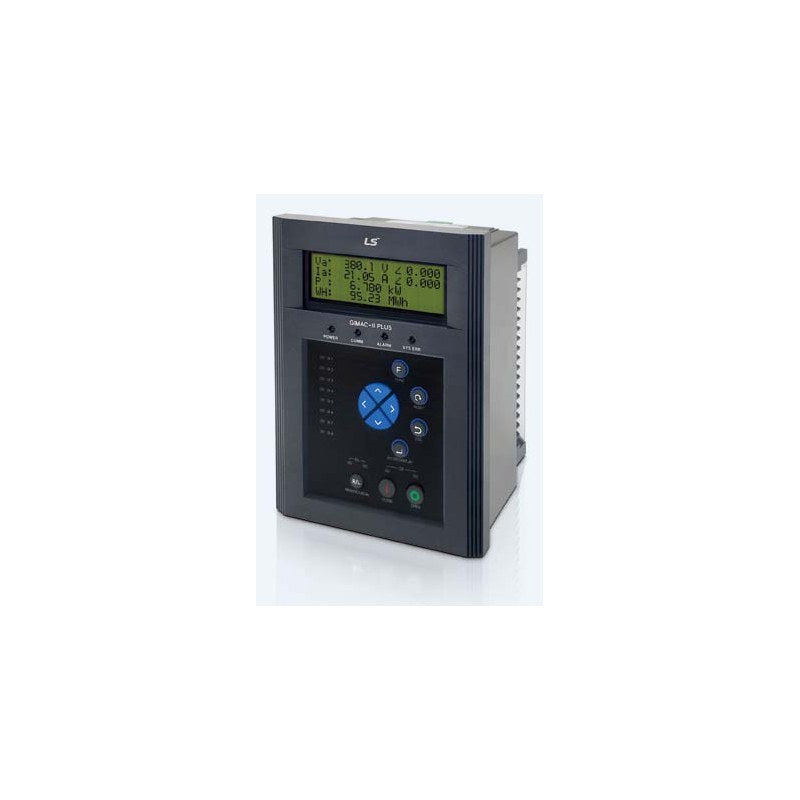

LS Electric GIMAC-II Plus (GIMAC-115P) Digital Metering & Control Unit

LS Electric GIMAC-II Plus (GIMAC-115P) Digital Metering & Control Unit

LS Electric Beyond X GIMAC-II Plus (GIMAC-115P) digital integrated metering and control equipment combining power measurement, harmonic analysis, circuit breaker control and fault monitoring.

Key features

  • Built-in DSP: current/voltage +/-0.3 %, power/energy +/-0.5 %
  • Harmonics up to 15th order with THD, TDD and K-factor; demand and peak demand
  • Circuit breaker open/close control with SBO (Select Before Operation)
  • 10 digital inputs (2 for CB status, 8 for signals); trip and alarm relay outputs
  • Event recording of 256 events and self-diagnosis of wiring, open circuit and frequency errors
  • Modbus RS485, or Ethernet (2 ports, RSTP) with Modbus TCP, DNP3.0 or IEC 61850 MMS

Specifications

Model NO (basic)
Wiring systems 1P2W, 1P3W, 3P3W (Y/Delta), 3P4W
Voltage input PT 20-230 V; GPT 2.2-230 V
Current input 0.05-6 A (5A) / 0.01-1.2 A (1A)
Output contacts AC 250 V 16 A / DC 30 V 16 A
Display 20 x 4 character LCD
Power consumption 10 W normal, 30 W operating
Standards IEC 60255, IEC 61000-4
Operating temperature -10 to +55 C
Note GIMAC-II Plus and GIMAC-115P are the same product
Source LS Electric GIMAC-II Plus catalog C160K1-02 (2024-06), p. 3-8, 13
GIMAC-115PNORSM1A50HzAC/DC110VDI_AC/DC110V Communication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNORSM1A50HzAC/DC110VDI_AC/DC110VAI Communication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM1A50HzAC/DC110VDI_AC/DC220V Communication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNORSM1A50HzAC/DC110VDI_AC/DC220VAI Communication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM1A50HzAC/DC220VDI_AC/DC110V Communication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNORSM1A50HzAC/DC220VDI_AC/DC110VAI Communication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM1A50HzAC/DC220VDI_AC/DC220V Communication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNORSM1A50HzAC/DC220VDI_AC/DC220VAI Communication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM1A60HzAC/DC110VDI_AC/DC110V Communication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNORSM1A60HzAC/DC110VDI_AC/DC110VAI Communication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM1A60HzAC/DC110VDI_AC/DC220V Communication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNORSM1A60HzAC/DC110VDI_AC/DC220VAI Communication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM1A60HzAC/DC220VDI_AC/DC110V Communication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNORSM1A60HzAC/DC220VDI_AC/DC110VAI Communication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM1A60HzAC/DC220VDI_AC/DC220V Communication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNORSM1A60HzAC/DC220VDI_AC/DC220VAI Communication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM5A50HzAC/DC110VDI_AC/DC110V Communication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNORSM5A50HzAC/DC110VDI_AC/DC110VAI Communication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM5A50HzAC/DC110VDI_AC/DC220V Communication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNORSM5A50HzAC/DC110VDI_AC/DC220VAI Communication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM5A50HzAC/DC220VDI_AC/DC110V Communication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNORSM5A50HzAC/DC220VDI_AC/DC110VAI Communication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM5A50HzAC/DC220VDI_AC/DC220V Communication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNORSM5A50HzAC/DC220VDI_AC/DC220VAI Communication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM5A60HzAC/DC110VDI_AC/DC110V Communication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNORSM5A60HzAC/DC110VDI_AC/DC110VAI Communication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM5A60HzAC/DC110VDI_AC/DC220V Communication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNORSM5A60HzAC/DC110VDI_AC/DC220VAI Communication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM5A60HzAC/DC220VDI_AC/DC110V Communication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNORSM5A60HzAC/DC220VDI_AC/DC110VAI Communication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM5A60HzAC/DC220VDI_AC/DC220V Communication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNORSM5A60HzAC/DC220VDI_AC/DC220VAI Communication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM1A50HzAC/DC110VDI_AC/DC110V Communication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEM1A50HzAC/DC110VDI_AC/DC110VAI Communication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM1A50HzAC/DC110VDI_AC/DC220V Communication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEM1A50HzAC/DC110VDI_AC/DC220VAI Communication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM1A50HzAC/DC220VDI_AC/DC110V Communication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEM1A50HzAC/DC220VDI_AC/DC110VAI Communication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM1A50HzAC/DC220VDI_AC/DC220V Communication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEM1A50HzAC/DC220VDI_AC/DC220VAI Communication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM1A60HzAC/DC110VDI_AC/DC110V Communication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEM1A60HzAC/DC110VDI_AC/DC110VAI Communication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM1A60HzAC/DC110VDI_AC/DC220V Communication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEM1A60HzAC/DC110VDI_AC/DC220VAI Communication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM1A60HzAC/DC220VDI_AC/DC110V Communication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEM1A60HzAC/DC220VDI_AC/DC110VAI Communication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM1A60HzAC/DC220VDI_AC/DC220V Communication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEM1A60HzAC/DC220VDI_AC/DC220VAI Communication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM5A50HzAC/DC110VDI_AC/DC110V Communication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEM5A50HzAC/DC110VDI_AC/DC110VAI Communication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM5A50HzAC/DC110VDI_AC/DC220V Communication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEM5A50HzAC/DC110VDI_AC/DC220VAI Communication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM5A50HzAC/DC220VDI_AC/DC110V Communication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEM5A50HzAC/DC220VDI_AC/DC110VAI Communication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM5A50HzAC/DC220VDI_AC/DC220V Communication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEM5A50HzAC/DC220VDI_AC/DC220VAI Communication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM5A60HzAC/DC110VDI_AC/DC110V Communication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEM5A60HzAC/DC110VDI_AC/DC110VAI Communication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM5A60HzAC/DC110VDI_AC/DC220V Communication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEM5A60HzAC/DC110VDI_AC/DC220VAI Communication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM5A60HzAC/DC220VDI_AC/DC110V Communication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEM5A60HzAC/DC220VDI_AC/DC110VAI Communication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM5A60HzAC/DC220VDI_AC/DC220V Communication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEM5A60HzAC/DC220VDI_AC/DC220VAI Communication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC1A50HzAC/DC110VDI_AC/DC110V Communication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEC1A50HzAC/DC110VDI_AC/DC110VAI Communication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC1A50HzAC/DC110VDI_AC/DC220V Communication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEC1A50HzAC/DC110VDI_AC/DC220VAI Communication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC1A50HzAC/DC220VDI_AC/DC110V Communication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEC1A50HzAC/DC220VDI_AC/DC110VAI Communication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC1A50HzAC/DC220VDI_AC/DC220V Communication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEC1A50HzAC/DC220VDI_AC/DC220VAI Communication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC1A60HzAC/DC110VDI_AC/DC110V Communication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEC1A60HzAC/DC110VDI_AC/DC110VAI Communication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC1A60HzAC/DC110VDI_AC/DC220V Communication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEC1A60HzAC/DC110VDI_AC/DC220VAI Communication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC1A60HzAC/DC220VDI_AC/DC110V Communication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEC1A60HzAC/DC220VDI_AC/DC110VAI Communication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC1A60HzAC/DC220VDI_AC/DC220V Communication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEC1A60HzAC/DC220VDI_AC/DC220VAI Communication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC5A50HzAC/DC110VDI_AC/DC110V Communication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEC5A50HzAC/DC110VDI_AC/DC110VAI Communication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC5A50HzAC/DC110VDI_AC/DC220V Communication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEC5A50HzAC/DC110VDI_AC/DC220VAI Communication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC5A50HzAC/DC220VDI_AC/DC110V Communication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEC5A50HzAC/DC220VDI_AC/DC110VAI Communication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC5A50HzAC/DC220VDI_AC/DC220V Communication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEC5A50HzAC/DC220VDI_AC/DC220VAI Communication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC5A60HzAC/DC110VDI_AC/DC110V Communication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEC5A60HzAC/DC110VDI_AC/DC110VAI Communication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC5A60HzAC/DC110VDI_AC/DC220V Communication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEC5A60HzAC/DC110VDI_AC/DC220VAI Communication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC5A60HzAC/DC220VDI_AC/DC110V Communication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEC5A60HzAC/DC220VDI_AC/DC110VAI Communication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC5A60HzAC/DC220VDI_AC/DC220V Communication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEC5A60HzAC/DC220VDI_AC/DC220VAI Communication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED1A50HzAC/DC110VDI_AC/DC110V Communication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTED1A50HzAC/DC110VDI_AC/DC110VAI Communication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED1A50HzAC/DC110VDI_AC/DC220V Communication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTED1A50HzAC/DC110VDI_AC/DC220VAI Communication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED1A50HzAC/DC220VDI_AC/DC110V Communication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTED1A50HzAC/DC220VDI_AC/DC110VAI Communication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED1A50HzAC/DC220VDI_AC/DC220V Communication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTED1A50HzAC/DC220VDI_AC/DC220VAI Communication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED1A60HzAC/DC110VDI_AC/DC110V Communication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTED1A60HzAC/DC110VDI_AC/DC110VAI Communication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED1A60HzAC/DC110VDI_AC/DC220V Communication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTED1A60HzAC/DC110VDI_AC/DC220VAI Communication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED1A60HzAC/DC220VDI_AC/DC110V Communication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTED1A60HzAC/DC220VDI_AC/DC110VAI Communication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED1A60HzAC/DC220VDI_AC/DC220V Communication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTED1A60HzAC/DC220VDI_AC/DC220VAI Communication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED5A50HzAC/DC110VDI_AC/DC110V Communication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTED5A50HzAC/DC110VDI_AC/DC110VAI Communication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED5A50HzAC/DC110VDI_AC/DC220V Communication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTED5A50HzAC/DC110VDI_AC/DC220VAI Communication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED5A50HzAC/DC220VDI_AC/DC110V Communication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTED5A50HzAC/DC220VDI_AC/DC110VAI Communication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED5A50HzAC/DC220VDI_AC/DC220V Communication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTED5A50HzAC/DC220VDI_AC/DC220VAI Communication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED5A60HzAC/DC110VDI_AC/DC110V Communication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTED5A60HzAC/DC110VDI_AC/DC110VAI Communication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED5A60HzAC/DC110VDI_AC/DC220V Communication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTED5A60HzAC/DC110VDI_AC/DC220VAI Communication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED5A60HzAC/DC220VDI_AC/DC110V Communication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTED5A60HzAC/DC220VDI_AC/DC110VAI Communication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED5A60HzAC/DC220VDI_AC/DC220V Communication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTED5A60HzAC/DC220VDI_AC/DC220VAI Communication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
Power MetersLS Electric
128 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric GIMAC-II Plus (GIMAC-115P) Digital Metering & Control Unit

Brand LS Electric·Power Meters

Available part numbers (128)

GIMAC-115PNORSM1A50HzAC/DC110VDI_AC/DC110V, GIMAC-115PNORSM1A50HzAC/DC110VDI_AC/DC110VAI, GIMAC-115PNORSM1A50HzAC/DC110VDI_AC/DC220V, GIMAC-115PNORSM1A50HzAC/DC110VDI_AC/DC220VAI, GIMAC-115PNORSM1A50HzAC/DC220VDI_AC/DC110V, GIMAC-115PNORSM1A50HzAC/DC220VDI_AC/DC110VAI, GIMAC-115PNORSM1A50HzAC/DC220VDI_AC/DC220V, GIMAC-115PNORSM1A50HzAC/DC220VDI_AC/DC220VAI, GIMAC-115PNORSM1A60HzAC/DC110VDI_AC/DC110V, GIMAC-115PNORSM1A60HzAC/DC110VDI_AC/DC110VAI + 118 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GIMAC-115PNORSM1A50HzAC/DC110VDI_AC/DC110VCommunication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNORSM1A50HzAC/DC110VDI_AC/DC110VAICommunication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM1A50HzAC/DC110VDI_AC/DC220VCommunication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNORSM1A50HzAC/DC110VDI_AC/DC220VAICommunication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM1A50HzAC/DC220VDI_AC/DC110VCommunication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNORSM1A50HzAC/DC220VDI_AC/DC110VAICommunication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM1A50HzAC/DC220VDI_AC/DC220VCommunication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNORSM1A50HzAC/DC220VDI_AC/DC220VAICommunication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM1A60HzAC/DC110VDI_AC/DC110VCommunication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNORSM1A60HzAC/DC110VDI_AC/DC110VAICommunication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM1A60HzAC/DC110VDI_AC/DC220VCommunication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNORSM1A60HzAC/DC110VDI_AC/DC220VAICommunication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM1A60HzAC/DC220VDI_AC/DC110VCommunication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNORSM1A60HzAC/DC220VDI_AC/DC110VAICommunication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM1A60HzAC/DC220VDI_AC/DC220VCommunication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNORSM1A60HzAC/DC220VDI_AC/DC220VAICommunication: RS485 / Modbus RTU | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM5A50HzAC/DC110VDI_AC/DC110VCommunication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNORSM5A50HzAC/DC110VDI_AC/DC110VAICommunication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM5A50HzAC/DC110VDI_AC/DC220VCommunication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNORSM5A50HzAC/DC110VDI_AC/DC220VAICommunication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM5A50HzAC/DC220VDI_AC/DC110VCommunication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNORSM5A50HzAC/DC220VDI_AC/DC110VAICommunication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM5A50HzAC/DC220VDI_AC/DC220VCommunication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNORSM5A50HzAC/DC220VDI_AC/DC220VAICommunication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM5A60HzAC/DC110VDI_AC/DC110VCommunication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNORSM5A60HzAC/DC110VDI_AC/DC110VAICommunication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM5A60HzAC/DC110VDI_AC/DC220VCommunication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNORSM5A60HzAC/DC110VDI_AC/DC220VAICommunication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM5A60HzAC/DC220VDI_AC/DC110VCommunication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNORSM5A60HzAC/DC220VDI_AC/DC110VAICommunication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNORSM5A60HzAC/DC220VDI_AC/DC220VCommunication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNORSM5A60HzAC/DC220VDI_AC/DC220VAICommunication: RS485 / Modbus RTU | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM1A50HzAC/DC110VDI_AC/DC110VCommunication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEM1A50HzAC/DC110VDI_AC/DC110VAICommunication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM1A50HzAC/DC110VDI_AC/DC220VCommunication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEM1A50HzAC/DC110VDI_AC/DC220VAICommunication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM1A50HzAC/DC220VDI_AC/DC110VCommunication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEM1A50HzAC/DC220VDI_AC/DC110VAICommunication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM1A50HzAC/DC220VDI_AC/DC220VCommunication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEM1A50HzAC/DC220VDI_AC/DC220VAICommunication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM1A60HzAC/DC110VDI_AC/DC110VCommunication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEM1A60HzAC/DC110VDI_AC/DC110VAICommunication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM1A60HzAC/DC110VDI_AC/DC220VCommunication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEM1A60HzAC/DC110VDI_AC/DC220VAICommunication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM1A60HzAC/DC220VDI_AC/DC110VCommunication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEM1A60HzAC/DC220VDI_AC/DC110VAICommunication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM1A60HzAC/DC220VDI_AC/DC220VCommunication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEM1A60HzAC/DC220VDI_AC/DC220VAICommunication: Ethernet / Modbus TCP | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM5A50HzAC/DC110VDI_AC/DC110VCommunication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEM5A50HzAC/DC110VDI_AC/DC110VAICommunication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM5A50HzAC/DC110VDI_AC/DC220VCommunication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEM5A50HzAC/DC110VDI_AC/DC220VAICommunication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM5A50HzAC/DC220VDI_AC/DC110VCommunication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEM5A50HzAC/DC220VDI_AC/DC110VAICommunication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM5A50HzAC/DC220VDI_AC/DC220VCommunication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEM5A50HzAC/DC220VDI_AC/DC220VAICommunication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM5A60HzAC/DC110VDI_AC/DC110VCommunication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEM5A60HzAC/DC110VDI_AC/DC110VAICommunication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM5A60HzAC/DC110VDI_AC/DC220VCommunication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEM5A60HzAC/DC110VDI_AC/DC220VAICommunication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM5A60HzAC/DC220VDI_AC/DC110VCommunication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEM5A60HzAC/DC220VDI_AC/DC110VAICommunication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEM5A60HzAC/DC220VDI_AC/DC220VCommunication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEM5A60HzAC/DC220VDI_AC/DC220VAICommunication: Ethernet / Modbus TCP | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC1A50HzAC/DC110VDI_AC/DC110VCommunication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEC1A50HzAC/DC110VDI_AC/DC110VAICommunication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC1A50HzAC/DC110VDI_AC/DC220VCommunication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEC1A50HzAC/DC110VDI_AC/DC220VAICommunication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC1A50HzAC/DC220VDI_AC/DC110VCommunication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEC1A50HzAC/DC220VDI_AC/DC110VAICommunication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC1A50HzAC/DC220VDI_AC/DC220VCommunication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEC1A50HzAC/DC220VDI_AC/DC220VAICommunication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC1A60HzAC/DC110VDI_AC/DC110VCommunication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEC1A60HzAC/DC110VDI_AC/DC110VAICommunication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC1A60HzAC/DC110VDI_AC/DC220VCommunication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEC1A60HzAC/DC110VDI_AC/DC220VAICommunication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC1A60HzAC/DC220VDI_AC/DC110VCommunication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEC1A60HzAC/DC220VDI_AC/DC110VAICommunication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC1A60HzAC/DC220VDI_AC/DC220VCommunication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEC1A60HzAC/DC220VDI_AC/DC220VAICommunication: Ethernet / IEC 61850 MMS | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC5A50HzAC/DC110VDI_AC/DC110VCommunication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEC5A50HzAC/DC110VDI_AC/DC110VAICommunication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC5A50HzAC/DC110VDI_AC/DC220VCommunication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEC5A50HzAC/DC110VDI_AC/DC220VAICommunication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC5A50HzAC/DC220VDI_AC/DC110VCommunication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEC5A50HzAC/DC220VDI_AC/DC110VAICommunication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC5A50HzAC/DC220VDI_AC/DC220VCommunication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEC5A50HzAC/DC220VDI_AC/DC220VAICommunication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC5A60HzAC/DC110VDI_AC/DC110VCommunication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEC5A60HzAC/DC110VDI_AC/DC110VAICommunication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC5A60HzAC/DC110VDI_AC/DC220VCommunication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEC5A60HzAC/DC110VDI_AC/DC220VAICommunication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC5A60HzAC/DC220VDI_AC/DC110VCommunication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTEC5A60HzAC/DC220VDI_AC/DC110VAICommunication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTEC5A60HzAC/DC220VDI_AC/DC220VCommunication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTEC5A60HzAC/DC220VDI_AC/DC220VAICommunication: Ethernet / IEC 61850 MMS | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED1A50HzAC/DC110VDI_AC/DC110VCommunication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTED1A50HzAC/DC110VDI_AC/DC110VAICommunication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED1A50HzAC/DC110VDI_AC/DC220VCommunication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTED1A50HzAC/DC110VDI_AC/DC220VAICommunication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED1A50HzAC/DC220VDI_AC/DC110VCommunication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTED1A50HzAC/DC220VDI_AC/DC110VAICommunication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED1A50HzAC/DC220VDI_AC/DC220VCommunication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTED1A50HzAC/DC220VDI_AC/DC220VAICommunication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED1A60HzAC/DC110VDI_AC/DC110VCommunication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTED1A60HzAC/DC110VDI_AC/DC110VAICommunication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED1A60HzAC/DC110VDI_AC/DC220VCommunication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTED1A60HzAC/DC110VDI_AC/DC220VAICommunication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED1A60HzAC/DC220VDI_AC/DC110VCommunication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTED1A60HzAC/DC220VDI_AC/DC110VAICommunication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED1A60HzAC/DC220VDI_AC/DC220VCommunication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTED1A60HzAC/DC220VDI_AC/DC220VAICommunication: Ethernet / DNP3.0 | CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED5A50HzAC/DC110VDI_AC/DC110VCommunication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTED5A50HzAC/DC110VDI_AC/DC110VAICommunication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED5A50HzAC/DC110VDI_AC/DC220VCommunication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTED5A50HzAC/DC110VDI_AC/DC220VAICommunication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED5A50HzAC/DC220VDI_AC/DC110VCommunication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTED5A50HzAC/DC220VDI_AC/DC110VAICommunication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED5A50HzAC/DC220VDI_AC/DC220VCommunication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTED5A50HzAC/DC220VDI_AC/DC220VAICommunication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED5A60HzAC/DC110VDI_AC/DC110VCommunication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTED5A60HzAC/DC110VDI_AC/DC110VAICommunication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED5A60HzAC/DC110VDI_AC/DC220VCommunication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTED5A60HzAC/DC110VDI_AC/DC220VAICommunication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED5A60HzAC/DC220VDI_AC/DC110VCommunication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-115PNOTED5A60HzAC/DC220VDI_AC/DC110VAICommunication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-115PNOTED5A60HzAC/DC220VDI_AC/DC220VCommunication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-115PNOTED5A60HzAC/DC220VDI_AC/DC220VAICommunication: Ethernet / DNP3.0 | CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Controllers & Meters →
