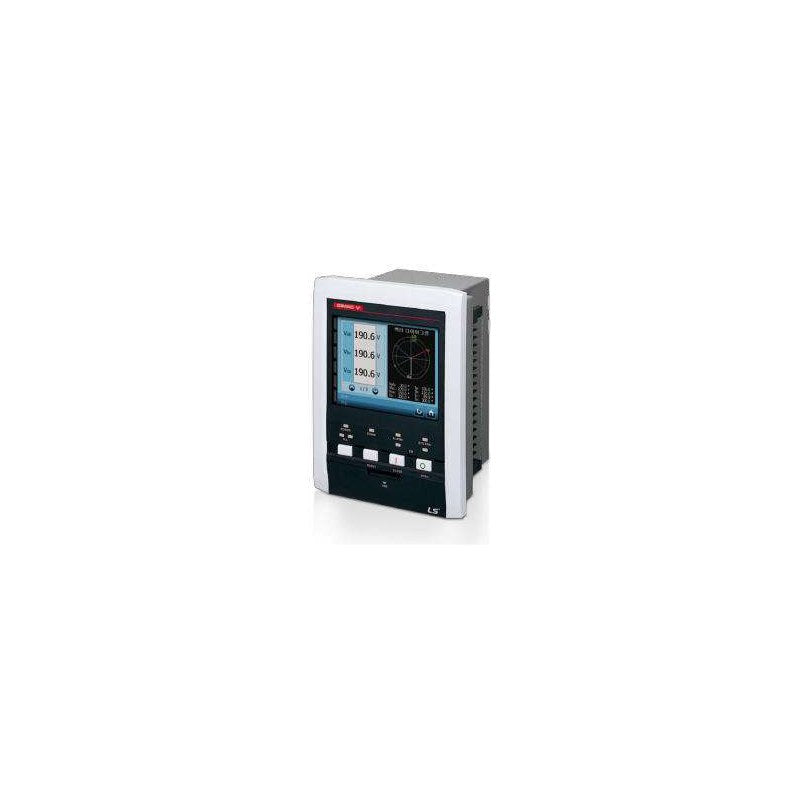

LS Electric GIMAC-V Metering, Power Quality & APFC Unit (Color LCD)

LS Electric GIMAC-V Metering, Power Quality & APFC Unit (Color LCD)

LS Electric GIMAC-V digital integrated metering and control device with color LCD, extended power quality analysis, transient capture and optional automatic power factor control.

Key features

  • Voltage/current 0.2 %, power/energy Class 0.5 (IEC 62053-21/22); 105 measured elements
  • Harmonic spectrum to 63rd order with THD, TDD, K-factor and crest factor
  • Sag/swell/interruption analysis, 512 PQ events, 250 PQ waveforms, 20 transient waveforms at 1,024 samples/cycle
  • AP model: automatic power factor control of up to 8 capacitor banks
  • Trend data for 10 elements up to 110 days; CB monitoring and SBO control
  • Modbus RTU (RS485, 2 ports) and/or Modbus TCP (Ethernet, 1 port)

Specifications

Protocol Modbus
CT rating 5 A (0.05-6 A)
Control power AC/DC 110 V +/-20 %
DI voltage AC/DC 110 V
Voltage input AC 10-452 V (phase)
Wiring systems 1P2W, 1P3W, 3P3W (Y/Open-delta), 3P4W
Output contacts CB: AC 250 V 16 A; general: AC 250 V 5 A
Standards IEC 60255, IEC 61326, IEC 61000-4, KEMC 1110
Dimensions 190 x 255 x 116 mm
Weight 3.6 kg
Operating temperature -10 to +55 C
Source LS Electric GIMAC-V catalog C160H1-01 (2023-04), p. 3-7, 13
GIMAC-VNORSM5A50HzAC/DC110VDI_AC/DC110V Model: Basic (NO) | Communication: RS485 2 ports | Frequency: 50 Hz | Analog input: None
GIMAC-VNORSM5A50HzAC/DC110VDI_AC/DC110VAI Model: Basic (NO) | Communication: RS485 2 ports | Frequency: 50 Hz | Analog input: 4-20 mA, 2 points
GIMAC-VNORSM5A60HzAC/DC110VDI_AC/DC110V Model: Basic (NO) | Communication: RS485 2 ports | Frequency: 60 Hz | Analog input: None
GIMAC-VNORSM5A60HzAC/DC110VDI_AC/DC110VAI Model: Basic (NO) | Communication: RS485 2 ports | Frequency: 60 Hz | Analog input: 4-20 mA, 2 points
GIMAC-VNOETM5A50HzAC/DC110VDI_AC/DC110V Model: Basic (NO) | Communication: Ethernet 1 port | Frequency: 50 Hz | Analog input: None
GIMAC-VNOETM5A50HzAC/DC110VDI_AC/DC110VAI Model: Basic (NO) | Communication: Ethernet 1 port | Frequency: 50 Hz | Analog input: 4-20 mA, 2 points
GIMAC-VNOETM5A60HzAC/DC110VDI_AC/DC110V Model: Basic (NO) | Communication: Ethernet 1 port | Frequency: 60 Hz | Analog input: None
GIMAC-VNOETM5A60HzAC/DC110VDI_AC/DC110VAI Model: Basic (NO) | Communication: Ethernet 1 port | Frequency: 60 Hz | Analog input: 4-20 mA, 2 points
GIMAC-VNOREM5A50HzAC/DC110VDI_AC/DC110V Model: Basic (NO) | Communication: RS485 2 ports + Ethernet 1 port | Frequency: 50 Hz | Analog input: None
GIMAC-VNOREM5A50HzAC/DC110VDI_AC/DC110VAI Model: Basic (NO) | Communication: RS485 2 ports + Ethernet 1 port | Frequency: 50 Hz | Analog input: 4-20 mA, 2 points
GIMAC-VNOREM5A60HzAC/DC110VDI_AC/DC110V Model: Basic (NO) | Communication: RS485 2 ports + Ethernet 1 port | Frequency: 60 Hz | Analog input: None
GIMAC-VNOREM5A60HzAC/DC110VDI_AC/DC110VAI Model: Basic (NO) | Communication: RS485 2 ports + Ethernet 1 port | Frequency: 60 Hz | Analog input: 4-20 mA, 2 points
GIMAC-VAPRSM5A50HzAC/DC110VDI_AC/DC110V Model: PFC function (AP) | Communication: RS485 2 ports | Frequency: 50 Hz | Analog input: None
GIMAC-VAPRSM5A50HzAC/DC110VDI_AC/DC110VAI Model: PFC function (AP) | Communication: RS485 2 ports | Frequency: 50 Hz | Analog input: 4-20 mA, 2 points
GIMAC-VAPRSM5A60HzAC/DC110VDI_AC/DC110V Model: PFC function (AP) | Communication: RS485 2 ports | Frequency: 60 Hz | Analog input: None
GIMAC-VAPRSM5A60HzAC/DC110VDI_AC/DC110VAI Model: PFC function (AP) | Communication: RS485 2 ports | Frequency: 60 Hz | Analog input: 4-20 mA, 2 points
GIMAC-VAPETM5A50HzAC/DC110VDI_AC/DC110V Model: PFC function (AP) | Communication: Ethernet 1 port | Frequency: 50 Hz | Analog input: None
GIMAC-VAPETM5A50HzAC/DC110VDI_AC/DC110VAI Model: PFC function (AP) | Communication: Ethernet 1 port | Frequency: 50 Hz | Analog input: 4-20 mA, 2 points
GIMAC-VAPETM5A60HzAC/DC110VDI_AC/DC110V Model: PFC function (AP) | Communication: Ethernet 1 port | Frequency: 60 Hz | Analog input: None
GIMAC-VAPETM5A60HzAC/DC110VDI_AC/DC110VAI Model: PFC function (AP) | Communication: Ethernet 1 port | Frequency: 60 Hz | Analog input: 4-20 mA, 2 points
GIMAC-VAPREM5A50HzAC/DC110VDI_AC/DC110V Model: PFC function (AP) | Communication: RS485 2 ports + Ethernet 1 port | Frequency: 50 Hz | Analog input: None
GIMAC-VAPREM5A50HzAC/DC110VDI_AC/DC110VAI Model: PFC function (AP) | Communication: RS485 2 ports + Ethernet 1 port | Frequency: 50 Hz | Analog input: 4-20 mA, 2 points
GIMAC-VAPREM5A60HzAC/DC110VDI_AC/DC110V Model: PFC function (AP) | Communication: RS485 2 ports + Ethernet 1 port | Frequency: 60 Hz | Analog input: None
GIMAC-VAPREM5A60HzAC/DC110VDI_AC/DC110VAI Model: PFC function (AP) | Communication: RS485 2 ports + Ethernet 1 port | Frequency: 60 Hz | Analog input: 4-20 mA, 2 points
