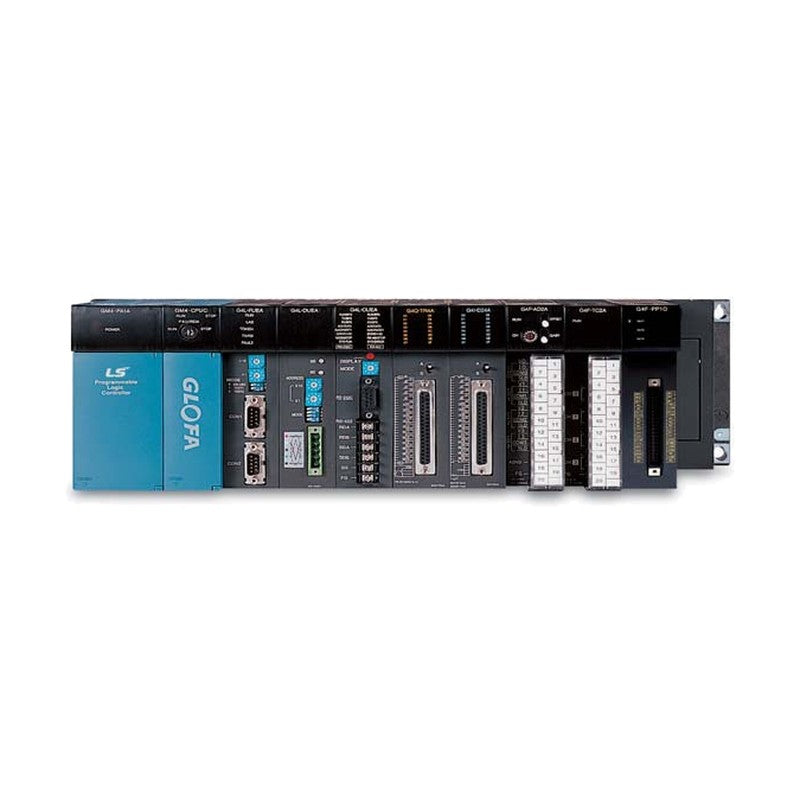

LS Electric G4 Digital I/O Modules (GM4/K300S) (Discontinued)

LS Electric G4 Digital I/O Modules (GM4/K300S) (Discontinued)

Discontinued LS Electric G4 digital input, output and mixed I/O modules for GLOFA-GM4 and MASTER-K300S modular PLCs, supplied as spare parts.

Key features

  • 16, 32 and 64 point DC input and 16 point AC input modules
  • Relay, transistor (sink/source) and triac output modules
  • 8 input / 8 output mixed modules with relay or transistor outputs
  • Photocoupler isolation with LED indication on all modules
  • Terminal block wiring and one-touch module mounting

Specifications

Series GLOFA-GM4 / MASTER-K300S
Isolation Photocoupler
Indication LED
Discontinued February 2018
Status Spare-parts supply
Source LS Electric A016_GLOFA_GM_181227.pdf, p. 10, 54; A020_MASTER_K_____1910.pdf, p. 57
G4I-D22A Module type: DC input | Points: 16 | Rating: DC 12/24 V | Wiring: Sink/source
G4I-D22B Module type: DC input | Points: 16 | Rating: DC 12/24 V | Wiring: Source
G4I-D22C Module type: DC input | Points: 16 | Rating: DC 24 V | Wiring: Sink/source
G4I-D24A Module type: DC input | Points: 32 | Rating: DC 12/24 V | Wiring: Sink/source
G4I-D24B Module type: DC input | Points: 32 | Rating: DC 12/24 V | Wiring: Source
G4I-D24C Module type: DC input | Points: 32 | Rating: DC 24 V | Wiring: Sink/source
G4I-D28A Module type: DC input | Points: 64 | Rating: DC 12/24 V | Wiring: Sink/source
G4I-A12A Module type: AC input | Points: 16 | Rating: AC 110 V | Wiring: AC
G4I-A22A Module type: AC input | Points: 16 | Rating: AC 220 V | Wiring: AC
G4Q-RY2A Module type: Relay output | Points: 16 | Rating: 2 A | Wiring: AC/DC
G4Q-TR2A Module type: Transistor output | Points: 16 | Rating: 0.5 A, DC 12/24 V | Wiring: Sink
G4Q-TR2B Module type: Transistor output | Points: 16 | Rating: 0.5 A, DC 12/24 V | Wiring: Source
G4Q-TR4A Module type: Transistor output | Points: 32 | Rating: 0.1 A, DC 12/24 V | Wiring: Sink
G4Q-TR4B Module type: Transistor output | Points: 32 | Rating: 0.1 A, DC 12/24 V | Wiring: Source
G4Q-TR8A Module type: Transistor output | Points: 64 | Rating: 0.1 A, DC 12/24 V | Wiring: Sink
G4Q-SS2A Module type: Triac output | Points: 16 | Rating: 1.0 A | Wiring: AC
G4Q-SS2B Module type: Triac output | Points: 16 | Rating: 0.6 A | Wiring: AC
G4H-DR2A Module type: Mixed I/O | Points: 8 in + 8 relay out | Rating: DC 12/24 V in | Wiring: Sink/source
G4H-DT2A Module type: Mixed I/O | Points: 8 in + 8 TR out | Rating: DC 12/24 V in | Wiring: Sink/source
PLC I/O ModulesLS Electric
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric G4 Digital I/O Modules (GM4/K300S) (Discontinued)

Brand LS Electric·PLC I/O Modules

Available part numbers (19)

G4I-D22A, G4I-D22B, G4I-D22C, G4I-D24A, G4I-D24B, G4I-D24C, G4I-D28A, G4I-A12A, G4I-A22A, G4Q-RY2A + 9 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
G4I-D22AModule type: DC input | Points: 16 | Rating: DC 12/24 V | Wiring: Sink/source
G4I-D22BModule type: DC input | Points: 16 | Rating: DC 12/24 V | Wiring: Source
G4I-D22CModule type: DC input | Points: 16 | Rating: DC 24 V | Wiring: Sink/source
G4I-D24AModule type: DC input | Points: 32 | Rating: DC 12/24 V | Wiring: Sink/source
G4I-D24BModule type: DC input | Points: 32 | Rating: DC 12/24 V | Wiring: Source
G4I-D24CModule type: DC input | Points: 32 | Rating: DC 24 V | Wiring: Sink/source
G4I-D28AModule type: DC input | Points: 64 | Rating: DC 12/24 V | Wiring: Sink/source
G4I-A12AModule type: AC input | Points: 16 | Rating: AC 110 V | Wiring: AC
G4I-A22AModule type: AC input | Points: 16 | Rating: AC 220 V | Wiring: AC
G4Q-RY2AModule type: Relay output | Points: 16 | Rating: 2 A | Wiring: AC/DC
G4Q-TR2AModule type: Transistor output | Points: 16 | Rating: 0.5 A, DC 12/24 V | Wiring: Sink
G4Q-TR2BModule type: Transistor output | Points: 16 | Rating: 0.5 A, DC 12/24 V | Wiring: Source
G4Q-TR4AModule type: Transistor output | Points: 32 | Rating: 0.1 A, DC 12/24 V | Wiring: Sink
G4Q-TR4BModule type: Transistor output | Points: 32 | Rating: 0.1 A, DC 12/24 V | Wiring: Source
G4Q-TR8AModule type: Transistor output | Points: 64 | Rating: 0.1 A, DC 12/24 V | Wiring: Sink
G4Q-SS2AModule type: Triac output | Points: 16 | Rating: 1.0 A | Wiring: AC
G4Q-SS2BModule type: Triac output | Points: 16 | Rating: 0.6 A | Wiring: AC
G4H-DR2AModule type: Mixed I/O | Points: 8 in + 8 relay out | Rating: DC 12/24 V in | Wiring: Sink/source
G4H-DT2AModule type: Mixed I/O | Points: 8 in + 8 TR out | Rating: DC 12/24 V in | Wiring: Sink/source
