LS Electric i-FOS SFP Fiber Optic Transceiver Modules

LS Electric i-FOS SFP Fiber Optic Transceiver Modules

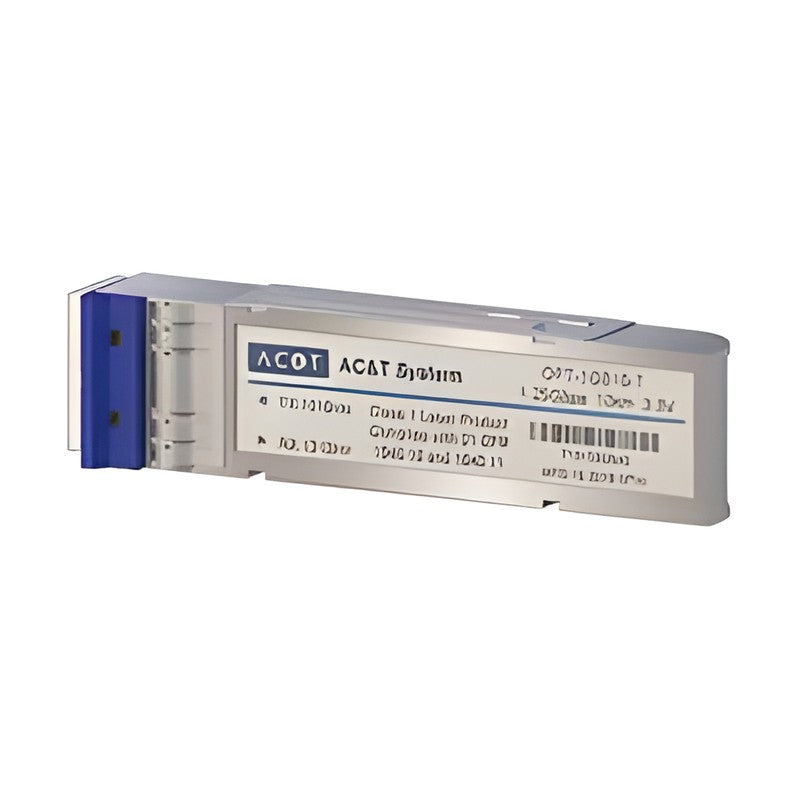

Industrial temperature SFP fiber optic transceiver modules (made by AC&T System) for i-FOS-X switches, covering 100Base-FX and 1000Base-X over multi-mode or single-mode fiber up to 80 km with LC connectors.

Key features

  • Hot-pluggable SFP form factor, 1 fiber port per module
  • 100Base-FX and 1000Base-X (Gigabit) options
  • Multi-mode for short runs, single-mode for 10 to 80 km links
  • LC duplex sockets
  • Extended -40 to +85 C operating temperature for industrial cabinets

Specifications

Form factor SFP
Ports 1 fiber optic port
Connector LC
Operating temperature -40 to +85 C
Compatible switches i-FOS-200X / 50X / 50XP / 30X
Maker AC&T System
Source LS Electric i-FOS-X Series Products Guide (2019.07), p. 14
OPT-1FM-T Standard: 100Base-FX | Fiber: Multi-mode | Reach: 4 km
OPT-1FS30-T Standard: 100Base-FX | Fiber: Single-mode | Reach: 30 km
OPT-1GM-T Standard: 1000Base-X | Fiber: Multi-mode | Reach: 275 m / 550 m
OPT-1GS10-T Standard: 1000Base-X | Fiber: Single-mode | Reach: 10 km
OPT-1GS20-T Standard: 1000Base-X | Fiber: Single-mode | Reach: 20 km
OPT-1GS40-T Standard: 1000Base-X | Fiber: Single-mode | Reach: 40 km
OPT-1GS80-T Standard: 1000Base-X | Fiber: Single-mode | Reach: 80 km
Optical Transmission EquipmentLS Electric
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric i-FOS SFP Fiber Optic Transceiver Modules

Brand LS Electric·Optical Transmission Equipment

Available part numbers (7)

OPT-1FM-T, OPT-1FS30-T, OPT-1GM-T, OPT-1GS10-T, OPT-1GS20-T, OPT-1GS40-T, OPT-1GS80-T

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
OPT-1FM-TStandard: 100Base-FX | Fiber: Multi-mode | Reach: 4 km
OPT-1FS30-TStandard: 100Base-FX | Fiber: Single-mode | Reach: 30 km
OPT-1GM-TStandard: 1000Base-X | Fiber: Multi-mode | Reach: 275 m / 550 m
OPT-1GS10-TStandard: 1000Base-X | Fiber: Single-mode | Reach: 10 km
OPT-1GS20-TStandard: 1000Base-X | Fiber: Single-mode | Reach: 20 km
OPT-1GS40-TStandard: 1000Base-X | Fiber: Single-mode | Reach: 40 km
OPT-1GS80-TStandard: 1000Base-X | Fiber: Single-mode | Reach: 80 km
