LS Electric IMD1000 Insulation Monitoring Device (AC/DC IT Systems)

LS Electric IMD1000 Insulation Monitoring Device (AC/DC IT Systems)

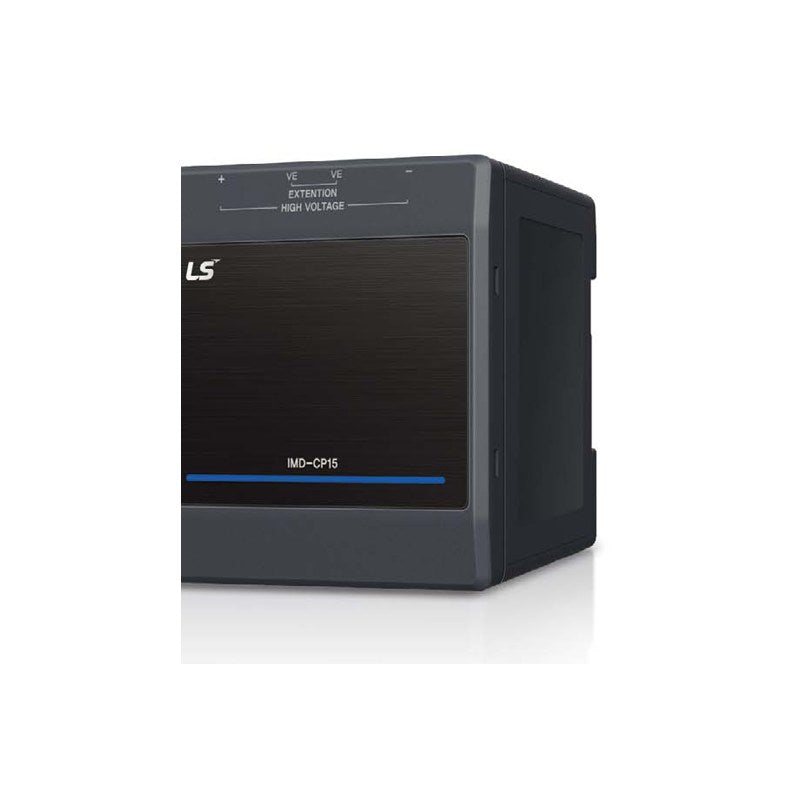

LS Electric Beyond X IMD1000 insulation monitoring device for continuous insulation resistance monitoring of ungrounded (IT) AC and DC systems such as PV, ESS and DC distribution, with IMD-CP15 coupler for up to DC 1500 V.

Key features

  • Real-time insulation resistance monitoring of ungrounded AC/DC systems, 1 kOhm-10 MOhm
  • Three measuring modes for system leakage capacitance up to 2,000 uF
  • 4 independent alarms and relay outputs (insulation alarm and 3 pre-alarms)
  • Auto self-test of connections; trend (year/month/week/day/hour) and 255+255 event records
  • IMD-CP15 coupling device extends system voltage to AC 1000 V / DC 1500 V
  • Industrial standard Modbus communication over RS485

Specifications

Application Ungrounded IT systems, AC and DC
Insulation range 1 kOhm - 10 MOhm
Leakage capacitance Up to 2,000 uF
Nominal system frequency 42-460 Hz
Supply voltage AC/DC 100-240 V, 50/60 Hz
Power consumption 25 VA max.
Digital inputs 3 dry (self test, reset, function)
Relay outputs 4 x AC 230 V 2 A / DC 24 V 2 A
Source LS Electric IMD1000 catalog C160B1-04 (2024-03), p. 3, 10-11, 22
IMD1000M48550/60HzAC/DC100-240V Component: Main unit | System voltage: AC 0-790 V / DC 0-1000 V | Communication: RS485 / Modbus
IMD-CP15 Component: Coupling device 1500V | System voltage: AC 0-1000 V / DC 0-1500 V | Communication: None
