LS Electric iXP2H Handheld HMIs, 7 in, and Junction Box

LS Electric iXP2H Handheld HMIs, 7 in, and Junction Box

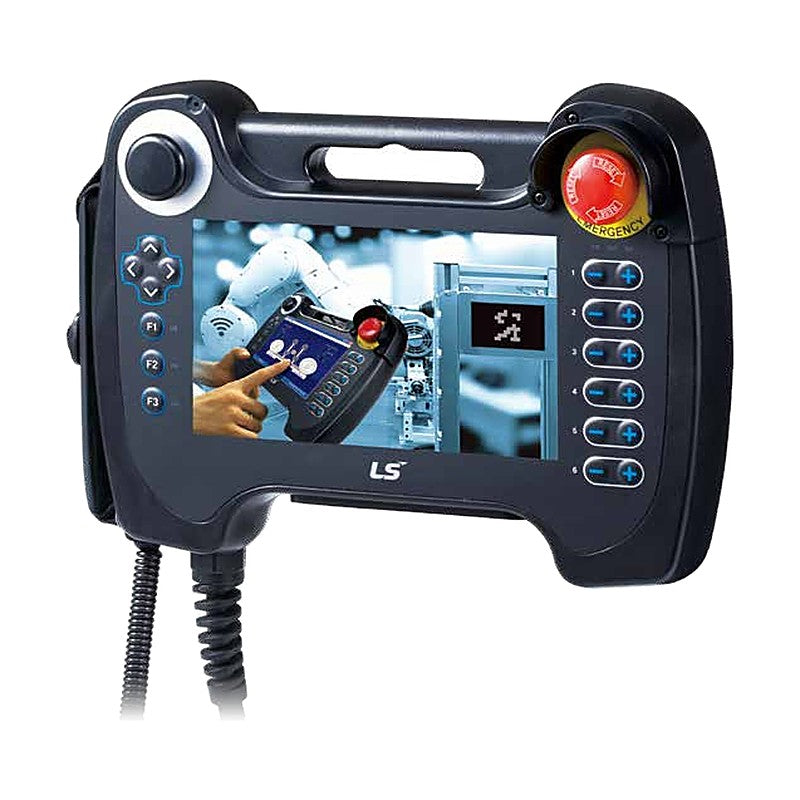

LS Electric iXP2H 7-inch handheld HMIs with emergency stop and 3-position enable switch, supplied with 5 m or 10 m cable in RS-232C or RS-485 versions, plus the iXP2O-JB0D handy junction box.

Key features

  • 7 in 1024x600 TFT LCD, 16.7M colors, resistive (pressure) touch panel
  • Emergency stop switch and 3-position enable switch (released / enabled / fully pressed)
  • Left and right keypads with direction keys and user-defined F1-F3 and shortcut keys
  • Ethernet 10Base-T/100Base-TX, USB 2.0 host, SD card slot; programmed with XP-Builder
  • iXP2O-JB0D junction box: Ethernet port, serial, switch and DC 24 V terminal blocks

Specifications

Display 7 in TFT, 1024x600, 16.7M colors
Processor ARM Cortex-A9 800 MHz
Memory 8 GB flash (128 MB project), 1 GB RAM
Protection IP42 (front)
Power supply DC 24 V +/-5 %, 12 W
Dimensions 195 x 270 x 72 mm, 1.0 kg
Certifications CE, KC
Source LS Electric iXP2H Leaflet (2020.11), p. 2
iXP2H-0702D05 Unit: Handheld HMI 7 in | Serial: RS-232C | Cable: 5 m
iXP2H-0702D10 Unit: Handheld HMI 7 in | Serial: RS-232C | Cable: 10 m
iXP2H-0704D05 Unit: Handheld HMI 7 in | Serial: RS-485 | Cable: 5 m
iXP2H-0704D10 Unit: Handheld HMI 7 in | Serial: RS-485 | Cable: 10 m
iXP2O-JB0D Unit: Handy junction box | Serial: RS-232C / RS-485 terminal | Cable: -
HMIsLS Electric
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric iXP2H Handheld HMIs, 7 in, and Junction Box

Brand LS Electric·HMIs

Available part numbers (5)

iXP2H-0702D05, iXP2H-0702D10, iXP2H-0704D05, iXP2H-0704D10, iXP2O-JB0D
