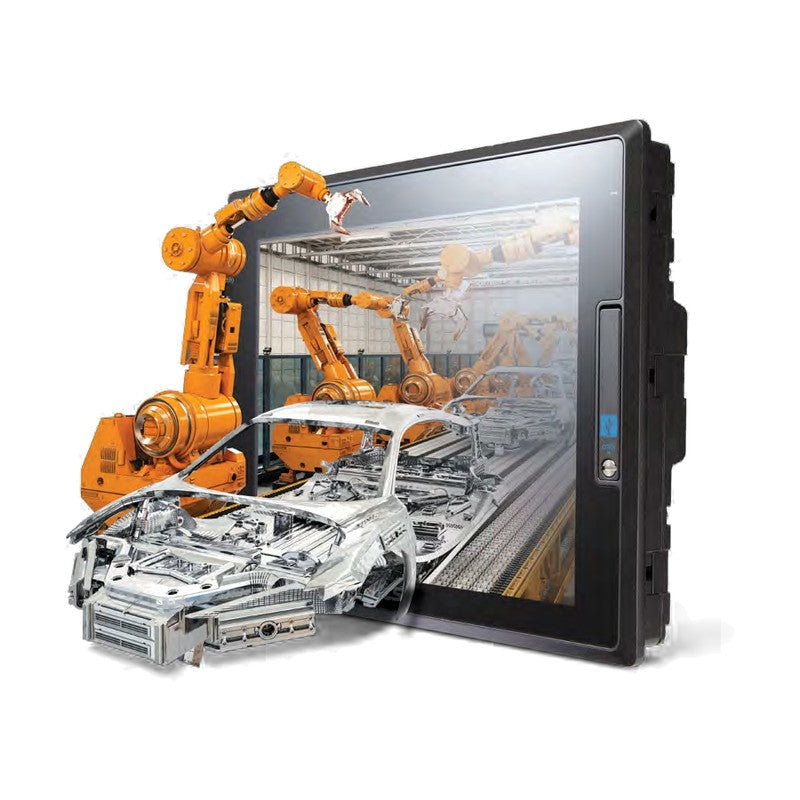

LS Electric iXP3 Intelligent XGT Panel Touch HMIs (8.4-15 in)

LS Electric iXP3 Intelligent XGT Panel Touch HMIs (8.4-15 in)

LS Electric iXP3 intelligent XGT Panel HMIs with 8.4 to 15-inch capacitive touch TFT displays, a 1.6 GHz quad-core Linux platform and AC or DC power versions.

Key features

  • 1.6 GHz quad-core processor, 4 GB memory; touch sensitivity settable for bare hand or gloves
  • Up to 8 IP cameras and 2 USB cameras, HDMI V2.0 output, MP4/AVI/WMV video playback
  • 2 x Gigabit Ethernet, 3 x USB host, USB device, RS-232C and RS-422/485, SD card slot
  • Cyber security per IACS UR E27: audit logs, account management, encrypted sessions, DDoS blocking
  • Thermal imaging camera interface (LXP-OT32240 option) for panel fire and predictive monitoring
  • Extended operating temperature -5 to 55 C; IP66 front; programmed with LXP Designer

Specifications

Display TFT color LCD, 24-bit (16.7M colors)
Touch Capacitive (multi-touch)
Processor 1.6 GHz quad core
Interfaces 2x GbE, 3x USB host, USB device, RS-232C, RS-422/485, HDMI, audio
Backlight LED, 50,000 h
Operating temperature -5 to +55 C
Protection IP66 (front)
Certifications CE, KC, UL
Software LXP Designer
Source LS Electric XGT Panel catalog (KR 2026-07), p. 2-9
iXP3-0800A Screen: 8.4 in, 800x600 | Power: AC 100-220 V | Max power: 15 W | Dimensions: 240x180x60 mm
iXP3-0800D Screen: 8.4 in, 800x600 | Power: DC 19.2-28.8 V | Max power: 15 W | Dimensions: 240x180x60 mm
iXP3-1000A Screen: 10.4 in, 1024x768 | Power: AC 100-220 V | Max power: 15.5 W | Dimensions: 271x212x60 mm
iXP3-1000D Screen: 10.4 in, 1024x768 | Power: DC 19.2-28.8 V | Max power: 15.5 W | Dimensions: 271x212x60 mm
iXP3-1200A Screen: 12.1 in, 1024x768 | Power: AC 100-220 V | Max power: 20.5 W | Dimensions: 313x239x60 mm
iXP3-1200D Screen: 12.1 in, 1024x768 | Power: DC 19.2-28.8 V | Max power: 20.5 W | Dimensions: 313x239x60 mm
iXP3-1500A Screen: 15 in, 1024x768 | Power: AC 100-220 V | Max power: 23 W | Dimensions: 395x294x66 mm
iXP3-1500D Screen: 15 in, 1024x768 | Power: DC 19.2-28.8 V | Max power: 23 W | Dimensions: 395x294x66 mm
HMIsLS Electric
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric iXP3 Intelligent XGT Panel Touch HMIs (8.4-15 in)

Brand LS Electric·HMIs

Available part numbers (8)

iXP3-0800A, iXP3-0800D, iXP3-1000A, iXP3-1000D, iXP3-1200A, iXP3-1200D, iXP3-1500A, iXP3-1500D
