LS Electric L-Series MCB Busbar System (Pin/Fork, 63A/100A)

LS Electric L-Series MCB Busbar System (Pin/Fork, 63A/100A)

Pin- and fork-type comb busbars with end caps for LS Electric L-Series MCBs and RCBOs, 1 to 4 phases, 63 A or 100 A.

Key features

  • Pin type and fork type, 18 mm pitch
  • 63 A (10 mm2) and 100 A (22 mm2) cross sections
  • 1 m lengths for cutting or 12-pin (22 cm) pieces
  • 12-pin pieces include end caps on both ends

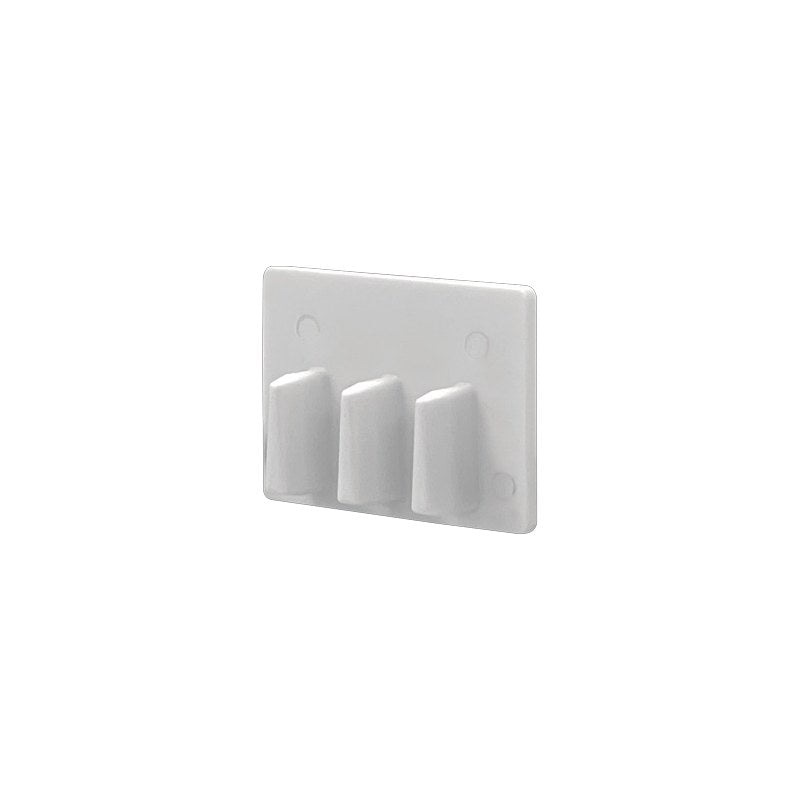

  • Separate LA-BB end caps for 1-4 phase bars

Specifications

Series L-Series (Beyond X)
Pitch 18 mm
Busbar cap LA-BB-63-BC (see accessories)
Source LS Electric L-Series MCB & RCBO catalog (KO) C015X1-03, p. 36-37
LA-BB-63-B11m Type: Pin busbar | Length: 1 m | Phases: 1 | Rating: 63A, 10 mm2
LA-BB-63-B21m Type: Pin busbar | Length: 1 m | Phases: 2 | Rating: 63A, 10 mm2
LA-BB-63-B31m Type: Pin busbar | Length: 1 m | Phases: 3 | Rating: 63A, 10 mm2
LA-BB-63-B41m Type: Pin busbar | Length: 1 m | Phases: 4 | Rating: 63A, 10 mm2
LA-BB-100-B11m Type: Pin busbar | Length: 1 m | Phases: 1 | Rating: 100A, 22 mm2
LA-BB-100-B21m Type: Pin busbar | Length: 1 m | Phases: 2 | Rating: 100A, 22 mm2
LA-BB-100-B31m Type: Pin busbar | Length: 1 m | Phases: 3 | Rating: 100A, 22 mm2
LA-BB-100-B41m Type: Pin busbar | Length: 1 m | Phases: 4 | Rating: 100A, 22 mm2
LA-BB-63-B112PIN Type: Pin busbar | Length: 12 pin (22 cm) | Phases: 1 | Rating: 63A, 10 mm2
LA-BB-63-B212PIN Type: Pin busbar | Length: 12 pin (22 cm) | Phases: 2 | Rating: 63A, 10 mm2
LA-BB-63-B312PIN Type: Pin busbar | Length: 12 pin (22 cm) | Phases: 3 | Rating: 63A, 10 mm2
LA-BB-63-B412PIN Type: Pin busbar | Length: 12 pin (22 cm) | Phases: 4 | Rating: 63A, 10 mm2
LA-BB-100-B112PIN Type: Pin busbar | Length: 12 pin (22 cm) | Phases: 1 | Rating: 100A, 22 mm2
LA-BB-100-B212PIN Type: Pin busbar | Length: 12 pin (22 cm) | Phases: 2 | Rating: 100A, 22 mm2
LA-BB-100-B312PIN Type: Pin busbar | Length: 12 pin (22 cm) | Phases: 3 | Rating: 100A, 22 mm2
LA-BB-100-B412PIN Type: Pin busbar | Length: 12 pin (22 cm) | Phases: 4 | Rating: 100A, 22 mm2
LA-BB-63-U11m Type: Fork busbar | Length: 1 m | Phases: 1 | Rating: 63A, 10 mm2
LA-BB-63-U21m Type: Fork busbar | Length: 1 m | Phases: 2 | Rating: 63A, 10 mm2
LA-BB-63-U31m Type: Fork busbar | Length: 1 m | Phases: 3 | Rating: 63A, 10 mm2
LA-BB-63-U41m Type: Fork busbar | Length: 1 m | Phases: 4 | Rating: 63A, 10 mm2
LA-BB-100-U11m Type: Fork busbar | Length: 1 m | Phases: 1 | Rating: 100A, 22 mm2
LA-BB-100-U21m Type: Fork busbar | Length: 1 m | Phases: 2 | Rating: 100A, 22 mm2
LA-BB-100-U31m Type: Fork busbar | Length: 1 m | Phases: 3 | Rating: 100A, 22 mm2
LA-BB-100-U41m Type: Fork busbar | Length: 1 m | Phases: 4 | Rating: 100A, 22 mm2
LA-BB-63-U112PIN Type: Fork busbar | Length: 12 pin (22 cm) | Phases: 1 | Rating: 63A, 10 mm2
LA-BB-63-U212PIN Type: Fork busbar | Length: 12 pin (22 cm) | Phases: 2 | Rating: 63A, 10 mm2
LA-BB-63-U312PIN Type: Fork busbar | Length: 12 pin (22 cm) | Phases: 3 | Rating: 63A, 10 mm2
LA-BB-63-U412PIN Type: Fork busbar | Length: 12 pin (22 cm) | Phases: 4 | Rating: 63A, 10 mm2
LA-BB-100-U112PIN Type: Fork busbar | Length: 12 pin (22 cm) | Phases: 1 | Rating: 100A, 22 mm2
LA-BB-100-U212PIN Type: Fork busbar | Length: 12 pin (22 cm) | Phases: 2 | Rating: 100A, 22 mm2
LA-BB-100-U312PIN Type: Fork busbar | Length: 12 pin (22 cm) | Phases: 3 | Rating: 100A, 22 mm2
LA-BB-100-U412PIN Type: Fork busbar | Length: 12 pin (22 cm) | Phases: 4 | Rating: 100A, 22 mm2
LA-BB-63-EC1 Type: End cap | Length: - | Phases: 1 | Rating: 63A busbar
LA-BB-63-EC2 Type: End cap | Length: - | Phases: 2 | Rating: 63A busbar
LA-BB-63-EC3 Type: End cap | Length: - | Phases: 3 | Rating: 63A busbar
LA-BB-63-EC4 Type: End cap | Length: - | Phases: 4 | Rating: 63A busbar
LA-BB-100-EC1 Type: End cap | Length: - | Phases: 1 | Rating: 100A busbar
LA-BB-100-EC2 Type: End cap | Length: - | Phases: 2 | Rating: 100A busbar
LA-BB-100-EC3 Type: End cap | Length: - | Phases: 3 | Rating: 100A busbar
LA-BB-100-EC4 Type: End cap | Length: - | Phases: 4 | Rating: 100A busbar
AccessoriesLS Electric
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric L-Series MCB Busbar System (Pin/Fork, 63A/100A)

Brand LS Electric·Accessories

Available part numbers (40)

LA-BB-63-B11m, LA-BB-63-B21m, LA-BB-63-B31m, LA-BB-63-B41m, LA-BB-100-B11m, LA-BB-100-B21m, LA-BB-100-B31m, LA-BB-100-B41m, LA-BB-63-B112PIN, LA-BB-63-B212PIN + 30 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LA-BB-63-B11mType: Pin busbar | Length: 1 m | Phases: 1 | Rating: 63A, 10 mm2
LA-BB-63-B21mType: Pin busbar | Length: 1 m | Phases: 2 | Rating: 63A, 10 mm2
LA-BB-63-B31mType: Pin busbar | Length: 1 m | Phases: 3 | Rating: 63A, 10 mm2
LA-BB-63-B41mType: Pin busbar | Length: 1 m | Phases: 4 | Rating: 63A, 10 mm2
LA-BB-100-B11mType: Pin busbar | Length: 1 m | Phases: 1 | Rating: 100A, 22 mm2
LA-BB-100-B21mType: Pin busbar | Length: 1 m | Phases: 2 | Rating: 100A, 22 mm2
LA-BB-100-B31mType: Pin busbar | Length: 1 m | Phases: 3 | Rating: 100A, 22 mm2
LA-BB-100-B41mType: Pin busbar | Length: 1 m | Phases: 4 | Rating: 100A, 22 mm2
LA-BB-63-B112PINType: Pin busbar | Length: 12 pin (22 cm) | Phases: 1 | Rating: 63A, 10 mm2
LA-BB-63-B212PINType: Pin busbar | Length: 12 pin (22 cm) | Phases: 2 | Rating: 63A, 10 mm2
LA-BB-63-B312PINType: Pin busbar | Length: 12 pin (22 cm) | Phases: 3 | Rating: 63A, 10 mm2
LA-BB-63-B412PINType: Pin busbar | Length: 12 pin (22 cm) | Phases: 4 | Rating: 63A, 10 mm2
LA-BB-100-B112PINType: Pin busbar | Length: 12 pin (22 cm) | Phases: 1 | Rating: 100A, 22 mm2
LA-BB-100-B212PINType: Pin busbar | Length: 12 pin (22 cm) | Phases: 2 | Rating: 100A, 22 mm2
LA-BB-100-B312PINType: Pin busbar | Length: 12 pin (22 cm) | Phases: 3 | Rating: 100A, 22 mm2
LA-BB-100-B412PINType: Pin busbar | Length: 12 pin (22 cm) | Phases: 4 | Rating: 100A, 22 mm2
LA-BB-63-U11mType: Fork busbar | Length: 1 m | Phases: 1 | Rating: 63A, 10 mm2
LA-BB-63-U21mType: Fork busbar | Length: 1 m | Phases: 2 | Rating: 63A, 10 mm2
LA-BB-63-U31mType: Fork busbar | Length: 1 m | Phases: 3 | Rating: 63A, 10 mm2
LA-BB-63-U41mType: Fork busbar | Length: 1 m | Phases: 4 | Rating: 63A, 10 mm2
LA-BB-100-U11mType: Fork busbar | Length: 1 m | Phases: 1 | Rating: 100A, 22 mm2
LA-BB-100-U21mType: Fork busbar | Length: 1 m | Phases: 2 | Rating: 100A, 22 mm2
LA-BB-100-U31mType: Fork busbar | Length: 1 m | Phases: 3 | Rating: 100A, 22 mm2
LA-BB-100-U41mType: Fork busbar | Length: 1 m | Phases: 4 | Rating: 100A, 22 mm2
LA-BB-63-U112PINType: Fork busbar | Length: 12 pin (22 cm) | Phases: 1 | Rating: 63A, 10 mm2
LA-BB-63-U212PINType: Fork busbar | Length: 12 pin (22 cm) | Phases: 2 | Rating: 63A, 10 mm2
LA-BB-63-U312PINType: Fork busbar | Length: 12 pin (22 cm) | Phases: 3 | Rating: 63A, 10 mm2
LA-BB-63-U412PINType: Fork busbar | Length: 12 pin (22 cm) | Phases: 4 | Rating: 63A, 10 mm2
LA-BB-100-U112PINType: Fork busbar | Length: 12 pin (22 cm) | Phases: 1 | Rating: 100A, 22 mm2
LA-BB-100-U212PINType: Fork busbar | Length: 12 pin (22 cm) | Phases: 2 | Rating: 100A, 22 mm2
LA-BB-100-U312PINType: Fork busbar | Length: 12 pin (22 cm) | Phases: 3 | Rating: 100A, 22 mm2
LA-BB-100-U412PINType: Fork busbar | Length: 12 pin (22 cm) | Phases: 4 | Rating: 100A, 22 mm2
LA-BB-63-EC1Type: End cap | Length: - | Phases: 1 | Rating: 63A busbar
LA-BB-63-EC2Type: End cap | Length: - | Phases: 2 | Rating: 63A busbar
LA-BB-63-EC3Type: End cap | Length: - | Phases: 3 | Rating: 63A busbar
LA-BB-63-EC4Type: End cap | Length: - | Phases: 4 | Rating: 63A busbar
LA-BB-100-EC1Type: End cap | Length: - | Phases: 1 | Rating: 100A busbar
LA-BB-100-EC2Type: End cap | Length: - | Phases: 2 | Rating: 100A busbar
LA-BB-100-EC3Type: End cap | Length: - | Phases: 3 | Rating: 100A busbar
LA-BB-100-EC4Type: End cap | Length: - | Phases: 4 | Rating: 100A busbar
