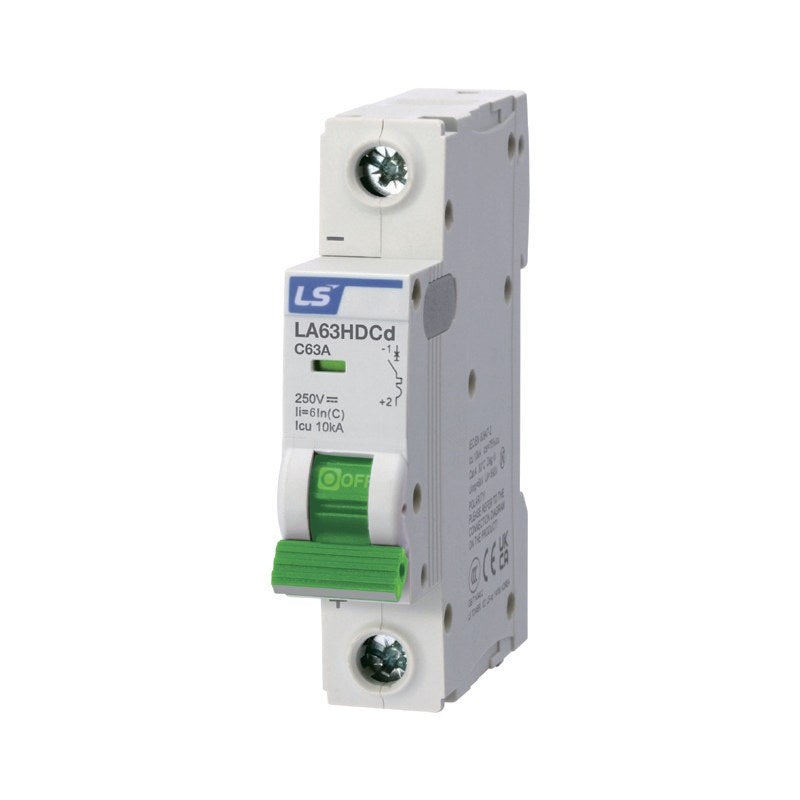

LS Electric L-Series LA63HDCd DC MCB (1-63A, up to 1000V DC)

LS Electric L-Series LA63HDCd DC MCB (1-63A, up to 1000V DC)

LS Electric L-Series LA63HDCd DC miniature circuit breaker for 1-63 A DC circuits up to 1000 V DC (4P series connection).

Key features

  • 10 kA Icu / 7.5 kA Ics to IEC/EN 60947-2
  • Rated voltage 250 V DC (1P), 500 V DC (2P), 750 V DC (3P), 1000 V DC (4P)
  • C (6 In) and D (12 In) trip curves
  • Dual terminal (lug & screw), max. 25 mm2
  • LA-AX, LA-AL and LA-SHT accessories fit

Specifications

Frame 63AF
Breaking capacity Icu 10 kA / Ics 7.5 kA
Rated insulation voltage (Ui) 690 V (1P, 2P), 1000 V (3P, 4P)
Rated impulse voltage (Uimp) 6 kV
Durability Electrical 1,500 / mechanical 20,000 ops
Pollution degree / IP Degree III / IP20
Ambient temperature -30 to +70 C
Terminal Dual (lug & screw), max. 25 mm2, 2 N.m
Standards IEC/EN 60947-2; CE, CB, UKCA, CCC
Mounting 35 mm DIN rail
Source LS Electric L-Series MCB & RCBO catalog (KO) C015X1-03, p. 4-5, 13-15
70390001 Poles: 1P | Rated current: 1 A | Trip curve: C | Rated voltage: 250V DC
70390015 Poles: 1P | Rated current: 1 A | Trip curve: D | Rated voltage: 250V DC
70390002 Poles: 1P | Rated current: 2 A | Trip curve: C | Rated voltage: 250V DC
70390016 Poles: 1P | Rated current: 2 A | Trip curve: D | Rated voltage: 250V DC
70390003 Poles: 1P | Rated current: 3 A | Trip curve: C | Rated voltage: 250V DC
70390017 Poles: 1P | Rated current: 3 A | Trip curve: D | Rated voltage: 250V DC
70390004 Poles: 1P | Rated current: 4 A | Trip curve: C | Rated voltage: 250V DC
70390018 Poles: 1P | Rated current: 4 A | Trip curve: D | Rated voltage: 250V DC
70390005 Poles: 1P | Rated current: 6 A | Trip curve: C | Rated voltage: 250V DC
70390019 Poles: 1P | Rated current: 6 A | Trip curve: D | Rated voltage: 250V DC
70390006 Poles: 1P | Rated current: 10 A | Trip curve: C | Rated voltage: 250V DC
70390020 Poles: 1P | Rated current: 10 A | Trip curve: D | Rated voltage: 250V DC
70390007 Poles: 1P | Rated current: 13 A | Trip curve: C | Rated voltage: 250V DC
70390021 Poles: 1P | Rated current: 13 A | Trip curve: D | Rated voltage: 250V DC
70390008 Poles: 1P | Rated current: 16 A | Trip curve: C | Rated voltage: 250V DC
70390022 Poles: 1P | Rated current: 16 A | Trip curve: D | Rated voltage: 250V DC
70390009 Poles: 1P | Rated current: 20 A | Trip curve: C | Rated voltage: 250V DC
70390023 Poles: 1P | Rated current: 20 A | Trip curve: D | Rated voltage: 250V DC
70390010 Poles: 1P | Rated current: 25 A | Trip curve: C | Rated voltage: 250V DC
70390024 Poles: 1P | Rated current: 25 A | Trip curve: D | Rated voltage: 250V DC
70390011 Poles: 1P | Rated current: 32 A | Trip curve: C | Rated voltage: 250V DC
70390025 Poles: 1P | Rated current: 32 A | Trip curve: D | Rated voltage: 250V DC
70390012 Poles: 1P | Rated current: 40 A | Trip curve: C | Rated voltage: 250V DC
70390026 Poles: 1P | Rated current: 40 A | Trip curve: D | Rated voltage: 250V DC
70390013 Poles: 1P | Rated current: 50 A | Trip curve: C | Rated voltage: 250V DC
70390027 Poles: 1P | Rated current: 50 A | Trip curve: D | Rated voltage: 250V DC
70390014 Poles: 1P | Rated current: 63 A | Trip curve: C | Rated voltage: 250V DC
70390028 Poles: 1P | Rated current: 63 A | Trip curve: D | Rated voltage: 250V DC
70390029 Poles: 2P | Rated current: 1 A | Trip curve: C | Rated voltage: 500V DC
70390043 Poles: 2P | Rated current: 1 A | Trip curve: D | Rated voltage: 500V DC
70390030 Poles: 2P | Rated current: 2 A | Trip curve: C | Rated voltage: 500V DC
70390044 Poles: 2P | Rated current: 2 A | Trip curve: D | Rated voltage: 500V DC
70390031 Poles: 2P | Rated current: 3 A | Trip curve: C | Rated voltage: 500V DC
70390045 Poles: 2P | Rated current: 3 A | Trip curve: D | Rated voltage: 500V DC
70390032 Poles: 2P | Rated current: 4 A | Trip curve: C | Rated voltage: 500V DC
70390046 Poles: 2P | Rated current: 4 A | Trip curve: D | Rated voltage: 500V DC
70390033 Poles: 2P | Rated current: 6 A | Trip curve: C | Rated voltage: 500V DC
70390047 Poles: 2P | Rated current: 6 A | Trip curve: D | Rated voltage: 500V DC
70390034 Poles: 2P | Rated current: 10 A | Trip curve: C | Rated voltage: 500V DC
70390048 Poles: 2P | Rated current: 10 A | Trip curve: D | Rated voltage: 500V DC
70390035 Poles: 2P | Rated current: 13 A | Trip curve: C | Rated voltage: 500V DC
70390049 Poles: 2P | Rated current: 13 A | Trip curve: D | Rated voltage: 500V DC
70390036 Poles: 2P | Rated current: 16 A | Trip curve: C | Rated voltage: 500V DC
70390050 Poles: 2P | Rated current: 16 A | Trip curve: D | Rated voltage: 500V DC
70390037 Poles: 2P | Rated current: 20 A | Trip curve: C | Rated voltage: 500V DC
70390051 Poles: 2P | Rated current: 20 A | Trip curve: D | Rated voltage: 500V DC
70390038 Poles: 2P | Rated current: 25 A | Trip curve: C | Rated voltage: 500V DC
70390052 Poles: 2P | Rated current: 25 A | Trip curve: D | Rated voltage: 500V DC
70390039 Poles: 2P | Rated current: 32 A | Trip curve: C | Rated voltage: 500V DC
70390053 Poles: 2P | Rated current: 32 A | Trip curve: D | Rated voltage: 500V DC
70390040 Poles: 2P | Rated current: 40 A | Trip curve: C | Rated voltage: 500V DC
70390054 Poles: 2P | Rated current: 40 A | Trip curve: D | Rated voltage: 500V DC
70390041 Poles: 2P | Rated current: 50 A | Trip curve: C | Rated voltage: 500V DC
70390055 Poles: 2P | Rated current: 50 A | Trip curve: D | Rated voltage: 500V DC
70390042 Poles: 2P | Rated current: 63 A | Trip curve: C | Rated voltage: 500V DC
70390056 Poles: 2P | Rated current: 63 A | Trip curve: D | Rated voltage: 500V DC
70390057 Poles: 3P | Rated current: 1 A | Trip curve: C | Rated voltage: 750V DC
70390071 Poles: 3P | Rated current: 1 A | Trip curve: D | Rated voltage: 750V DC
70390058 Poles: 3P | Rated current: 2 A | Trip curve: C | Rated voltage: 750V DC
70390072 Poles: 3P | Rated current: 2 A | Trip curve: D | Rated voltage: 750V DC
70390059 Poles: 3P | Rated current: 3 A | Trip curve: C | Rated voltage: 750V DC
70390073 Poles: 3P | Rated current: 3 A | Trip curve: D | Rated voltage: 750V DC
70390060 Poles: 3P | Rated current: 4 A | Trip curve: C | Rated voltage: 750V DC
70390074 Poles: 3P | Rated current: 4 A | Trip curve: D | Rated voltage: 750V DC
70390061 Poles: 3P | Rated current: 6 A | Trip curve: C | Rated voltage: 750V DC
70390075 Poles: 3P | Rated current: 6 A | Trip curve: D | Rated voltage: 750V DC
70390062 Poles: 3P | Rated current: 10 A | Trip curve: C | Rated voltage: 750V DC
70390076 Poles: 3P | Rated current: 10 A | Trip curve: D | Rated voltage: 750V DC
70390063 Poles: 3P | Rated current: 13 A | Trip curve: C | Rated voltage: 750V DC
70390077 Poles: 3P | Rated current: 13 A | Trip curve: D | Rated voltage: 750V DC
70390064 Poles: 3P | Rated current: 16 A | Trip curve: C | Rated voltage: 750V DC
70390078 Poles: 3P | Rated current: 16 A | Trip curve: D | Rated voltage: 750V DC
70390065 Poles: 3P | Rated current: 20 A | Trip curve: C | Rated voltage: 750V DC
70390079 Poles: 3P | Rated current: 20 A | Trip curve: D | Rated voltage: 750V DC
70390066 Poles: 3P | Rated current: 25 A | Trip curve: C | Rated voltage: 750V DC
70390080 Poles: 3P | Rated current: 25 A | Trip curve: D | Rated voltage: 750V DC
70390067 Poles: 3P | Rated current: 32 A | Trip curve: C | Rated voltage: 750V DC
70390081 Poles: 3P | Rated current: 32 A | Trip curve: D | Rated voltage: 750V DC
70390068 Poles: 3P | Rated current: 40 A | Trip curve: C | Rated voltage: 750V DC
70390082 Poles: 3P | Rated current: 40 A | Trip curve: D | Rated voltage: 750V DC
70390069 Poles: 3P | Rated current: 50 A | Trip curve: C | Rated voltage: 750V DC
70390083 Poles: 3P | Rated current: 50 A | Trip curve: D | Rated voltage: 750V DC
70390070 Poles: 3P | Rated current: 63 A | Trip curve: C | Rated voltage: 750V DC
70390084 Poles: 3P | Rated current: 63 A | Trip curve: D | Rated voltage: 750V DC
70390085 Poles: 4P | Rated current: 1 A | Trip curve: C | Rated voltage: 1000V DC
70390099 Poles: 4P | Rated current: 1 A | Trip curve: D | Rated voltage: 1000V DC
70390086 Poles: 4P | Rated current: 2 A | Trip curve: C | Rated voltage: 1000V DC
70390100 Poles: 4P | Rated current: 2 A | Trip curve: D | Rated voltage: 1000V DC
70390087 Poles: 4P | Rated current: 3 A | Trip curve: C | Rated voltage: 1000V DC
70390101 Poles: 4P | Rated current: 3 A | Trip curve: D | Rated voltage: 1000V DC
70390088 Poles: 4P | Rated current: 4 A | Trip curve: C | Rated voltage: 1000V DC
70390102 Poles: 4P | Rated current: 4 A | Trip curve: D | Rated voltage: 1000V DC
70390089 Poles: 4P | Rated current: 6 A | Trip curve: C | Rated voltage: 1000V DC
70390103 Poles: 4P | Rated current: 6 A | Trip curve: D | Rated voltage: 1000V DC
70390090 Poles: 4P | Rated current: 10 A | Trip curve: C | Rated voltage: 1000V DC
70390104 Poles: 4P | Rated current: 10 A | Trip curve: D | Rated voltage: 1000V DC
70390091 Poles: 4P | Rated current: 13 A | Trip curve: C | Rated voltage: 1000V DC
70390105 Poles: 4P | Rated current: 13 A | Trip curve: D | Rated voltage: 1000V DC
70390092 Poles: 4P | Rated current: 16 A | Trip curve: C | Rated voltage: 1000V DC
70390106 Poles: 4P | Rated current: 16 A | Trip curve: D | Rated voltage: 1000V DC
70390093 Poles: 4P | Rated current: 20 A | Trip curve: C | Rated voltage: 1000V DC
70390107 Poles: 4P | Rated current: 20 A | Trip curve: D | Rated voltage: 1000V DC
70390094 Poles: 4P | Rated current: 25 A | Trip curve: C | Rated voltage: 1000V DC
70390108 Poles: 4P | Rated current: 25 A | Trip curve: D | Rated voltage: 1000V DC
70390095 Poles: 4P | Rated current: 32 A | Trip curve: C | Rated voltage: 1000V DC
70390109 Poles: 4P | Rated current: 32 A | Trip curve: D | Rated voltage: 1000V DC
70390096 Poles: 4P | Rated current: 40 A | Trip curve: C | Rated voltage: 1000V DC
70390110 Poles: 4P | Rated current: 40 A | Trip curve: D | Rated voltage: 1000V DC
70390097 Poles: 4P | Rated current: 50 A | Trip curve: C | Rated voltage: 1000V DC
70390111 Poles: 4P | Rated current: 50 A | Trip curve: D | Rated voltage: 1000V DC
70390098 Poles: 4P | Rated current: 63 A | Trip curve: C | Rated voltage: 1000V DC
70390112 Poles: 4P | Rated current: 63 A | Trip curve: D | Rated voltage: 1000V DC
Miniature Circuit BreakersLS Electric
112 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric L-Series LA63HDCd DC MCB (1-63A, up to 1000V DC)

Brand LS Electric·Miniature Circuit Breakers

Available part numbers (112)

70390001, 70390015, 70390002, 70390016, 70390003, 70390017, 70390004, 70390018, 70390005, 70390019 + 102 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
70390001Poles: 1P | Rated current: 1 A | Trip curve: C | Rated voltage: 250V DC
70390015Poles: 1P | Rated current: 1 A | Trip curve: D | Rated voltage: 250V DC
70390002Poles: 1P | Rated current: 2 A | Trip curve: C | Rated voltage: 250V DC
70390016Poles: 1P | Rated current: 2 A | Trip curve: D | Rated voltage: 250V DC
70390003Poles: 1P | Rated current: 3 A | Trip curve: C | Rated voltage: 250V DC
70390017Poles: 1P | Rated current: 3 A | Trip curve: D | Rated voltage: 250V DC
70390004Poles: 1P | Rated current: 4 A | Trip curve: C | Rated voltage: 250V DC
70390018Poles: 1P | Rated current: 4 A | Trip curve: D | Rated voltage: 250V DC
70390005Poles: 1P | Rated current: 6 A | Trip curve: C | Rated voltage: 250V DC
70390019Poles: 1P | Rated current: 6 A | Trip curve: D | Rated voltage: 250V DC
70390006Poles: 1P | Rated current: 10 A | Trip curve: C | Rated voltage: 250V DC
70390020Poles: 1P | Rated current: 10 A | Trip curve: D | Rated voltage: 250V DC
70390007Poles: 1P | Rated current: 13 A | Trip curve: C | Rated voltage: 250V DC
70390021Poles: 1P | Rated current: 13 A | Trip curve: D | Rated voltage: 250V DC
70390008Poles: 1P | Rated current: 16 A | Trip curve: C | Rated voltage: 250V DC
70390022Poles: 1P | Rated current: 16 A | Trip curve: D | Rated voltage: 250V DC
70390009Poles: 1P | Rated current: 20 A | Trip curve: C | Rated voltage: 250V DC
70390023Poles: 1P | Rated current: 20 A | Trip curve: D | Rated voltage: 250V DC
70390010Poles: 1P | Rated current: 25 A | Trip curve: C | Rated voltage: 250V DC
70390024Poles: 1P | Rated current: 25 A | Trip curve: D | Rated voltage: 250V DC
70390011Poles: 1P | Rated current: 32 A | Trip curve: C | Rated voltage: 250V DC
70390025Poles: 1P | Rated current: 32 A | Trip curve: D | Rated voltage: 250V DC
70390012Poles: 1P | Rated current: 40 A | Trip curve: C | Rated voltage: 250V DC
70390026Poles: 1P | Rated current: 40 A | Trip curve: D | Rated voltage: 250V DC
70390013Poles: 1P | Rated current: 50 A | Trip curve: C | Rated voltage: 250V DC
70390027Poles: 1P | Rated current: 50 A | Trip curve: D | Rated voltage: 250V DC
70390014Poles: 1P | Rated current: 63 A | Trip curve: C | Rated voltage: 250V DC
70390028Poles: 1P | Rated current: 63 A | Trip curve: D | Rated voltage: 250V DC
70390029Poles: 2P | Rated current: 1 A | Trip curve: C | Rated voltage: 500V DC
70390043Poles: 2P | Rated current: 1 A | Trip curve: D | Rated voltage: 500V DC
70390030Poles: 2P | Rated current: 2 A | Trip curve: C | Rated voltage: 500V DC
70390044Poles: 2P | Rated current: 2 A | Trip curve: D | Rated voltage: 500V DC
70390031Poles: 2P | Rated current: 3 A | Trip curve: C | Rated voltage: 500V DC
70390045Poles: 2P | Rated current: 3 A | Trip curve: D | Rated voltage: 500V DC
70390032Poles: 2P | Rated current: 4 A | Trip curve: C | Rated voltage: 500V DC
70390046Poles: 2P | Rated current: 4 A | Trip curve: D | Rated voltage: 500V DC
70390033Poles: 2P | Rated current: 6 A | Trip curve: C | Rated voltage: 500V DC
70390047Poles: 2P | Rated current: 6 A | Trip curve: D | Rated voltage: 500V DC
70390034Poles: 2P | Rated current: 10 A | Trip curve: C | Rated voltage: 500V DC
70390048Poles: 2P | Rated current: 10 A | Trip curve: D | Rated voltage: 500V DC
70390035Poles: 2P | Rated current: 13 A | Trip curve: C | Rated voltage: 500V DC
70390049Poles: 2P | Rated current: 13 A | Trip curve: D | Rated voltage: 500V DC
70390036Poles: 2P | Rated current: 16 A | Trip curve: C | Rated voltage: 500V DC
70390050Poles: 2P | Rated current: 16 A | Trip curve: D | Rated voltage: 500V DC
70390037Poles: 2P | Rated current: 20 A | Trip curve: C | Rated voltage: 500V DC
70390051Poles: 2P | Rated current: 20 A | Trip curve: D | Rated voltage: 500V DC
70390038Poles: 2P | Rated current: 25 A | Trip curve: C | Rated voltage: 500V DC
70390052Poles: 2P | Rated current: 25 A | Trip curve: D | Rated voltage: 500V DC
70390039Poles: 2P | Rated current: 32 A | Trip curve: C | Rated voltage: 500V DC
70390053Poles: 2P | Rated current: 32 A | Trip curve: D | Rated voltage: 500V DC
70390040Poles: 2P | Rated current: 40 A | Trip curve: C | Rated voltage: 500V DC
70390054Poles: 2P | Rated current: 40 A | Trip curve: D | Rated voltage: 500V DC
70390041Poles: 2P | Rated current: 50 A | Trip curve: C | Rated voltage: 500V DC
70390055Poles: 2P | Rated current: 50 A | Trip curve: D | Rated voltage: 500V DC
70390042Poles: 2P | Rated current: 63 A | Trip curve: C | Rated voltage: 500V DC
70390056Poles: 2P | Rated current: 63 A | Trip curve: D | Rated voltage: 500V DC
70390057Poles: 3P | Rated current: 1 A | Trip curve: C | Rated voltage: 750V DC
70390071Poles: 3P | Rated current: 1 A | Trip curve: D | Rated voltage: 750V DC
70390058Poles: 3P | Rated current: 2 A | Trip curve: C | Rated voltage: 750V DC
70390072Poles: 3P | Rated current: 2 A | Trip curve: D | Rated voltage: 750V DC
70390059Poles: 3P | Rated current: 3 A | Trip curve: C | Rated voltage: 750V DC
70390073Poles: 3P | Rated current: 3 A | Trip curve: D | Rated voltage: 750V DC
70390060Poles: 3P | Rated current: 4 A | Trip curve: C | Rated voltage: 750V DC
70390074Poles: 3P | Rated current: 4 A | Trip curve: D | Rated voltage: 750V DC
70390061Poles: 3P | Rated current: 6 A | Trip curve: C | Rated voltage: 750V DC
70390075Poles: 3P | Rated current: 6 A | Trip curve: D | Rated voltage: 750V DC
70390062Poles: 3P | Rated current: 10 A | Trip curve: C | Rated voltage: 750V DC
70390076Poles: 3P | Rated current: 10 A | Trip curve: D | Rated voltage: 750V DC
70390063Poles: 3P | Rated current: 13 A | Trip curve: C | Rated voltage: 750V DC
70390077Poles: 3P | Rated current: 13 A | Trip curve: D | Rated voltage: 750V DC
70390064Poles: 3P | Rated current: 16 A | Trip curve: C | Rated voltage: 750V DC
70390078Poles: 3P | Rated current: 16 A | Trip curve: D | Rated voltage: 750V DC
70390065Poles: 3P | Rated current: 20 A | Trip curve: C | Rated voltage: 750V DC
70390079Poles: 3P | Rated current: 20 A | Trip curve: D | Rated voltage: 750V DC
70390066Poles: 3P | Rated current: 25 A | Trip curve: C | Rated voltage: 750V DC
70390080Poles: 3P | Rated current: 25 A | Trip curve: D | Rated voltage: 750V DC
70390067Poles: 3P | Rated current: 32 A | Trip curve: C | Rated voltage: 750V DC
70390081Poles: 3P | Rated current: 32 A | Trip curve: D | Rated voltage: 750V DC
70390068Poles: 3P | Rated current: 40 A | Trip curve: C | Rated voltage: 750V DC
70390082Poles: 3P | Rated current: 40 A | Trip curve: D | Rated voltage: 750V DC
70390069Poles: 3P | Rated current: 50 A | Trip curve: C | Rated voltage: 750V DC
70390083Poles: 3P | Rated current: 50 A | Trip curve: D | Rated voltage: 750V DC
70390070Poles: 3P | Rated current: 63 A | Trip curve: C | Rated voltage: 750V DC
70390084Poles: 3P | Rated current: 63 A | Trip curve: D | Rated voltage: 750V DC
70390085Poles: 4P | Rated current: 1 A | Trip curve: C | Rated voltage: 1000V DC
70390099Poles: 4P | Rated current: 1 A | Trip curve: D | Rated voltage: 1000V DC
70390086Poles: 4P | Rated current: 2 A | Trip curve: C | Rated voltage: 1000V DC
70390100Poles: 4P | Rated current: 2 A | Trip curve: D | Rated voltage: 1000V DC
70390087Poles: 4P | Rated current: 3 A | Trip curve: C | Rated voltage: 1000V DC
70390101Poles: 4P | Rated current: 3 A | Trip curve: D | Rated voltage: 1000V DC
70390088Poles: 4P | Rated current: 4 A | Trip curve: C | Rated voltage: 1000V DC
70390102Poles: 4P | Rated current: 4 A | Trip curve: D | Rated voltage: 1000V DC
70390089Poles: 4P | Rated current: 6 A | Trip curve: C | Rated voltage: 1000V DC
70390103Poles: 4P | Rated current: 6 A | Trip curve: D | Rated voltage: 1000V DC
70390090Poles: 4P | Rated current: 10 A | Trip curve: C | Rated voltage: 1000V DC
70390104Poles: 4P | Rated current: 10 A | Trip curve: D | Rated voltage: 1000V DC
70390091Poles: 4P | Rated current: 13 A | Trip curve: C | Rated voltage: 1000V DC
70390105Poles: 4P | Rated current: 13 A | Trip curve: D | Rated voltage: 1000V DC
70390092Poles: 4P | Rated current: 16 A | Trip curve: C | Rated voltage: 1000V DC
70390106Poles: 4P | Rated current: 16 A | Trip curve: D | Rated voltage: 1000V DC
70390093Poles: 4P | Rated current: 20 A | Trip curve: C | Rated voltage: 1000V DC
70390107Poles: 4P | Rated current: 20 A | Trip curve: D | Rated voltage: 1000V DC
70390094Poles: 4P | Rated current: 25 A | Trip curve: C | Rated voltage: 1000V DC
70390108Poles: 4P | Rated current: 25 A | Trip curve: D | Rated voltage: 1000V DC
70390095Poles: 4P | Rated current: 32 A | Trip curve: C | Rated voltage: 1000V DC
70390109Poles: 4P | Rated current: 32 A | Trip curve: D | Rated voltage: 1000V DC
70390096Poles: 4P | Rated current: 40 A | Trip curve: C | Rated voltage: 1000V DC
70390110Poles: 4P | Rated current: 40 A | Trip curve: D | Rated voltage: 1000V DC
70390097Poles: 4P | Rated current: 50 A | Trip curve: C | Rated voltage: 1000V DC
70390111Poles: 4P | Rated current: 50 A | Trip curve: D | Rated voltage: 1000V DC
70390098Poles: 4P | Rated current: 63 A | Trip curve: C | Rated voltage: 1000V DC
70390112Poles: 4P | Rated current: 63 A | Trip curve: D | Rated voltage: 1000V DC

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Circuit Breakers & Contactors →
