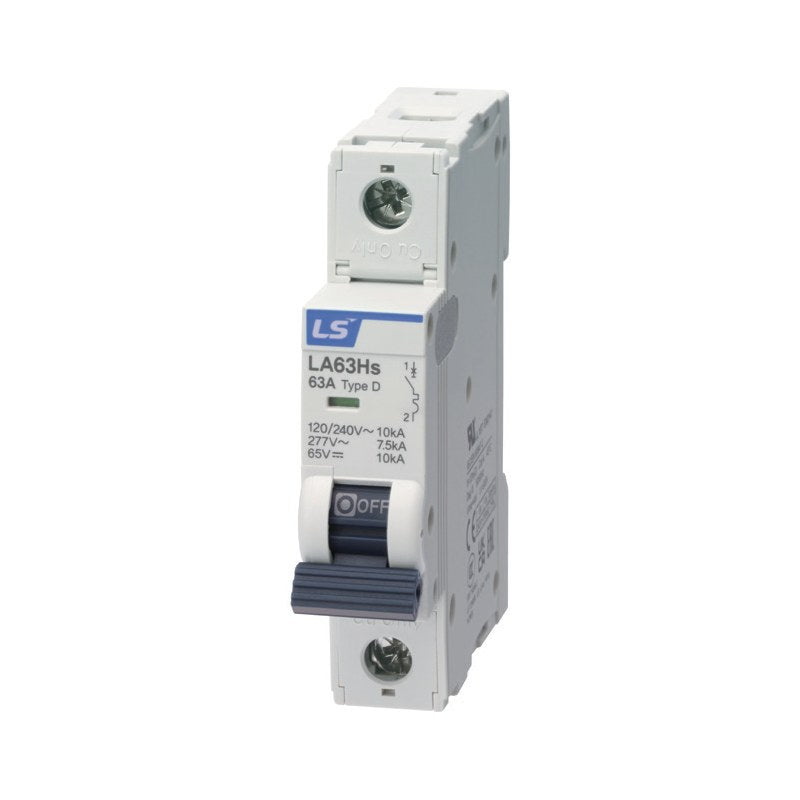

LS Electric L-Series LA63Hs UL1077 Supplementary Protector (1-63A)

LS Electric L-Series LA63Hs UL1077 Supplementary Protector (1-63A)

LS Electric L-Series LA63Hs UL1077-recognized supplementary protector (UL MCB), 1-63 A, 1 to 4 poles, B/C/D curves.

Key features

  • UL1077 and KC 60947-2 rated; CE, CB, UKCA, CCC, KC
  • Up to 14 kA at 277 V AC (1P) / 480Y/277 V AC (2-4P) for 1-32 A
  • DC rating 65 V DC (1P) / 125 V DC (2-4P), 10 kA
  • Dual terminal (lug & screw), wire up to 4 AWG, 2 N.m (17.5 lbf-in)
  • Dedicated accessories LA-AXs, LA-ALs, LA-SHTs, LA-U/OVTs; LA-MOP compatible

Specifications

Frame 63AF
Rated insulation voltage (Ui) 500 V
Rated impulse voltage (Uimp) 4 kV
Frequency 50/60 Hz
IEC rating (KC 60947-2) 10 kA 230/240V (1P), 400/415/440V (2-4P)
Durability Electrical 6,000 / mechanical 20,000 ops, 360 ops/h
Pollution degree / IP Degree III / IP20
Ambient temperature -25 to +55 C, 45-85% RH
Mounting 35 mm DIN rail
Source LS Electric L-Series MCB & RCBO catalog (KO) C015X1-03, p. 5, 16-17
70220001 Poles: 1P | Rated current: 1 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220022 Poles: 1P | Rated current: 1 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220043 Poles: 1P | Rated current: 1 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220002 Poles: 1P | Rated current: 2 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220023 Poles: 1P | Rated current: 2 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220044 Poles: 1P | Rated current: 2 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220003 Poles: 1P | Rated current: 3 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220024 Poles: 1P | Rated current: 3 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220045 Poles: 1P | Rated current: 3 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220004 Poles: 1P | Rated current: 4 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220025 Poles: 1P | Rated current: 4 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220046 Poles: 1P | Rated current: 4 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220005 Poles: 1P | Rated current: 5 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220026 Poles: 1P | Rated current: 5 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220047 Poles: 1P | Rated current: 5 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220006 Poles: 1P | Rated current: 6 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220027 Poles: 1P | Rated current: 6 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220048 Poles: 1P | Rated current: 6 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220007 Poles: 1P | Rated current: 7 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220028 Poles: 1P | Rated current: 7 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220049 Poles: 1P | Rated current: 7 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220008 Poles: 1P | Rated current: 8 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220029 Poles: 1P | Rated current: 8 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220050 Poles: 1P | Rated current: 8 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220009 Poles: 1P | Rated current: 10 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220030 Poles: 1P | Rated current: 10 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220051 Poles: 1P | Rated current: 10 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220010 Poles: 1P | Rated current: 13 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220031 Poles: 1P | Rated current: 13 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220052 Poles: 1P | Rated current: 13 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220011 Poles: 1P | Rated current: 15 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220032 Poles: 1P | Rated current: 15 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220053 Poles: 1P | Rated current: 15 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220012 Poles: 1P | Rated current: 16 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220033 Poles: 1P | Rated current: 16 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220054 Poles: 1P | Rated current: 16 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220013 Poles: 1P | Rated current: 20 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220034 Poles: 1P | Rated current: 20 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220055 Poles: 1P | Rated current: 20 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220014 Poles: 1P | Rated current: 25 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220035 Poles: 1P | Rated current: 25 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220056 Poles: 1P | Rated current: 25 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220015 Poles: 1P | Rated current: 30 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220036 Poles: 1P | Rated current: 30 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220057 Poles: 1P | Rated current: 30 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220016 Poles: 1P | Rated current: 32 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220037 Poles: 1P | Rated current: 32 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220058 Poles: 1P | Rated current: 32 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220017 Poles: 1P | Rated current: 35 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220038 Poles: 1P | Rated current: 35 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220059 Poles: 1P | Rated current: 35 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220018 Poles: 1P | Rated current: 40 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220039 Poles: 1P | Rated current: 40 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220060 Poles: 1P | Rated current: 40 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220019 Poles: 1P | Rated current: 50 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220040 Poles: 1P | Rated current: 50 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220061 Poles: 1P | Rated current: 50 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220020 Poles: 1P | Rated current: 60 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220041 Poles: 1P | Rated current: 60 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220062 Poles: 1P | Rated current: 60 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220021 Poles: 1P | Rated current: 63 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220042 Poles: 1P | Rated current: 63 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220063 Poles: 1P | Rated current: 63 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220064 Poles: 2P | Rated current: 1 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220085 Poles: 2P | Rated current: 1 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220106 Poles: 2P | Rated current: 1 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220065 Poles: 2P | Rated current: 2 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220086 Poles: 2P | Rated current: 2 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220107 Poles: 2P | Rated current: 2 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220066 Poles: 2P | Rated current: 3 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220087 Poles: 2P | Rated current: 3 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220108 Poles: 2P | Rated current: 3 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220067 Poles: 2P | Rated current: 4 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220088 Poles: 2P | Rated current: 4 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220109 Poles: 2P | Rated current: 4 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220068 Poles: 2P | Rated current: 5 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220089 Poles: 2P | Rated current: 5 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220110 Poles: 2P | Rated current: 5 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220069 Poles: 2P | Rated current: 6 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220090 Poles: 2P | Rated current: 6 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220111 Poles: 2P | Rated current: 6 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220070 Poles: 2P | Rated current: 7 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220091 Poles: 2P | Rated current: 7 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220112 Poles: 2P | Rated current: 7 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220071 Poles: 2P | Rated current: 8 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220092 Poles: 2P | Rated current: 8 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220113 Poles: 2P | Rated current: 8 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220072 Poles: 2P | Rated current: 10 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220093 Poles: 2P | Rated current: 10 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220114 Poles: 2P | Rated current: 10 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220073 Poles: 2P | Rated current: 13 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220094 Poles: 2P | Rated current: 13 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220115 Poles: 2P | Rated current: 13 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220074 Poles: 2P | Rated current: 15 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220095 Poles: 2P | Rated current: 15 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220116 Poles: 2P | Rated current: 15 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220075 Poles: 2P | Rated current: 16 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220096 Poles: 2P | Rated current: 16 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220117 Poles: 2P | Rated current: 16 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220076 Poles: 2P | Rated current: 20 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220097 Poles: 2P | Rated current: 20 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220118 Poles: 2P | Rated current: 20 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220077 Poles: 2P | Rated current: 25 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220098 Poles: 2P | Rated current: 25 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220119 Poles: 2P | Rated current: 25 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220078 Poles: 2P | Rated current: 30 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220099 Poles: 2P | Rated current: 30 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220120 Poles: 2P | Rated current: 30 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220079 Poles: 2P | Rated current: 32 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220100 Poles: 2P | Rated current: 32 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220121 Poles: 2P | Rated current: 32 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220080 Poles: 2P | Rated current: 35 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220101 Poles: 2P | Rated current: 35 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220122 Poles: 2P | Rated current: 35 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220081 Poles: 2P | Rated current: 40 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220102 Poles: 2P | Rated current: 40 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220123 Poles: 2P | Rated current: 40 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220082 Poles: 2P | Rated current: 50 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220103 Poles: 2P | Rated current: 50 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220124 Poles: 2P | Rated current: 50 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220083 Poles: 2P | Rated current: 60 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220104 Poles: 2P | Rated current: 60 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220125 Poles: 2P | Rated current: 60 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220084 Poles: 2P | Rated current: 63 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220105 Poles: 2P | Rated current: 63 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220126 Poles: 2P | Rated current: 63 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220127 Poles: 3P | Rated current: 1 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220148 Poles: 3P | Rated current: 1 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220169 Poles: 3P | Rated current: 1 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220128 Poles: 3P | Rated current: 2 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220149 Poles: 3P | Rated current: 2 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220170 Poles: 3P | Rated current: 2 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220129 Poles: 3P | Rated current: 3 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220150 Poles: 3P | Rated current: 3 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220171 Poles: 3P | Rated current: 3 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220130 Poles: 3P | Rated current: 4 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220151 Poles: 3P | Rated current: 4 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220172 Poles: 3P | Rated current: 4 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220131 Poles: 3P | Rated current: 5 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220152 Poles: 3P | Rated current: 5 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220173 Poles: 3P | Rated current: 5 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220132 Poles: 3P | Rated current: 6 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220153 Poles: 3P | Rated current: 6 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220174 Poles: 3P | Rated current: 6 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220133 Poles: 3P | Rated current: 7 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220154 Poles: 3P | Rated current: 7 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220175 Poles: 3P | Rated current: 7 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220134 Poles: 3P | Rated current: 8 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220155 Poles: 3P | Rated current: 8 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220176 Poles: 3P | Rated current: 8 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220135 Poles: 3P | Rated current: 10 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220156 Poles: 3P | Rated current: 10 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220177 Poles: 3P | Rated current: 10 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220136 Poles: 3P | Rated current: 13 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220157 Poles: 3P | Rated current: 13 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220178 Poles: 3P | Rated current: 13 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220137 Poles: 3P | Rated current: 15 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220158 Poles: 3P | Rated current: 15 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220179 Poles: 3P | Rated current: 15 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220138 Poles: 3P | Rated current: 16 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220159 Poles: 3P | Rated current: 16 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220180 Poles: 3P | Rated current: 16 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220139 Poles: 3P | Rated current: 20 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220160 Poles: 3P | Rated current: 20 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220181 Poles: 3P | Rated current: 20 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220140 Poles: 3P | Rated current: 25 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220161 Poles: 3P | Rated current: 25 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220182 Poles: 3P | Rated current: 25 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220141 Poles: 3P | Rated current: 30 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220162 Poles: 3P | Rated current: 30 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220183 Poles: 3P | Rated current: 30 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220142 Poles: 3P | Rated current: 32 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220163 Poles: 3P | Rated current: 32 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220184 Poles: 3P | Rated current: 32 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220143 Poles: 3P | Rated current: 35 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220164 Poles: 3P | Rated current: 35 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220185 Poles: 3P | Rated current: 35 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220144 Poles: 3P | Rated current: 40 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220165 Poles: 3P | Rated current: 40 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220186 Poles: 3P | Rated current: 40 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220145 Poles: 3P | Rated current: 50 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220166 Poles: 3P | Rated current: 50 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220187 Poles: 3P | Rated current: 50 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220146 Poles: 3P | Rated current: 60 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220167 Poles: 3P | Rated current: 60 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220188 Poles: 3P | Rated current: 60 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220147 Poles: 3P | Rated current: 63 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220168 Poles: 3P | Rated current: 63 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220189 Poles: 3P | Rated current: 63 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220190 Poles: 4P | Rated current: 1 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220211 Poles: 4P | Rated current: 1 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220232 Poles: 4P | Rated current: 1 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220191 Poles: 4P | Rated current: 2 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220212 Poles: 4P | Rated current: 2 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220233 Poles: 4P | Rated current: 2 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220192 Poles: 4P | Rated current: 3 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220213 Poles: 4P | Rated current: 3 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220234 Poles: 4P | Rated current: 3 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220193 Poles: 4P | Rated current: 4 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220214 Poles: 4P | Rated current: 4 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220235 Poles: 4P | Rated current: 4 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220194 Poles: 4P | Rated current: 5 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220215 Poles: 4P | Rated current: 5 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220236 Poles: 4P | Rated current: 5 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220195 Poles: 4P | Rated current: 6 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220216 Poles: 4P | Rated current: 6 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220237 Poles: 4P | Rated current: 6 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220196 Poles: 4P | Rated current: 7 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220217 Poles: 4P | Rated current: 7 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220238 Poles: 4P | Rated current: 7 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220197 Poles: 4P | Rated current: 8 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220218 Poles: 4P | Rated current: 8 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220239 Poles: 4P | Rated current: 8 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220198 Poles: 4P | Rated current: 10 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220219 Poles: 4P | Rated current: 10 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220240 Poles: 4P | Rated current: 10 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220199 Poles: 4P | Rated current: 13 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220220 Poles: 4P | Rated current: 13 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220241 Poles: 4P | Rated current: 13 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220200 Poles: 4P | Rated current: 15 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220221 Poles: 4P | Rated current: 15 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220242 Poles: 4P | Rated current: 15 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220201 Poles: 4P | Rated current: 16 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220222 Poles: 4P | Rated current: 16 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220243 Poles: 4P | Rated current: 16 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220202 Poles: 4P | Rated current: 20 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220223 Poles: 4P | Rated current: 20 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220244 Poles: 4P | Rated current: 20 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220203 Poles: 4P | Rated current: 25 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220224 Poles: 4P | Rated current: 25 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220245 Poles: 4P | Rated current: 25 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220204 Poles: 4P | Rated current: 30 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220225 Poles: 4P | Rated current: 30 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220246 Poles: 4P | Rated current: 30 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220205 Poles: 4P | Rated current: 32 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220226 Poles: 4P | Rated current: 32 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220247 Poles: 4P | Rated current: 32 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220206 Poles: 4P | Rated current: 35 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220227 Poles: 4P | Rated current: 35 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220248 Poles: 4P | Rated current: 35 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220207 Poles: 4P | Rated current: 40 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220228 Poles: 4P | Rated current: 40 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220249 Poles: 4P | Rated current: 40 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220208 Poles: 4P | Rated current: 50 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220229 Poles: 4P | Rated current: 50 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220250 Poles: 4P | Rated current: 50 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220209 Poles: 4P | Rated current: 60 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220230 Poles: 4P | Rated current: 60 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220251 Poles: 4P | Rated current: 60 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220210 Poles: 4P | Rated current: 63 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220231 Poles: 4P | Rated current: 63 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220252 Poles: 4P | Rated current: 63 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
Miniature Circuit BreakersLS Electric
252 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric L-Series LA63Hs UL1077 Supplementary Protector (1-63A)

Brand LS Electric·Miniature Circuit Breakers

Available part numbers (252)

70220001, 70220022, 70220043, 70220002, 70220023, 70220044, 70220003, 70220024, 70220045, 70220004 + 242 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
70220001Poles: 1P | Rated current: 1 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220022Poles: 1P | Rated current: 1 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220043Poles: 1P | Rated current: 1 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220002Poles: 1P | Rated current: 2 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220023Poles: 1P | Rated current: 2 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220044Poles: 1P | Rated current: 2 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220003Poles: 1P | Rated current: 3 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220024Poles: 1P | Rated current: 3 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220045Poles: 1P | Rated current: 3 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220004Poles: 1P | Rated current: 4 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220025Poles: 1P | Rated current: 4 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220046Poles: 1P | Rated current: 4 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220005Poles: 1P | Rated current: 5 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220026Poles: 1P | Rated current: 5 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220047Poles: 1P | Rated current: 5 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220006Poles: 1P | Rated current: 6 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220027Poles: 1P | Rated current: 6 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220048Poles: 1P | Rated current: 6 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220007Poles: 1P | Rated current: 7 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220028Poles: 1P | Rated current: 7 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220049Poles: 1P | Rated current: 7 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220008Poles: 1P | Rated current: 8 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220029Poles: 1P | Rated current: 8 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220050Poles: 1P | Rated current: 8 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220009Poles: 1P | Rated current: 10 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220030Poles: 1P | Rated current: 10 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220051Poles: 1P | Rated current: 10 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220010Poles: 1P | Rated current: 13 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220031Poles: 1P | Rated current: 13 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220052Poles: 1P | Rated current: 13 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220011Poles: 1P | Rated current: 15 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220032Poles: 1P | Rated current: 15 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220053Poles: 1P | Rated current: 15 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220012Poles: 1P | Rated current: 16 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220033Poles: 1P | Rated current: 16 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220054Poles: 1P | Rated current: 16 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220013Poles: 1P | Rated current: 20 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220034Poles: 1P | Rated current: 20 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220055Poles: 1P | Rated current: 20 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220014Poles: 1P | Rated current: 25 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220035Poles: 1P | Rated current: 25 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220056Poles: 1P | Rated current: 25 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220015Poles: 1P | Rated current: 30 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220036Poles: 1P | Rated current: 30 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220057Poles: 1P | Rated current: 30 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220016Poles: 1P | Rated current: 32 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220037Poles: 1P | Rated current: 32 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220058Poles: 1P | Rated current: 32 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70220017Poles: 1P | Rated current: 35 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220038Poles: 1P | Rated current: 35 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220059Poles: 1P | Rated current: 35 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220018Poles: 1P | Rated current: 40 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220039Poles: 1P | Rated current: 40 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220060Poles: 1P | Rated current: 40 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220019Poles: 1P | Rated current: 50 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220040Poles: 1P | Rated current: 50 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220061Poles: 1P | Rated current: 50 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220020Poles: 1P | Rated current: 60 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220041Poles: 1P | Rated current: 60 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220062Poles: 1P | Rated current: 60 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220021Poles: 1P | Rated current: 63 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220042Poles: 1P | Rated current: 63 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220063Poles: 1P | Rated current: 63 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 7.5kA 277V
70220064Poles: 2P | Rated current: 1 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220085Poles: 2P | Rated current: 1 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220106Poles: 2P | Rated current: 1 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220065Poles: 2P | Rated current: 2 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220086Poles: 2P | Rated current: 2 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220107Poles: 2P | Rated current: 2 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220066Poles: 2P | Rated current: 3 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220087Poles: 2P | Rated current: 3 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220108Poles: 2P | Rated current: 3 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220067Poles: 2P | Rated current: 4 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220088Poles: 2P | Rated current: 4 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220109Poles: 2P | Rated current: 4 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220068Poles: 2P | Rated current: 5 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220089Poles: 2P | Rated current: 5 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220110Poles: 2P | Rated current: 5 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220069Poles: 2P | Rated current: 6 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220090Poles: 2P | Rated current: 6 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220111Poles: 2P | Rated current: 6 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220070Poles: 2P | Rated current: 7 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220091Poles: 2P | Rated current: 7 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220112Poles: 2P | Rated current: 7 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220071Poles: 2P | Rated current: 8 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220092Poles: 2P | Rated current: 8 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220113Poles: 2P | Rated current: 8 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220072Poles: 2P | Rated current: 10 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220093Poles: 2P | Rated current: 10 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220114Poles: 2P | Rated current: 10 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220073Poles: 2P | Rated current: 13 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220094Poles: 2P | Rated current: 13 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220115Poles: 2P | Rated current: 13 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220074Poles: 2P | Rated current: 15 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220095Poles: 2P | Rated current: 15 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220116Poles: 2P | Rated current: 15 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220075Poles: 2P | Rated current: 16 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220096Poles: 2P | Rated current: 16 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220117Poles: 2P | Rated current: 16 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220076Poles: 2P | Rated current: 20 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220097Poles: 2P | Rated current: 20 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220118Poles: 2P | Rated current: 20 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220077Poles: 2P | Rated current: 25 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220098Poles: 2P | Rated current: 25 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220119Poles: 2P | Rated current: 25 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220078Poles: 2P | Rated current: 30 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220099Poles: 2P | Rated current: 30 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220120Poles: 2P | Rated current: 30 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220079Poles: 2P | Rated current: 32 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220100Poles: 2P | Rated current: 32 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220121Poles: 2P | Rated current: 32 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220080Poles: 2P | Rated current: 35 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220101Poles: 2P | Rated current: 35 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220122Poles: 2P | Rated current: 35 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220081Poles: 2P | Rated current: 40 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220102Poles: 2P | Rated current: 40 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220123Poles: 2P | Rated current: 40 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220082Poles: 2P | Rated current: 50 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220103Poles: 2P | Rated current: 50 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220124Poles: 2P | Rated current: 50 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220083Poles: 2P | Rated current: 60 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220104Poles: 2P | Rated current: 60 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220125Poles: 2P | Rated current: 60 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220084Poles: 2P | Rated current: 63 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220105Poles: 2P | Rated current: 63 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220126Poles: 2P | Rated current: 63 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220127Poles: 3P | Rated current: 1 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220148Poles: 3P | Rated current: 1 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220169Poles: 3P | Rated current: 1 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220128Poles: 3P | Rated current: 2 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220149Poles: 3P | Rated current: 2 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220170Poles: 3P | Rated current: 2 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220129Poles: 3P | Rated current: 3 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220150Poles: 3P | Rated current: 3 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220171Poles: 3P | Rated current: 3 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220130Poles: 3P | Rated current: 4 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220151Poles: 3P | Rated current: 4 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220172Poles: 3P | Rated current: 4 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220131Poles: 3P | Rated current: 5 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220152Poles: 3P | Rated current: 5 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220173Poles: 3P | Rated current: 5 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220132Poles: 3P | Rated current: 6 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220153Poles: 3P | Rated current: 6 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220174Poles: 3P | Rated current: 6 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220133Poles: 3P | Rated current: 7 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220154Poles: 3P | Rated current: 7 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220175Poles: 3P | Rated current: 7 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220134Poles: 3P | Rated current: 8 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220155Poles: 3P | Rated current: 8 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220176Poles: 3P | Rated current: 8 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220135Poles: 3P | Rated current: 10 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220156Poles: 3P | Rated current: 10 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220177Poles: 3P | Rated current: 10 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220136Poles: 3P | Rated current: 13 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220157Poles: 3P | Rated current: 13 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220178Poles: 3P | Rated current: 13 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220137Poles: 3P | Rated current: 15 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220158Poles: 3P | Rated current: 15 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220179Poles: 3P | Rated current: 15 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220138Poles: 3P | Rated current: 16 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220159Poles: 3P | Rated current: 16 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220180Poles: 3P | Rated current: 16 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220139Poles: 3P | Rated current: 20 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220160Poles: 3P | Rated current: 20 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220181Poles: 3P | Rated current: 20 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220140Poles: 3P | Rated current: 25 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220161Poles: 3P | Rated current: 25 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220182Poles: 3P | Rated current: 25 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220141Poles: 3P | Rated current: 30 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220162Poles: 3P | Rated current: 30 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220183Poles: 3P | Rated current: 30 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220142Poles: 3P | Rated current: 32 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220163Poles: 3P | Rated current: 32 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220184Poles: 3P | Rated current: 32 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220143Poles: 3P | Rated current: 35 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220164Poles: 3P | Rated current: 35 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220185Poles: 3P | Rated current: 35 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220144Poles: 3P | Rated current: 40 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220165Poles: 3P | Rated current: 40 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220186Poles: 3P | Rated current: 40 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220145Poles: 3P | Rated current: 50 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220166Poles: 3P | Rated current: 50 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220187Poles: 3P | Rated current: 50 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220146Poles: 3P | Rated current: 60 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220167Poles: 3P | Rated current: 60 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220188Poles: 3P | Rated current: 60 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220147Poles: 3P | Rated current: 63 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220168Poles: 3P | Rated current: 63 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220189Poles: 3P | Rated current: 63 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220190Poles: 4P | Rated current: 1 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220211Poles: 4P | Rated current: 1 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220232Poles: 4P | Rated current: 1 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220191Poles: 4P | Rated current: 2 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220212Poles: 4P | Rated current: 2 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220233Poles: 4P | Rated current: 2 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220192Poles: 4P | Rated current: 3 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220213Poles: 4P | Rated current: 3 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220234Poles: 4P | Rated current: 3 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220193Poles: 4P | Rated current: 4 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220214Poles: 4P | Rated current: 4 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220235Poles: 4P | Rated current: 4 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220194Poles: 4P | Rated current: 5 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220215Poles: 4P | Rated current: 5 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220236Poles: 4P | Rated current: 5 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220195Poles: 4P | Rated current: 6 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220216Poles: 4P | Rated current: 6 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220237Poles: 4P | Rated current: 6 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220196Poles: 4P | Rated current: 7 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220217Poles: 4P | Rated current: 7 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220238Poles: 4P | Rated current: 7 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220197Poles: 4P | Rated current: 8 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220218Poles: 4P | Rated current: 8 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220239Poles: 4P | Rated current: 8 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220198Poles: 4P | Rated current: 10 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220219Poles: 4P | Rated current: 10 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220240Poles: 4P | Rated current: 10 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220199Poles: 4P | Rated current: 13 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220220Poles: 4P | Rated current: 13 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220241Poles: 4P | Rated current: 13 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220200Poles: 4P | Rated current: 15 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220221Poles: 4P | Rated current: 15 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220242Poles: 4P | Rated current: 15 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220201Poles: 4P | Rated current: 16 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220222Poles: 4P | Rated current: 16 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220243Poles: 4P | Rated current: 16 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220202Poles: 4P | Rated current: 20 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220223Poles: 4P | Rated current: 20 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220244Poles: 4P | Rated current: 20 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220203Poles: 4P | Rated current: 25 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220224Poles: 4P | Rated current: 25 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220245Poles: 4P | Rated current: 25 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220204Poles: 4P | Rated current: 30 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220225Poles: 4P | Rated current: 30 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220246Poles: 4P | Rated current: 30 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220205Poles: 4P | Rated current: 32 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220226Poles: 4P | Rated current: 32 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220247Poles: 4P | Rated current: 32 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70220206Poles: 4P | Rated current: 35 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220227Poles: 4P | Rated current: 35 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220248Poles: 4P | Rated current: 35 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220207Poles: 4P | Rated current: 40 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220228Poles: 4P | Rated current: 40 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220249Poles: 4P | Rated current: 40 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220208Poles: 4P | Rated current: 50 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220229Poles: 4P | Rated current: 50 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220250Poles: 4P | Rated current: 50 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220209Poles: 4P | Rated current: 60 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220230Poles: 4P | Rated current: 60 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220251Poles: 4P | Rated current: 60 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220210Poles: 4P | Rated current: 63 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220231Poles: 4P | Rated current: 63 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V
70220252Poles: 4P | Rated current: 63 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 7.5kA 480Y/277V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Circuit Breakers & Contactors →
