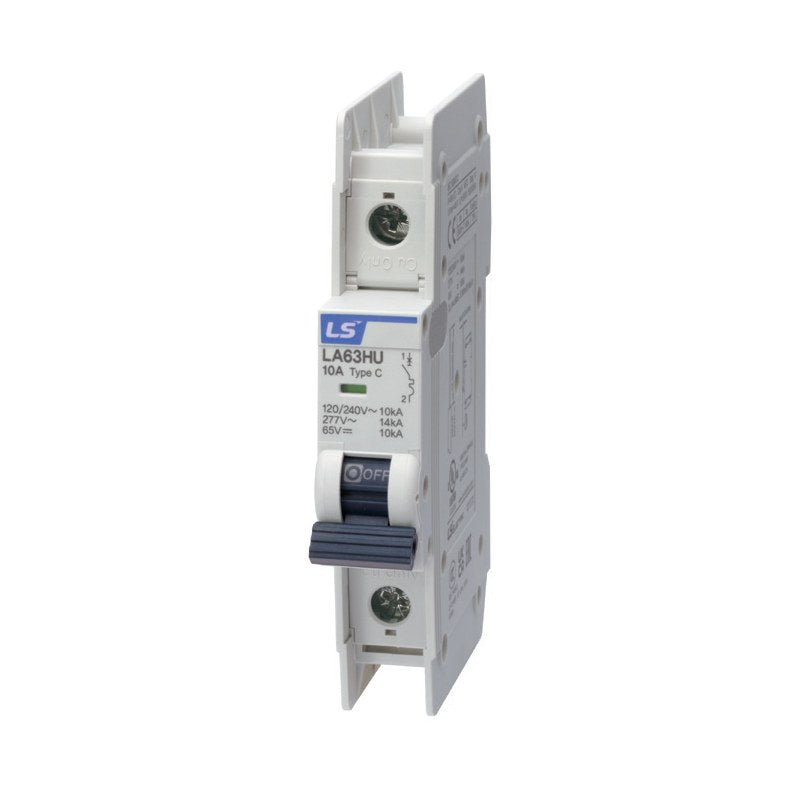

LS Electric L-Series LA63HU UL489 MCB (1-63A, 1-3P)

LS Electric L-Series LA63HU UL489 MCB (1-63A, 1-3P)

LS Electric L-Series LA63HU UL489-listed miniature circuit breaker for branch-circuit protection, 1-63 A, 1 to 3 poles, B/C/D/K curves.

Key features

  • UL489 and KC 60947-2 rated; CE, CB, UKCA, CCC, KC
  • Up to 14 kA at 277 V AC (1P) / 480Y/277 V AC (2P, 3P) for 1-32 A; 10 kA at 120/240 V AC
  • DC rating 65 V DC (1P) / 125 V DC (2P, 3P), 10 kA
  • Dual terminal (lug & screw), wire up to 4 AWG, 3.9 N.m (35 lbf-in)
  • Dedicated UL accessories: LA-AXU, LA-ALU, LA-SHTU, LA-U/OVTU

Specifications

Frame 63AF
Rated insulation voltage (Ui) 500 V
Rated impulse voltage (Uimp) 4 kV
Frequency 50/60 Hz
IEC rating (KC 60947-2) 10 kA 230/240V (1P), 400/415/440V (2P, 3P)
Durability Electrical 6,000 / mechanical 20,000 ops, 360 ops/h
Pollution degree / IP Degree III / IP20
Ambient temperature -25 to +55 C, 45-85% RH
Mounting 35 mm DIN rail
Source LS Electric L-Series MCB & RCBO catalog (KO) C015X1-03, p. 5, 18-19
70210001 Poles: 1P | Rated current: 1 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210022 Poles: 1P | Rated current: 1 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210043 Poles: 1P | Rated current: 1 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210064 Poles: 1P | Rated current: 1 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210002 Poles: 1P | Rated current: 2 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210023 Poles: 1P | Rated current: 2 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210044 Poles: 1P | Rated current: 2 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210065 Poles: 1P | Rated current: 2 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210003 Poles: 1P | Rated current: 3 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210024 Poles: 1P | Rated current: 3 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210045 Poles: 1P | Rated current: 3 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210066 Poles: 1P | Rated current: 3 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210004 Poles: 1P | Rated current: 4 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210025 Poles: 1P | Rated current: 4 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210046 Poles: 1P | Rated current: 4 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210067 Poles: 1P | Rated current: 4 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210005 Poles: 1P | Rated current: 5 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210026 Poles: 1P | Rated current: 5 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210047 Poles: 1P | Rated current: 5 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210068 Poles: 1P | Rated current: 5 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210006 Poles: 1P | Rated current: 6 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210027 Poles: 1P | Rated current: 6 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210048 Poles: 1P | Rated current: 6 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210069 Poles: 1P | Rated current: 6 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210007 Poles: 1P | Rated current: 7 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210028 Poles: 1P | Rated current: 7 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210049 Poles: 1P | Rated current: 7 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210070 Poles: 1P | Rated current: 7 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210008 Poles: 1P | Rated current: 8 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210029 Poles: 1P | Rated current: 8 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210050 Poles: 1P | Rated current: 8 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210071 Poles: 1P | Rated current: 8 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210009 Poles: 1P | Rated current: 10 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210030 Poles: 1P | Rated current: 10 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210051 Poles: 1P | Rated current: 10 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210072 Poles: 1P | Rated current: 10 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210010 Poles: 1P | Rated current: 13 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210031 Poles: 1P | Rated current: 13 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210052 Poles: 1P | Rated current: 13 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210073 Poles: 1P | Rated current: 13 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210011 Poles: 1P | Rated current: 15 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210032 Poles: 1P | Rated current: 15 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210053 Poles: 1P | Rated current: 15 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210074 Poles: 1P | Rated current: 15 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210012 Poles: 1P | Rated current: 16 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210033 Poles: 1P | Rated current: 16 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210054 Poles: 1P | Rated current: 16 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210075 Poles: 1P | Rated current: 16 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210013 Poles: 1P | Rated current: 20 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210034 Poles: 1P | Rated current: 20 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210055 Poles: 1P | Rated current: 20 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210076 Poles: 1P | Rated current: 20 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210014 Poles: 1P | Rated current: 25 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210035 Poles: 1P | Rated current: 25 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210056 Poles: 1P | Rated current: 25 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210077 Poles: 1P | Rated current: 25 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210015 Poles: 1P | Rated current: 30 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210036 Poles: 1P | Rated current: 30 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210057 Poles: 1P | Rated current: 30 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210078 Poles: 1P | Rated current: 30 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210016 Poles: 1P | Rated current: 32 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210037 Poles: 1P | Rated current: 32 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210058 Poles: 1P | Rated current: 32 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210079 Poles: 1P | Rated current: 32 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210017 Poles: 1P | Rated current: 35 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210038 Poles: 1P | Rated current: 35 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210059 Poles: 1P | Rated current: 35 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210080 Poles: 1P | Rated current: 35 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210018 Poles: 1P | Rated current: 40 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210039 Poles: 1P | Rated current: 40 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210060 Poles: 1P | Rated current: 40 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210081 Poles: 1P | Rated current: 40 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210019 Poles: 1P | Rated current: 50 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210040 Poles: 1P | Rated current: 50 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210061 Poles: 1P | Rated current: 50 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210082 Poles: 1P | Rated current: 50 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210020 Poles: 1P | Rated current: 60 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210041 Poles: 1P | Rated current: 60 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210062 Poles: 1P | Rated current: 60 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210083 Poles: 1P | Rated current: 60 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210021 Poles: 1P | Rated current: 63 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210042 Poles: 1P | Rated current: 63 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210063 Poles: 1P | Rated current: 63 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210084 Poles: 1P | Rated current: 63 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210085 Poles: 2P | Rated current: 1 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210106 Poles: 2P | Rated current: 1 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210127 Poles: 2P | Rated current: 1 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210148 Poles: 2P | Rated current: 1 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210086 Poles: 2P | Rated current: 2 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210107 Poles: 2P | Rated current: 2 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210128 Poles: 2P | Rated current: 2 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210149 Poles: 2P | Rated current: 2 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210087 Poles: 2P | Rated current: 3 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210108 Poles: 2P | Rated current: 3 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210129 Poles: 2P | Rated current: 3 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210150 Poles: 2P | Rated current: 3 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210088 Poles: 2P | Rated current: 4 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210109 Poles: 2P | Rated current: 4 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210130 Poles: 2P | Rated current: 4 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210151 Poles: 2P | Rated current: 4 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210089 Poles: 2P | Rated current: 5 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210110 Poles: 2P | Rated current: 5 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210131 Poles: 2P | Rated current: 5 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210152 Poles: 2P | Rated current: 5 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210090 Poles: 2P | Rated current: 6 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210111 Poles: 2P | Rated current: 6 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210132 Poles: 2P | Rated current: 6 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210153 Poles: 2P | Rated current: 6 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210091 Poles: 2P | Rated current: 7 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210112 Poles: 2P | Rated current: 7 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210133 Poles: 2P | Rated current: 7 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210154 Poles: 2P | Rated current: 7 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210092 Poles: 2P | Rated current: 8 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210113 Poles: 2P | Rated current: 8 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210134 Poles: 2P | Rated current: 8 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210155 Poles: 2P | Rated current: 8 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210093 Poles: 2P | Rated current: 10 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210114 Poles: 2P | Rated current: 10 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210135 Poles: 2P | Rated current: 10 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210156 Poles: 2P | Rated current: 10 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210094 Poles: 2P | Rated current: 13 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210115 Poles: 2P | Rated current: 13 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210136 Poles: 2P | Rated current: 13 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210157 Poles: 2P | Rated current: 13 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210095 Poles: 2P | Rated current: 15 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210116 Poles: 2P | Rated current: 15 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210137 Poles: 2P | Rated current: 15 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210158 Poles: 2P | Rated current: 15 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210096 Poles: 2P | Rated current: 16 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210117 Poles: 2P | Rated current: 16 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210138 Poles: 2P | Rated current: 16 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210159 Poles: 2P | Rated current: 16 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210097 Poles: 2P | Rated current: 20 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210118 Poles: 2P | Rated current: 20 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210139 Poles: 2P | Rated current: 20 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210160 Poles: 2P | Rated current: 20 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210098 Poles: 2P | Rated current: 25 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210119 Poles: 2P | Rated current: 25 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210140 Poles: 2P | Rated current: 25 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210161 Poles: 2P | Rated current: 25 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210099 Poles: 2P | Rated current: 30 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210120 Poles: 2P | Rated current: 30 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210141 Poles: 2P | Rated current: 30 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210162 Poles: 2P | Rated current: 30 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210100 Poles: 2P | Rated current: 32 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210121 Poles: 2P | Rated current: 32 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210142 Poles: 2P | Rated current: 32 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210163 Poles: 2P | Rated current: 32 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210101 Poles: 2P | Rated current: 35 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210122 Poles: 2P | Rated current: 35 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210143 Poles: 2P | Rated current: 35 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210164 Poles: 2P | Rated current: 35 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210102 Poles: 2P | Rated current: 40 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210123 Poles: 2P | Rated current: 40 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210144 Poles: 2P | Rated current: 40 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210165 Poles: 2P | Rated current: 40 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210103 Poles: 2P | Rated current: 50 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210124 Poles: 2P | Rated current: 50 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210145 Poles: 2P | Rated current: 50 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210166 Poles: 2P | Rated current: 50 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210104 Poles: 2P | Rated current: 60 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210125 Poles: 2P | Rated current: 60 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210146 Poles: 2P | Rated current: 60 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210167 Poles: 2P | Rated current: 60 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210105 Poles: 2P | Rated current: 63 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210126 Poles: 2P | Rated current: 63 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210147 Poles: 2P | Rated current: 63 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210168 Poles: 2P | Rated current: 63 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210169 Poles: 3P | Rated current: 1 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210190 Poles: 3P | Rated current: 1 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210211 Poles: 3P | Rated current: 1 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210232 Poles: 3P | Rated current: 1 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210170 Poles: 3P | Rated current: 2 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210191 Poles: 3P | Rated current: 2 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210212 Poles: 3P | Rated current: 2 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210233 Poles: 3P | Rated current: 2 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210171 Poles: 3P | Rated current: 3 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210192 Poles: 3P | Rated current: 3 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210213 Poles: 3P | Rated current: 3 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210234 Poles: 3P | Rated current: 3 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210172 Poles: 3P | Rated current: 4 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210193 Poles: 3P | Rated current: 4 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210214 Poles: 3P | Rated current: 4 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210235 Poles: 3P | Rated current: 4 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210173 Poles: 3P | Rated current: 5 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210194 Poles: 3P | Rated current: 5 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210215 Poles: 3P | Rated current: 5 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210236 Poles: 3P | Rated current: 5 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210174 Poles: 3P | Rated current: 6 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210195 Poles: 3P | Rated current: 6 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210216 Poles: 3P | Rated current: 6 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210237 Poles: 3P | Rated current: 6 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210175 Poles: 3P | Rated current: 7 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210196 Poles: 3P | Rated current: 7 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210217 Poles: 3P | Rated current: 7 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210238 Poles: 3P | Rated current: 7 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210176 Poles: 3P | Rated current: 8 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210197 Poles: 3P | Rated current: 8 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210218 Poles: 3P | Rated current: 8 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210239 Poles: 3P | Rated current: 8 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210177 Poles: 3P | Rated current: 10 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210198 Poles: 3P | Rated current: 10 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210219 Poles: 3P | Rated current: 10 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210240 Poles: 3P | Rated current: 10 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210178 Poles: 3P | Rated current: 13 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210199 Poles: 3P | Rated current: 13 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210220 Poles: 3P | Rated current: 13 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210241 Poles: 3P | Rated current: 13 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210179 Poles: 3P | Rated current: 15 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210200 Poles: 3P | Rated current: 15 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210221 Poles: 3P | Rated current: 15 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210242 Poles: 3P | Rated current: 15 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210180 Poles: 3P | Rated current: 16 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210201 Poles: 3P | Rated current: 16 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210222 Poles: 3P | Rated current: 16 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210243 Poles: 3P | Rated current: 16 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210181 Poles: 3P | Rated current: 20 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210202 Poles: 3P | Rated current: 20 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210223 Poles: 3P | Rated current: 20 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210244 Poles: 3P | Rated current: 20 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210182 Poles: 3P | Rated current: 25 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210203 Poles: 3P | Rated current: 25 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210224 Poles: 3P | Rated current: 25 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210245 Poles: 3P | Rated current: 25 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210183 Poles: 3P | Rated current: 30 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210204 Poles: 3P | Rated current: 30 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210225 Poles: 3P | Rated current: 30 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210246 Poles: 3P | Rated current: 30 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210184 Poles: 3P | Rated current: 32 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210205 Poles: 3P | Rated current: 32 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210226 Poles: 3P | Rated current: 32 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210247 Poles: 3P | Rated current: 32 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210185 Poles: 3P | Rated current: 35 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210206 Poles: 3P | Rated current: 35 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210227 Poles: 3P | Rated current: 35 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210248 Poles: 3P | Rated current: 35 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210186 Poles: 3P | Rated current: 40 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210207 Poles: 3P | Rated current: 40 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210228 Poles: 3P | Rated current: 40 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210249 Poles: 3P | Rated current: 40 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210187 Poles: 3P | Rated current: 50 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210208 Poles: 3P | Rated current: 50 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210229 Poles: 3P | Rated current: 50 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210250 Poles: 3P | Rated current: 50 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210188 Poles: 3P | Rated current: 60 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210209 Poles: 3P | Rated current: 60 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210230 Poles: 3P | Rated current: 60 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210251 Poles: 3P | Rated current: 60 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210189 Poles: 3P | Rated current: 63 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210210 Poles: 3P | Rated current: 63 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210231 Poles: 3P | Rated current: 63 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210252 Poles: 3P | Rated current: 63 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
Miniature Circuit BreakersLS Electric
252 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric L-Series LA63HU UL489 MCB (1-63A, 1-3P)

Brand LS Electric·Miniature Circuit Breakers

Available part numbers (252)

70210001, 70210022, 70210043, 70210064, 70210002, 70210023, 70210044, 70210065, 70210003, 70210024 + 242 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
70210001Poles: 1P | Rated current: 1 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210022Poles: 1P | Rated current: 1 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210043Poles: 1P | Rated current: 1 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210064Poles: 1P | Rated current: 1 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210002Poles: 1P | Rated current: 2 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210023Poles: 1P | Rated current: 2 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210044Poles: 1P | Rated current: 2 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210065Poles: 1P | Rated current: 2 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210003Poles: 1P | Rated current: 3 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210024Poles: 1P | Rated current: 3 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210045Poles: 1P | Rated current: 3 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210066Poles: 1P | Rated current: 3 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210004Poles: 1P | Rated current: 4 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210025Poles: 1P | Rated current: 4 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210046Poles: 1P | Rated current: 4 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210067Poles: 1P | Rated current: 4 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210005Poles: 1P | Rated current: 5 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210026Poles: 1P | Rated current: 5 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210047Poles: 1P | Rated current: 5 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210068Poles: 1P | Rated current: 5 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210006Poles: 1P | Rated current: 6 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210027Poles: 1P | Rated current: 6 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210048Poles: 1P | Rated current: 6 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210069Poles: 1P | Rated current: 6 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210007Poles: 1P | Rated current: 7 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210028Poles: 1P | Rated current: 7 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210049Poles: 1P | Rated current: 7 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210070Poles: 1P | Rated current: 7 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210008Poles: 1P | Rated current: 8 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210029Poles: 1P | Rated current: 8 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210050Poles: 1P | Rated current: 8 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210071Poles: 1P | Rated current: 8 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210009Poles: 1P | Rated current: 10 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210030Poles: 1P | Rated current: 10 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210051Poles: 1P | Rated current: 10 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210072Poles: 1P | Rated current: 10 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210010Poles: 1P | Rated current: 13 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210031Poles: 1P | Rated current: 13 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210052Poles: 1P | Rated current: 13 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210073Poles: 1P | Rated current: 13 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210011Poles: 1P | Rated current: 15 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210032Poles: 1P | Rated current: 15 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210053Poles: 1P | Rated current: 15 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210074Poles: 1P | Rated current: 15 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210012Poles: 1P | Rated current: 16 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210033Poles: 1P | Rated current: 16 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210054Poles: 1P | Rated current: 16 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210075Poles: 1P | Rated current: 16 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210013Poles: 1P | Rated current: 20 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210034Poles: 1P | Rated current: 20 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210055Poles: 1P | Rated current: 20 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210076Poles: 1P | Rated current: 20 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210014Poles: 1P | Rated current: 25 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210035Poles: 1P | Rated current: 25 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210056Poles: 1P | Rated current: 25 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210077Poles: 1P | Rated current: 25 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210015Poles: 1P | Rated current: 30 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210036Poles: 1P | Rated current: 30 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210057Poles: 1P | Rated current: 30 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210078Poles: 1P | Rated current: 30 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210016Poles: 1P | Rated current: 32 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210037Poles: 1P | Rated current: 32 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210058Poles: 1P | Rated current: 32 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210079Poles: 1P | Rated current: 32 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V, 14kA 277V
70210017Poles: 1P | Rated current: 35 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210038Poles: 1P | Rated current: 35 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210059Poles: 1P | Rated current: 35 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210080Poles: 1P | Rated current: 35 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210018Poles: 1P | Rated current: 40 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210039Poles: 1P | Rated current: 40 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210060Poles: 1P | Rated current: 40 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210081Poles: 1P | Rated current: 40 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210019Poles: 1P | Rated current: 50 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210040Poles: 1P | Rated current: 50 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210061Poles: 1P | Rated current: 50 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210082Poles: 1P | Rated current: 50 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210020Poles: 1P | Rated current: 60 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210041Poles: 1P | Rated current: 60 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210062Poles: 1P | Rated current: 60 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210083Poles: 1P | Rated current: 60 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210021Poles: 1P | Rated current: 63 A | Trip curve: B | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210042Poles: 1P | Rated current: 63 A | Trip curve: C | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210063Poles: 1P | Rated current: 63 A | Trip curve: D | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210084Poles: 1P | Rated current: 63 A | Trip curve: K | Rated voltage: 120/240V AC, 277V AC, 65V DC | Breaking capacity (UL): 10kA 120/240V
70210085Poles: 2P | Rated current: 1 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210106Poles: 2P | Rated current: 1 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210127Poles: 2P | Rated current: 1 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210148Poles: 2P | Rated current: 1 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210086Poles: 2P | Rated current: 2 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210107Poles: 2P | Rated current: 2 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210128Poles: 2P | Rated current: 2 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210149Poles: 2P | Rated current: 2 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210087Poles: 2P | Rated current: 3 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210108Poles: 2P | Rated current: 3 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210129Poles: 2P | Rated current: 3 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210150Poles: 2P | Rated current: 3 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210088Poles: 2P | Rated current: 4 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210109Poles: 2P | Rated current: 4 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210130Poles: 2P | Rated current: 4 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210151Poles: 2P | Rated current: 4 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210089Poles: 2P | Rated current: 5 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210110Poles: 2P | Rated current: 5 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210131Poles: 2P | Rated current: 5 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210152Poles: 2P | Rated current: 5 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210090Poles: 2P | Rated current: 6 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210111Poles: 2P | Rated current: 6 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210132Poles: 2P | Rated current: 6 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210153Poles: 2P | Rated current: 6 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210091Poles: 2P | Rated current: 7 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210112Poles: 2P | Rated current: 7 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210133Poles: 2P | Rated current: 7 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210154Poles: 2P | Rated current: 7 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210092Poles: 2P | Rated current: 8 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210113Poles: 2P | Rated current: 8 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210134Poles: 2P | Rated current: 8 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210155Poles: 2P | Rated current: 8 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210093Poles: 2P | Rated current: 10 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210114Poles: 2P | Rated current: 10 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210135Poles: 2P | Rated current: 10 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210156Poles: 2P | Rated current: 10 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210094Poles: 2P | Rated current: 13 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210115Poles: 2P | Rated current: 13 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210136Poles: 2P | Rated current: 13 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210157Poles: 2P | Rated current: 13 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210095Poles: 2P | Rated current: 15 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210116Poles: 2P | Rated current: 15 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210137Poles: 2P | Rated current: 15 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210158Poles: 2P | Rated current: 15 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210096Poles: 2P | Rated current: 16 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210117Poles: 2P | Rated current: 16 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210138Poles: 2P | Rated current: 16 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210159Poles: 2P | Rated current: 16 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210097Poles: 2P | Rated current: 20 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210118Poles: 2P | Rated current: 20 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210139Poles: 2P | Rated current: 20 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210160Poles: 2P | Rated current: 20 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210098Poles: 2P | Rated current: 25 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210119Poles: 2P | Rated current: 25 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210140Poles: 2P | Rated current: 25 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210161Poles: 2P | Rated current: 25 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210099Poles: 2P | Rated current: 30 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210120Poles: 2P | Rated current: 30 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210141Poles: 2P | Rated current: 30 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210162Poles: 2P | Rated current: 30 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210100Poles: 2P | Rated current: 32 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210121Poles: 2P | Rated current: 32 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210142Poles: 2P | Rated current: 32 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210163Poles: 2P | Rated current: 32 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210101Poles: 2P | Rated current: 35 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210122Poles: 2P | Rated current: 35 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210143Poles: 2P | Rated current: 35 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210164Poles: 2P | Rated current: 35 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210102Poles: 2P | Rated current: 40 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210123Poles: 2P | Rated current: 40 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210144Poles: 2P | Rated current: 40 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210165Poles: 2P | Rated current: 40 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210103Poles: 2P | Rated current: 50 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210124Poles: 2P | Rated current: 50 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210145Poles: 2P | Rated current: 50 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210166Poles: 2P | Rated current: 50 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210104Poles: 2P | Rated current: 60 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210125Poles: 2P | Rated current: 60 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210146Poles: 2P | Rated current: 60 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210167Poles: 2P | Rated current: 60 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210105Poles: 2P | Rated current: 63 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210126Poles: 2P | Rated current: 63 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210147Poles: 2P | Rated current: 63 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210168Poles: 2P | Rated current: 63 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210169Poles: 3P | Rated current: 1 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210190Poles: 3P | Rated current: 1 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210211Poles: 3P | Rated current: 1 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210232Poles: 3P | Rated current: 1 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210170Poles: 3P | Rated current: 2 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210191Poles: 3P | Rated current: 2 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210212Poles: 3P | Rated current: 2 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210233Poles: 3P | Rated current: 2 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210171Poles: 3P | Rated current: 3 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210192Poles: 3P | Rated current: 3 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210213Poles: 3P | Rated current: 3 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210234Poles: 3P | Rated current: 3 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210172Poles: 3P | Rated current: 4 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210193Poles: 3P | Rated current: 4 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210214Poles: 3P | Rated current: 4 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210235Poles: 3P | Rated current: 4 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210173Poles: 3P | Rated current: 5 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210194Poles: 3P | Rated current: 5 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210215Poles: 3P | Rated current: 5 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210236Poles: 3P | Rated current: 5 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210174Poles: 3P | Rated current: 6 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210195Poles: 3P | Rated current: 6 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210216Poles: 3P | Rated current: 6 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210237Poles: 3P | Rated current: 6 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210175Poles: 3P | Rated current: 7 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210196Poles: 3P | Rated current: 7 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210217Poles: 3P | Rated current: 7 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210238Poles: 3P | Rated current: 7 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210176Poles: 3P | Rated current: 8 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210197Poles: 3P | Rated current: 8 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210218Poles: 3P | Rated current: 8 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210239Poles: 3P | Rated current: 8 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210177Poles: 3P | Rated current: 10 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210198Poles: 3P | Rated current: 10 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210219Poles: 3P | Rated current: 10 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210240Poles: 3P | Rated current: 10 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210178Poles: 3P | Rated current: 13 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210199Poles: 3P | Rated current: 13 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210220Poles: 3P | Rated current: 13 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210241Poles: 3P | Rated current: 13 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210179Poles: 3P | Rated current: 15 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210200Poles: 3P | Rated current: 15 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210221Poles: 3P | Rated current: 15 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210242Poles: 3P | Rated current: 15 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210180Poles: 3P | Rated current: 16 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210201Poles: 3P | Rated current: 16 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210222Poles: 3P | Rated current: 16 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210243Poles: 3P | Rated current: 16 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210181Poles: 3P | Rated current: 20 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210202Poles: 3P | Rated current: 20 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210223Poles: 3P | Rated current: 20 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210244Poles: 3P | Rated current: 20 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210182Poles: 3P | Rated current: 25 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210203Poles: 3P | Rated current: 25 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210224Poles: 3P | Rated current: 25 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210245Poles: 3P | Rated current: 25 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210183Poles: 3P | Rated current: 30 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210204Poles: 3P | Rated current: 30 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210225Poles: 3P | Rated current: 30 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210246Poles: 3P | Rated current: 30 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210184Poles: 3P | Rated current: 32 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210205Poles: 3P | Rated current: 32 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210226Poles: 3P | Rated current: 32 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210247Poles: 3P | Rated current: 32 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V, 14kA 480Y/277V
70210185Poles: 3P | Rated current: 35 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210206Poles: 3P | Rated current: 35 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210227Poles: 3P | Rated current: 35 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210248Poles: 3P | Rated current: 35 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210186Poles: 3P | Rated current: 40 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210207Poles: 3P | Rated current: 40 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210228Poles: 3P | Rated current: 40 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210249Poles: 3P | Rated current: 40 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210187Poles: 3P | Rated current: 50 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210208Poles: 3P | Rated current: 50 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210229Poles: 3P | Rated current: 50 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210250Poles: 3P | Rated current: 50 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210188Poles: 3P | Rated current: 60 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210209Poles: 3P | Rated current: 60 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210230Poles: 3P | Rated current: 60 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210251Poles: 3P | Rated current: 60 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210189Poles: 3P | Rated current: 63 A | Trip curve: B | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210210Poles: 3P | Rated current: 63 A | Trip curve: C | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210231Poles: 3P | Rated current: 63 A | Trip curve: D | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V
70210252Poles: 3P | Rated current: 63 A | Trip curve: K | Rated voltage: 240V AC, 480Y/277V AC, 125V DC | Breaking capacity (UL): 10kA 240V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Circuit Breakers & Contactors →
