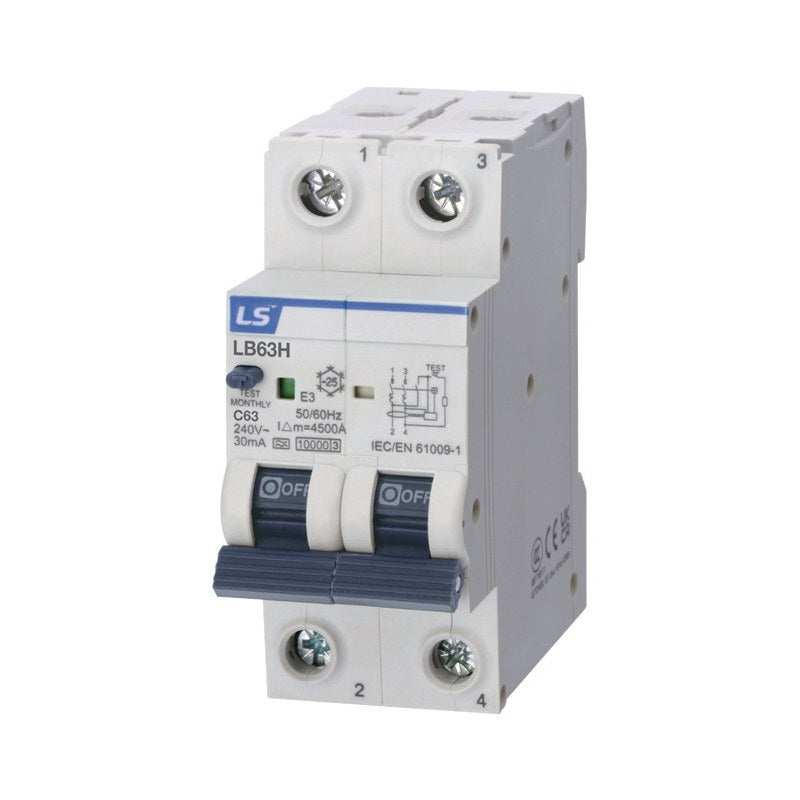

LS Electric L-Series LB40/LB63 RCBO (6-63A, 1P+N to 4P)

LS Electric L-Series LB40/LB63 RCBO (6-63A, 1P+N to 4P)

LS Electric L-Series LB RCBOs (residual current breakers with overcurrent protection): LB40NN 18 mm 1P+N, LB40NB type B, LB63H 2P and LB63H4 4P, 6-63 A.

Key features

  • LB40NN: 1P+N in an 18 mm module, 6 kA, 10/30 mA, type AC or A, B/C curve
  • LB40NB: type B residual current protection, 1P+N and 3P+N, 30 mA, accepts AX/AL/SHT/UVT-OVT accessories
  • LB63H (2P, 240 V) and LB63H4 (4P, 415 V): 10 kA, 30/100/300 mA, type AC or A, B/C/D curves
  • Tripping time <= 0.03 s at 30 mA (<= 0.1 s at 100/300 mA)
  • KC 61009-1 and CB (IEC 61009-1) certified; CE, UKCA, CCC

Specifications

Standard IEC/KC 61009-1
Rated insulation voltage (Ui) 500 V
Rated impulse voltage (Uimp) 4 kV
Frequency 50/60 Hz
Trip type Electronic (LB40NB: magnetic)
Durability Electrical 4,000 / mechanical 10,000 ops
Protection IP20
Ambient temperature -25 to +60 C
Terminal Lug, max. 16 mm2 (LB40) / 25 mm2 (LB63)
Mounting 35 mm DIN rail
Source LS Electric L-Series MCB & RCBO catalog (KO) C015X1-03, p. 4-5, 20-27
90850001 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 6 A | Trip curve: B | Residual type: AC | Sensitivity: 10 mA
90850009 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 6 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90850002 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 10 A | Trip curve: B | Residual type: AC | Sensitivity: 10 mA
90850010 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 10 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90850003 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 13 A | Trip curve: B | Residual type: AC | Sensitivity: 10 mA
90850011 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 13 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90850004 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 16 A | Trip curve: B | Residual type: AC | Sensitivity: 10 mA
90850012 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 16 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90850005 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 20 A | Trip curve: B | Residual type: AC | Sensitivity: 10 mA
90850013 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 20 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90850006 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 25 A | Trip curve: B | Residual type: AC | Sensitivity: 10 mA
90850014 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 25 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90850007 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 32 A | Trip curve: B | Residual type: AC | Sensitivity: 10 mA
90850015 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 32 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90850008 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 40 A | Trip curve: B | Residual type: AC | Sensitivity: 10 mA
90850016 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 40 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90850033 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 6 A | Trip curve: B | Residual type: A | Sensitivity: 10 mA
90850041 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 6 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90850034 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 10 A | Trip curve: B | Residual type: A | Sensitivity: 10 mA
90850042 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 10 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90850035 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 13 A | Trip curve: B | Residual type: A | Sensitivity: 10 mA
90850043 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 13 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90850036 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 16 A | Trip curve: B | Residual type: A | Sensitivity: 10 mA
90850044 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 16 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90850037 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 20 A | Trip curve: B | Residual type: A | Sensitivity: 10 mA
90850045 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 20 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90850038 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 25 A | Trip curve: B | Residual type: A | Sensitivity: 10 mA
90850046 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 25 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90850039 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 32 A | Trip curve: B | Residual type: A | Sensitivity: 10 mA
90850047 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 32 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90850040 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 40 A | Trip curve: B | Residual type: A | Sensitivity: 10 mA
90850048 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 40 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90850065 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 6 A | Trip curve: C | Residual type: AC | Sensitivity: 10 mA
90850073 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 6 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90850066 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 10 A | Trip curve: C | Residual type: AC | Sensitivity: 10 mA
90850074 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 10 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90850067 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 13 A | Trip curve: C | Residual type: AC | Sensitivity: 10 mA
90850075 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 13 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90850068 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 16 A | Trip curve: C | Residual type: AC | Sensitivity: 10 mA
90850076 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 16 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90850069 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 20 A | Trip curve: C | Residual type: AC | Sensitivity: 10 mA
90850077 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 20 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90850070 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 25 A | Trip curve: C | Residual type: AC | Sensitivity: 10 mA
90850078 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 25 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90850071 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 32 A | Trip curve: C | Residual type: AC | Sensitivity: 10 mA
90850079 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 32 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90850072 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 40 A | Trip curve: C | Residual type: AC | Sensitivity: 10 mA
90850080 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 40 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90850097 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 6 A | Trip curve: C | Residual type: A | Sensitivity: 10 mA
90850105 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 6 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90850098 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 10 A | Trip curve: C | Residual type: A | Sensitivity: 10 mA
90850106 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 10 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90850099 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 13 A | Trip curve: C | Residual type: A | Sensitivity: 10 mA
90850107 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 13 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90850100 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 16 A | Trip curve: C | Residual type: A | Sensitivity: 10 mA
90850108 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 16 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90850101 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 20 A | Trip curve: C | Residual type: A | Sensitivity: 10 mA
90850109 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 20 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90850102 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 25 A | Trip curve: C | Residual type: A | Sensitivity: 10 mA
90850110 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 25 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90850103 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 32 A | Trip curve: C | Residual type: A | Sensitivity: 10 mA
90850111 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 32 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90850104 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 40 A | Trip curve: C | Residual type: A | Sensitivity: 10 mA
90850112 Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 40 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90870001 Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 6 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870002 Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 10 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870003 Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 13 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870004 Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 16 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870005 Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 20 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870006 Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 25 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870007 Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 32 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870008 Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 40 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870025 Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 6 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870026 Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 10 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870027 Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 13 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870028 Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 16 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870029 Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 20 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870030 Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 25 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870031 Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 32 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870032 Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 40 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870049 Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 6 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870050 Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 10 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870051 Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 13 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870052 Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 16 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870053 Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 20 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870054 Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 25 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870055 Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 32 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870056 Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 40 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870073 Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 6 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870074 Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 10 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870075 Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 13 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870076 Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 16 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870077 Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 20 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870078 Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 25 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870079 Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 32 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870080 Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 40 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870097 Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 6 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870098 Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 10 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870099 Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 13 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870100 Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 16 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870101 Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 20 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870102 Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 25 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870103 Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 32 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870104 Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 40 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870121 Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 6 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870122 Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 10 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870123 Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 13 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870124 Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 16 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870125 Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 20 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870126 Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 25 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870127 Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 32 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870128 Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 40 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90910001 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90910021 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90910031 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90910002 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90910022 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90910032 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90910003 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90910023 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90910033 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90910004 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90910024 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90910034 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90910005 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90910025 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90910035 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90910006 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90910026 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90910036 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90910007 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90910027 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90910037 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90910008 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90910028 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90910038 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90910009 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90910029 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90910039 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90910010 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90910030 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90910040 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90910041 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90910061 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90910071 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90910042 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90910062 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90910072 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90910043 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90910063 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90910073 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90910044 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90910064 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90910074 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90910045 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90910065 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90910075 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90910046 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90910066 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90910076 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90910047 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90910067 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90910077 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90910048 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90910068 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90910078 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90910049 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90910069 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90910079 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90910050 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90910070 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90910080 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90910081 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90910101 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90910111 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90910082 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90910102 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90910112 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90910083 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90910103 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90910113 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90910084 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90910104 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90910114 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90910085 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90910105 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90910115 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90910086 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90910106 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90910116 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90910087 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90910107 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90910117 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90910088 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90910108 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90910118 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90910089 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90910109 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90910119 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90910090 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90910110 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90910120 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90910121 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90910141 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90910151 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90910122 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90910142 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90910152 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90910123 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90910143 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90910153 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90910124 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90910144 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90910154 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90910125 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90910145 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90910155 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90910126 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90910146 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90910156 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90910127 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90910147 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90910157 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90910128 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90910148 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90910158 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90910129 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90910149 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90910159 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90910130 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90910150 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90910160 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90910161 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90910181 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90910191 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90910162 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90910182 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90910192 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90910163 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90910183 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90910193 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90910164 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90910184 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90910194 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90910165 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90910185 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90910195 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90910166 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90910186 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90910196 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90910167 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90910187 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90910197 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90910168 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90910188 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90910198 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90910169 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90910189 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90910199 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90910170 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90910190 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90910200 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90910201 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90910221 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90910231 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90910202 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90910222 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90910232 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90910203 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90910223 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90910233 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90910204 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90910224 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90910234 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90910205 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90910225 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90910235 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90910206 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90910226 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90910236 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90910207 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90910227 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90910237 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90910208 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90910228 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90910238 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90910209 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90910229 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90910239 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90910210 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90910230 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90910240 Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90920001 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90920021 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90920031 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90920002 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90920022 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90920032 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90920003 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90920023 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90920033 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90920004 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90920024 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90920034 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90920005 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90920025 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90920035 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90920006 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90920026 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90920036 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90920007 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90920027 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90920037 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90920008 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90920028 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90920038 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90920009 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90920029 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90920039 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90920010 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90920030 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90920040 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90920041 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90920061 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90920071 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90920042 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90920062 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90920072 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90920043 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90920063 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90920073 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90920044 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90920064 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90920074 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90920045 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90920065 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90920075 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90920046 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90920066 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90920076 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90920047 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90920067 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90920077 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90920048 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90920068 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90920078 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90920049 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90920069 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90920079 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90920050 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90920070 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90920080 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90920081 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90920101 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90920111 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90920082 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90920102 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90920112 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90920083 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90920103 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90920113 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90920084 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90920104 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90920114 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90920085 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90920105 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90920115 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90920086 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90920106 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90920116 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90920087 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90920107 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90920117 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90920088 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90920108 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90920118 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90920089 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90920109 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90920119 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90920090 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90920110 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90920120 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90920121 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90920141 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90920151 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90920122 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90920142 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90920152 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90920123 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90920143 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90920153 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90920124 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90920144 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90920154 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90920125 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90920145 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90920155 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90920126 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90920146 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90920156 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90920127 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90920147 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90920157 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90920128 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90920148 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90920158 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90920129 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90920149 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90920159 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90920130 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90920150 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90920160 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90920161 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90920181 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90920191 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90920162 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90920182 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90920192 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90920163 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90920183 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90920193 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90920164 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90920184 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90920194 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90920165 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90920185 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90920195 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90920166 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90920186 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90920196 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90920167 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90920187 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90920197 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90920168 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90920188 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90920198 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90920169 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90920189 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90920199 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90920170 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90920190 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90920200 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90920201 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90920221 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90920231 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90920202 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90920222 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90920232 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90920203 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90920223 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90920233 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90920204 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90920224 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90920234 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90920205 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90920225 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90920235 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90920206 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90920226 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90920236 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90920207 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90920227 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90920237 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90920208 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90920228 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90920238 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90920209 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90920229 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90920239 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90920210 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90920230 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90920240 Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
Earth Leakage Circuit BreakersLS Electric
472 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric L-Series LB40/LB63 RCBO (6-63A, 1P+N to 4P)

Brand LS Electric·Earth Leakage Circuit Breakers

Available part numbers (472)

90850001, 90850009, 90850002, 90850010, 90850003, 90850011, 90850004, 90850012, 90850005, 90850013 + 462 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
90850001Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 6 A | Trip curve: B | Residual type: AC | Sensitivity: 10 mA
90850009Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 6 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90850002Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 10 A | Trip curve: B | Residual type: AC | Sensitivity: 10 mA
90850010Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 10 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90850003Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 13 A | Trip curve: B | Residual type: AC | Sensitivity: 10 mA
90850011Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 13 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90850004Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 16 A | Trip curve: B | Residual type: AC | Sensitivity: 10 mA
90850012Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 16 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90850005Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 20 A | Trip curve: B | Residual type: AC | Sensitivity: 10 mA
90850013Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 20 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90850006Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 25 A | Trip curve: B | Residual type: AC | Sensitivity: 10 mA
90850014Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 25 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90850007Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 32 A | Trip curve: B | Residual type: AC | Sensitivity: 10 mA
90850015Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 32 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90850008Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 40 A | Trip curve: B | Residual type: AC | Sensitivity: 10 mA
90850016Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 40 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90850033Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 6 A | Trip curve: B | Residual type: A | Sensitivity: 10 mA
90850041Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 6 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90850034Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 10 A | Trip curve: B | Residual type: A | Sensitivity: 10 mA
90850042Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 10 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90850035Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 13 A | Trip curve: B | Residual type: A | Sensitivity: 10 mA
90850043Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 13 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90850036Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 16 A | Trip curve: B | Residual type: A | Sensitivity: 10 mA
90850044Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 16 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90850037Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 20 A | Trip curve: B | Residual type: A | Sensitivity: 10 mA
90850045Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 20 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90850038Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 25 A | Trip curve: B | Residual type: A | Sensitivity: 10 mA
90850046Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 25 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90850039Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 32 A | Trip curve: B | Residual type: A | Sensitivity: 10 mA
90850047Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 32 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90850040Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 40 A | Trip curve: B | Residual type: A | Sensitivity: 10 mA
90850048Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 40 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90850065Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 6 A | Trip curve: C | Residual type: AC | Sensitivity: 10 mA
90850073Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 6 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90850066Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 10 A | Trip curve: C | Residual type: AC | Sensitivity: 10 mA
90850074Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 10 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90850067Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 13 A | Trip curve: C | Residual type: AC | Sensitivity: 10 mA
90850075Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 13 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90850068Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 16 A | Trip curve: C | Residual type: AC | Sensitivity: 10 mA
90850076Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 16 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90850069Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 20 A | Trip curve: C | Residual type: AC | Sensitivity: 10 mA
90850077Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 20 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90850070Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 25 A | Trip curve: C | Residual type: AC | Sensitivity: 10 mA
90850078Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 25 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90850071Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 32 A | Trip curve: C | Residual type: AC | Sensitivity: 10 mA
90850079Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 32 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90850072Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 40 A | Trip curve: C | Residual type: AC | Sensitivity: 10 mA
90850080Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 40 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90850097Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 6 A | Trip curve: C | Residual type: A | Sensitivity: 10 mA
90850105Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 6 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90850098Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 10 A | Trip curve: C | Residual type: A | Sensitivity: 10 mA
90850106Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 10 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90850099Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 13 A | Trip curve: C | Residual type: A | Sensitivity: 10 mA
90850107Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 13 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90850100Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 16 A | Trip curve: C | Residual type: A | Sensitivity: 10 mA
90850108Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 16 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90850101Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 20 A | Trip curve: C | Residual type: A | Sensitivity: 10 mA
90850109Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 20 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90850102Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 25 A | Trip curve: C | Residual type: A | Sensitivity: 10 mA
90850110Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 25 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90850103Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 32 A | Trip curve: C | Residual type: A | Sensitivity: 10 mA
90850111Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 32 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90850104Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 40 A | Trip curve: C | Residual type: A | Sensitivity: 10 mA
90850112Model: LB40NN (240V AC, 6 kA) | Poles: 1P+N | Rated current: 40 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90870001Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 6 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870002Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 10 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870003Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 13 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870004Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 16 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870005Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 20 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870006Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 25 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870007Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 32 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870008Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 40 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870025Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 6 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870026Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 10 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870027Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 13 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870028Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 16 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870029Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 20 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870030Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 25 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870031Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 32 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870032Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 40 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870049Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 6 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870050Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 10 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870051Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 13 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870052Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 16 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870053Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 20 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870054Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 25 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870055Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 32 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870056Model: LB40NB (240/415V AC, 6 kA) | Poles: 1P+N | Rated current: 40 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870073Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 6 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870074Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 10 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870075Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 13 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870076Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 16 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870077Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 20 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870078Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 25 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870079Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 32 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870080Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 40 A | Trip curve: B | Residual type: B | Sensitivity: 30 mA
90870097Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 6 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870098Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 10 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870099Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 13 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870100Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 16 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870101Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 20 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870102Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 25 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870103Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 32 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870104Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 40 A | Trip curve: C | Residual type: B | Sensitivity: 30 mA
90870121Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 6 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870122Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 10 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870123Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 13 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870124Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 16 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870125Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 20 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870126Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 25 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870127Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 32 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90870128Model: LB40NB (240/415V AC, 6 kA) | Poles: 3P+N | Rated current: 40 A | Trip curve: D | Residual type: B | Sensitivity: 30 mA
90910001Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90910021Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90910031Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90910002Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90910022Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90910032Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90910003Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90910023Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90910033Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90910004Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90910024Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90910034Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90910005Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90910025Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90910035Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90910006Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90910026Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90910036Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90910007Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90910027Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90910037Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90910008Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90910028Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90910038Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90910009Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90910029Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90910039Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90910010Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90910030Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90910040Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90910041Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90910061Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90910071Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90910042Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90910062Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90910072Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90910043Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90910063Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90910073Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90910044Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90910064Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90910074Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90910045Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90910065Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90910075Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90910046Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90910066Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90910076Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90910047Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90910067Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90910077Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90910048Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90910068Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90910078Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90910049Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90910069Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90910079Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90910050Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90910070Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90910080Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90910081Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90910101Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90910111Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90910082Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90910102Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90910112Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90910083Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90910103Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90910113Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90910084Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90910104Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90910114Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90910085Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90910105Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90910115Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90910086Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90910106Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90910116Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90910087Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90910107Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90910117Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90910088Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90910108Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90910118Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90910089Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90910109Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90910119Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90910090Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90910110Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90910120Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90910121Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90910141Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90910151Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90910122Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90910142Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90910152Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90910123Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90910143Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90910153Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90910124Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90910144Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90910154Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90910125Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90910145Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90910155Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90910126Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90910146Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90910156Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90910127Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90910147Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90910157Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90910128Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90910148Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90910158Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90910129Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90910149Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90910159Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90910130Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90910150Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90910160Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90910161Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90910181Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90910191Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90910162Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90910182Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90910192Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90910163Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90910183Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90910193Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90910164Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90910184Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90910194Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90910165Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90910185Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90910195Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90910166Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90910186Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90910196Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90910167Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90910187Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90910197Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90910168Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90910188Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90910198Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90910169Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90910189Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90910199Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90910170Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90910190Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90910200Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90910201Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90910221Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90910231Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 6 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90910202Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90910222Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90910232Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 10 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90910203Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90910223Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90910233Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 13 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90910204Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90910224Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90910234Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 16 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90910205Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90910225Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90910235Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 20 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90910206Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90910226Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90910236Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 25 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90910207Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90910227Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90910237Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 32 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90910208Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90910228Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90910238Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 40 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90910209Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90910229Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90910239Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 50 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90910210Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90910230Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90910240Model: LB63H (240V AC, 10 kA) | Poles: 2P | Rated current: 63 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90920001Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90920021Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90920031Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90920002Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90920022Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90920032Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90920003Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90920023Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90920033Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90920004Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90920024Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90920034Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90920005Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90920025Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90920035Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90920006Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90920026Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90920036Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90920007Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90920027Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90920037Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90920008Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90920028Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90920038Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90920009Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90920029Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90920039Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90920010Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: B | Residual type: AC | Sensitivity: 30 mA
90920030Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: B | Residual type: AC | Sensitivity: 100 mA
90920040Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: B | Residual type: AC | Sensitivity: 300 mA
90920041Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90920061Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90920071Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90920042Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90920062Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90920072Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90920043Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90920063Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90920073Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90920044Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90920064Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90920074Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90920045Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90920065Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90920075Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90920046Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90920066Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90920076Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90920047Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90920067Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90920077Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90920048Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90920068Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90920078Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90920049Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90920069Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90920079Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90920050Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: B | Residual type: A | Sensitivity: 30 mA
90920070Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: B | Residual type: A | Sensitivity: 100 mA
90920080Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: B | Residual type: A | Sensitivity: 300 mA
90920081Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90920101Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90920111Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90920082Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90920102Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90920112Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90920083Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90920103Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90920113Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90920084Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90920104Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90920114Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90920085Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90920105Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90920115Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90920086Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90920106Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90920116Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90920087Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90920107Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90920117Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90920088Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90920108Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90920118Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90920089Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90920109Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90920119Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90920090Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: C | Residual type: AC | Sensitivity: 30 mA
90920110Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: C | Residual type: AC | Sensitivity: 100 mA
90920120Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: C | Residual type: AC | Sensitivity: 300 mA
90920121Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90920141Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90920151Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90920122Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90920142Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90920152Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90920123Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90920143Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90920153Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90920124Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90920144Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90920154Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90920125Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90920145Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90920155Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90920126Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90920146Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90920156Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90920127Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90920147Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90920157Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90920128Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90920148Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90920158Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90920129Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90920149Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90920159Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90920130Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: C | Residual type: A | Sensitivity: 30 mA
90920150Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: C | Residual type: A | Sensitivity: 100 mA
90920160Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: C | Residual type: A | Sensitivity: 300 mA
90920161Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90920181Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90920191Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90920162Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90920182Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90920192Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90920163Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90920183Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90920193Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90920164Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90920184Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90920194Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90920165Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90920185Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90920195Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90920166Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90920186Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90920196Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90920167Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90920187Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90920197Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90920168Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90920188Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90920198Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90920169Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90920189Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90920199Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90920170Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: D | Residual type: AC | Sensitivity: 30 mA
90920190Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: D | Residual type: AC | Sensitivity: 100 mA
90920200Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: D | Residual type: AC | Sensitivity: 300 mA
90920201Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90920221Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90920231Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 6 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90920202Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90920222Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90920232Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 10 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90920203Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90920223Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90920233Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 13 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90920204Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90920224Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90920234Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 16 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90920205Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90920225Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90920235Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 20 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90920206Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90920226Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90920236Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 25 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90920207Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90920227Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90920237Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 32 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90920208Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90920228Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90920238Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 40 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90920209Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90920229Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90920239Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 50 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA
90920210Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: D | Residual type: A | Sensitivity: 30 mA
90920230Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: D | Residual type: A | Sensitivity: 100 mA
90920240Model: LB63H4 (415V AC, 10 kA) | Poles: 4P | Rated current: 63 A | Trip curve: D | Residual type: A | Sensitivity: 300 mA

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Circuit Breakers & Contactors →
