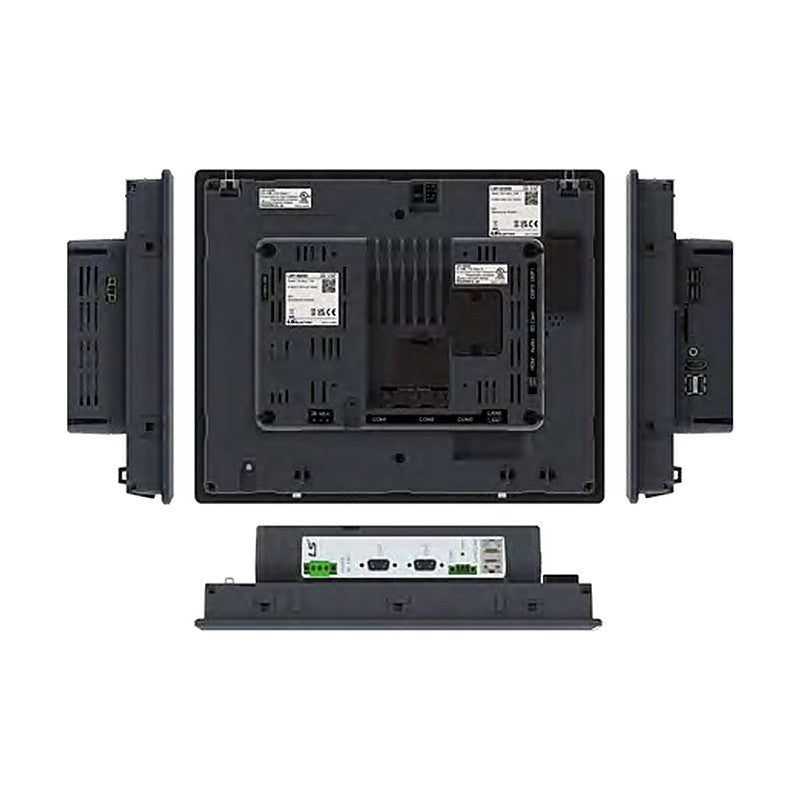

LS Electric LXP Limitless XGT Panel HMI Display and Main Units

LS Electric LXP Limitless XGT Panel HMI Display and Main Units

LS Electric LXP Limitless XGT Panel modular HMI system of 12.1-inch and 19-inch capacitive display units and DC 24 V main units with runtime, combined directly or separated via XP-VLink.

Key features

  • Display unit and main unit can be joined or installed apart over the XP-VLink extension cable
  • Capacitive multi-touch with bare hand, glove and waterproof modes, 10-step sensitivity per mode
  • 12.1 in units offer optional built-in 720p/30 fps camera; 90 dB buzzer with 9 levels
  • Main unit: 1.6 GHz quad-core, 2x gigabit Ethernet, 3 serial ports, HDMI 2.0, USB 3.0 x2, SD up to 256 GB
  • -EX explosion-proof versions: Ex nA nC IIC T6 Gc, Ex tc IIIC T85 C Dc, IECEx, ATEX, CCC, KCs
  • Panel or VESA mounting; main unit DIN-rail or VESA mounting

Specifications

Display TFT color LCD, 16.7M colors
Resolution 12.1 in 1024x768; 19 in 1280x1024
Touch Capacitive, multi-touch
Main unit CPU 1.6 GHz quad core, 128 MB project memory
Main unit power DC 24 V, 7 W
Operating temperature -10 to 50 C
Software XP-Builder
Source LS Electric LXP Catalog (2024.07), p. 14-19
LXP-D1200 Unit: Display unit 12.1 in | Camera: Built-in 720p | XP-VLink: Supported | Version: Standard, IP66
LXP-D1201 Unit: Display unit 12.1 in | Camera: Built-in 720p | XP-VLink: Not supported | Version: Standard, IP66
LXP-D1210 Unit: Display unit 12.1 in | Camera: None | XP-VLink: Supported | Version: Standard, IP66
LXP-D1211 Unit: Display unit 12.1 in | Camera: None | XP-VLink: Not supported | Version: Standard, IP66
LXP-D1911 Unit: Display unit 19 in | Camera: None | XP-VLink: Not supported | Version: Standard, IP54
LXP-T1911 Unit: Touch monitor unit 19 in | Camera: None | XP-VLink: Not supported | Version: Standard, IP54
LXP-M00D Unit: Main unit, runtime | Camera: - | XP-VLink: Supported | Version: Standard, IP20
LXP-M01D Unit: Main unit, runtime | Camera: - | XP-VLink: Not supported | Version: Standard, IP20
LXP-D1200-EX Unit: Display unit 12.1 in | Camera: Built-in 720p | XP-VLink: Supported | Version: Explosion-proof (EX)
LXP-D1201-EX Unit: Display unit 12.1 in | Camera: Built-in 720p | XP-VLink: Not supported | Version: Explosion-proof (EX)
LXP-D1210-EX Unit: Display unit 12.1 in | Camera: None | XP-VLink: Supported | Version: Explosion-proof (EX)
LXP-D1211-EX Unit: Display unit 12.1 in | Camera: None | XP-VLink: Not supported | Version: Explosion-proof (EX)
LXP-M00D-EX Unit: Main unit, runtime | Camera: - | XP-VLink: Supported | Version: Explosion-proof (EX)
LXP-M01D-EX Unit: Main unit, runtime | Camera: - | XP-VLink: Not supported | Version: Explosion-proof (EX)
LXP-D2411 Unit: Display unit 24 in | Camera: None | XP-VLink: Not supported | Version: Legacy code
LXP-T2411 Unit: Touch monitor unit 24 in | Camera: None | XP-VLink: Not supported | Version: Legacy code
HMIsLS Electric
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric LXP Limitless XGT Panel HMI Display and Main Units

Brand LS Electric·HMIs

Available part numbers (16)

LXP-D1200, LXP-D1201, LXP-D1210, LXP-D1211, LXP-D1911, LXP-T1911, LXP-M00D, LXP-M01D, LXP-D1200-EX, LXP-D1201-EX + 6 more — see full table ↓
