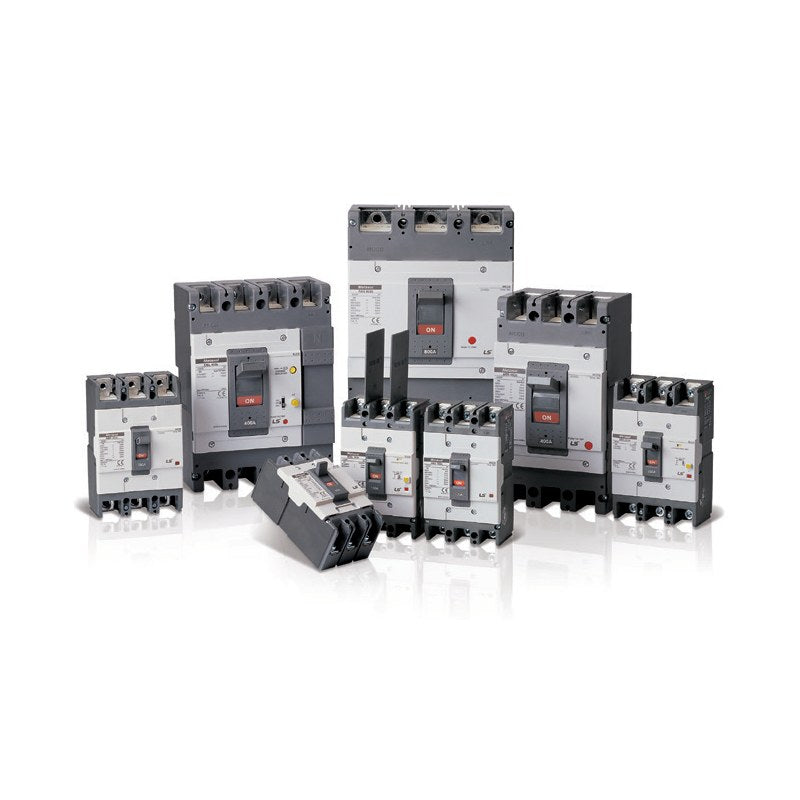

LS Electric Metasol ABE MCCB 30AF (E-type, 3-30 A)

LS Electric Metasol ABE MCCB 30AF (E-type, 3-30 A)

LS Electric Metasol ABE30b economy (E-type) molded case circuit breakers, 30AF, 3-30 A in 2 and 3 poles for AC 460 V circuits.

Key features

  • Economy E-type 30AF frame: ABE32b (2P) and ABE33b (3P)
  • Breaking capacity 2.5 kA at 460/415/380 V and 5 kA at 220 V (Ics 50% Icu)
  • Hydraulic-magnetic (ODP) overcurrent trip, instantaneous trip at 12 x In
  • Compact outline 50 x 96 x 60 mm (2P) / 75 x 96 x 60 mm (3P), screw mounting
  • Internal AX, AL and SHT accessories; insulation barrier B-03B and terminal cover TBS22/TBS23

Specifications

Frame size 30AF
Rated operational voltage (Ue) AC 460 V
Rated impulse voltage (Uimp) 6 kV
Overcurrent trip Hydraulic-magnetic (ODP), Ii 12 x In
Connection Front connection
Mechanical / electrical life 8,500 / 1,500 operations
Certification KC (Electrical Appliances Safety), CE
Standards KS C 8321, IEC 60947-2
Frame 30AF
Icu 460V / 220V 2.5 kA / 5 kA
Source LS Electric Metasol MCCB/ELCB catalog C01031-34 (2025-01), p. 2-1, 5-1 to 5-2
ABE32b/3 Poles: 2P | Rated current: 3 A
ABE33b/3 Poles: 3P | Rated current: 3 A
ABE32b/5 Poles: 2P | Rated current: 5 A
ABE33b/5 Poles: 3P | Rated current: 5 A
ABE32b/10 Poles: 2P | Rated current: 10 A
ABE33b/10 Poles: 3P | Rated current: 10 A
ABE32b/15 Poles: 2P | Rated current: 15 A
ABE33b/15 Poles: 3P | Rated current: 15 A
ABE32b/20 Poles: 2P | Rated current: 20 A
ABE33b/20 Poles: 3P | Rated current: 20 A
ABE32b/30 Poles: 2P | Rated current: 30 A
ABE33b/30 Poles: 3P | Rated current: 30 A
Molded Case Circuit BreakersLS Electric
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Metasol ABE MCCB 30AF (E-type, 3-30 A)

Brand LS Electric·Molded Case Circuit Breakers

Available part numbers (12)

ABE32b/3, ABE33b/3, ABE32b/5, ABE33b/5, ABE32b/10, ABE33b/10, ABE32b/15, ABE33b/15, ABE32b/20, ABE33b/20 + 2 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ABE32b/3Poles: 2P | Rated current: 3 A
ABE33b/3Poles: 3P | Rated current: 3 A
ABE32b/5Poles: 2P | Rated current: 5 A
ABE33b/5Poles: 3P | Rated current: 5 A
ABE32b/10Poles: 2P | Rated current: 10 A
ABE33b/10Poles: 3P | Rated current: 10 A
ABE32b/15Poles: 2P | Rated current: 15 A
ABE33b/15Poles: 3P | Rated current: 15 A
ABE32b/20Poles: 2P | Rated current: 20 A
ABE33b/20Poles: 3P | Rated current: 20 A
ABE32b/30Poles: 2P | Rated current: 30 A
ABE33b/30Poles: 3P | Rated current: 30 A
