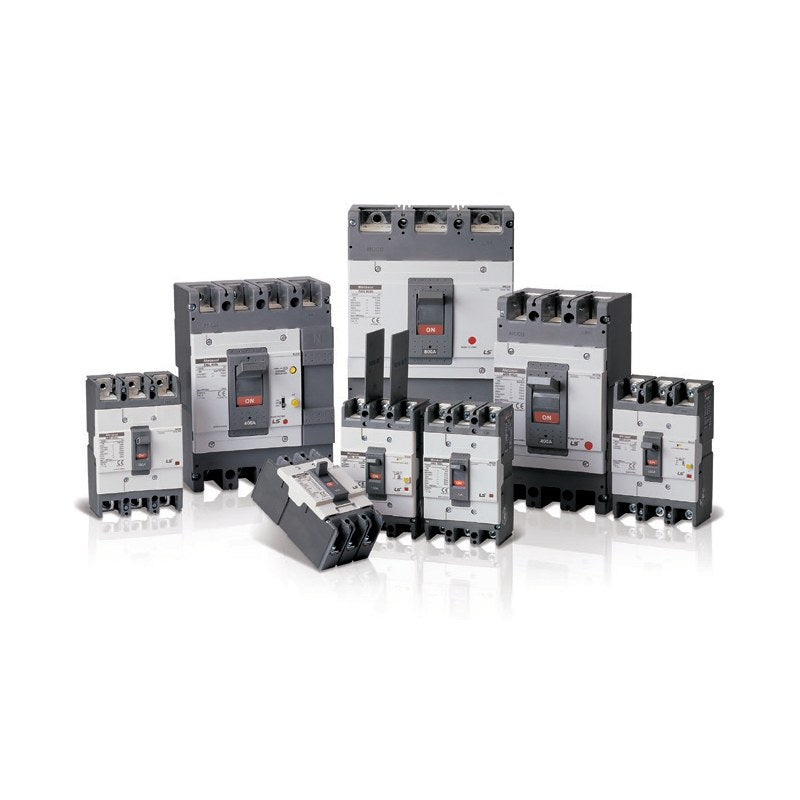

LS Electric Metasol ABH MCCB 50-400AF (H-type, 15-400 A)

LS Electric Metasol ABH MCCB 50-400AF (H-type, 15-400 A)

LS Electric Metasol ABH H-type (high breaking) molded case circuit breakers, 50-400AF frames, 15-400 A in 2, 3 and 4 poles.

Key features

  • Frames 50AF (ABH50c), 125AF (ABH125c), 250AF (ABH250c) and 400AF (ABH400c)
  • Icu at 460 V: 50/125/250AF 50 kA, 400AF 65 kA; 100 kA at 220 V up to 250AF
  • Thermal-magnetic overcurrent trip, Ics 100% Icu
  • Same outline as Metasol EBH ELCB; shared accessories
  • Plug-in (PB-C3, PB-D3, PB-I3), rear terminals, handles and motor operators available

Specifications

Breaking class H-type (high breaking)
Rated operational voltage (Ue) AC 690 V, DC 500 V (reference), 50/60 Hz
Rated insulation / impulse voltage Ui 1000 V, Uimp 8 kV
Overcurrent trip Thermal-magnetic
Connection Front connection (rear and plug-in optional)
Neutral (4-pole) 4P3E, N-pole current max. 50% of In
Ics 100% Icu
Standards KS C 8321, IEC 60947-2
Source LS Electric Metasol MCCB/ELCB catalog C01031-34 (2025-01), p. 2-1 to 2-3, 5-5 to 5-16
ABH52c/15 Frame: 50AF | Poles: 2P | Rated current: 15 A | Icu 460V / 220V: 50 kA / 100 kA
ABH53c/15 Frame: 50AF | Poles: 3P | Rated current: 15 A | Icu 460V / 220V: 50 kA / 100 kA
ABH54c/15 Frame: 50AF | Poles: 4P | Rated current: 15 A | Icu 460V / 220V: 50 kA / 100 kA
ABH52c/16 Frame: 50AF | Poles: 2P | Rated current: 16 A | Icu 460V / 220V: 50 kA / 100 kA
ABH53c/16 Frame: 50AF | Poles: 3P | Rated current: 16 A | Icu 460V / 220V: 50 kA / 100 kA
ABH54c/16 Frame: 50AF | Poles: 4P | Rated current: 16 A | Icu 460V / 220V: 50 kA / 100 kA
ABH52c/20 Frame: 50AF | Poles: 2P | Rated current: 20 A | Icu 460V / 220V: 50 kA / 100 kA
ABH53c/20 Frame: 50AF | Poles: 3P | Rated current: 20 A | Icu 460V / 220V: 50 kA / 100 kA
ABH54c/20 Frame: 50AF | Poles: 4P | Rated current: 20 A | Icu 460V / 220V: 50 kA / 100 kA
ABH52c/25 Frame: 50AF | Poles: 2P | Rated current: 25 A | Icu 460V / 220V: 50 kA / 100 kA
ABH53c/25 Frame: 50AF | Poles: 3P | Rated current: 25 A | Icu 460V / 220V: 50 kA / 100 kA
ABH54c/25 Frame: 50AF | Poles: 4P | Rated current: 25 A | Icu 460V / 220V: 50 kA / 100 kA
ABH52c/30 Frame: 50AF | Poles: 2P | Rated current: 30 A | Icu 460V / 220V: 50 kA / 100 kA
ABH53c/30 Frame: 50AF | Poles: 3P | Rated current: 30 A | Icu 460V / 220V: 50 kA / 100 kA
ABH54c/30 Frame: 50AF | Poles: 4P | Rated current: 30 A | Icu 460V / 220V: 50 kA / 100 kA
ABH52c/32 Frame: 50AF | Poles: 2P | Rated current: 32 A | Icu 460V / 220V: 50 kA / 100 kA
ABH53c/32 Frame: 50AF | Poles: 3P | Rated current: 32 A | Icu 460V / 220V: 50 kA / 100 kA
ABH54c/32 Frame: 50AF | Poles: 4P | Rated current: 32 A | Icu 460V / 220V: 50 kA / 100 kA
ABH52c/40 Frame: 50AF | Poles: 2P | Rated current: 40 A | Icu 460V / 220V: 50 kA / 100 kA
ABH53c/40 Frame: 50AF | Poles: 3P | Rated current: 40 A | Icu 460V / 220V: 50 kA / 100 kA
ABH54c/40 Frame: 50AF | Poles: 4P | Rated current: 40 A | Icu 460V / 220V: 50 kA / 100 kA
ABH52c/50 Frame: 50AF | Poles: 2P | Rated current: 50 A | Icu 460V / 220V: 50 kA / 100 kA
ABH53c/50 Frame: 50AF | Poles: 3P | Rated current: 50 A | Icu 460V / 220V: 50 kA / 100 kA
ABH54c/50 Frame: 50AF | Poles: 4P | Rated current: 50 A | Icu 460V / 220V: 50 kA / 100 kA
ABH102c/15 Frame: 125AF | Poles: 2P | Rated current: 15 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103c/15 Frame: 125AF | Poles: 3P | Rated current: 15 A | Icu 460V / 220V: 50 kA / 100 kA
ABH104c/15 Frame: 125AF | Poles: 4P | Rated current: 15 A | Icu 460V / 220V: 50 kA / 100 kA
ABH102c/16 Frame: 125AF | Poles: 2P | Rated current: 16 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103c/16 Frame: 125AF | Poles: 3P | Rated current: 16 A | Icu 460V / 220V: 50 kA / 100 kA
ABH104c/16 Frame: 125AF | Poles: 4P | Rated current: 16 A | Icu 460V / 220V: 50 kA / 100 kA
ABH102c/20 Frame: 125AF | Poles: 2P | Rated current: 20 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103c/20 Frame: 125AF | Poles: 3P | Rated current: 20 A | Icu 460V / 220V: 50 kA / 100 kA
ABH104c/20 Frame: 125AF | Poles: 4P | Rated current: 20 A | Icu 460V / 220V: 50 kA / 100 kA
ABH102c/30 Frame: 125AF | Poles: 2P | Rated current: 30 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103c/30 Frame: 125AF | Poles: 3P | Rated current: 30 A | Icu 460V / 220V: 50 kA / 100 kA
ABH104c/30 Frame: 125AF | Poles: 4P | Rated current: 30 A | Icu 460V / 220V: 50 kA / 100 kA
ABH102c/32 Frame: 125AF | Poles: 2P | Rated current: 32 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103c/32 Frame: 125AF | Poles: 3P | Rated current: 32 A | Icu 460V / 220V: 50 kA / 100 kA
ABH104c/32 Frame: 125AF | Poles: 4P | Rated current: 32 A | Icu 460V / 220V: 50 kA / 100 kA
ABH102c/40 Frame: 125AF | Poles: 2P | Rated current: 40 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103c/40 Frame: 125AF | Poles: 3P | Rated current: 40 A | Icu 460V / 220V: 50 kA / 100 kA
ABH104c/40 Frame: 125AF | Poles: 4P | Rated current: 40 A | Icu 460V / 220V: 50 kA / 100 kA
ABH102c/50 Frame: 125AF | Poles: 2P | Rated current: 50 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103c/50 Frame: 125AF | Poles: 3P | Rated current: 50 A | Icu 460V / 220V: 50 kA / 100 kA
ABH104c/50 Frame: 125AF | Poles: 4P | Rated current: 50 A | Icu 460V / 220V: 50 kA / 100 kA
ABH102c/60 Frame: 125AF | Poles: 2P | Rated current: 60 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103c/60 Frame: 125AF | Poles: 3P | Rated current: 60 A | Icu 460V / 220V: 50 kA / 100 kA
ABH104c/60 Frame: 125AF | Poles: 4P | Rated current: 60 A | Icu 460V / 220V: 50 kA / 100 kA
ABH102c/63 Frame: 125AF | Poles: 2P | Rated current: 63 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103c/63 Frame: 125AF | Poles: 3P | Rated current: 63 A | Icu 460V / 220V: 50 kA / 100 kA
ABH104c/63 Frame: 125AF | Poles: 4P | Rated current: 63 A | Icu 460V / 220V: 50 kA / 100 kA
ABH102c/75 Frame: 125AF | Poles: 2P | Rated current: 75 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103c/75 Frame: 125AF | Poles: 3P | Rated current: 75 A | Icu 460V / 220V: 50 kA / 100 kA
ABH104c/75 Frame: 125AF | Poles: 4P | Rated current: 75 A | Icu 460V / 220V: 50 kA / 100 kA
ABH102c/80 Frame: 125AF | Poles: 2P | Rated current: 80 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103c/80 Frame: 125AF | Poles: 3P | Rated current: 80 A | Icu 460V / 220V: 50 kA / 100 kA
ABH104c/80 Frame: 125AF | Poles: 4P | Rated current: 80 A | Icu 460V / 220V: 50 kA / 100 kA
ABH102c/100 Frame: 125AF | Poles: 2P | Rated current: 100 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103c/100 Frame: 125AF | Poles: 3P | Rated current: 100 A | Icu 460V / 220V: 50 kA / 100 kA
ABH104c/100 Frame: 125AF | Poles: 4P | Rated current: 100 A | Icu 460V / 220V: 50 kA / 100 kA
ABH102c/125 Frame: 125AF | Poles: 2P | Rated current: 125 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103c/125 Frame: 125AF | Poles: 3P | Rated current: 125 A | Icu 460V / 220V: 50 kA / 100 kA
ABH104c/125 Frame: 125AF | Poles: 4P | Rated current: 125 A | Icu 460V / 220V: 50 kA / 100 kA
ABH202c/100 Frame: 250AF | Poles: 2P | Rated current: 100 A | Icu 460V / 220V: 50 kA / 100 kA
ABH203c/100 Frame: 250AF | Poles: 3P | Rated current: 100 A | Icu 460V / 220V: 50 kA / 100 kA
ABH204c/100 Frame: 250AF | Poles: 4P | Rated current: 100 A | Icu 460V / 220V: 50 kA / 100 kA
ABH202c/125 Frame: 250AF | Poles: 2P | Rated current: 125 A | Icu 460V / 220V: 50 kA / 100 kA
ABH203c/125 Frame: 250AF | Poles: 3P | Rated current: 125 A | Icu 460V / 220V: 50 kA / 100 kA
ABH204c/125 Frame: 250AF | Poles: 4P | Rated current: 125 A | Icu 460V / 220V: 50 kA / 100 kA
ABH202c/150 Frame: 250AF | Poles: 2P | Rated current: 150 A | Icu 460V / 220V: 50 kA / 100 kA
ABH203c/150 Frame: 250AF | Poles: 3P | Rated current: 150 A | Icu 460V / 220V: 50 kA / 100 kA
ABH204c/150 Frame: 250AF | Poles: 4P | Rated current: 150 A | Icu 460V / 220V: 50 kA / 100 kA
ABH202c/160 Frame: 250AF | Poles: 2P | Rated current: 160 A | Icu 460V / 220V: 50 kA / 100 kA
ABH203c/160 Frame: 250AF | Poles: 3P | Rated current: 160 A | Icu 460V / 220V: 50 kA / 100 kA
ABH204c/160 Frame: 250AF | Poles: 4P | Rated current: 160 A | Icu 460V / 220V: 50 kA / 100 kA
ABH202c/175 Frame: 250AF | Poles: 2P | Rated current: 175 A | Icu 460V / 220V: 50 kA / 100 kA
ABH203c/175 Frame: 250AF | Poles: 3P | Rated current: 175 A | Icu 460V / 220V: 50 kA / 100 kA
ABH204c/175 Frame: 250AF | Poles: 4P | Rated current: 175 A | Icu 460V / 220V: 50 kA / 100 kA
ABH202c/200 Frame: 250AF | Poles: 2P | Rated current: 200 A | Icu 460V / 220V: 50 kA / 100 kA
ABH203c/200 Frame: 250AF | Poles: 3P | Rated current: 200 A | Icu 460V / 220V: 50 kA / 100 kA
ABH204c/200 Frame: 250AF | Poles: 4P | Rated current: 200 A | Icu 460V / 220V: 50 kA / 100 kA
ABH202c/225 Frame: 250AF | Poles: 2P | Rated current: 225 A | Icu 460V / 220V: 50 kA / 100 kA
ABH203c/225 Frame: 250AF | Poles: 3P | Rated current: 225 A | Icu 460V / 220V: 50 kA / 100 kA
ABH204c/225 Frame: 250AF | Poles: 4P | Rated current: 225 A | Icu 460V / 220V: 50 kA / 100 kA
ABH202c/250 Frame: 250AF | Poles: 2P | Rated current: 250 A | Icu 460V / 220V: 50 kA / 100 kA
ABH203c/250 Frame: 250AF | Poles: 3P | Rated current: 250 A | Icu 460V / 220V: 50 kA / 100 kA
ABH204c/250 Frame: 250AF | Poles: 4P | Rated current: 250 A | Icu 460V / 220V: 50 kA / 100 kA
ABH402c/250 Frame: 400AF | Poles: 2P | Rated current: 250 A | Icu 460V / 220V: 65 kA / 85 kA
ABH403c/250 Frame: 400AF | Poles: 3P | Rated current: 250 A | Icu 460V / 220V: 65 kA / 85 kA
ABH404c/250 Frame: 400AF | Poles: 4P | Rated current: 250 A | Icu 460V / 220V: 65 kA / 85 kA
ABH402c/300 Frame: 400AF | Poles: 2P | Rated current: 300 A | Icu 460V / 220V: 65 kA / 85 kA
ABH403c/300 Frame: 400AF | Poles: 3P | Rated current: 300 A | Icu 460V / 220V: 65 kA / 85 kA
ABH404c/300 Frame: 400AF | Poles: 4P | Rated current: 300 A | Icu 460V / 220V: 65 kA / 85 kA
ABH402c/350 Frame: 400AF | Poles: 2P | Rated current: 350 A | Icu 460V / 220V: 65 kA / 85 kA
ABH403c/350 Frame: 400AF | Poles: 3P | Rated current: 350 A | Icu 460V / 220V: 65 kA / 85 kA
ABH404c/350 Frame: 400AF | Poles: 4P | Rated current: 350 A | Icu 460V / 220V: 65 kA / 85 kA
ABH402c/400 Frame: 400AF | Poles: 2P | Rated current: 400 A | Icu 460V / 220V: 65 kA / 85 kA
ABH403c/400 Frame: 400AF | Poles: 3P | Rated current: 400 A | Icu 460V / 220V: 65 kA / 85 kA
ABH404c/400 Frame: 400AF | Poles: 4P | Rated current: 400 A | Icu 460V / 220V: 65 kA / 85 kA
Molded Case Circuit BreakersLS Electric
99 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Metasol ABH MCCB 50-400AF (H-type, 15-400 A)

Brand LS Electric·Molded Case Circuit Breakers

Available part numbers (99)

ABH52c/15, ABH53c/15, ABH54c/15, ABH52c/16, ABH53c/16, ABH54c/16, ABH52c/20, ABH53c/20, ABH54c/20, ABH52c/25 + 89 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ABH52c/15Frame: 50AF | Poles: 2P | Rated current: 15 A | Icu 460V / 220V: 50 kA / 100 kA
ABH53c/15Frame: 50AF | Poles: 3P | Rated current: 15 A | Icu 460V / 220V: 50 kA / 100 kA
ABH54c/15Frame: 50AF | Poles: 4P | Rated current: 15 A | Icu 460V / 220V: 50 kA / 100 kA
ABH52c/16Frame: 50AF | Poles: 2P | Rated current: 16 A | Icu 460V / 220V: 50 kA / 100 kA
ABH53c/16Frame: 50AF | Poles: 3P | Rated current: 16 A | Icu 460V / 220V: 50 kA / 100 kA
ABH54c/16Frame: 50AF | Poles: 4P | Rated current: 16 A | Icu 460V / 220V: 50 kA / 100 kA
ABH52c/20Frame: 50AF | Poles: 2P | Rated current: 20 A | Icu 460V / 220V: 50 kA / 100 kA
ABH53c/20Frame: 50AF | Poles: 3P | Rated current: 20 A | Icu 460V / 220V: 50 kA / 100 kA
ABH54c/20Frame: 50AF | Poles: 4P | Rated current: 20 A | Icu 460V / 220V: 50 kA / 100 kA
ABH52c/25Frame: 50AF | Poles: 2P | Rated current: 25 A | Icu 460V / 220V: 50 kA / 100 kA
ABH53c/25Frame: 50AF | Poles: 3P | Rated current: 25 A | Icu 460V / 220V: 50 kA / 100 kA
ABH54c/25Frame: 50AF | Poles: 4P | Rated current: 25 A | Icu 460V / 220V: 50 kA / 100 kA
ABH52c/30Frame: 50AF | Poles: 2P | Rated current: 30 A | Icu 460V / 220V: 50 kA / 100 kA
ABH53c/30Frame: 50AF | Poles: 3P | Rated current: 30 A | Icu 460V / 220V: 50 kA / 100 kA
ABH54c/30Frame: 50AF | Poles: 4P | Rated current: 30 A | Icu 460V / 220V: 50 kA / 100 kA
ABH52c/32Frame: 50AF | Poles: 2P | Rated current: 32 A | Icu 460V / 220V: 50 kA / 100 kA
ABH53c/32Frame: 50AF | Poles: 3P | Rated current: 32 A | Icu 460V / 220V: 50 kA / 100 kA
ABH54c/32Frame: 50AF | Poles: 4P | Rated current: 32 A | Icu 460V / 220V: 50 kA / 100 kA
ABH52c/40Frame: 50AF | Poles: 2P | Rated current: 40 A | Icu 460V / 220V: 50 kA / 100 kA
ABH53c/40Frame: 50AF | Poles: 3P | Rated current: 40 A | Icu 460V / 220V: 50 kA / 100 kA
ABH54c/40Frame: 50AF | Poles: 4P | Rated current: 40 A | Icu 460V / 220V: 50 kA / 100 kA
ABH52c/50Frame: 50AF | Poles: 2P | Rated current: 50 A | Icu 460V / 220V: 50 kA / 100 kA
ABH53c/50Frame: 50AF | Poles: 3P | Rated current: 50 A | Icu 460V / 220V: 50 kA / 100 kA
ABH54c/50Frame: 50AF | Poles: 4P | Rated current: 50 A | Icu 460V / 220V: 50 kA / 100 kA
ABH102c/15Frame: 125AF | Poles: 2P | Rated current: 15 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103c/15Frame: 125AF | Poles: 3P | Rated current: 15 A | Icu 460V / 220V: 50 kA / 100 kA
ABH104c/15Frame: 125AF | Poles: 4P | Rated current: 15 A | Icu 460V / 220V: 50 kA / 100 kA
ABH102c/16Frame: 125AF | Poles: 2P | Rated current: 16 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103c/16Frame: 125AF | Poles: 3P | Rated current: 16 A | Icu 460V / 220V: 50 kA / 100 kA
ABH104c/16Frame: 125AF | Poles: 4P | Rated current: 16 A | Icu 460V / 220V: 50 kA / 100 kA
ABH102c/20Frame: 125AF | Poles: 2P | Rated current: 20 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103c/20Frame: 125AF | Poles: 3P | Rated current: 20 A | Icu 460V / 220V: 50 kA / 100 kA
ABH104c/20Frame: 125AF | Poles: 4P | Rated current: 20 A | Icu 460V / 220V: 50 kA / 100 kA
ABH102c/30Frame: 125AF | Poles: 2P | Rated current: 30 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103c/30Frame: 125AF | Poles: 3P | Rated current: 30 A | Icu 460V / 220V: 50 kA / 100 kA
ABH104c/30Frame: 125AF | Poles: 4P | Rated current: 30 A | Icu 460V / 220V: 50 kA / 100 kA
ABH102c/32Frame: 125AF | Poles: 2P | Rated current: 32 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103c/32Frame: 125AF | Poles: 3P | Rated current: 32 A | Icu 460V / 220V: 50 kA / 100 kA
ABH104c/32Frame: 125AF | Poles: 4P | Rated current: 32 A | Icu 460V / 220V: 50 kA / 100 kA
ABH102c/40Frame: 125AF | Poles: 2P | Rated current: 40 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103c/40Frame: 125AF | Poles: 3P | Rated current: 40 A | Icu 460V / 220V: 50 kA / 100 kA
ABH104c/40Frame: 125AF | Poles: 4P | Rated current: 40 A | Icu 460V / 220V: 50 kA / 100 kA
ABH102c/50Frame: 125AF | Poles: 2P | Rated current: 50 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103c/50Frame: 125AF | Poles: 3P | Rated current: 50 A | Icu 460V / 220V: 50 kA / 100 kA
ABH104c/50Frame: 125AF | Poles: 4P | Rated current: 50 A | Icu 460V / 220V: 50 kA / 100 kA
ABH102c/60Frame: 125AF | Poles: 2P | Rated current: 60 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103c/60Frame: 125AF | Poles: 3P | Rated current: 60 A | Icu 460V / 220V: 50 kA / 100 kA
ABH104c/60Frame: 125AF | Poles: 4P | Rated current: 60 A | Icu 460V / 220V: 50 kA / 100 kA
ABH102c/63Frame: 125AF | Poles: 2P | Rated current: 63 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103c/63Frame: 125AF | Poles: 3P | Rated current: 63 A | Icu 460V / 220V: 50 kA / 100 kA
ABH104c/63Frame: 125AF | Poles: 4P | Rated current: 63 A | Icu 460V / 220V: 50 kA / 100 kA
ABH102c/75Frame: 125AF | Poles: 2P | Rated current: 75 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103c/75Frame: 125AF | Poles: 3P | Rated current: 75 A | Icu 460V / 220V: 50 kA / 100 kA
ABH104c/75Frame: 125AF | Poles: 4P | Rated current: 75 A | Icu 460V / 220V: 50 kA / 100 kA
ABH102c/80Frame: 125AF | Poles: 2P | Rated current: 80 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103c/80Frame: 125AF | Poles: 3P | Rated current: 80 A | Icu 460V / 220V: 50 kA / 100 kA
ABH104c/80Frame: 125AF | Poles: 4P | Rated current: 80 A | Icu 460V / 220V: 50 kA / 100 kA
ABH102c/100Frame: 125AF | Poles: 2P | Rated current: 100 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103c/100Frame: 125AF | Poles: 3P | Rated current: 100 A | Icu 460V / 220V: 50 kA / 100 kA
ABH104c/100Frame: 125AF | Poles: 4P | Rated current: 100 A | Icu 460V / 220V: 50 kA / 100 kA
ABH102c/125Frame: 125AF | Poles: 2P | Rated current: 125 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103c/125Frame: 125AF | Poles: 3P | Rated current: 125 A | Icu 460V / 220V: 50 kA / 100 kA
ABH104c/125Frame: 125AF | Poles: 4P | Rated current: 125 A | Icu 460V / 220V: 50 kA / 100 kA
ABH202c/100Frame: 250AF | Poles: 2P | Rated current: 100 A | Icu 460V / 220V: 50 kA / 100 kA
ABH203c/100Frame: 250AF | Poles: 3P | Rated current: 100 A | Icu 460V / 220V: 50 kA / 100 kA
ABH204c/100Frame: 250AF | Poles: 4P | Rated current: 100 A | Icu 460V / 220V: 50 kA / 100 kA
ABH202c/125Frame: 250AF | Poles: 2P | Rated current: 125 A | Icu 460V / 220V: 50 kA / 100 kA
ABH203c/125Frame: 250AF | Poles: 3P | Rated current: 125 A | Icu 460V / 220V: 50 kA / 100 kA
ABH204c/125Frame: 250AF | Poles: 4P | Rated current: 125 A | Icu 460V / 220V: 50 kA / 100 kA
ABH202c/150Frame: 250AF | Poles: 2P | Rated current: 150 A | Icu 460V / 220V: 50 kA / 100 kA
ABH203c/150Frame: 250AF | Poles: 3P | Rated current: 150 A | Icu 460V / 220V: 50 kA / 100 kA
ABH204c/150Frame: 250AF | Poles: 4P | Rated current: 150 A | Icu 460V / 220V: 50 kA / 100 kA
ABH202c/160Frame: 250AF | Poles: 2P | Rated current: 160 A | Icu 460V / 220V: 50 kA / 100 kA
ABH203c/160Frame: 250AF | Poles: 3P | Rated current: 160 A | Icu 460V / 220V: 50 kA / 100 kA
ABH204c/160Frame: 250AF | Poles: 4P | Rated current: 160 A | Icu 460V / 220V: 50 kA / 100 kA
ABH202c/175Frame: 250AF | Poles: 2P | Rated current: 175 A | Icu 460V / 220V: 50 kA / 100 kA
ABH203c/175Frame: 250AF | Poles: 3P | Rated current: 175 A | Icu 460V / 220V: 50 kA / 100 kA
ABH204c/175Frame: 250AF | Poles: 4P | Rated current: 175 A | Icu 460V / 220V: 50 kA / 100 kA
ABH202c/200Frame: 250AF | Poles: 2P | Rated current: 200 A | Icu 460V / 220V: 50 kA / 100 kA
ABH203c/200Frame: 250AF | Poles: 3P | Rated current: 200 A | Icu 460V / 220V: 50 kA / 100 kA
ABH204c/200Frame: 250AF | Poles: 4P | Rated current: 200 A | Icu 460V / 220V: 50 kA / 100 kA
ABH202c/225Frame: 250AF | Poles: 2P | Rated current: 225 A | Icu 460V / 220V: 50 kA / 100 kA
ABH203c/225Frame: 250AF | Poles: 3P | Rated current: 225 A | Icu 460V / 220V: 50 kA / 100 kA
ABH204c/225Frame: 250AF | Poles: 4P | Rated current: 225 A | Icu 460V / 220V: 50 kA / 100 kA
ABH202c/250Frame: 250AF | Poles: 2P | Rated current: 250 A | Icu 460V / 220V: 50 kA / 100 kA
ABH203c/250Frame: 250AF | Poles: 3P | Rated current: 250 A | Icu 460V / 220V: 50 kA / 100 kA
ABH204c/250Frame: 250AF | Poles: 4P | Rated current: 250 A | Icu 460V / 220V: 50 kA / 100 kA
ABH402c/250Frame: 400AF | Poles: 2P | Rated current: 250 A | Icu 460V / 220V: 65 kA / 85 kA
ABH403c/250Frame: 400AF | Poles: 3P | Rated current: 250 A | Icu 460V / 220V: 65 kA / 85 kA
ABH404c/250Frame: 400AF | Poles: 4P | Rated current: 250 A | Icu 460V / 220V: 65 kA / 85 kA
ABH402c/300Frame: 400AF | Poles: 2P | Rated current: 300 A | Icu 460V / 220V: 65 kA / 85 kA
ABH403c/300Frame: 400AF | Poles: 3P | Rated current: 300 A | Icu 460V / 220V: 65 kA / 85 kA
ABH404c/300Frame: 400AF | Poles: 4P | Rated current: 300 A | Icu 460V / 220V: 65 kA / 85 kA
ABH402c/350Frame: 400AF | Poles: 2P | Rated current: 350 A | Icu 460V / 220V: 65 kA / 85 kA
ABH403c/350Frame: 400AF | Poles: 3P | Rated current: 350 A | Icu 460V / 220V: 65 kA / 85 kA
ABH404c/350Frame: 400AF | Poles: 4P | Rated current: 350 A | Icu 460V / 220V: 65 kA / 85 kA
ABH402c/400Frame: 400AF | Poles: 2P | Rated current: 400 A | Icu 460V / 220V: 65 kA / 85 kA
ABH403c/400Frame: 400AF | Poles: 3P | Rated current: 400 A | Icu 460V / 220V: 65 kA / 85 kA
ABH404c/400Frame: 400AF | Poles: 4P | Rated current: 400 A | Icu 460V / 220V: 65 kA / 85 kA

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Circuit Breakers & Contactors →
