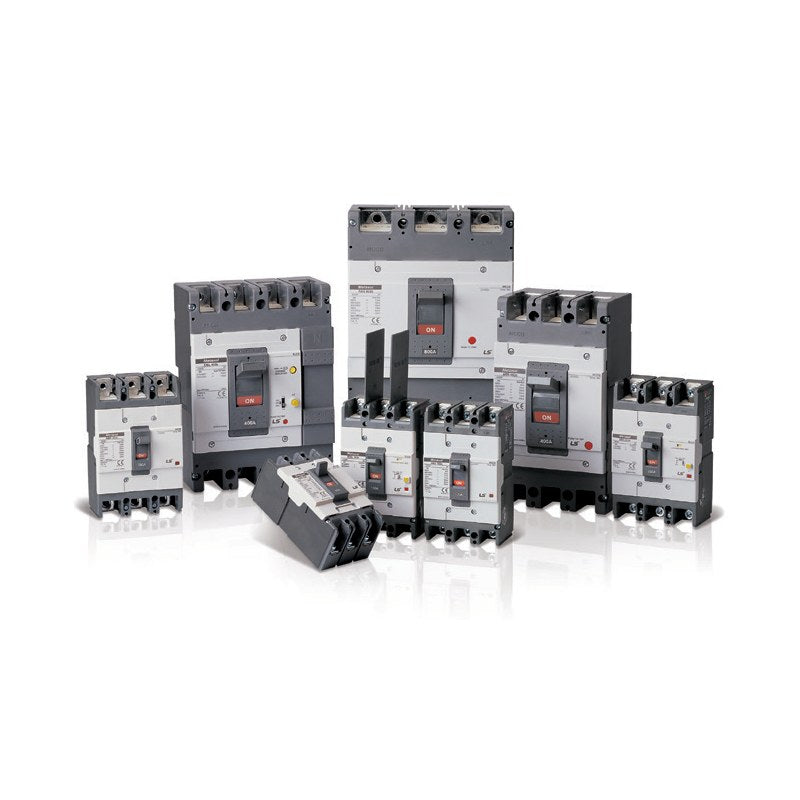

LS Electric Metasol ABL MCCB 125-1200AF (L-type, 15-1200 A)

LS Electric Metasol ABL MCCB 125-1200AF (L-type, 15-1200 A)

LS Electric Metasol ABL L-type (highest breaking) molded case circuit breakers, 125-1200AF frames, 15-1200 A in 2, 3 and 4 poles.

Key features

  • Frames 125AF, 250AF, 400AF, 630AF, 800AF (c series) and 1000/1200AF (b series)
  • Icu at 460 V: 125/250AF 60 kA, 400-1200AF 85 kA; 125 kA at 220 V
  • Ics: 400-800AF 75% and 1000/1200AF 50% of Icu
  • Thermal-magnetic overcurrent trip
  • Shared Metasol internal and external accessories, motor operators MOP-M2 to M6

Specifications

Breaking class L-type (highest breaking)
Rated operational voltage (Ue) AC 690 V (1000/1200AF: AC 600 V)
Rated insulation voltage (Ui) 1000 V (1000/1200AF: 690 V)
Overcurrent trip Thermal-magnetic
Connection Front connection
Neutral (4-pole) 4P3E, N-pole current max. 50% of In
Standards KS C 8321, IEC 60947-2
Source LS Electric Metasol MCCB/ELCB catalog C01031-34 (2025-01), p. 2-2 to 2-4, 5-11 to 5-22
ABL102c/15 Frame: 125AF | Poles: 2P | Rated current: 15 A | Icu 460V / 220V: 60 kA / 125 kA
ABL103c/15 Frame: 125AF | Poles: 3P | Rated current: 15 A | Icu 460V / 220V: 60 kA / 125 kA
ABL104c/15 Frame: 125AF | Poles: 4P | Rated current: 15 A | Icu 460V / 220V: 60 kA / 125 kA
ABL102c/20 Frame: 125AF | Poles: 2P | Rated current: 20 A | Icu 460V / 220V: 60 kA / 125 kA
ABL103c/20 Frame: 125AF | Poles: 3P | Rated current: 20 A | Icu 460V / 220V: 60 kA / 125 kA
ABL104c/20 Frame: 125AF | Poles: 4P | Rated current: 20 A | Icu 460V / 220V: 60 kA / 125 kA
ABL102c/30 Frame: 125AF | Poles: 2P | Rated current: 30 A | Icu 460V / 220V: 60 kA / 125 kA
ABL103c/30 Frame: 125AF | Poles: 3P | Rated current: 30 A | Icu 460V / 220V: 60 kA / 125 kA
ABL104c/30 Frame: 125AF | Poles: 4P | Rated current: 30 A | Icu 460V / 220V: 60 kA / 125 kA
ABL102c/40 Frame: 125AF | Poles: 2P | Rated current: 40 A | Icu 460V / 220V: 60 kA / 125 kA
ABL103c/40 Frame: 125AF | Poles: 3P | Rated current: 40 A | Icu 460V / 220V: 60 kA / 125 kA
ABL104c/40 Frame: 125AF | Poles: 4P | Rated current: 40 A | Icu 460V / 220V: 60 kA / 125 kA
ABL102c/50 Frame: 125AF | Poles: 2P | Rated current: 50 A | Icu 460V / 220V: 60 kA / 125 kA
ABL103c/50 Frame: 125AF | Poles: 3P | Rated current: 50 A | Icu 460V / 220V: 60 kA / 125 kA
ABL104c/50 Frame: 125AF | Poles: 4P | Rated current: 50 A | Icu 460V / 220V: 60 kA / 125 kA
ABL102c/60 Frame: 125AF | Poles: 2P | Rated current: 60 A | Icu 460V / 220V: 60 kA / 125 kA
ABL103c/60 Frame: 125AF | Poles: 3P | Rated current: 60 A | Icu 460V / 220V: 60 kA / 125 kA
ABL104c/60 Frame: 125AF | Poles: 4P | Rated current: 60 A | Icu 460V / 220V: 60 kA / 125 kA
ABL102c/75 Frame: 125AF | Poles: 2P | Rated current: 75 A | Icu 460V / 220V: 60 kA / 125 kA
ABL103c/75 Frame: 125AF | Poles: 3P | Rated current: 75 A | Icu 460V / 220V: 60 kA / 125 kA
ABL104c/75 Frame: 125AF | Poles: 4P | Rated current: 75 A | Icu 460V / 220V: 60 kA / 125 kA
ABL102c/100 Frame: 125AF | Poles: 2P | Rated current: 100 A | Icu 460V / 220V: 60 kA / 125 kA
ABL103c/100 Frame: 125AF | Poles: 3P | Rated current: 100 A | Icu 460V / 220V: 60 kA / 125 kA
ABL104c/100 Frame: 125AF | Poles: 4P | Rated current: 100 A | Icu 460V / 220V: 60 kA / 125 kA
ABL102c/125 Frame: 125AF | Poles: 2P | Rated current: 125 A | Icu 460V / 220V: 60 kA / 125 kA
ABL103c/125 Frame: 125AF | Poles: 3P | Rated current: 125 A | Icu 460V / 220V: 60 kA / 125 kA
ABL104c/125 Frame: 125AF | Poles: 4P | Rated current: 125 A | Icu 460V / 220V: 60 kA / 125 kA
ABL202c/100 Frame: 250AF | Poles: 2P | Rated current: 100 A | Icu 460V / 220V: 60 kA / 125 kA
ABL203c/100 Frame: 250AF | Poles: 3P | Rated current: 100 A | Icu 460V / 220V: 60 kA / 125 kA
ABL204c/100 Frame: 250AF | Poles: 4P | Rated current: 100 A | Icu 460V / 220V: 60 kA / 125 kA
ABL202c/125 Frame: 250AF | Poles: 2P | Rated current: 125 A | Icu 460V / 220V: 60 kA / 125 kA
ABL203c/125 Frame: 250AF | Poles: 3P | Rated current: 125 A | Icu 460V / 220V: 60 kA / 125 kA
ABL204c/125 Frame: 250AF | Poles: 4P | Rated current: 125 A | Icu 460V / 220V: 60 kA / 125 kA
ABL202c/150 Frame: 250AF | Poles: 2P | Rated current: 150 A | Icu 460V / 220V: 60 kA / 125 kA
ABL203c/150 Frame: 250AF | Poles: 3P | Rated current: 150 A | Icu 460V / 220V: 60 kA / 125 kA
ABL204c/150 Frame: 250AF | Poles: 4P | Rated current: 150 A | Icu 460V / 220V: 60 kA / 125 kA
ABL202c/175 Frame: 250AF | Poles: 2P | Rated current: 175 A | Icu 460V / 220V: 60 kA / 125 kA
ABL203c/175 Frame: 250AF | Poles: 3P | Rated current: 175 A | Icu 460V / 220V: 60 kA / 125 kA
ABL204c/175 Frame: 250AF | Poles: 4P | Rated current: 175 A | Icu 460V / 220V: 60 kA / 125 kA
ABL202c/200 Frame: 250AF | Poles: 2P | Rated current: 200 A | Icu 460V / 220V: 60 kA / 125 kA
ABL203c/200 Frame: 250AF | Poles: 3P | Rated current: 200 A | Icu 460V / 220V: 60 kA / 125 kA
ABL204c/200 Frame: 250AF | Poles: 4P | Rated current: 200 A | Icu 460V / 220V: 60 kA / 125 kA
ABL202c/225 Frame: 250AF | Poles: 2P | Rated current: 225 A | Icu 460V / 220V: 60 kA / 125 kA
ABL203c/225 Frame: 250AF | Poles: 3P | Rated current: 225 A | Icu 460V / 220V: 60 kA / 125 kA
ABL204c/225 Frame: 250AF | Poles: 4P | Rated current: 225 A | Icu 460V / 220V: 60 kA / 125 kA
ABL202c/250 Frame: 250AF | Poles: 2P | Rated current: 250 A | Icu 460V / 220V: 60 kA / 125 kA
ABL203c/250 Frame: 250AF | Poles: 3P | Rated current: 250 A | Icu 460V / 220V: 60 kA / 125 kA
ABL204c/250 Frame: 250AF | Poles: 4P | Rated current: 250 A | Icu 460V / 220V: 60 kA / 125 kA
ABL402c/250 Frame: 400AF | Poles: 2P | Rated current: 250 A | Icu 460V / 220V: 85 kA / 125 kA
ABL403c/250 Frame: 400AF | Poles: 3P | Rated current: 250 A | Icu 460V / 220V: 85 kA / 125 kA
ABL404c/250 Frame: 400AF | Poles: 4P | Rated current: 250 A | Icu 460V / 220V: 85 kA / 125 kA
ABL402c/300 Frame: 400AF | Poles: 2P | Rated current: 300 A | Icu 460V / 220V: 85 kA / 125 kA
ABL403c/300 Frame: 400AF | Poles: 3P | Rated current: 300 A | Icu 460V / 220V: 85 kA / 125 kA
ABL404c/300 Frame: 400AF | Poles: 4P | Rated current: 300 A | Icu 460V / 220V: 85 kA / 125 kA
ABL402c/350 Frame: 400AF | Poles: 2P | Rated current: 350 A | Icu 460V / 220V: 85 kA / 125 kA
ABL403c/350 Frame: 400AF | Poles: 3P | Rated current: 350 A | Icu 460V / 220V: 85 kA / 125 kA
ABL404c/350 Frame: 400AF | Poles: 4P | Rated current: 350 A | Icu 460V / 220V: 85 kA / 125 kA
ABL402c/400 Frame: 400AF | Poles: 2P | Rated current: 400 A | Icu 460V / 220V: 85 kA / 125 kA
ABL403c/400 Frame: 400AF | Poles: 3P | Rated current: 400 A | Icu 460V / 220V: 85 kA / 125 kA
ABL404c/400 Frame: 400AF | Poles: 4P | Rated current: 400 A | Icu 460V / 220V: 85 kA / 125 kA
ABL602c/500 Frame: 630AF | Poles: 2P | Rated current: 500 A | Icu 460V / 220V: 85 kA / 125 kA
ABL603c/500 Frame: 630AF | Poles: 3P | Rated current: 500 A | Icu 460V / 220V: 85 kA / 125 kA
ABL604c/500 Frame: 630AF | Poles: 4P | Rated current: 500 A | Icu 460V / 220V: 85 kA / 125 kA
ABL602c/600 Frame: 630AF | Poles: 2P | Rated current: 600 A | Icu 460V / 220V: 85 kA / 125 kA
ABL603c/600 Frame: 630AF | Poles: 3P | Rated current: 600 A | Icu 460V / 220V: 85 kA / 125 kA
ABL604c/600 Frame: 630AF | Poles: 4P | Rated current: 600 A | Icu 460V / 220V: 85 kA / 125 kA
ABL602c/630 Frame: 630AF | Poles: 2P | Rated current: 630 A | Icu 460V / 220V: 85 kA / 125 kA
ABL603c/630 Frame: 630AF | Poles: 3P | Rated current: 630 A | Icu 460V / 220V: 85 kA / 125 kA
ABL604c/630 Frame: 630AF | Poles: 4P | Rated current: 630 A | Icu 460V / 220V: 85 kA / 125 kA
ABL802c/700 Frame: 800AF | Poles: 2P | Rated current: 700 A | Icu 460V / 220V: 85 kA / 125 kA
ABL803c/700 Frame: 800AF | Poles: 3P | Rated current: 700 A | Icu 460V / 220V: 85 kA / 125 kA
ABL804c/700 Frame: 800AF | Poles: 4P | Rated current: 700 A | Icu 460V / 220V: 85 kA / 125 kA
ABL802c/800 Frame: 800AF | Poles: 2P | Rated current: 800 A | Icu 460V / 220V: 85 kA / 125 kA
ABL803c/800 Frame: 800AF | Poles: 3P | Rated current: 800 A | Icu 460V / 220V: 85 kA / 125 kA
ABL804c/800 Frame: 800AF | Poles: 4P | Rated current: 800 A | Icu 460V / 220V: 85 kA / 125 kA
ABL1003b/1000 Frame: 1000AF | Poles: 3P | Rated current: 1000 A | Icu 460V / 220V: 85 kA / 125 kA
ABL1004b/1000 Frame: 1000AF | Poles: 4P | Rated current: 1000 A | Icu 460V / 220V: 85 kA / 125 kA
ABL1203b/1200 Frame: 1200AF | Poles: 3P | Rated current: 1200 A | Icu 460V / 220V: 85 kA / 125 kA
ABL1204b/1200 Frame: 1200AF | Poles: 4P | Rated current: 1200 A | Icu 460V / 220V: 85 kA / 125 kA
